imapplymatrix

Linear combination of color channels

Description

Y = imapplymatrix(M,X) computes the linear combination of the rows of M with the color channels of X.

Y = imapplymatrix(M,X,C) computes the linear combination of the rows of M with the color channels of X, adding the corresponding constant value C to each combination.

example

Y = imapplymatrix(___,output_type) returns the result of the linear combination in an array of type output_type.

Examples

collapse all

This example shows how to create a grayscale image by computing the linear combination of three colors channels.

Read a truecolor image into the workspace.

RGB = imread('peppers.png');

Create a coefficient matrix

M = [0.30, 0.59, 0.11];

Compute the linear combination of the RGB channels using the coefficient matrix.

gray = imapplymatrix(M, RGB);

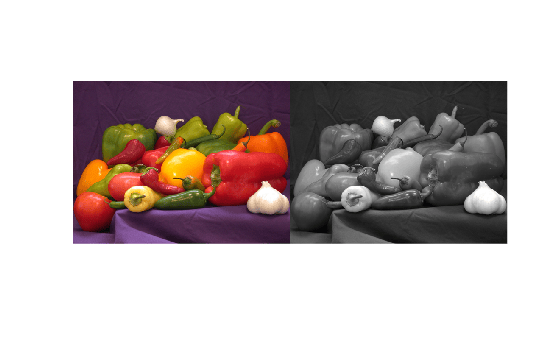

Display the original image and the grayscale conversion.

imshowpair(RGB,gray,'montage')

Input Arguments

collapse all

Weighting coefficients for each color channel, specified as a q-by-p numeric array. p is the length of the third dimension of X. In other words, p=size(X,3). q is in the range [1,p].

Input image, specified as an m-by-n-by-p numeric array.

Constant to add to each channel during the linear combination, specified as q-element numeric vector, where q is the number of rows in M.

Data Types: double

Output data type, specified as one of the following: 'double', 'single', 'uint8', 'uint16', 'uint32', 'int8', 'int16', or 'int32'.

Data Types: char | string

Output Arguments

collapse all

Output image comprised of the linear combination of the rows of M with the color channels of X, returned as a numeric array. If output_type is not specified, the data type of Y is the same as the data type of X.

Introduced in R2011b
