imwarp

Apply geometric transformation to image

Description

example

B = imwarp(A,tform) transforms image A according to the geometric transformation tform. The input image A can be a numeric, logical, or categorical array. tform is a geometric transform object. The function returns the transformed image in B which is the same class as the input image.

B = imwarp(A,D) transforms image A according to the displacement field D.

[B,RB] = imwarp(A,RA,tform) transforms a spatially referenced image, specified by the image data A and the associated spatial referencing object RA. The output is a spatially referenced image specified by the image data B and the associated spatial referencing object RB.

B = imwarp(___,interp) specifies the type of interpolation to use.

[B,RB] = imwarp(___,Name,Value) specifies name-value pair arguments to control various aspects of the geometric transformation.

Examples

collapse all

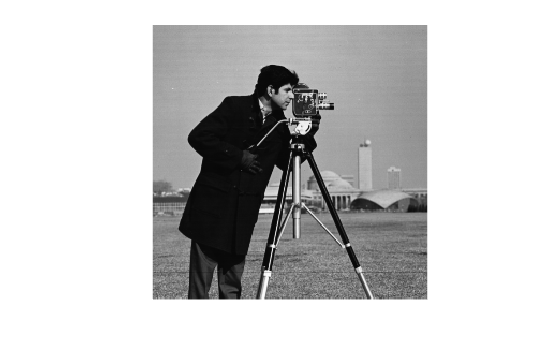

Read grayscale image into workspace and display it.

I = imread('cameraman.tif');
imshow(I)

Create a 2-D geometric transformation object.

tform = affine2d([1 0 0; .5 1 0; 0 0 1])
tform =
  affine2d with properties:

    Dimensionality: 2
                 T: [3x3 double]

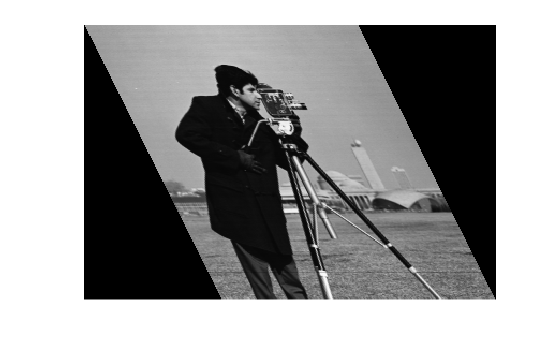

Apply the transformation to the image.

J = imwarp(I,tform);
figure
imshow(J)

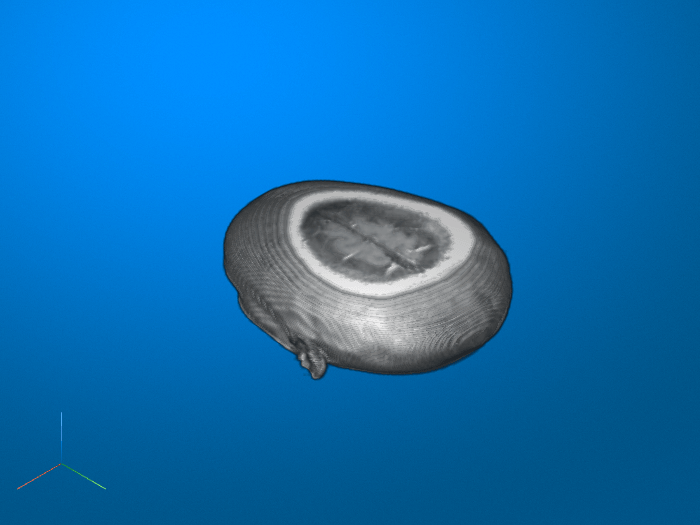

Read 3-D MRI data into the workspace and visualize it.

s = load('mri');
mriVolume = squeeze(s.D);
sizeIn = size(mriVolume);
hFigOriginal = figure;
hAxOriginal  = axes;
slice(double(mriVolume),sizeIn(2)/2,sizeIn(1)/2,sizeIn(3)/2);
grid on, shading interp, colormap gray

Create a 3-D geometric transformation object. First create a transformation matrix that rotates the image around the y-axis. Then create an affine3d object from the transformation matrix.

theta = pi/8;
t = [cos(theta)  0      -sin(theta)   0
     0             1              0     0
     sin(theta)    0       cos(theta)   0
     0             0              0     1];
tform = affine3d(t)
tform =
  affine3d with properties:

    Dimensionality: 3
                 T: [4x4 double]

Apply the transformation to the image.

mriVolumeRotated = imwarp(mriVolume,tform);

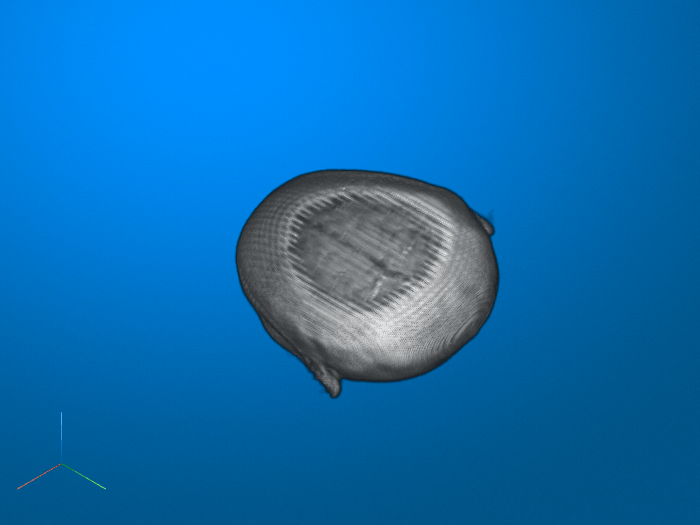

Visualize three slice planes through the center of the transformed volumes.

sizeOut = size(mriVolumeRotated);
hFigRotated = figure;
hAxRotated  = axes;
slice(double(mriVolumeRotated),sizeOut(2)/2,sizeOut(1)/2,sizeOut(3)/2)
grid on, shading interp, colormap gray

Link the views of both axes together.

linkprop([hAxOriginal,hAxRotated],'View');

Set the view to see the effect of rotation.

set(hAxRotated,'View',[-3.5 20.0])

Input Arguments

collapse all

Image to be transformed, specified as a numeric, logical, or categorical array of any dimensionality.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical | categorical

Geometric transformation to perform, specified as an affine2d, projective2d or affine3d object.

  • If tform is 2-D and A has more than two dimensions, such as for an RGB image, then imwarp applies the same 2-D transformation to all 2-D planes along the higher dimensions.

  • If tform is 3-D, then A must be a 3-D image volume.

Displacement field, specified as numeric array. The displacement field defines the grid size and location of the output image. Displacement values are in units of pixels. imwarp assumes that D is referenced to the default intrinsic coordinate system. To estimate the displacement field, use imregdemons.

  • If A is a 2-D grayscale image of size m-by-n, then D is m-by-n-by-2. The first plane of the displacement field, D(:,:,1), describes the x-component of additive displacement. imwarp adds these values to column and row locations in D to produce remapped locations in A. Similarly, the second plane of the displacement field, D(:,:,2), describes the y-component of additive displacement values.

  • If A is a 2-D RGB or 3-D grayscale image of size m-by-n-by-p, then D is:

    • m-by-n-by-p-by-3. D(:,:,:,1) contains displacements along the x-axis, D(:,:,:,2) contains displacements along the y-axis, and D(:,:,:,3) contains displacements along the z-axis

    • m-by-n-by-2, then imwarp applies the displacement field to one plane at a time.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Spatial referencing information of the image to be transformed, specified as an imref2d object for a 2-D transformation or an imref3d object for a 3-D transformation.

Type of interpolation used, specified as one of these values.

Interpolation MethodDescription
'linear'Linear interpolation. This is the default interpolation method for numeric and logical arrays.
'nearest'Nearest-neighbor interpolation—the output pixel is assigned the value of the pixel that the point falls within. No other pixels are considered. This is the only interpolation method and the default for categorical arrays.
'cubic'Cubic interpolation

Data Types: char | string

Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: J = imwarp(I,tform,'FillValues',255) uses white pixels as fill values.

Size and location of output image in world coordinate system, specified as the comma-separated pair consisting of 'OutputView' and an imref2d or imref3d spatial referencing object. The ImageSize, XWorldLimits, and YWorldLimits properties of the spatial referencing object define the size of the output image and the location of the output image in the world coordinate system. The use of 'OutputView' is not available when applying displacement fields.

Fill value used for output pixels outside the input image boundaries, specified as the comma-separated pair consisting of 'FillValues' and a numeric scalar or array. Fill values are used for output pixels when the corresponding inverse transformed location in the input image is completely outside the input image boundaries.

  • If the input image is 2-D and the transform is 2-D, the fill value must be scalar.

  • If the input image is 3-D and the transform is 3-D, the fill value must be scalar.

  • If the input image is N-D and the transform is 2-D, the fill value can be a scalar or an array whose size matches upper dimensions of the input image (3rd to the Nth dimension). For example, if A is an RGB image 200-by-200-by-3, the fill value can be a scalar or a 3-by-1 array. To specify a black fill value you can specify 0 or [0;0;0]. For another example, if A is 4-D with size 200-by-200-by-3-by-10, the fill value can be scalar or a 3-by-10 array.

  • If the input image is a categorical array, use the MATLAB missing function to specify the fill value. For categorical data, missing equates to <undefined>.

Example: 128 specifies a middle-gray fill value for any image of data type uint8

Example: 0.5 specifies a middle-gray fill value for any image of data type double

Example: [255 255 0] specifies a yellow fill color for a 2-D RGB image of data type uint8

Example: [1 1 0] specifies a yellow fill color for a 2-D RGB image of data type double

Example: [0 1 0;1 1 0]' specifies a green and yellow fill color, respectively, for a series of two RGB images of data type double

Pad image to create smooth edges, specified as the logical value true or false. When set to true, imwarp pads the input image (with values specified by FillValues) to create a smoother edge in the output image. When set to false, imwarp does not pad the image. Choosing false (not padding) the input image can result in a sharper edge in the output image. This sharper edge can be useful to minimize seam distortions when registering two images side by side.

Output Arguments

collapse all

Transformed image, returned as a numeric, logical, or categorical array of the same size and data type as the input image A.

Spatial referencing information of the transformed image, returned as an imref2d or imref3d spatial referencing object.

Algorithms

imwarp determines the value of pixels in the output image by mapping locations in the output image to the corresponding locations in the input image (inverse mapping). imwarp interpolates within the input image to compute the output pixel value.

The following figure illustrates a translation transformation. By convention, the axes in input space are labeled u and v and the axes in output space are labeled x and y. In the figure, note how imwarp modifies the spatial coordinates that define the locations of pixels in the input image. The pixel at (1,1) is now positioned at (41,41). In the checkerboard image, each black, white, and gray square is 10 pixels high and 10 pixels wide. For more information about the distinction between spatial coordinates and pixel coordinates, see Image Coordinate Systems.

Input Image Translated

Extended Capabilities

Introduced in R2013a
