# inverseProjection

Reconstruct data cube from principal component bands

## Description

example

reconstructedData = inverseProjection(pcDataCube,coeff) reconstructs the original spectral bands in a hyperspectral data cube from the PCA (principal component analysis) or MNF (maximum noise fraction) transformed data cube and their related coefficients.

Note

This function requires the Image Processing Toolbox™ Hyperspectral Imaging Library. You can install the Image Processing Toolbox Hyperspectral Imaging Library from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

## Examples

collapse all

Read a hyperspectral data into the workspace.

hcube = hypercube('indian_pines.dat');

Extract 10 principal component bands and the transformation coefficients using the principal component analysis method.

[pcDataCube,coeff] = hyperpca(hcube,10);

Reconstruct the original data from 10 principal component bands.

reconstructedData = inverseProjection(pcDataCube,coeff);

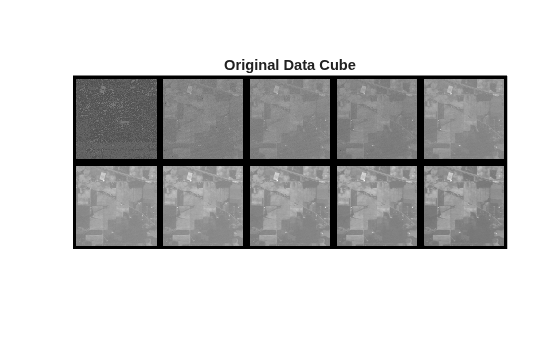

Display the first 10 spectral bands in input data cube.

figure
montage(hcube.DataCube(:,:,1:10),'BorderSize',[10 10],'Size',[2 5],'DisplayRange',[]);
title('Original Data Cube')

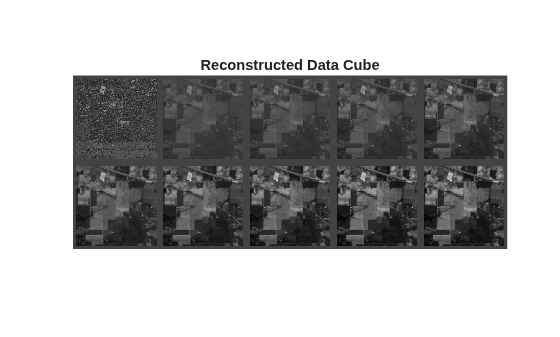

Display the first 10 spectral bands in the reconstructed data cube.

figure
montage(reconstructedData(:,:,1:10),'BorderSize',[10 10],'Size',[2 5],'DisplayRange',[]);
title('Reconstructed Data Cube')

## Input Arguments

collapse all

PCA or MNF transformed data cube, specified as a 3-D numeric array of size M-by-N-by-P. The PCA or MNF transformed data cube of a hyperspectral data cube is computed using the hyperpca or hypermnf functions respectively. P specifies the number of principal component bands in the transformed data cube.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

PCA or MNF coefficients, specified as a matrix of size C-by-P.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

## Output Arguments

collapse all

Reconstructed data cube, returned as a 3-D numeric array of size M-N-by-C. The data type of the reconstructed data cube is same as that of the transformed data cube at the input.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

## Version History

Introduced in R2020a
