getRegion

Read arbitrary region of blocked point cloud

Since R2022a

collapse all in page

Syntax

ptCloud = getRegion(bpc,roi)
[ptCloud,pointAttributes] = getRegion(___)

Description

ptCloud = getRegion(bpc,roi) returns all points in the blocked point cloud bpc in specified region roi.

example

[ptCloud,pointAttributes] = getRegion(___) returns additional point attribute information pointAttributes, using all input arguments from the previous syntax, if the input is a LAZ or LAS file.

Examples

collapse all

Open Live Script

Create a blocked point cloud from a LAZ file.

pcfile = fullfile(toolboxdir("lidar"),"lidardata", ...
  "las","aerialLidarData.laz");
bpc = blockedPointCloud(pcfile,[50 50]);

Specify a region in the point cloud and retrieve the data.

pcRegion = getRegion(bpc,[429745.02 429775.02 ...
                3679830.75 3679860.75 72.79 125.82]);

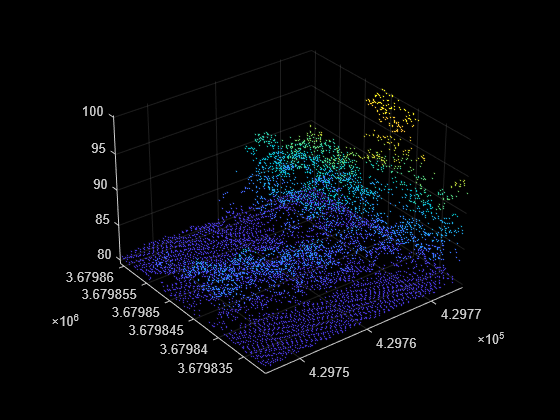

Plot the point cloud data from the specified region.

pcshow(pcRegion)

Figure contains an axes object. The axes object contains an object of type scatter.

Input Arguments

collapse all

Blocked point cloud, specified as a blockedPointCloud object.

ROI limits of the block, specified as a six-element row vector of form [xmin xmax ymin ymax zmin zmax], defining the range of the block.

Output Arguments

collapse all

Point cloud data from specified region, returned as a pointCloud object.

Point attributes, returned as a lidarPointAttributes object.

Version History

Introduced in R2022a
