Create and Export Labels and Label Definitions

After loading the point cloud data into the Lidar Labeler app, create label definitions and attributes. Label definitions contain information about the labels that you can annotate the points with.

For more information on how to load and view data in the Lidar Labeler app, see Load and View Point Cloud Data.

Create an ROI Label Definition

An ROI label is a label that corresponds to a region of interest (ROI).

  1. On the ROI Labels tab in the left pane, click Label.

  2. Specify the label type as Cuboid, Line, Voxel and provide a name for the label.

    Define ROI

  3. From the Group list, select New Group and provide a name for the group. The group name appears on the ROI Labels tab with the specified label name under it. Adding labels to groups is optional.

  4. You can also add a label description.

  5. Click OK to create the label definition.

For more details about these labels, see ROI Labels and Attributes.

Create Voxel Label

When you define a Voxel ROI label, the app opens the Voxel tab. You can draw and fine-tune the voxel regions on a point cloud to label them.

Voxel tab

 Label Voxel Region

 Label Point Clusters

 Label Planar Region

 Data Visibility

 Voxel Opacity


To undo or redo a labeling action in the Voxel tab, press Ctrl+Z or Ctrl+Y, respectively.

Create ROI Attribute

An ROI attribute specifies additional information about an ROI label. You can define ROI attributes of these types.

  • Numeric Value — Specify a numeric scalar attribute, such as the number of doors on a labeled vehicle.

  • String — Specify a string scalar attribute, such as the color of a vehicle.

  • Logical — Specify a logical true or false attribute, such as whether a vehicle is in motion.

  • List — Specify a drop-down list attribute of predefined strings, such as make or model of a vehicle.

Use this process to create an attribute.

  1. On the ROI Labels tab in the left pane, select a label and click Attribute.

  2. Provide an attribute name and select the attribute type. Optionally, give the attribute a description, and click OK. You can hover over the information icon that appears next to the attribute field to display the added description.

    Define ROI attribute

For more details about these attributes, see ROI Labels and Attributes.

Create Scene Label Definition

A scene label defines additional information across a scene. Use scene labels to describe conditions, such as lighting and weather, or events, such as lane changes.

Use this process to create a scene label definition.

  1. Select the Scene Labels tab in the left pane of the app and click Define new scene label.

  2. In the Define new scene label window provide a name for the label.

  3. Choose a Color for the label.

    Define new scene label

  4. From the Group list, select New Group and provide a name for the group. Adding labels to groups is optional.

  5. The Scene Labels pane shows the scene label definition.

Label Data in Burst Mode

Use Burst Mode to label static objects across various point cloud frames at once.

  1. In the range slider pane, click Burst Mode to begin labeling data in burst mode.

  2. Specify the frame numbers in which you want to label objects. The app displays the specified frames in the visualization pane.

  3. Draw labels on static objects. The app applies labels across all specified frames.

  4. Verify the drawn labels across the specified point cloud frames and then exit burst mode labeling by selecting Accept and Exit.

Burst mode can be useful when the input data has a large number of frames with static objects.

View and Adjust Labels

Once you have created labels for your point cloud data, the app toolstrip provides options on the LIDAR tab, to view and adjust your point cloud and label data. These options enable you to more easily label sparse 3-D data points.

Projected View

Select Projected View to view the front-view, top-view, and side-view of the selected label simultaneously. Use these views to manually adjust the accuracy of your labels.

Projected view of point cloud data

Auto Align Labels

Select Auto Align to fit a cuboid accurately to the label data and align the label in the direction of the object. This image shows the difference between a label with and a label without the Auto Align option selected.

Label without Auto Align optionLabel with Auto Align option

Without auto align, the label box is neither centered on nor aligned with the object it labels.

With auto align, the label box is centered on and aligned with the object it labels.

Snap and Shrink Labels

On the LIDAR tab, use these options to snap and shrink your labels to fit the points.

  • Shrink To Fit — Shrink the size of cuboid labels to best fit the labeled points.

  • Snap To Cluster — Snap labels to best fit the selected point clusters. You can also specify which clustering algorithm to use to fine-tune the point clusters, by selecting Cluster Settings.

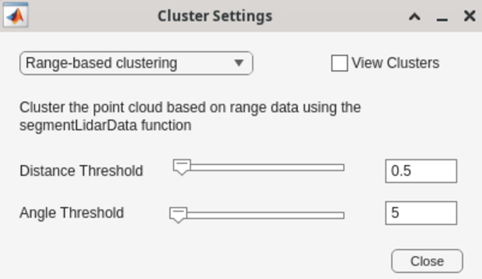

    Cluster Settings Dialog Box

    • Select Range-based clustering to cluster point cloud data using the segmentLidarData function. This option is not applicable for unorganized point cloud data.

    • Select Distance-based clustering to cluster point cloud data using the pcsegdist function.

    • Select k-means clustering to perform k-means clustering on the points.

    • Select DBSCAN clustering to cluster point cloud data using a density-based spacial clustering of applications with noise (DBSCAN) clustering algorithm, where each point of a valid cluster must have at least a minimum number of neighboring points within a given radius.

    You can specify the algorithm parameters in the dialog box, and visualize the output point cloud clusters.

  • Snap to Point — Snap the line label vertex to the nearest point in the point cloud.


For more visualization options, see Visualize Point Cloud Data.

Export Labels and Save Labeling Session

After labeling your point cloud data, click Export on the LABEL tab to export the labels. You can export the labels and label definitions to a file or to the MATLAB workspace.

You can also manage your data by saving and loading app sessions. To save your session, and then reopen it later to continue labeling the same data, on the LABEL tab,

  • Select Save Session, and then either Save or Save As, to save the current labeling session.

  • Click New Session, in the dialog box that opens, specify a session folder.

  • Click Open Session, and select one of the listed recent sessions, or navigate to the folder of a previous session.
