Eckert V Projection
Central Meridian: Straight line half as long as the Equator.
Other Meridians: Equally spaced sinusoidal curves concave toward the central meridian.
Parallels: Equally spaced straight parallel lines, perpendicular to the central meridian.
Poles: Lines half as long as the Equator.
Symmetry: About the central meridian or the Equator.
This projection is an arithmetic average of the x and y coordinates of the Sinusoidal and Plate Carrée projections. Scale is true along latitudes 37º55'N and S, and is constant along any parallel and between any pair of parallels equidistant from the Equator. There is no point free of all distortion, but the Equator is free of angular distortion. This projection is not equal-area, conformal, or equidistant.
This projection has one standard parallel, which is by definition fixed at 0º.
This projection was presented by Max Eckert in 1906.
This implementation of the Eckert V projection is applicable only for coordinates that are referenced to a sphere. If you want to project coordinates that are referenced to an ellipsoid, using the
projinvfunctions, then create a
projcrsobject instead of a map projection structure. You can create a
projcrsobject for the Eckert V projection using the ESRI authority code 54011. For example:

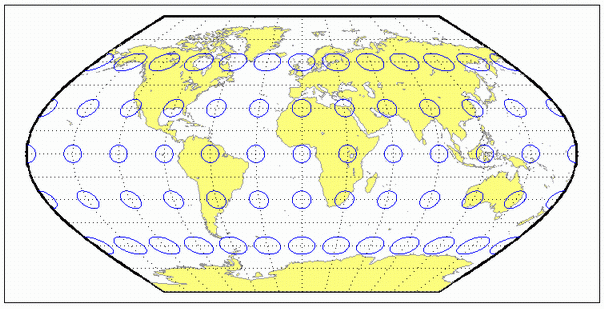

landareas = shaperead('landareas.shp','UseGeoCoords',true); axesm ('eckert5', 'Frame', 'on', 'Grid', 'on'); geoshow(landareas,'FaceColor',[1 1 .5],'EdgeColor',[.6 .6 .6]); tissot;
