wrapToPi

Wrap angle in radians to [−pi pi]

Description

example

lambdaWrapped = wrapToPi(lambda) wraps angles in lambda, in radians, to the interval [−pi, pi] such that pi maps to pi and −pi maps to −pi. In general, odd, positive multiples of pi map to pi and odd, negative multiples of pi map to −pi.

Examples

collapse all

Specify a short list of angles to wrap.

lambda = [-2*pi -pi-0.1 -pi -2.8 3.1 pi pi+1 2*pi];

Wrap the angles to the range [-π, π] radians.

lambdaWrapped = wrapToPi(lambda)
lambdaWrapped = 1×8

         0    3.0416   -3.1416   -2.8000    3.1000    3.1416   -2.1416         0

Specify a second list of angles, and wrap them.

lambda2 = -10:0.1:10;
lambda2Wrapped = wrapToPi(lambda2);

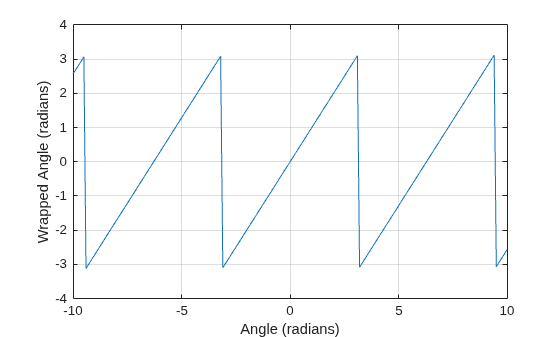

Plot the wrapped angles. The wrapped angles stay in the range [-π, π] radians.

plot(lambda2,lambda2Wrapped)
xlabel("Angle (radians)")
ylabel("Wrapped Angle (radians)")
grid on

Input Arguments

collapse all

Angles, specified as a numeric vector.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical

Output Arguments

collapse all

Wrapped angles, specified as a numeric vector with values in the range [−pi, pi].

Introduced in R2007b
