## 2-D Fourier Transforms

The `fft2`

function transforms
2-D data into frequency space. For example, you can transform a 2-D
optical mask to reveal its diffraction pattern.

### Two-Dimensional Fourier Transform

The following formula defines the discrete Fourier transform *Y* of
an *m*-by-*n* matrix *X*.

$${Y}_{p+1,q+1}={\displaystyle \sum _{j=0}^{m-1}{\displaystyle \sum _{k=0}^{n-1}{\omega}_{m}^{jp}{\omega}_{n}^{kq}{X}_{j+1,k+1}}}$$

*ω _{m}* and

*ω*are complex roots of unity defined by the following equations.

_{n}$$\begin{array}{l}{\omega}_{m}={e}^{-2\pi i/m}\\ {\omega}_{n}={e}^{-2\pi i/n}\end{array}$$

*i* is the imaginary unit, *p* and *j* are
indices that run from 0 to *m*–1, and *q* and *k* are
indices that run from 0 to *n*–1. The indices
for *X* and *Y* are shifted by 1
in this formula to reflect matrix indices in MATLAB^{®}.

Computing the 2-D Fourier transform of *X* is
equivalent to first computing the 1-D transform of each column of *X*,
and then taking the 1-D transform of each row of the result. In other
words, the command `fft2(X)`

is equivalent to ```
Y
= fft(fft(X).').'
```

.

### 2-D Diffraction Pattern

In optics, the Fourier transform can be used to describe the diffraction pattern produced by a plane wave incident on an optical mask with a small aperture [1]. This example uses the `fft2`

function on an optical mask to compute its diffraction pattern.

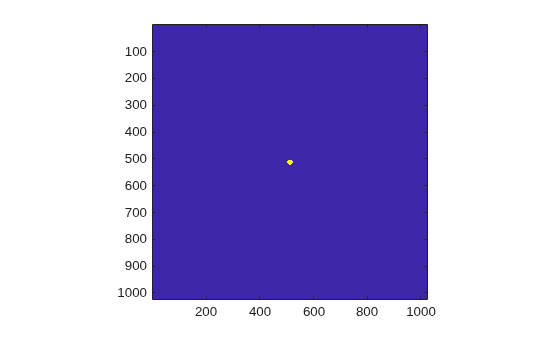

Create a logical array that defines an optical mask with a small, circular aperture.

n = 2^10; % size of mask M = zeros(n); I = 1:n; x = I-n/2; % mask x-coordinates y = n/2-I; % mask y-coordinates [X,Y] = meshgrid(x,y); % create 2-D mask grid R = 10; % aperture radius A = (X.^2 + Y.^2 <= R^2); % circular aperture of radius R M(A) = 1; % set mask elements inside aperture to 1 imagesc(M) % plot mask axis image

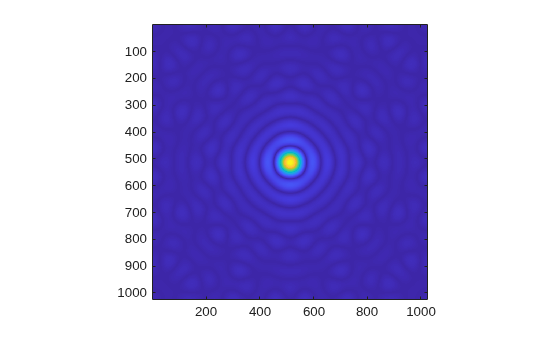

Use `fft2`

to compute the 2-D Fourier transform of the mask, and use the `fftshift`

function to rearrange the output so that the zero-frequency component is at the center. Plot the resulting diffraction pattern frequencies. Blue indicates small amplitudes and yellow indicates large amplitudes.

```
DP = fftshift(fft2(M));
imagesc(abs(DP))
axis image
```

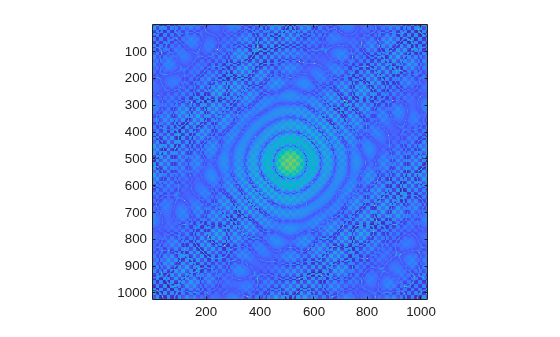

To enhance the details of regions with small amplitudes, plot the 2-D logarithm of the diffraction pattern. Very small amplitudes are affected by numerical round-off error, and the rectangular grid causes radial asymmetry.

```
imagesc(abs(log2(DP)))
axis image
```

## References

[1] Fowles, G. R. *Introduction
to Modern Optics*. New York: Dover, 1989.
