Filled 3-D polygons

`fill3(X,Y,Z,C)`

fill3(X,Y,Z,ColorSpec)

fill3(X1,Y1,Z1,C1,X2,Y2,Z2,C2,...)

fill3(...,'PropertyName',PropertyValue)

fill3(ax,...)

h = fill3(...)

The `fill3`

function creates flat-shaded
and Gouraud-shaded polygons.

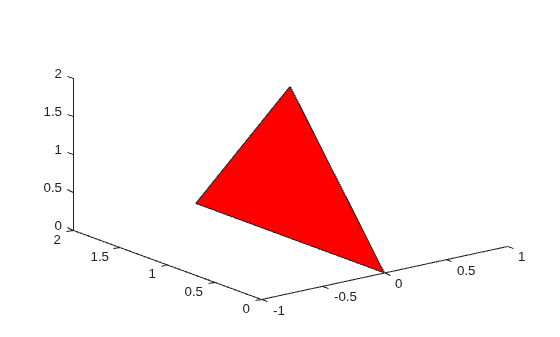

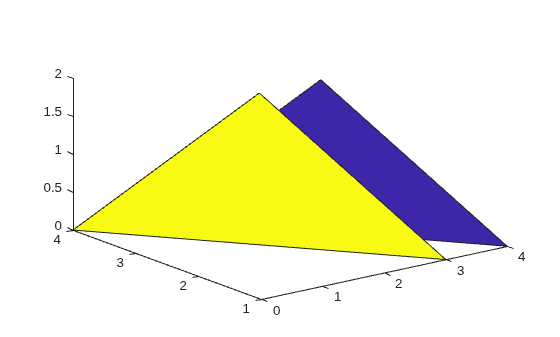

`fill3(X,Y,Z,C)`

fills three-dimensional
polygons. `X`

, `Y`

, and `Z`

triplets
specify the polygon vertices. If `X`

, `Y`

,
or `Z`

is a matrix, `fill3`

creates *n* polygons,
where *n* is the number of columns in the matrix. `fill3`

closes
the polygons by connecting the last vertex to the first when necessary.
The values in `X`

, `Y`

, and `Z`

can
be numeric, datetime, duration, or categorical values.

`C`

specifies color, where `C`

is
a vector or matrix of indices into the current colormap. If `C`

is
a row vector, `length(C)`

must equal `size(X,2)`

and `size(Y,2)`

;
if `C`

is a column vector, `length(C)`

must
equal `size(X,1)`

and `size(Y,1)`

.

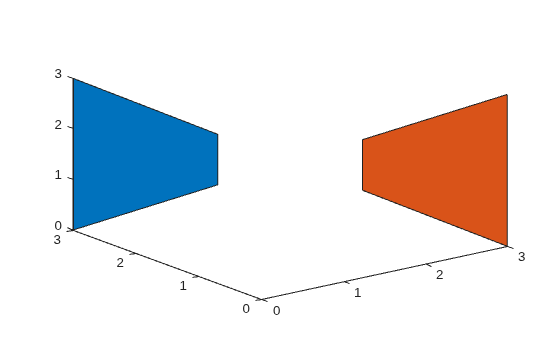

`fill3(X,Y,Z,ColorSpec)`

fills the polygons with the
color specified by `ColorSpec`

, which can be one of the following values:

A color name or a short name:

`'red'`

(or`'r'`

),`'green'`

(or`'g'`

),`'blue'`

(or`'b'`

),`'cyan'`

(or`'c'`

),`'magenta'`

(or`'m'`

),`'yellow'`

(or`'y'`

),`'black'`

(or`'k'`

),`'white'`

(or`'w'`

).An RGB triplet specified as a 1-by-3 vector whose elements are the intensities of the red, green, and blue components of a color. The intensities must be in the range [0, 1]. For example,

`[0.7 0.8 1]`

specifies light blue.

`fill3(X1,Y1,Z1,C1,X2,Y2,Z2,C2,...)`

specifies
multiple filled three-dimensional areas.

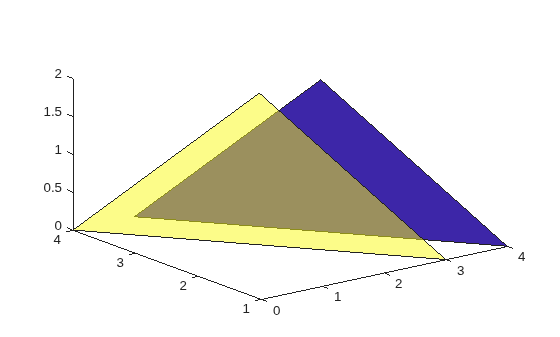

`fill3(...,'PropertyName',PropertyValue)`

allows you to
set values for specific patch properties.

`fill3(ax,...)`

creates the polygons in the
axes specified by `ax`

instead of in the current
axes (`gca`

). The option `ax`

can
precede any of the input argument combinations in the previous syntaxes.

`h = fill3(...)`

returns
a vector of patch objects.

If `X`

, `Y`

, and `Z`

are
matrices of the same size, `fill3`

forms a vertex
from the corresponding elements of `X`

, `Y`

,
and `Z`

(all from the same matrix location), and
creates one polygon from the data in each column.

If `X`

, `Y`

, or `Z`

is
a matrix, `fill3`

replicates any column vector argument
to produce matrices of the required size.

If you specify color using the `ColorSpec`

argument,
`fill3`

generates flat-shaded polygons and sets the patch object
`FaceColor`

property to an RGB triplet.

If you specify color using `C`

, `fill3`

scales
the elements of `CLim`

by the axes property `CLim`

,
which specifies the color axis scaling parameters, before indexing
the current colormap.

If `C`

is a row vector, `fill3`

generates
flat-shaded polygons and sets the `FaceColor`

property
of the patch objects to `'flat'`

. Each element
becomes the `CData`

property value for the respective
patch object.

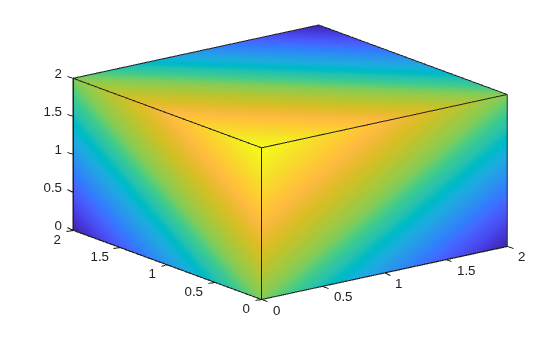

If `C`

is a column vector or a matrix, `fill3`

generates
polygons with interpolated colors and sets the patch object `FaceColor`

property
to `'interp'`

. `fill3`

uses a
linear interpolation of the vertex colormap indices when generating
polygons with interpolated colors. The elements in one column become
the `CData`

property value for the respective patch
object. If `C`

is a column vector, `fill3`

replicates
the column vector to produce the required sized matrix.
