# kde

Kernel density estimate for univariate data

Since R2023b

## Syntax

``[f,xf] = kde(a)``
``[f,xf,bw] = kde(a)``
``[___] = kde(a,Name=Value)``

## Description

example

````[f,xf] = kde(a)` estimates a probability density function (pdf) for the univariate data in the vector `a` and returns values `f` of the estimated pdf at the evaluation points `xf`. `kde` uses kernel density estimation to estimate the pdf. See Kernel Distribution for more information.```

example

````[f,xf,bw] = kde(a)` also returns the bandwidth for the kernel smoothing function.```

example

````[___] = kde(a,Name=Value)` specifies options using one or more name-value arguments. For example, `kde(a,ProbabilityFcn="cdf")` estimates the cumulative distribution function (cdf) for `a` instead of the pdf. Use this syntax with any of the output argument combinations in the previous syntaxes.```

## Examples

collapse all

Generate some normally distributed data.

```rng(0,"twister") % For reproducibility a = randn(100,1);```

Estimate the pdf for the sample data.

`[fp,xfp] = kde(a);`

`fp` contains the values for the estimated pdf at the evaluation points in `xfp`.

Estimate the cdf for the sample data.

`[fc,xfc] = kde(a,ProbabilityFcn="cdf");`

`fc` contains the values for the estimated cdf at the evaluation points in `xfc`. `xfc` and `xfp` contain the same evaluation points because they were both calculated with the sample data in `a`.

Evaluate the pdf and cdf for the normal distribution at the evaluation points.

```np = (1/sqrt(2*pi))*exp(-.5*(xfp.^2)); nc = 0.5*(1+erf(xfc/sqrt(2)));```

Plot the estimated pdf with the normal distribution pdf.

```plot(xfp,fp,"-",xfp,np,"--") legend("kde estimate","Normal density")```

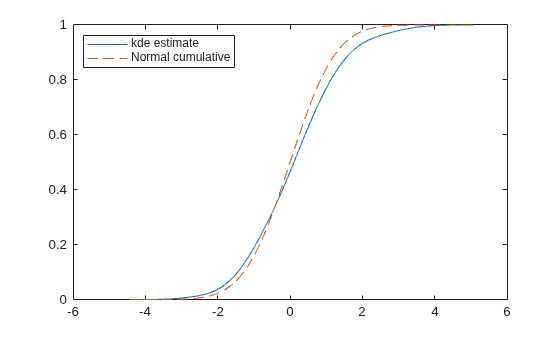

Plot the estimated pdf with the normal distribution pdf.

```figure plot(xfc,fc,"-",xfc,nc,"--") legend("kde estimate","Normal cumulative",Location="northwest")```

The plots show that the estimated pdf and cdf have shapes similar to the pdf and cdf of the standard normal distribution.

Generate some normally distributed data.

```rng(0,"twister") % For reproducibility a = randn(100,1);```

Estimate the pdf for the sample data. By default, `kde` uses the normal-approximation method to calculate the bandwidth for the kernel smoothing function.

`[fn,xfn,bwn] = kde(a);`

`fn` contains the values for the estimated pdf at the evaluation points in `xfn`, and `bwn` is the bandwidth for the kernel smoothing function.

Estimate the pdf using the plug-in method, and display the bandwidth associated with each estimated pdf.

```[p,xp,bwp] = kde(a,Bandwidth="plug-in"); [bwn,bwp]```
```ans = 1×2 0.4958 0.5751 ```

The bandwidth calculated with the normal-approximation method is less than the bandwidth calculated with the plug-in method.

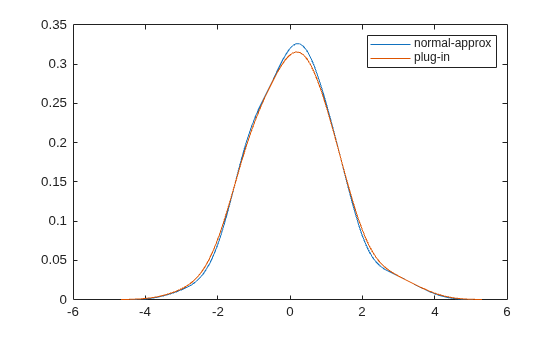

Plot the estimated pdfs.

```plot(xfn,fn) hold on plot(xp,p) legend("normal-approx","plug-in")```

The estimated pdfs have shapes typical of a normal distribution. The peak of the pdf corresponding to the normal-approximation method is higher than the peak of the pdf corresponding to the plug-in method.

Generate some bimodal sample data.

```rng(0,"twister") % For reproducibility a = [randn(100,1)-5; randn(20,1)+5];```

Use the default `"normal"` kernel smoothing function to estimate the pdf for the sample data. Use the `"box"`, `"triangle"`, and `"parabolic"` kernel smoothing functions to calculate three more estimates for the pdf.

```[f1,xf1] = kde(a); [f2,xf2] = kde(a,Kernel="box"); [f3,xf3] = kde(a,Kernel="triangle"); [f4,xf4] = kde(a,Kernel="parabolic");```

`xf1`, `xf2`, `xf3`, and `xf4` contain the same evaluation points because they were each calculated with the sample data in `a`. `f1`, `f2`, `f3`, and `f4` contain the values of each estimated pdf at the evaluation points.

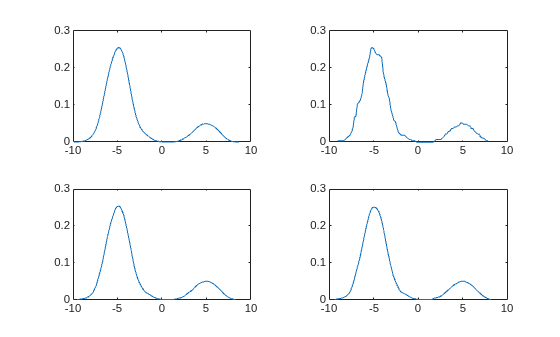

Plot the estimated pdfs.

```tiledlayout(2,2) nexttile plot(xf1,f1) % normal nexttile plot(xf2,f2) % box nexttile plot(xf3,f3) % triangle nexttile plot(xf4,f4) % parabolic```

The plots show that the four estimated pdfs have similar vertical ranges and two peaks each. The pdf calculated with the `"box"` kernel appears to be the least smooth of the four estimates.

## Input Arguments

collapse all

Sample data used to estimate the probability function, specified as a numeric vector.

Data Types: `single` | `double`

### Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: `kde(a,Kernel="box",Bandwidth=0.8,Weight=wgt)` specifies a box kernel smoothing function with a bandwidth of `0.8` and vector of observation weights `wgt`.

Bandwidth for the kernel smoothing function, specified as `"normal-approx"`, `"plug-in"`, or a positive scalar.

• When `Bandwidth` is `"normal-approx"`, `kde` uses the normal-approximation method, or Silverman's rule of thumb, to calculate the bandwidth.

• When `Bandwidth` is `"plug-in"`, `kde` uses the improved plug-in method described in [1] to calculate the bandwidth. The plug-in method is sometimes called the Sheather-Jones method.

• When `Bandwidth` is a positive scalar, its value controls the smoothness of the probability function estimate. As the value increases, the probability function estimate gets smoother.

To see how `Bandwidth` affects the kernel smoothing function, see `Kernel`.

Example: `kde(a,Bandwidth="plug-in")`

Data Types: `single` | `double` | `string` | `char`

Points at which to evaluate the estimated probability function, specified as a numeric vector. By default, `kde` evaluates the estimated probability function at `NumPoints` evenly spaced points that cover the range of the observations in `a`.

If you specify both the `NumPoints` and `EvaluationPoints` name-value arguments, `kde` ignores `NumPoints`.

Example: `kde(a,EvaluationPoints=linspace(0,10,50))`

Data Types: `single` | `double`

Type of kernel smoothing function, specified as a function handle or one of the values in this table.

ValueEquation
`"normal"`${K}_{i}\left(x\right)=\frac{1}{\sqrt{2\pi }}{e}^{\frac{-{d}_{i}^{2}}{2}}$
`"box"`${K}_{i}\left(x\right)=\left\{\begin{array}{c}\frac{1}{2\sqrt{3}},|{d}_{i}|\le \sqrt{3}\\ 0,|{d}_{i}|>\sqrt{3}\end{array}$
`"triangle"`${K}_{i}\left(x\right)=\left\{\begin{array}{c}\frac{1-\frac{|{d}_{i}|}{\sqrt{6}}}{\sqrt{6}},|{d}_{i}|\le \sqrt{6}\\ 0,|{d}_{i}|>\sqrt{6}\end{array}$
`"parabolic"`$\begin{array}{l}{K}_{i,h}\left(x\right)=\mathrm{max}\left(0,\frac{3}{4}u\right),\\ u=\frac{1-\frac{{z}^{2}}{5}}{\sqrt{5}},\\ z=\mathrm{max}\left(-\sqrt{5},\mathrm{min}\left({d}_{i},\sqrt{5}\right)\right)\end{array}$

In the table, ${d}_{i}=\frac{x-{a}_{i}}{h}$, h is the bandwidth specified in the `Bandwidth` name-value argument, and `ai` is the element at position `i` in `a`. A parabolic kernel smoothing function is sometimes called an epanechnikov smoothing function.

If you specify `Kernel` as a function handle, the function must accept a matrix or column vector of arbitrary length as its only input argument and return a nonnegative matrix or vector of the same size.

For more information about how `kde` uses the kernel smoothing function to estimate the probability function, see Kernel Distribution.

Example: `kde(a,Kernel="parabolic")`

Data Types: `string` | `char` | `function_handle`

Number of evaluation points for the estimated probability function, specified as a positive integer scalar. By default, `NumPoints = max(100,u)`, where `u` is the square root of the number of elements in `a`, rounded to the nearest integer.

If you specify both the `NumPoints` and `EvaluationPoints` name-value arguments, `kde` ignores `NumPoints`.

Example: `kde(a,NumPoints=100)`

Data Types: `single` | `double`

Probability function to estimate, specified as `"pdf"` or `"cdf"`. When `ProbabilityFcn` is `"pdf"`, `kde` estimates a probability density function. To estimate a cumulative distribution function, specify `ProbabilityFcn` as `"cdf"`.

Example: `kde(a,ProbabilityFcn="cdf")`

Interval for the sample data, specified as a two-element numeric vector, `"unbounded"`, `"positive"`, `"nonnegative"`, or `"negative"`. The elements of `a` must be in the interval specified by `Support`. The estimated probability function evaluates to `0` outside of the interval.

If you specify `Support` as a two-element vector ```[L U]``` or `[L;U]`, `L` must be greater than `max(a)` and `U` must be less than `min(a)`. The interval is open with lower bound `L` and upper bound `U`.

If you specify `Support` as a string, the sample data exists inside an interval described in this table.

ValueSupport
`"unbounded"`$\left(-Inf,Inf\right)$
`"positive"`$\left(0,Inf\right)$
`"nonnegative"`$\left[0,Inf\right)$
`"negative"`$\left(-Inf,0\right)$

Example: `kde(a,Support="nonnegative")`

Data Types: `single` | `double` | `string` | `char`

Observation weights, specified as a nonnegative vector. By default, `kde` weights all observations in `a` equally. For more information about how `kde` uses weights to estimate the probability function, see Kernel Distribution.

Data Types: `single` | `double`

## Output Arguments

collapse all

Estimated function values, returned as a numeric vector. The length of `f` is equal to the number of evaluation points in `xf`.

Evaluation points, returned as a numeric vector. `xf` has the same size as the `EvaluationPoints` name-value argument, if `EvaluationPoints` is specified. Otherwise, the size of `xf` is given by the `NumPoints` name-value argument.

Bandwidth for the kernel smoothing function, returned as a positive scalar. You can use the `Bandwidth` name-value argument to specify the value for `bw` or the method for calculating `bw`.

## More About

collapse all

### Kernel Distribution

A kernel distribution is a nonparametric representation of a probability density function (pdf) of a random variable. You can use a kernel distribution when a parametric distribution cannot properly describe the data or when you want to avoid making assumptions about the distribution of the data. A kernel distribution is defined by a smoothing function and a bandwidth value, which control the smoothness of the resulting density curve.

The kernel estimator is an estimated probability function for a random variable. For any real values of x, the kernel estimator for the pdf is given by

`${\stackrel{^}{f}}_{h}\left(x\right)=\frac{1}{nh}\sum _{i=1}^{n}{w}_{i}K\left(\frac{x-{x}_{i}}{h}\right)\text{\hspace{0.17em}},$`

where the xi values are random samples from an unknown distribution, wi values are their corresponding weights, n is the sample size, $K$ is the kernel smoothing function, and h is the bandwidth.

For any real values of x, the kernel estimator for the cumulative distribution function (cdf) is given by

`${\stackrel{^}{F}}_{h}\left(x\right)={\int }_{-\infty }^{x}{\stackrel{^}{f}}_{h}\left(t\right)dt=\frac{1}{nh}\sum _{i=1}^{n}{w}_{i}G\left(\frac{x-{x}_{i}}{h}\right)\text{\hspace{0.17em}},$`

where $G\left(x\right)={\int }_{-\infty }^{x}K\left(t\right)dt$.

For more details, see Kernel Distribution (Statistics and Machine Learning Toolbox).

## References

[1] Botev, Z. I., J. F. Grotowski, and D. P. Kroese. "Kernel Density Estimation via Diffusion." The Annals of Statistics, vol. 38, no. 5 (October 1, 2010). https://projecteuclid.org/journals/annals-of-statistics/volume-38/issue-5/Kernel-density-estimation-via-diffusion/10.1214/10-AOS799.full

[2] Bowman, A. W., and A. Azzalini. "Applied Smoothing Techniques for Data Analysis." New York: Oxford University Press Inc., 1997.

[3] Hill, P. D. "Kernel estimation of a distribution function." Communications in Statistics - Theory and Methods. 14, no. 3(January 1985): 605–620.

[4] Jones, M. C. "Simple boundary correction for kernel density estimation." Statistics and Computing. no. 3(September 1993): 135–146.

[5] Silverman, B. W. "Density Estimation for Statistics and Data Analysis." Chapman & Hall/CRC, 1986.

## Version History

Introduced in R2023b
