pbaspect

Control relative lengths of each axis

Description

example

pbaspect(ratio) sets the plot box aspect ratio for the current axes. The plot box aspect ratio is the relative length of the x-axis, y-axis, and z-axis. Specify ratio as a three-element vector of positive values that represent the ratio of the x-axis, y-axis, and z-axis lengths. For example, [3 1 1] specifies that the length of the x-axis is equal to three times the length of the y-axis and z-axis. For equal axis lengths in all directions, use [1 1 1].

example

pb = pbaspect returns the plot box aspect ratio for the current axes.

example

pbaspect auto sets an automatic mode, enabling the axes to choose the appropriate plot box aspect ratio. The mode must be automatic to enable the “stretch-to-fill” feature of the axes.

pbaspect manual sets a manual mode and uses the ratio stored in the PlotBoxAspectRatio property of the Axes object. When the mode is manual, it disables the stretch-to-fill feature of the axes. Specifying a value for the plot box aspect ratio sets the mode to manual.

example

m = pbaspect('mode') returns the current mode, which is either 'auto' or 'manual'. By default, the mode is automatic unless you specify the plot box aspect ratio or set the mode to manual.

example

___ = pbaspect(ax,___) uses the axes specified by ax instead of the current axes. Specify the axes as the first input argument for any of the previous syntaxes. Use single quotes around the 'auto' and 'manual' inputs.

Examples

collapse all

Create a simple line plot. Make the x-axis, y-axis, and z-axis (not shown) equal lengths.

x = linspace(0,10);
y = sin(x);
plot(x,y)
pbaspect([1 1 1])

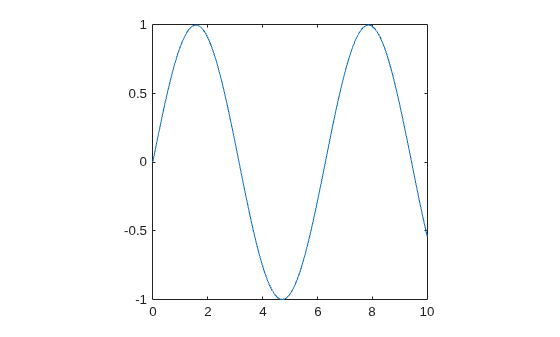

Figure contains an axes object. The axes object contains an object of type line.

Plot a surface and make the x-axis twice as long as the y-axis and z-axis.

[x,y] = meshgrid(-2:.2:2);
z = x.*exp(-x.^2 - y.^2);
surf(x,y,z)
pbaspect([2 1 1])

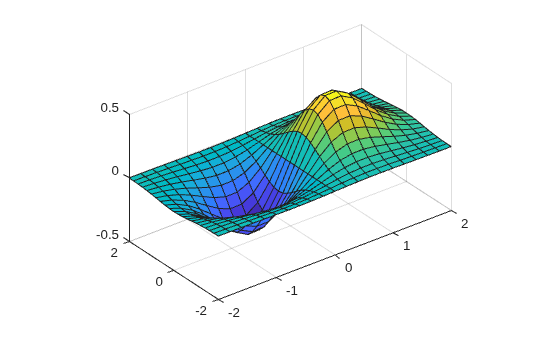

Figure contains an axes object. The axes object contains an object of type surface.

When you specify the plot box aspect ratio, the associated mode changes to manual. Query the current plot box aspect ratio mode.

m = pbaspect('mode')
m =
'manual'

Create a 3-D scatter chart of random data and set the plot box aspect ratio. Then revert back to the default plot box aspect ratio.

X = rand(100,1);
Y = rand(100,1);
Z = rand(100,1);
scatter3(X,Y,Z)
pbaspect([3 2 1])

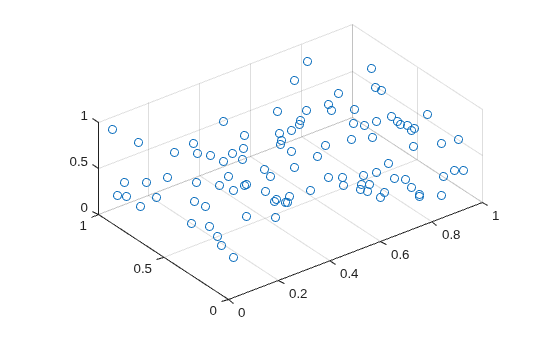

Figure contains an axes object. The axes object contains an object of type scatter.

pbaspect auto

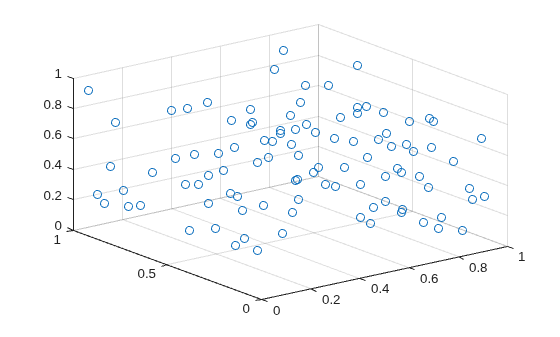

Figure contains an axes object. The axes object contains an object of type scatter.

Create a surface plot.

[x,y] = meshgrid(-2:.2:2);
z = x.*exp(-x.^2 - y.^2);
surf(x,y,z)

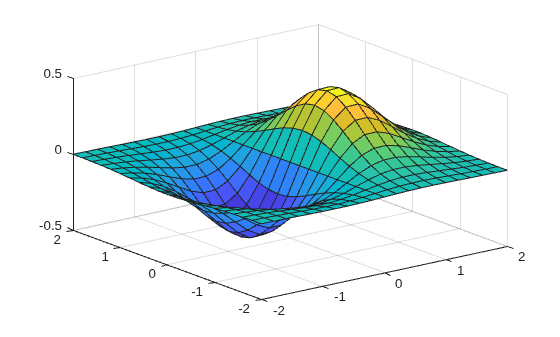

Figure contains an axes object. The axes object contains an object of type surface.

Query the plot box aspect ratio. The values indicate the ratio of the x-axis length to y-axis length to z-axis length.

pb = pbaspect
pb = 1×3

    1.0000    0.9411    0.8496

Starting in R2019b, you can display a tiling of plots using the tiledlayout and nexttile functions. Call the tiledlayout function to create a 2-by-1 tiled chart layout. Call the nexttile function to create the axes objects ax1 and ax2. Plot into each of the axes. Then set the plot box aspect ratio for lower plot by specifying ax2 as the first input argument to the pbaspect function.

tiledlayout(2,1)
ax1 = nexttile;
mesh(peaks(20))

ax2 = nexttile;
mesh(peaks(20))
pbaspect(ax2,[2 2 1])

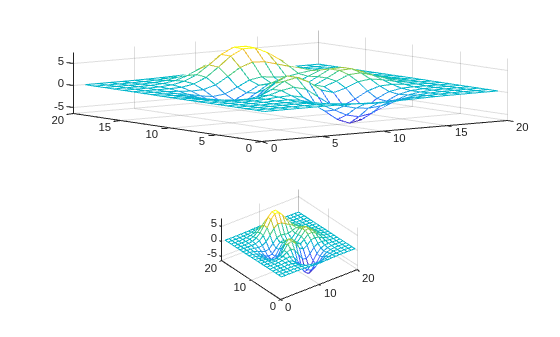

Figure contains 2 axes objects. Axes object 1 contains an object of type surface. Axes object 2 contains an object of type surface.

Input Arguments

collapse all

Plot box aspect ratio, specified as a three-element vector of positive values. For example, pbaspect([3 2 1]) specifies that the ratio of the x-axis length to y-axis length to z-axis length is 3 to 2 to 1. Thus, the x-axis is the longest and the z-axis is the shortest.

Specifying the ratio sets the PlotBoxAspectRatio property for the Axes object to the specified value. The PlotBoxAspectRatio property interacts with the DataAspectAspectRatio, XLim, YLim, and ZLim properties to control the length and scale of the x-axis, y-axis, and z-axis.

Specifying the ratio sets the PlotBoxAspectRatioMode property to 'manual' and disables the stretch-to-fill behavior of the axes.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Target axes, specified as an Axes object. If you do not specify the axes, then pbaspect uses the current axes (gca).

Output Arguments

collapse all

Current plot box aspect ratio, returned as a three-element vector of values representing the ratio of the x-axis, y-axis, and z-axis lengths.

Querying the plot box aspect ratio returns the PlotBoxAspectRatio property value for the Axes object.

Current plot box aspect ratio mode, returned as either 'auto' or 'manual'. When the mode is automatic, MATLAB® determines the appropriate plot box aspect ratio value. If you specify a value, then the mode changes to manual.

Querying the plot box aspect ratio mode returns the PlotBoxAspectRatioMode property value for the Axes object.

More About

collapse all

Stretch-to-Fill

When the “stretch-to-fill” behavior is enabled, MATLAB stretches the axes to fill the available space. The axes might not exactly match the data aspect ratio, plot box aspect ratio, and camera-view angle values stored in its DataAspectRatio, PlotBoxAspectRatio, and CameraViewAngle properties.

If you specify the data aspect ratio, plot box aspect ratio, or camera-view angle, then the “stretch-to-fill” behavior is disabled. When stretch-to-fill is disabled, MATLAB makes the axes as large as possible within the available space and strictly adheres to the property values so that there is no distortion. For more information, see Control Axes Layout.

Algorithms

The pbaspect function sets and queries several axes properties related to the data aspect ratio.

  • PlotBoxAspectRatio — Property that stores the plot box aspect ratio value.

  • PlotBoxAspectRatioMode — Property that stores the plot box aspect ratio mode. When you set the ratio, this property changes to 'manual'.

Version History

Introduced before R2006a
