Synchronize Timetables

Retime and combine timetables to new time vector in the Live Editor

Since R2020a

Description

The Synchronize Timetables task lets you interactively collect variables from all input timetables, synchronize them to a common time vector, and return the result as a single timetable. The effect is similar to a horizontal concatenation, though the input timetables can have different row times. The task also automatically generates MATLAB^® code for your live script.

Using this task, you can:

• Interpolate data values at new row times.

• Aggregate data into time bins (for example, to create a timetable containing quarterly means from timetables containing monthly data).

• Remove rows that have duplicate row times.

• Make the output a regular one by specifying a uniform time step or sample rate.

×

Open the Task

To add the Synchronize Timetables task to a live script in the MATLAB Editor:

• On the Live Editor tab, select Task > Synchronize Timetables.

• In a code block in the script, type a relevant keyword, such as synchronize or timetable. Select Synchronize Timetables from the suggested command completions.

Examples

Synchronize Timetables Using Live Editor Task

This example shows how to use the Synchronize Timetables Live Editor task to synchronize data in input timetables.

First, load two small timetables from the firstTT MAT-file. TT1 contains temperature measurements, and TT2 contains humidity measurements.

load firstTT

Add the Synchronize Timetables task to your live script.

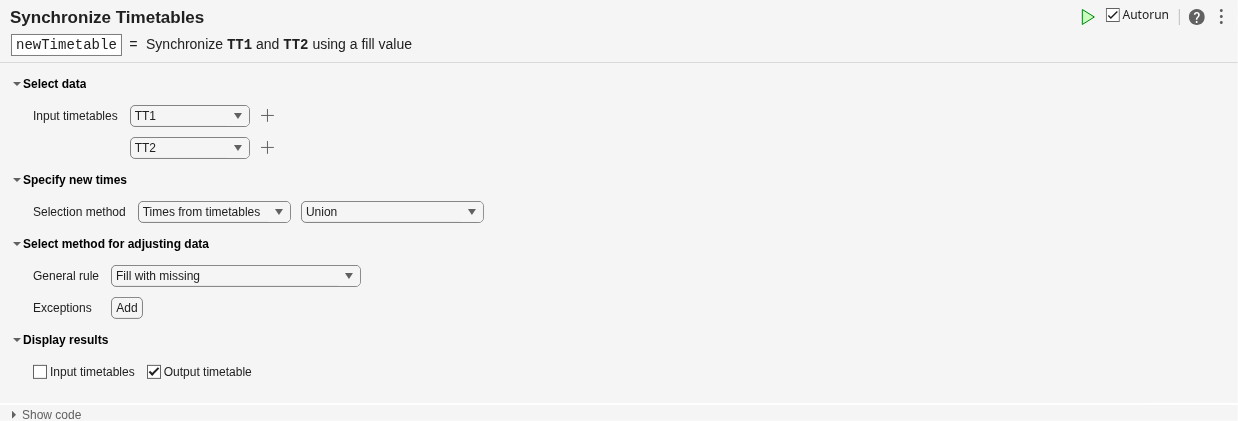

• To specify new row times that are the union of the row times from TT1 and TT2, use the Selection method menus.

• To adjust data by filling gaps in the output timetable variables, use the General rule menu. Select Fill with missing as the rule. The task fills gaps with the missing value that is appropriate for the data type of each timetable variable. For numeric variables, the missing value is NaN.

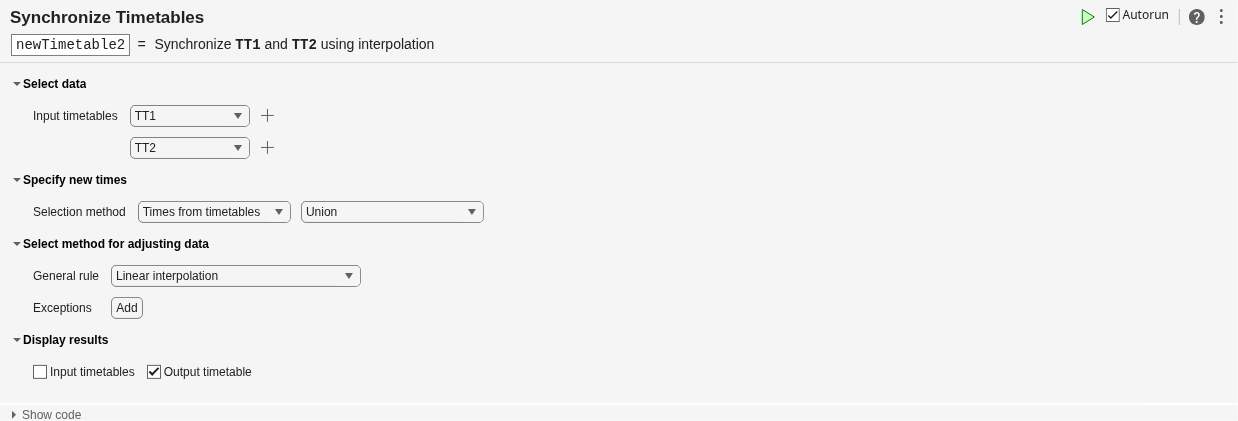

You can fill gaps with interpolated values instead of NaNs. Specify linear interpolation as the general rule.

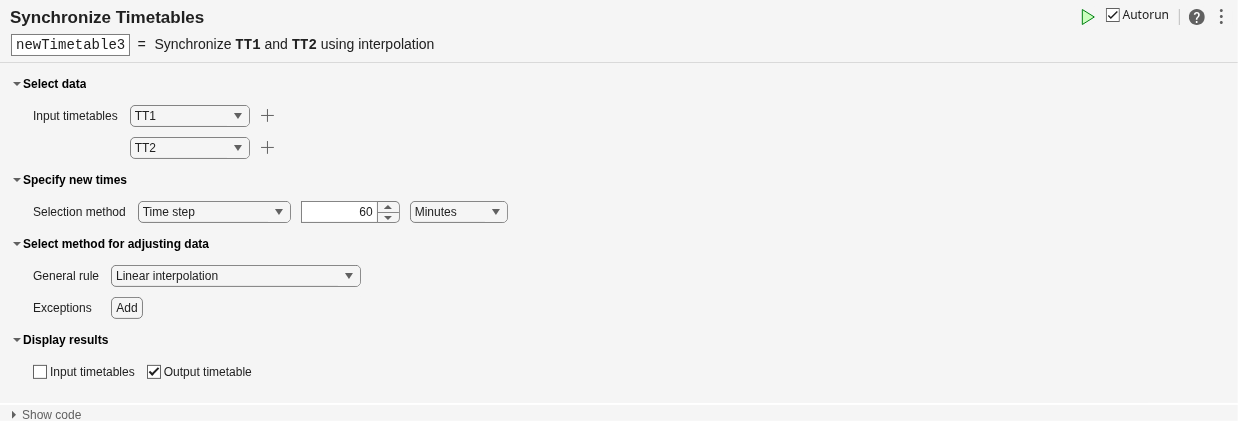

Synchronize to a regular hourly time vector instead of the union of row times.

Related Examples

• Add Interactive Tasks to a Live Script
• Clean Timetable with Missing, Duplicate, or Nonuniform Times
• Resample and Aggregate Data in Timetable
• Combine Timetables and Synchronize Their Data
• Retime and Synchronize Timetable Variables Using Different Methods

Parameters

Input timetables — Names of two or more timetables

drop-down list items

Specify the names of two or more input timetables from lists of all the nonempty timetables that are in the workspace.

You can specify the names of two timetables using the two drop-down lists initially provided. To specify more timetables, click the + button to the right of a drop-down list. You can add an unlimited number of timetables.

Selection method — Method for specifying row times

drop-down list items

Specify the method for calculating new row times of the output timetable.

• Times from timetables — Method for extracting row times from one or more input timetables. For example, you can use the union of the row times from all timetables, or the intersection, or the row times from the last timetable.

• Time step — Length of time between consecutive regularly spaced row times.

• Sample rate — Sample rate or frequency for regularly spaced row times.

• Times from workspace — Workspace variable that is a vector of datetime or duration values. The times in the vector become the row times of the output timetable. The times need not be regularly spaced.

General rule — Rule for adjusting data values

drop-down list items

Specify the rule for adjusting data values in the variables of the timetables. The rule applies to all variables from all input timetables unless exceptions are specified. You can resample or aggregate data values to:

• Fill gaps with missing data indicators or a constant value.

• Interpolate data values to the new row times. For example, resample data measured at 100 Hz to 200 Hz.

• Aggregate data into time bins. For example, calculate a daily mean from data values measured at every hour.

Exceptions — Different rule or rules for adjusting specified variables

drop-down list items

Click the Add button. Then specify a timetable variable from the drop-down lists of timetable names and variable names that appear. Select an input timetable from the first list, then one of its variables from the second list.

• To adjust the data in the specified variable, select a rule from the third drop-down list, to the right of the list of variables. The rule for the exception can differ from the general rule.

• To specify exceptions for other timetable variables, click the + button to the right of the first exception. New drop-down lists of timetable names, variable names, and rules appear below the previous exception.

Version History

Introduced in R2020a

R2022a: Live Editor task does not run automatically if inputs have more than 1 million elements

This Live Editor task does not run automatically if the inputs have more than 1 million elements. In previous releases, the task always ran automatically for inputs of any size. If the inputs have a large number of elements, then the code generated by this task can take a noticeable amount of time to run (more than a few seconds).

When a task does not run automatically, the Autorun indicator is disabled. You can either run the task manually when needed or choose to enable the task to run automatically.

R2021b: Synchronize Timetables Live Editor task synchronizes an unlimited number of timetables

Starting in R2021b, the Synchronize Timetables Live Editor task can synchronize an unlimited number of timetables. In previous releases, the task could synchronize no more than five timetables.
