Generate Code to Compute Optimal MPC Moves in MATLAB

This example shows how to use the mpcmoveCodeGeneration command to generate C code to compute optimal MPC control moves for real-time applications.

After simulating the controller using mpcmove, you use mpcmoveCodeGeneration to simulate the controller using optimized data structures, reproducing the same results. Then you generate an executable having the same inputs and outputs as mpcmoveCodeGeneration. Finally, you use the generated executable to simulate the controller, using the same code and data structures you used for mpcmoveCodeGeneration.

Plant Model

The plant is a single-input, single-output, stable, 2nd order linear plant.

plant = tf(5,[1 0.8 3]);

Set a sampling time of one second, convert the plant to discrete-time, state-space form, and specify a zero initial states vector.

Ts = 1;
plant = ss(c2d(plant,Ts));
x0 = zeros(size(plant.B,1),1);

Design MPC Controller

Create an MPC controller with default horizons and the specified sampling time.

mpcobj = mpc(plant,Ts);
-->"PredictionHorizon" is empty. Assuming default 10.
-->"ControlHorizon" is empty. Assuming default 2.
-->"Weights.ManipulatedVariables" is empty. Assuming default 0.00000.
-->"Weights.ManipulatedVariablesRate" is empty. Assuming default 0.10000.
-->"Weights.OutputVariables" is empty. Assuming default 1.00000.

Specify controller tuning weights.

mpcobj.Weights.MV = 0;
mpcobj.Weights.MVrate = 0.5;
mpcobj.Weights.OV = 1;

Specify initial constraints on the manipulated variable and plant output. These constraints will be updated at run time.

mpcobj.MV.Min = -1;
mpcobj.MV.Max = 1;
mpcobj.OV.Min = -1;
mpcobj.OV.Max = 1;

Simulate Online Constraint Changes with mpcmove Command

In the closed-loop simulation, constraints are updated and fed into the mpcmove command at each control interval.

yMPCMOVE = [];
uMPCMOVE = [];

Set the simulation time.

Tsim = 20;

Initialize the online constraint data.

MVMinData = -0.2-[1 0.95 0.9 0.85 0.8 0.75 0.7 0.65 0.6 0.55 0.5 ...
    0.55 0.6 0.65 0.7 0.75 0.8 0.85 0.9 0.95 1];
MVMaxData = 0.2+[1 0.95 0.9 0.85 0.8 0.75 0.7 0.65 0.6 0.55 0.5 ...
    0.55 0.6 0.65 0.7 0.75 0.8 0.85 0.9 0.95 1];
OVMinData = -0.2-[1 0.95 0.9 0.85 0.8 0.75 0.7 0.65 0.6 0.55 0.5 ...
    0.55 0.6 0.65 0.7 0.75 0.8 0.85 0.9 0.95 1];
OVMaxData = 0.2+[1 0.95 0.9 0.85 0.8 0.75 0.7 0.65 0.6 0.55 0.5 ...
    0.55 0.6 0.65 0.7 0.75 0.8 0.85 0.9 0.95 1];

Initialize plant states.

x = x0;

Initialize MPC states. Note that xmpc is an handle object pointing to the current (always updated) state of the controller.

xmpc = mpcstate(mpcobj);
-->Assuming output disturbance added to measured output #1 is integrated white noise.
-->"Model.Noise" is empty. Assuming white noise on each measured output.

Run a closed-loop simulation by calling mpcmove in a loop.

options = mpcmoveopt;
for ct = 1:round(Tsim/Ts)+1

    % Update and store plant output.
    y = plant.C*x;
    yMPCMOVE = [yMPCMOVE y];

    % Update constraints.
    options.MVMin = MVMinData(ct);
    options.MVMax = MVMaxData(ct);
    options.OutputMin = OVMinData(ct);
    options.OutputMax = OVMaxData(ct);

    % Compute control actions and store plant input.
    u = mpcmove(mpcobj,xmpc,y,1,[],options);
    uMPCMOVE = [uMPCMOVE u];

    % Update plant state.
    x = plant.A*x + plant.B*u;

end

Validate Simulation Results with mpcmoveCodeGeneration Command

To prepare for generating code that computes optimal control moves from MATLAB, it is recommended to reproduce the same control results with the mpcmoveCodeGeneration command before using the codegen command from the MATLAB Coder product.

yCodeGen = [];
uCodeGen = [];

Initialize plant states.

x = x0;

Create data structures to use with mpcmoveCodeGeneration using getCodeGenerationData.

[coredata,statedata,onlinedata] = getCodeGenerationData(mpcobj);

Run a closed-loop simulation by calling mpcmoveCodeGeneration in a loop.

for ct = 1:round(Tsim/Ts)+1

    % Update and store plant output.
    y = plant.C*x;
    yCodeGen = [yCodeGen y];

    % Update measured output in online data.
    onlinedata.signals.ym = y;

    % Update reference in online data.
    onlinedata.signals.ref = 1;

    % Update constraints in online data.
    onlinedata.limits.umin = MVMinData(ct);
    onlinedata.limits.umax = MVMaxData(ct);
    onlinedata.limits.ymin = OVMinData(ct);
    onlinedata.limits.ymax = OVMaxData(ct);

    % Compute and store control action.
    [u,statedata] = mpcmoveCodeGeneration(coredata,statedata,onlinedata);
    uCodeGen = [uCodeGen u];

    % Update plant state.
    x = plant.A*x + plant.B*u;
end

The simulation results are identical to those obtained using mpcmove.

t = 0:Ts:Tsim;
figure;

subplot(1,2,1)
plot(t,yMPCMOVE,'--*',t,yCodeGen,'o');
grid
legend('mpcmove','codegen')
title('Plant Output')

subplot(1,2,2)
plot(t,uMPCMOVE,'--*',t,uCodeGen,'o');
grid
legend('mpcmove','codegen')
title('Controller Moves')

Figure contains 2 axes objects. Axes object 1 with title Plant Output contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent mpcmove, codegen. Axes object 2 with title Controller Moves contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent mpcmove, codegen.

Generate MEX Function From mpcmoveCodeGeneration Command

To generate C code from the mpcmoveCodeGeneration command, use the codegen command from the MATLAB Coder product. In this example, generate a MEX function mpcmoveMEX to reproduce the simulation results in MATLAB. You can change the code generation target to C/C++ static library, dynamic library, executable, etc. by using a different set of coder.config settings.

When generating C code for the mpcmoveCodeGeneration command:

  • Since no data integrity checks are performed on the input arguments, you must make sure that all the input data has the correct types, dimensions, and values.

  • You must define the first input argument, mpcmove_struct, as a constant when using the codegen command.

  • The second input argument, mpcmove_state, is updated by the command and returned as the second output. In most cases, you do not need to modify its contents and should simply pass it back to the command in the next control interval. The only exception is when custom state estimation is enabled, in which case you must provide the current state estimation using this argument.

Generate MEX function.

cfg = coder.config('mex');
cfg.EnableDynamicMemoryAllocation = 'off';
mexfun = buildMEX(mpcobj, 'mpcmoveMEX', coredata, statedata, onlinedata, cfg);
Generating MEX function "mpcmoveMEX" from linear MPC to speed up simulation.
Code generation successful.

MEX function "mpcmoveMEX" successfully generated.

Initialize data storage.

yMEX = [];
uMEX = [];

Initialize plant states.

x = x0;

Use getCodeGenerationData to create data structures to use with mpcmoveCodeGeneration.

[coredata,statedata,onlinedata] = getCodeGenerationData(mpcobj);

Run a closed-loop simulation by calling the generated mpcmoveMEX functions in a loop.

for ct = 1:round(Tsim/Ts)+1

    % Update and store the plant output.
    y = plant.C*x;
    yMEX = [yMEX y];

    % Update measured output in online data.
    onlinedata.signals.ym = y;

    % Update reference in online data.
    onlinedata.signals.ref = 1;

    % Update constraints in online data.
    onlinedata.limits.umin = MVMinData(ct);
    onlinedata.limits.umax = MVMaxData(ct);
    onlinedata.limits.ymin = OVMinData(ct);
    onlinedata.limits.ymax = OVMaxData(ct);

    % Compute and store control action.
    [u,statedata] = mpcmoveMEX(statedata,onlinedata);
    uMEX = [uMEX u];

    % Update plant state.
    x = plant.A*x + plant.B*u;

end

The simulation results are identical to those obtained using mpcmove.

figure

subplot(1,2,1)
plot(t,yMPCMOVE,'--*',t,yMEX,'o')
grid
legend('mpcmove','mex')
title('Plant Output')

subplot(1,2,2)
plot(t,uMPCMOVE,'--*',t,uMEX,'o')
grid
legend('mpcmove','mex')
title('Controller Moves')

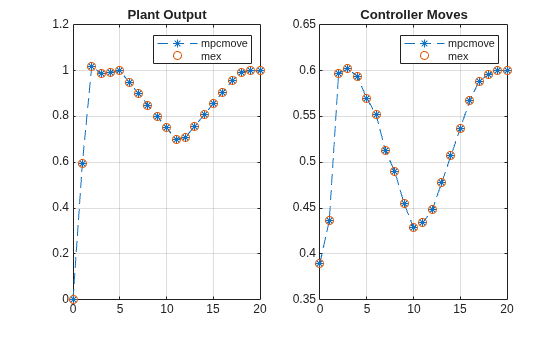

Figure contains 2 axes objects. Axes object 1 with title Plant Output contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent mpcmove, mex. Axes object 2 with title Controller Moves contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent mpcmove, mex.
