Binary Weighted DAC

N-bit DAC based on R-2R weighted resistor architecture

Since R2020a

•

Libraries:
Mixed-Signal Blockset / DAC / Architectures

Description

The R-2R DAC is one of the most common types of Binary-Weighted DACs. It consists of a parallel binary-weighted resistor bank. Each digital level is converted to an equivalent analog signal by the resistor bank.

The input/output transfer curve of the binary weighted DAC can be nonmonotonic, which means that the transfer curve can reverse its direction.

The R-2R DAC architecture is low resolution and consumes more power due to the large number of resistors required to implement the architecture.

Examples

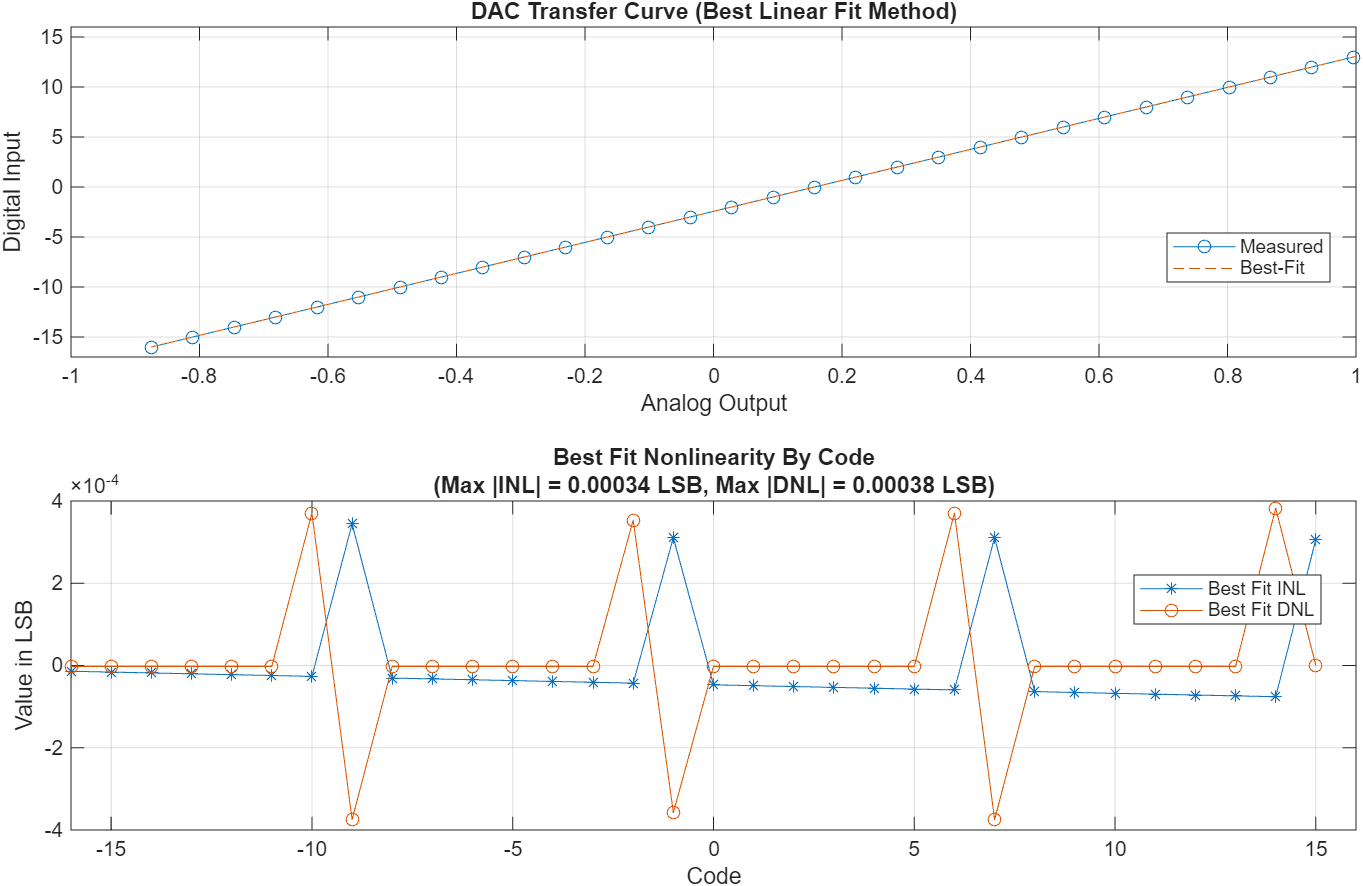

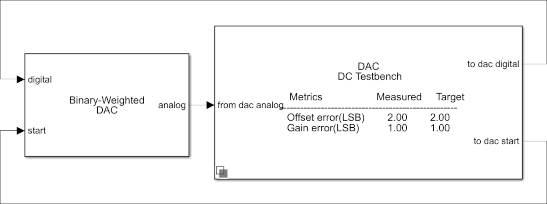

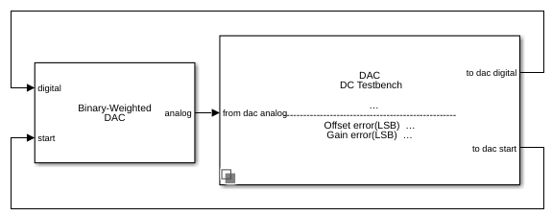

Measure Offset and Gain Error of Binary Weighted DAC

Find the offset and gain errors of a binary weighted DAC block.

• Open Script

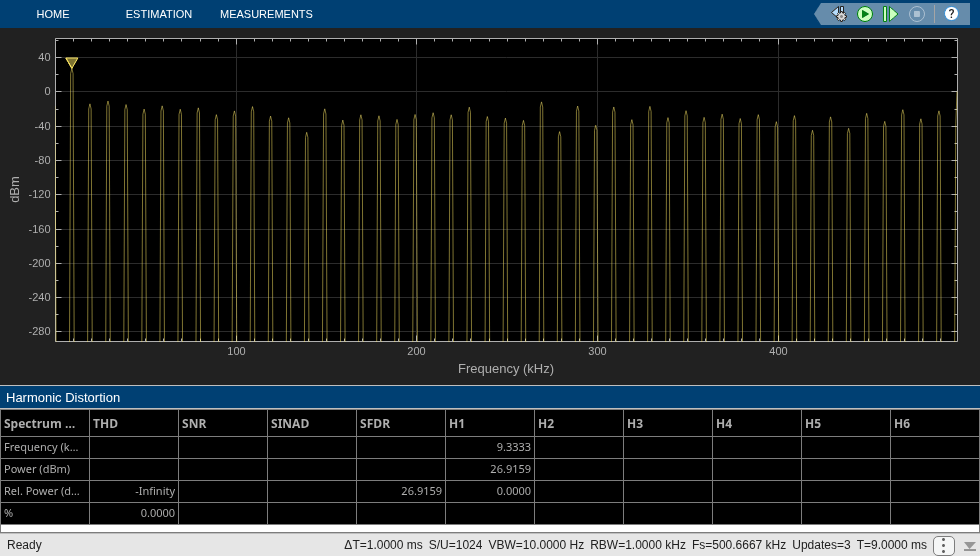

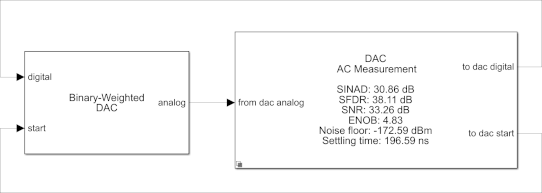

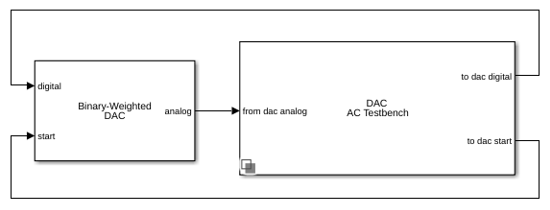

Measure AC Performance Metrics of Binary Weighted DAC

Find the AC performance metrics such as SNR, SINAD, SFDR, ENOB, noise floor and settling time of a binary weighted DAC block.

• Open Script

Ports

Input

digital — Digital input signal to DAC

integer

Digital input signal to DAC, specified as an integer.

If the Input polarity parameter is set to Bipolar, the allowed range of the signal is [−2^(NBits-1), 2^(NBits-1)-1].

If the Input polarity parameter is set to Unipolar, the allowed range of the signal is [0, 2^NBits-1].

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | fixed point

start — External clock to start conversion

scalar

External clock to start conversion, specified as a scalar. The digital-to-analog conversion process starts at the rising edge of the signal at the start port.

Dependencies

To enable this port, select Use external start clock in the General tab.

Data Types: double

Output

analog — Converted analog output signal

scalar

Converted analog output signal, returned as a scalar.

Data Types: double

ready — Indicates whether digital-to-analog conversion is complete

scalar

Indicates whether the digital-to-analog conversion is complete, returned as a scalar.

Dependencies

To enable this port, select Show ready port in the General tab.

Data Types: double

Parameters

General

Number of bits — Number of bits in input word

5 (default) | positive real integer

Number of bits in the input word, specified as a unitless positive real integer. Number of bits determines the resolution of the DAC.

Programmatic Use

Block parameter: NBits

Type: character vector

Values: positive real integer

Default: 5

Data Types: double

Input polarity — Polarity of input signal to DAC

Bipolar (default) | Unipolar

Polarity of the input signal to the DAC.

Programmatic Use

Block parameter: Polarity

Type: character vector

Values: Bipolar|Unipolar

Default: Bipolar

Use external start clock — Connect to external start conversion clock

on (default) | off

Select to connect to an external start conversion clock. By default, this option is selected. If you deselect this option, a Sampling Clock Source block inside the Segmented DAC is used to generate the start conversion clock

Conversion start frequency (Hz) — Frequency of internal start conversion clock

1e6 (default) | positive real scalar

Frequency of the internal start conversion clock, specified as a real scalar in Hz. The Conversion start frequency parameter determines the conversion rate at the start of conversion.

Dependencies

To enable this parameter, deselect Use external start clock.

Programmatic Use

Block parameter: StartFreq

Type: character vector

Values: positive real scalar

Default: 1e6

Data Types: double

Reference (V) — Reference voltage

2 (default) | real scalar

Reference voltage of the DAC, specified as a real scalar in volts. Reference (V) helps determine the output from the input digital code, Number of bits, and Bias (V) using the equation:

$$\text{DAC output = }\left(\left(\frac{\text{Digital input code}}{2^{\text{Number of bits}}}\right)\text{Reference}\right)+\text{Bias}$$.

Programmatic Use

Block parameter: Ref

Type: character vector

Values: real scalar

Default: 2

Data Types: double

Bias (V) — Bias voltage added to output

0 (default) | real scalar

Bias voltage added to the output of the DAC, specified as a real scalar in volts. Bias (V) helps determine the output from the input digital code, Number of bits, and Reference (V) using the equation:

$$\text{DAC output = }\left(\left(\frac{\text{Digital input code}}{2^{\text{Number of bits}}}\right)\text{Reference}\right)+\text{Bias}$$.

Programmatic Use

Block parameter: Bias

Type: character vector

Values: real scalar

Default: 0

Data Types: double

Show ready port — Enable ready port on block

off (default) | on

Select to enable the ready port on the block. This option is deselected by default.

Impairments

Enable linearity impairments — Enable offset and gain errors in DAC simulation

on (default) | off

Select to enable impairments such as offset error and gain error in DAC simulation. This parameter is selected. by default.

Offset error — Shifts quantization steps by specific value

0 LSB (default) | real scalar

Shifts quantization steps by a specific value, specified as a scalar in %FS (percentage full scale), FS (full scale), or LSB (least significant bit).

Offset error is applied before Reference (V) and Bias (V).

Note

The full scale range of the converter is defined as the difference between the last and first code on the +0.5 LSB compensated transfer curve. In a +0.5 LSB compensated transfer curve, first code is 0.5 LSB wide while the last code is 1.5 LSB wide. The input values must be considered within the full scale range of the converter.

Note

LSB is calculated by the equation $$\text{LSB = }\frac{\text{Full scale range of converter}}{2^{NBits}}$$.

Dependencies

To enable this parameter, select Enable linearity impairments in the Impairments tab.

Programmatic Use

Block parameter: OffsetError

Type: character vector

Values: real scalar

Default: 0 LSB

Data Types: double

Gain error — Error in slope of DAC transfer curve

0 LSB (default) | real scalar

Error in the slope of the straight line interpolating the DAC transfer curve, specified as a real scalar in %FS (percentage full scale), FS (full scale), or LSB (least significant bit).

Gain error is applied before Reference (V) and Bias (V).

Note

The full scale range of the converter is defined as the difference between the last and first code on the +0.5 LSB compensated transfer curve. In a +0.5 LSB compensated transfer curve, first code is 0.5 LSB wide while the last code is 1.5 LSB wide. The input values must be considered within the full scale range of the converter.

Note

LSB is calculated by the equation $$\text{LSB = }\frac{\text{Full scale range of converter}}{2^{NBits}}$$.

Dependencies

To enable this parameter, select Enable linearity impairments in the Impairments tab.

Programmatic Use

Block parameter: GainError

Type: character vector

Values: real scalar

Default: 0 LSB

Data Types: double

Enable timing impairments — Enable timing impairments in DAC simulation

on (default) | off

Select to enable timing impairments such as settling time or slew rate in DAC simulation. This parameter is selected. by default.

Specify switch timing using — Specify how DAC calculates switch timing

Settling time (default) | Slew rate

Specify whether the Binary Weighted DAC calculates switch timing using the settling time parameters or the slew rate parameters.

Dependencies

To enable this parameter, select Enable timing impairments in the Impairments tab.

Settling time (s) — Time required for output to settle

2e-7 (default) | nonnegative real scalar

The time required for the output of the DAC to settle to within some fraction of its final value, specified as a nonnegative real scalar in seconds.

Dependencies

To enable this parameter, select Enable timing impairments and set Specify switch timing using to Settling time in the Impairments tab.

Programmatic Use

Block parameter: SettlingTime

Type: character vector

Values: real scalar

Default: 2e-7

Data Types: double

Settling time tolerance (LSB) — Tolerance for calculating settling time

0.5 (default) | positive real scalar

The tolerance allowed for calculating settling time, specified as a positive real scalar in LSB. The output of the DAC must settle within the Settling time tolerance (LSB) by Settling time (s).

Dependencies

To enable this parameter, select Enable timing impairments and set Specify switch timing using to Settling time in the Impairments tab.

Programmatic Use

Block parameter: SettlingTimeTolerance

Type: character vector

Values: positive real scalar

Default: 0.5

Data Types: double

Rising slew rate — Switch rising slew rate for DAC

5015625 (default) | positive real scalar | positive real vector

Switch the rising slew rate for the DAC, specified as a positive real scalar or vector. If Rising slew rate is scalar, it specifies the same slew rate for all the switches. If Rising slew rate is a vector of length Nbits, it specifies the slew rate for each individual switch.

Dependencies

To enable this parameter, select Enable timing impairments and set Specify switch timing using to Slew rate in the Impairments tab.

Programmatic Use

Block parameter: RisingSlewRate

Type: character vector

Values: positive real scalar | positive real vector

Default: 5015625

Falling slew rate — Switch falling slew rate for DAC

-5015625 (default) | negative real scalar | negative real vector

Switch the falling slew rate for the DAC, specified as a positive real scalar or vector. If Falling slew rate is scalar, it specifies the same slew rate for all the switches. If Falling slew rate is a vector of length Nbits, it specifies the slew rate for each individual switch.

Dependencies

To enable this parameter, select Enable timing impairments and set Specify switch timing using to Slew rate in the Impairments tab.

Programmatic Use

Block parameter: FallingSlewRate

Type: character vector

Values: negative real scalar | negative real vector

Default: -5015625

Version History

Introduced in R2020a
