Minimization with Gradient and Hessian Sparsity Pattern
This example shows how to solve a nonlinear minimization problem with a tridiagonal Hessian matrix approximated by sparse finite differences instead of explicit computation.
The problem is to find to minimize
where = 1000.
n = 1000;
To use the
trust-region method in
fminunc, you must compute the gradient in the objective function; it is not optional as in the
The helper function
brownfg at the end of this example computes the objective function and gradient.
To allow efficient computation of the sparse finite-difference approximation of the Hessian matrix , the sparsity structure of must be predetermined. In this case, the structure
Hstr, a sparse matrix, is available in the file
brownhstr.mat. Using the

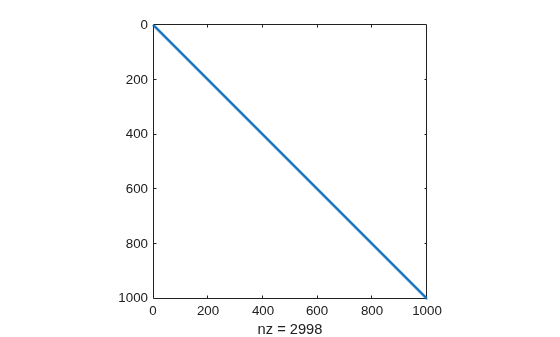

spy command, you can see that
Hstr is, indeed, sparse (only 2998 nonzeros).
load brownhstr spy(Hstr)
HessPattern option to
optimoptions. When such a large problem has obvious sparsity structure, not setting the
HessPattern option uses a great amount of memory and computation unnecessarily, because
fminunc attempts to use finite differencing on a full Hessian matrix of one million nonzero entries.
To use the Hessian sparsity pattern, you must use the
trust-region algorithm of
fminunc. This algorithm also requires you to set the
SpecifyObjectiveGradient option to
options = optimoptions(@fminunc,'Algorithm','trust-region',... 'SpecifyObjectiveGradient',true,'HessPattern',Hstr);
Set the objective function to
@brownfg. Set the initial point to –1 for odd components and +1 for even components.
xstart = -ones(n,1); xstart(2:2:n,1) = 1; fun = @brownfg;
Solve the problem by calling
fminunc using the initial point
xstart and options
[x,fval,exitflag,output] = fminunc(fun,xstart,options);
Local minimum found. Optimization completed because the size of the gradient is less than the value of the optimality tolerance.
Examine the solution and solution process.
iterations: 7 funcCount: 8 stepsize: 0.0046 cgiterations: 7 firstorderopt: 7.9822e-10 algorithm: 'trust-region' message: 'Local minimum found....' constrviolation:
The function is a sum of powers of squares and, therefore, is nonnegative. The solution
fval is nearly zero, so it is clearly a minimum. The exit flag
1 also indicates that
fminunc finds a solution. The
output structure shows that
fminunc takes only seven iterations to reach the solution.
Display the largest and smallest elements of the solution.
The solution is near the point where all elements of
x = 0.
This code creates the
brownfg helper function.
function [f,g] = brownfg(x) % BROWNFG Nonlinear minimization test problem % % Evaluate the function n=length(x); y=zeros(n,1); i=1:(n-1); y(i)=(x(i).^2).^(x(i+1).^2+1) + ... (x(i+1).^2).^(x(i).^2+1); f=sum(y); % Evaluate the gradient if nargout > 1 if nargout > 1 i=1:(n-1); g = zeros(n,1); g(i) = 2*(x(i+1).^2+1).*x(i).* ... ((x(i).^2).^(x(i+1).^2))+ ... 2*x(i).*((x(i+1).^2).^(x(i).^2+1)).* ... log(x(i+1).^2); g(i+1) = g(i+1) + ... 2*x(i+1).*((x(i).^2).^(x(i+1).^2+1)).* ... log(x(i).^2) + ... 2*(x(i).^2+1).*x(i+1).* ... ((x(i+1).^2).^(x(i).^2)); end end
