# hyperbolic

(Not recommended) Solve hyperbolic PDE problem

`hyperbolic`

is not recommended. Use `solvepde`

instead.

## Syntax

## Description

Hyperbolic equation solver

Solves PDE problems of the type

$$d\frac{{\partial}^{2}u}{\partial {t}^{2}}-\nabla \cdot \left(c\nabla u\right)+au=f$$

on a 2-D or 3-D region Ω, or the system PDE problem

$$d\frac{{\partial}^{2}u}{\partial {t}^{2}}-\nabla \cdot \left(c\otimes \nabla u\right)+au=f$$

The variables *c*, *a*, *f*, and
*d* can depend on position, time, and the solution
*u* and its gradient.

produces the solution to the FEM formulation of the scalar PDE problem`u`

= hyperbolic(`u0`

,`ut0`

,`tlist`

,`model`

,`c`

,`a`

,`f`

,`d`

)

$$d\frac{{\partial}^{2}u}{\partial {t}^{2}}-\nabla \cdot \left(c\nabla u\right)+au=f$$

on a 2-D or 3-D region Ω, or the system PDE problem

$$d\frac{{\partial}^{2}u}{\partial {t}^{2}}-\nabla \cdot \left(c\otimes \nabla u\right)+au=f$$

with geometry, mesh, and boundary conditions specified in
`model`

, with initial value `u0`

and initial
derivative with respect to time `ut0`

. The variables
*c*, *a*, *f*, and
*d* in the equation correspond to the function coefficients
`c`

, `a`

, `f`

, and
`d`

respectively.

turns off the display of internal ODE solver statistics during the solution
process.`u`

= hyperbolic(___,'Stats','off')

## Examples

### Hyperbolic Equation

Solve the wave equation

$$\frac{{\partial}^{2}u}{\partial {t}^{2}}=\Delta u$$

on the square domain specified by `squareg`

.

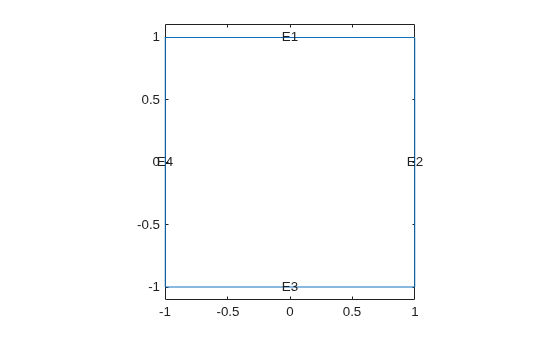

Create a PDE model and import the geometry.

model = createpde; geometryFromEdges(model,@squareg); pdegplot(model,'EdgeLabels','on') ylim([-1.1,1.1]) axis equal

Set Dirichlet boundary conditions $$u=0$$ for $$x=\pm 1$$, and Neumann boundary conditions

$$\nabla u\cdot n=0$$

for $$y=\pm 1$$. (The Neumann boundary condition is the default condition, so the second specification is redundant.)

applyBoundaryCondition(model,'dirichlet','Edge',[2,4],'u',0); applyBoundaryCondition(model,'neumann','Edge',[1,3],'g',0);

Set the initial conditions

u0 = 'atan(cos(pi/2*x))'; ut0 = '3*sin(pi*x).*exp(cos(pi*y))';

Set the solution times.

tlist = linspace(0,5,31);

Give coefficients for the problem.

c = 1; a = 0; f = 0; d = 1;

Generate a mesh and solve the PDE.

generateMesh(model,'GeometricOrder','linear','Hmax',0.1); u1 = hyperbolic(u0,ut0,tlist,model,c,a,f,d);

455 successful steps 50 failed attempts 1012 function evaluations 1 partial derivatives 132 LU decompositions 1011 solutions of linear systems

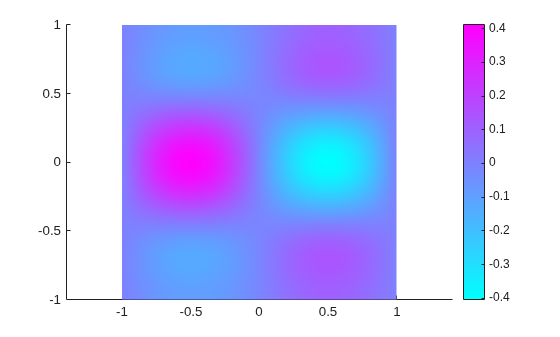

Plot the solution at the first and last times.

```
figure
pdeplot(model,'XYData',u1(:,1))
```

```
figure
pdeplot(model,'XYData',u1(:,end))
```

For a version of this example with animation, see Wave Equation on Square Domain.

### Hyperbolic Equation using Legacy Syntax

Solve the wave equation

$$\frac{{\partial}^{2}u}{\partial {t}^{2}}=\Delta u$$

on the square domain specified by `squareg`

, using a geometry function to specify the geometry, a boundary function to specify the boundary conditions, and using `initmesh`

to create the finite element mesh.

Specify the geometry as `@squareg`

and plot the geometry.

g = @squareg; pdegplot(g,'EdgeLabels','on') ylim([-1.1,1.1]) axis equal

Set Dirichlet boundary conditions $$u=0$$ for $$x=\pm 1$$, and Neumann boundary conditions

$$\nabla u\cdot n=0$$

for $$y=\pm 1$$. (The Neumann boundary condition is the default condition, so the second specification is redundant.)

The `squareb3`

function specifies these boundary conditions.

b = @squareb3;

Set the initial conditions

u0 = 'atan(cos(pi/2*x))'; ut0 = '3*sin(pi*x).*exp(cos(pi*y))';

Set the solution times.

tlist = linspace(0,5,31);

Give coefficients for the problem.

c = 1; a = 0; f = 0; d = 1;

Create a mesh and solve the PDE.

[p,e,t] = initmesh(g); u = hyperbolic(u0,ut0,tlist,b,p,e,t,c,a,f,d);

462 successful steps 70 failed attempts 1066 function evaluations 1 partial derivatives 156 LU decompositions 1065 solutions of linear systems

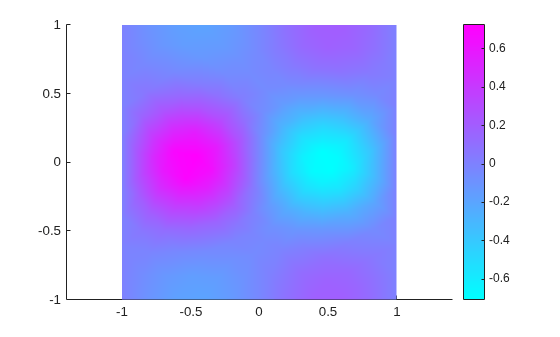

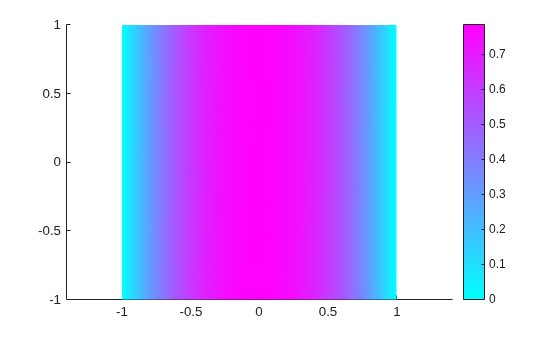

Plot the solution at the first and last times.

```
figure
pdeplot(p,e,t,'XYData',u(:,1))
```

```
figure
pdeplot(p,e,t,'XYData',u(:,end))
```

For a version of this example with animation, see Wave Equation on Square Domain.

### Hyperbolic Solution Using Finite Element Matrices

Solve a hyperbolic problem using finite element matrices.

Create a model and import the `BracketWithHole.stl`

geometry.

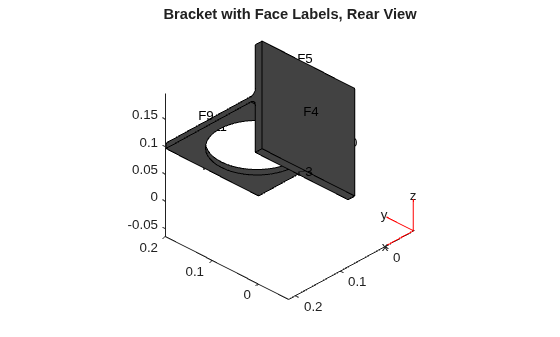

model = createpde(); importGeometry(model,'BracketWithHole.stl'); figure pdegplot(model,'FaceLabels','on') view(30,30) title('Bracket with Face Labels')

figure pdegplot(model,'FaceLabels','on') view(-134,-32) title('Bracket with Face Labels, Rear View')

Set coefficients `c = 1`

, `a = 0`

, `f = 0.5`

, and `d = 1`

.

c = 1; a = 0; f = 0.5; d = 1;

Generate a mesh for the model.

generateMesh(model);

Create initial conditions and boundary conditions. The boundary condition for the rear face is Dirichlet with value 0. All other faces have the default boundary condition. The initial condition is `u(0) = 0`

, `du/dt(0) = x/2`

. Give the initial condition on the derivative by calculating the `x`

-position of each node in `xpts`

, and passing `x/2`

.

applyBoundaryCondition(model,'Face',4,'u',0); u0 = 0; xpts = model.Mesh.Nodes(1,:); ut0 = xpts(:)/2;

Create the associated finite element matrices.

[Kc,Fc,B,ud] = assempde(model,c,a,f); [~,M,~] = assema(model,0,d,f);

Solve the PDE for times from 0 to 2.

tlist = linspace(0,5,50); u = hyperbolic(u0,ut0,tlist,Kc,Fc,B,ud,M);

1487 successful steps 71 failed attempts 3116 function evaluations 1 partial derivatives 278 LU decompositions 3115 solutions of linear systems

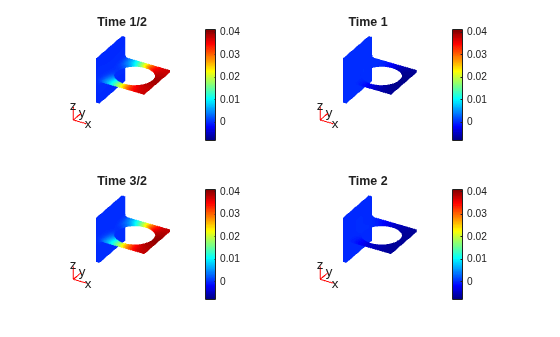

View the solution at a few times. Scale all the plots to have the same color range by using the `clim`

command.

umax = max(max(u)); umin = min(min(u)); subplot(2,2,1) pdeplot3D(model,'ColorMapData',u(:,5)) clim([umin umax]) title('Time 1/2') subplot(2,2,2) pdeplot3D(model,'ColorMapData',u(:,10)) clim([umin umax]) title('Time 1') subplot(2,2,3) pdeplot3D(model,'ColorMapData',u(:,15)) clim([umin umax]) title('Time 3/2') subplot(2,2,4) pdeplot3D(model,'ColorMapData',u(:,20)) clim([umin umax]) title('Time 2')

The solution seems to have a frequency of one, because the plots at times 1/2 and 3/2 show maximum values, and those at times 1 and 2 show minimum values.

### Hyperbolic Equation with Damping

Solve a hyperbolic problem that includes damping. You must use the finite element matrix form to use damping.

Create a model and import the `BracketWithHole.stl`

geometry.

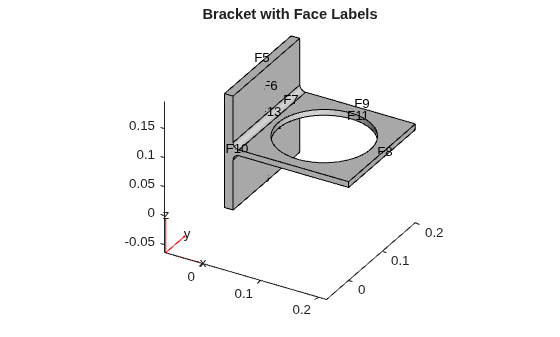

model = createpde(); importGeometry(model,'BracketWithHole.stl'); figure pdegplot(model,'FaceLabels','on') view(30,30) title('Bracket with Face Labels')

figure pdegplot(model,'FaceLabels','on') view(-134,-32) title('Bracket with Face Labels, Rear View')

Set coefficients `c = 1`

, `a = 0`

, `f = 0.5`

, and `d = 1`

.

c = 1; a = 0; f = 0.5; d = 1;

Generate a mesh for the model.

generateMesh(model);

Create initial conditions and boundary conditions. The boundary condition for the rear face is Dirichlet with value 0. All other faces have the default boundary condition. The initial condition is `u(0) = 0`

, `du/dt(0) = x/2`

. Give the initial condition on the derivative by calculating the `x`

-position of each node in `xpts`

, and passing `x/2`

.

applyBoundaryCondition(model,'Face',4,'u',0); u0 = 0; xpts = model.Mesh.Nodes(1,:); ut0 = xpts(:)/2;

Create the associated finite element matrices.

[Kc,Fc,B,ud] = assempde(model,c,a,f); [~,M,~] = assema(model,0,d,f);

Use a damping matrix that is 10% of the mass matrix.

Damping = 0.1*M;

Solve the PDE for times from 0 to 2.

```
tlist = linspace(0,5,50);
u = hyperbolic(u0,ut0,tlist,Kc,Fc,B,ud,M,'DampingMatrix',Damping);
```

1432 successful steps 66 failed attempts 2998 function evaluations 1 partial derivatives 274 LU decompositions 2997 solutions of linear systems

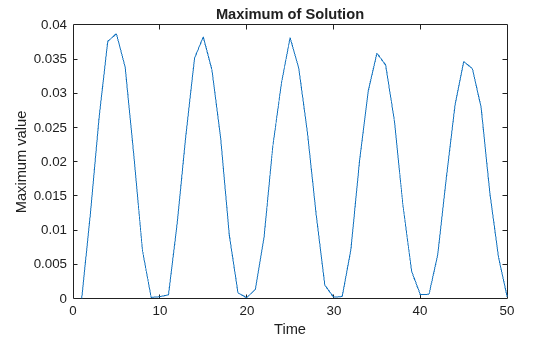

Plot the maximum value at each time. The oscillations damp slightly as time increases.

plot(max(u)) xlabel('Time') ylabel('Maximum value') title('Maximum of Solution')

## Input Arguments

`u0`

— Initial condition

vector | character vector | character array | string scalar | string vector

Initial condition, specified as a scalar, vector of nodal values, character vector, character
array, string scalar, or string vector. The initial condition is the value of the
solution `u`

at the initial time, specified as a column vector of
values at the nodes. The nodes are either `p`

in the
`[p,e,t]`

data structure, or are
`model.Mesh.Nodes`

.

If the initial condition is a constant scalar

`v`

, specify`u0`

as`v`

.If there are

`Np`

nodes in the mesh, and*N*equations in the system of PDEs, specify`u0`

as a column vector of`Np`

**N*elements, where the first`Np`

elements correspond to the first component of the solution`u`

, the second`Np`

elements correspond to the second component of the solution`u`

, etc.Give a text expression of a function, such as

`'x.^2 + 5*cos(x.*y)'`

. If you have a system of*N*> 1 equations, give a text array such aschar('x.^2 + 5*cos(x.*y)',... 'tanh(x.*y)./(1+z.^2)')

**Example: **`x.^2+5*cos(y.*x)`

**Data Types: **`double`

| `char`

| `string`

**Complex Number Support: **Yes

`ut0`

— Initial derivative

vector | character vector | character array | string scalar | string vector

Initial derivative, specified as a vector, character vector, character
array, string scalar, or string vector. The initial gradient is the value of
the derivative of the solution `u`

at the initial time,
specified as a vector of values at the nodes. The nodes are either
`p`

in the `[p,e,t]`

data structure,
or are `model.Mesh.Nodes`

.

If the initial derivative is a constant value

`v`

, specify`u0`

as`v`

.If there are

`Np`

nodes in the mesh, and*N*equations in the system of PDEs, specify`ut0`

as a vector of`Np`

**N*elements, where the first`Np`

elements correspond to the first component of the solution`u`

, the second`Np`

elements correspond to the second component of the solution`u`

, etc.Give a text expression of a function, such as

`'x.^2 + 5*cos(x.*y)'`

. If you have a system of*N*> 1 equations, use a text array such aschar('x.^2 + 5*cos(x.*y)',... 'tanh(x.*y)./(1+z.^2)')

**Example: **`p(1,:).^2+5*cos(p(2,:).*p(1,:))`

**Data Types: **`double`

| `char`

| `string`

**Complex Number Support: **Yes

`tlist`

— Solution times

real vector

Solution times, specified as a real vector. The solver returns the solution to the PDE at the solution times.

**Example: **`0:0.2:4`

**Data Types: **`double`

`model`

— PDE model

`PDEModel`

object

PDE model, specified as a `PDEModel`

object.

**Example: **`model = createpde`

`c`

— PDE coefficient

scalar | matrix | character vector | character array | string scalar | string vector | coefficient function

PDE coefficient, specified as a scalar, matrix, character vector,
character array, string scalar, string vector, or coefficient function.
`c`

represents the *c* coefficient in
the scalar PDE

$$d\frac{{\partial}^{2}u}{\partial {t}^{2}}-\nabla \cdot \left(c\nabla u\right)+au=f$$

or in the system of PDEs

$$d\frac{{\partial}^{2}u}{\partial {t}^{2}}-\nabla \cdot \left(c\otimes \nabla u\right)+au=f$$

**Example: **`'cosh(x+y.^2)'`

**Data Types: **`double`

| `char`

| `string`

| `function_handle`

**Complex Number Support: **Yes

`a`

— PDE coefficient

scalar | matrix | character vector | character array | string scalar | string vector | coefficient function

PDE coefficient, specified as a scalar, matrix, character vector,
character array, string scalar, string vector, or coefficient function.
`a`

represents the *a* coefficient in
the scalar PDE

$$d\frac{{\partial}^{2}u}{\partial {t}^{2}}-\nabla \cdot \left(c\nabla u\right)+au=f$$

or in the system of PDEs

$$d\frac{{\partial}^{2}u}{\partial {t}^{2}}-\nabla \cdot \left(c\otimes \nabla u\right)+au=f$$

**Example: **`2*eye(3)`

**Data Types: **`double`

| `char`

| `string`

| `function_handle`

**Complex Number Support: **Yes

`f`

— PDE coefficient

scalar | matrix | character vector | character array | string scalar | string vector | coefficient function

PDE coefficient, specified as a scalar, matrix, character vector,
character array, string scalar, string vector, or coefficient function.
`f`

represents the *f* coefficient in
the scalar PDE

$$d\frac{{\partial}^{2}u}{\partial {t}^{2}}-\nabla \cdot \left(c\nabla u\right)+au=f$$

or in the system of PDEs

$$d\frac{{\partial}^{2}u}{\partial {t}^{2}}-\nabla \cdot \left(c\otimes \nabla u\right)+au=f$$

**Example: **`char('sin(x)';'cos(y)';'tan(z)')`

**Data Types: **`double`

| `char`

| `string`

| `function_handle`

**Complex Number Support: **Yes

`d`

— PDE coefficient

scalar | matrix | character vector | character array | string scalar | string vector | coefficient function

PDE coefficient, specified as a scalar, matrix, character vector,
character array, string scalar, string vector, or coefficient function.
`d`

represents the *d* coefficient in
the scalar PDE

$$d\frac{{\partial}^{2}u}{\partial {t}^{2}}-\nabla \cdot \left(c\nabla u\right)+au=f$$

or in the system of PDEs

$$d\frac{{\partial}^{2}u}{\partial {t}^{2}}-\nabla \cdot \left(c\otimes \nabla u\right)+au=f$$

**Example: **`2*eye(3)`

**Data Types: **`double`

| `char`

| `string`

| `function_handle`

**Complex Number Support: **Yes

`b`

— Boundary conditions

boundary matrix | boundary file

Boundary conditions, specified as a boundary matrix or boundary file. Pass a boundary file as a function handle or as a file name. A boundary matrix is generally an export from the PDE Modeler app.

**Example: **`b = 'circleb1'`

, `b = "circleb1"`

, or ```
b =
@circleb1
```

**Data Types: **`double`

| `char`

| `string`

| `function_handle`

`p`

— Mesh points

matrix

Mesh points, specified as a 2-by-`Np`

matrix of points, where
`Np`

is the number of points in the mesh. For a description of the
(`p`

,`e`

,`t`

) matrices, see Mesh Data as [p,e,t] Triples.

Typically, you use the `p`

, `e`

, and `t`

data exported from the PDE Modeler app, or generated by `initmesh`

or `refinemesh`

.

**Example: **`[p,e,t] = initmesh(gd)`

**Data Types: **`double`

`e`

— Mesh edges

matrix

Mesh edges, specified as a `7`

-by-`Ne`

matrix of edges,
where `Ne`

is the number of edges in the mesh. For a description of the
(`p`

,`e`

,`t`

) matrices, see Mesh Data as [p,e,t] Triples.

Typically, you use the `p`

, `e`

, and `t`

data exported from the PDE Modeler app, or generated by `initmesh`

or `refinemesh`

.

**Example: **`[p,e,t] = initmesh(gd)`

**Data Types: **`double`

`t`

— Mesh triangles

matrix

Mesh triangles, specified as a `4`

-by-`Nt`

matrix of
triangles, where `Nt`

is the number of triangles in the mesh. For a
description of the (`p`

,`e`

,`t`

)
matrices, see Mesh Data as [p,e,t] Triples.

Typically, you use the `p`

, `e`

, and `t`

data exported from the PDE Modeler app, or generated by `initmesh`

or `refinemesh`

.

**Example: **`[p,e,t] = initmesh(gd)`

**Data Types: **`double`

`Kc`

— Stiffness matrix

sparse matrix | full matrix

Stiffness matrix, specified as a sparse matrix or as a full
matrix. See Elliptic Equations. Typically, `Kc`

is
the output of `assempde`

.

`Fc`

— Load vector

vector

Load vector, specified as a vector. See Elliptic Equations. Typically, `Fc`

is the
output of `assempde`

.

`B`

— Dirichlet nullspace

sparse matrix

Dirichlet nullspace, returned as a sparse matrix. See Algorithms. Typically, `B`

is
the output of `assempde`

.

`ud`

— Dirichlet vector

vector

Dirichlet vector, returned as a vector. See Algorithms. Typically, `ud`

is
the output of `assempde`

.

`M`

— Mass matrix

sparse matrix | full matrix

Mass matrix. specified as a sparse matrix or a full matrix. See Elliptic Equations.

To obtain the input matrices for `pdeeig`

, `hyperbolic`

or `parabolic`

,
run both `assema`

and `assempde`

:

[Kc,Fc,B,ud] = assempde(model,c,a,f); [~,M,~] = assema(model,0,d,f);

**Note**

Create the `M`

matrix using `assema`

with `d`

,
not `a`

, as the argument before `f`

.

**Data Types: **`double`

**Complex Number Support: **Yes

`rtol`

— Relative tolerance for ODE solver

`1e-3`

(default) | positive real

Relative tolerance for ODE solver, specified as a positive real.

**Example: **`2e-4`

**Data Types: **`double`

`atol`

— Absolute tolerance for ODE solver

`1e-6`

(default) | positive real

Absolute tolerance for ODE solver, specified as a positive real.

**Example: **`2e-7`

**Data Types: **`double`

`D`

— Damping matrix

matrix

Damping matrix, specified as a matrix. `D`

has the same
size as the stiffness matrix `Kc`

or the mass matrix
`M`

. When you include `D`

,
`hyperbolic`

solves the following ODE for the
variable *v*:

$${B}^{T}MB\frac{{d}^{2}v}{d{t}^{2}}+{B}^{T}DB\frac{dv}{dt}+Kv=F$$

with initial condition `u0`

and initial derivative
`ut0`

. Then `hyperbolic`

returns the
solution `u = B*v + ud`

.

For an example using `D`

, see Dynamics of Damped Cantilever Beam.

**Example: **`alpha*M + beta*K`

**Data Types: **`double`

**Complex Number Support: **Yes

## Output Arguments

`u`

— PDE solution

matrix

PDE solution, returned as a matrix. The matrix is `Np`

**N*-by-`T`

,
where `Np`

is the number of nodes in the mesh, *N* is
the number of equations in the PDE (*N* = 1 for a
scalar PDE), and `T`

is the number of solution times,
meaning the length of `tlist`

. The solution matrix
has the following structure.

The first

`Np`

elements of each column in`u`

represent the solution of equation 1, then next`Np`

elements represent the solution of equation 2, etc. The solution`u`

is the value at the corresponding node in the mesh.Column

`i`

of`u`

represents the solution at time`tlist`

`(i)`

.

To obtain the solution at an arbitrary point in the geometry,
use `pdeInterpolant`

.

To plot the solution, use `pdeplot`

for
2-D geometry, or see 3-D Solution and Gradient Plots with MATLAB Functions.

## Algorithms

### Hyperbolic Equations

Partial Differential Equation Toolbox™ solves equations of the form

$$m\frac{{\partial}^{2}u}{\partial {t}^{2}}+d\frac{\partial u}{\partial t}-\nabla \xb7\left(c\nabla u\right)+au=f$$

When the *d* coefficient is 0, but *m* is not, the documentation calls this a *hyperbolic* equation, whether or not it is mathematically of the hyperbolic form.

Using the same ideas as for the parabolic equation, `hyperbolic`

implements the numerical solution of

$$m\frac{{\partial}^{2}u}{\partial {t}^{2}}-\nabla \cdot \left(c\nabla u\right)+au=f$$

for **x** in Ω, where **x** represents a 2-D or 3-D point, with the initial conditions

$$\begin{array}{c}u\left(x,0\right)={u}_{0}\left(x\right)\\ \frac{\partial u}{\partial t}\left(x,0\right)={v}_{0}\left(x\right)\end{array}$$

for all **x** in Ω, and usual boundary conditions. In particular, solutions of the equation *u _{tt}* -

*c*Δ

*u*= 0 are waves moving with speed $$\sqrt{c}$$.

Using a given mesh of Ω, the method of lines yields the second order ODE system

$$M\frac{{d}^{2}U}{d{t}^{2}}+KU=F$$

with the initial conditions

$$\begin{array}{c}{U}_{i}\left(0\right)={u}_{0}\left({x}_{i}\right)\text{\hspace{0.17em}}\text{\hspace{0.17em}}\forall i\\ \frac{d}{dt}{U}_{i}\left(0\right)={v}_{0}\left({x}_{i}\right)\text{\hspace{0.17em}}\text{\hspace{0.17em}}\forall i\end{array}$$

after we eliminate the unknowns fixed by Dirichlet boundary conditions. As before, the stiffness matrix *K* and the mass matrix *M* are assembled with the aid of the function `assempde`

from the problems

–∇ · (c∇u) + au = f and –∇ · (0∇u) + mu = 0. | (1) |

`hyperbolic`

internally calls `assema`

, `assemb`

, and `assempde`

to create finite element matrices corresponding to the problem. It calls `ode15s`

to solve the resulting system of ordinary differential equations.

### Finite Element Basis for 3-D

The finite element method for 3-D geometry is similar to the 2-D method described in Elliptic Equations. The main difference is that the elements in 3-D geometry are tetrahedra, which means that the basis functions are different from those in 2-D geometry.

It is convenient to map a tetrahedron to a canonical tetrahedron with a local coordinate system (*r*,*s*,*t*).

In local coordinates, the point *p*1 is at (0,0,0), *p*2 is at (1,0,0), *p*3 is at (0,1,0), and *p*4 is at (0,0,1).

For a linear tetrahedron, the basis functions are

$$\begin{array}{c}{\varphi}_{1}=1-r-s-t\\ {\varphi}_{2}=r\\ {\varphi}_{3}=s\\ {\varphi}_{4}=t\end{array}$$

For a quadratic tetrahedron, there are additional nodes at the edge midpoints.

The corresponding basis functions are

$$\begin{array}{c}{\varphi}_{1}=2{\left(1-r-s-t\right)}^{2}-\left(1-r-s-t\right)\\ {\varphi}_{2}=2{r}^{2}-r\\ {\varphi}_{3}=2{s}^{2}-s\\ {\varphi}_{4}=2{t}^{2}-t\\ {\varphi}_{5}=4r\left(1-r-s-t\right)\\ {\varphi}_{6}=4rs\\ {\varphi}_{7}=4s\left(1-r-s-t\right)\\ {\varphi}_{8}=4t\left(1-r-s-t\right)\\ {\varphi}_{9}=4rt\\ {\varphi}_{10}=4st\end{array}$$

As in the 2-D case, a 3-D basis function *ϕ _{i}* takes the value 0 at all nodes

*j*, except for node

*i*, where it takes the value 1.

### Systems of PDEs

Partial Differential Equation Toolbox software can also handle systems of *N* partial differential
equations over the domain Ω. We have the elliptic system

$$-\nabla \cdot \left(c\otimes \nabla u\right)+au=f$$

the parabolic system

$$d\frac{\partial u}{\partial t}-\nabla \cdot \left(c\otimes \nabla u\right)+au=f$$

the hyperbolic system

$$d\frac{{\partial}^{2}u}{\partial {t}^{2}}-\nabla \cdot \left(c\otimes \nabla u\right)+au=f$$

and the eigenvalue system

$$-\nabla \cdot \left(c\otimes \nabla u\right)+au=\lambda du$$

where **c** is an
*N*-by-*N*-by-*D*-by-*D*
tensor, and *D* is the geometry dimensions, 2 or 3.

For 2-D systems, the notation $$\nabla \cdot (c\otimes \nabla u)$$ represents
an *N*-by-1 matrix with an (*i*,1)-component

$$\sum _{j=1}^{N}\left(\frac{\partial}{\partial x}{c}_{i,j,1,1}\frac{\partial}{\partial x}+\frac{\partial}{\partial x}{c}_{i,j,1,2}\frac{\partial}{\partial y}+\frac{\partial}{\partial y}{c}_{i,j,2,1}\frac{\partial}{\partial x}+\frac{\partial}{\partial y}{c}_{i,j,2,2}\frac{\partial}{\partial y}\right)}{u}_{j$$

For 3-D systems, the notation $$\nabla \cdot (c\otimes \nabla u)$$ represents
an *N*-by-1 matrix with an (*i*,1)-component

$$\begin{array}{l}{\displaystyle \sum _{j=1}^{N}\left(\frac{\partial}{\partial x}{c}_{i,j,1,1}\frac{\partial}{\partial x}+\frac{\partial}{\partial x}{c}_{i,j,1,2}\frac{\partial}{\partial y}+\frac{\partial}{\partial x}{c}_{i,j,1,3}\frac{\partial}{\partial z}\right){u}_{j}}\\ +{\displaystyle \sum _{j=1}^{N}\left(\frac{\partial}{\partial y}{c}_{i,j,2,1}\frac{\partial}{\partial x}+\frac{\partial}{\partial y}{c}_{i,j,2,2}\frac{\partial}{\partial y}+\frac{\partial}{\partial y}{c}_{i,j,2,3}\frac{\partial}{\partial z}\right){u}_{j}}\\ +{\displaystyle \sum _{j=1}^{N}\left(\frac{\partial}{\partial z}{c}_{i,j,3,1}\frac{\partial}{\partial x}+\frac{\partial}{\partial z}{c}_{i,j,3,2}\frac{\partial}{\partial y}+\frac{\partial}{\partial z}{c}_{i,j,3,3}\frac{\partial}{\partial z}\right){u}_{j}}\end{array}$$

The symbols **a** and **d** denote *N*-by-*N* matrices,
and **f** denotes a column vector of
length *N*.

The elements *c _{ijkl}*,

*a*,

_{ij}*d*, and

_{ij}*f*of

_{i}**c**,

**a**,

**d**, and

**f**are stored row-wise in the MATLAB

^{®}matrices

`c`

, `a`

, `d`

, and
`f`

. The case of identity, diagonal, and symmetric matrices are handled
as special cases. For the tensor *c*this applies both to the indices

_{ijkl}*i*and

*j*, and to the indices

*k*and

*l*.

Partial Differential Equation Toolbox software does not check the ellipticity of the problem, and it is quite
possible to define a system that is *not* elliptic in the mathematical
sense. The preceding procedure that describes the scalar case is applied to each component
of the system, yielding a symmetric positive definite system of equations whenever the
differential system possesses these characteristics.

The boundary conditions now in general are *mixed*, i.e., for each
point on the boundary a combination of Dirichlet and generalized Neumann conditions,

$$\begin{array}{l}hu=r\\ n\text{\hspace{0.17em}}\xb7\text{\hspace{0.17em}}\left(c\otimes \nabla u\right)+qu=g+{h}^{\prime}\mu \end{array}$$

For 2-D systems, the notation $$n\text{\hspace{0.17em}}\xb7\text{\hspace{0.17em}}\left(c\otimes \nabla u\right)$$ represents an *N*-by-1 matrix with
(*i*,1)-component

$$\sum _{j=1}^{N}\left(\mathrm{cos}(\alpha ){c}_{i,j,1,1}\frac{\partial}{\partial x}+\mathrm{cos}(\alpha ){c}_{i,j,1,2}\frac{\partial}{\partial y}+\mathrm{sin}(\alpha ){c}_{i,j,2,1}\frac{\partial}{\partial x}+\mathrm{sin}(\alpha ){c}_{i,j,2,2}\frac{\partial}{\partial y}\right)}{u}_{j$$

where the outward normal vector of the boundary is $$n=\left(\mathrm{cos}(\alpha ),\mathrm{sin}(\alpha )\right)$$.

For 3-D systems, the notation $$n\text{\hspace{0.17em}}\xb7\text{\hspace{0.17em}}\left(c\otimes \nabla u\right)$$ represents an *N*-by-1 matrix with
(*i*,1)-component

$$\begin{array}{l}{\displaystyle \sum _{j=1}^{N}\left(\mathrm{cos}(\alpha ){c}_{i,j,1,1}\frac{\partial}{\partial x}+\mathrm{cos}(\alpha ){c}_{i,j,1,2}\frac{\partial}{\partial y}+\mathrm{cos}(\alpha ){c}_{i,j,1,3}\frac{\partial}{\partial z}\right)}{u}_{j}\\ +{\displaystyle \sum _{j=1}^{N}\left(\mathrm{cos}(\beta ){c}_{i,j,2,1}\frac{\partial}{\partial x}+\mathrm{cos}(\beta ){c}_{i,j,2,2}\frac{\partial}{\partial y}+\mathrm{cos}(\beta ){c}_{i,j,2,3}\frac{\partial}{\partial z}\right)}{u}_{j}\\ +{\displaystyle \sum _{j=1}^{N}\left(\mathrm{cos}(\gamma ){c}_{i,j,3,1}\frac{\partial}{\partial x}+\mathrm{cos}(\gamma ){c}_{i,j,3,2}\frac{\partial}{\partial y}+\mathrm{cos}(\gamma ){c}_{i,j,3,3}\frac{\partial}{\partial z}\right)}{u}_{j}\end{array}$$

where the outward normal to the boundary is

$$n=\left(\mathrm{cos}\left(\alpha \right),\mathrm{cos}\left(\beta \right),\mathrm{cos}\left(\gamma \right)\right)$$

There are *M* Dirichlet conditions and the **h**-matrix is *M*-by-*N*,
*M* ≥ 0. The generalized Neumann condition contains a source $${h}^{\prime}\mu $$, where the Lagrange multipliers *μ* are computed such
that the Dirichlet conditions become satisfied. In a structural mechanics problem, this term
is exactly the reaction force necessary to satisfy the kinematic constraints described by
the Dirichlet conditions.

The rest of this section details the treatment of the Dirichlet conditions and may be skipped on a first reading.

Partial Differential Equation Toolbox software supports two implementations of Dirichlet conditions. The simplest is
the “Stiff Spring” model, so named for its interpretation in solid mechanics. See Elliptic Equations for the scalar case, which is equivalent to a diagonal
**h**-matrix. For the general case, Dirichlet
conditions

**hu** = **r**

are approximated by adding a term

$$L({h}^{\prime}hu-{h}^{\prime}r)$$

to the equations **KU** = **F**,
where *L* is a large number such as 10^{4} times a
representative size of the elements of *K*.

When this number is increased, **hu** = **r** will be more accurately satisfied, but the potential ill-conditioning of
the modified equations will become more serious.

The second method is also applicable to general mixed conditions with nondiagonal
**h**, and is free of the ill-conditioning, but is more
involved computationally. Assume that there are *N _{p}*
nodes in the mesh. Then the number of unknowns is

*N*

_{p}*N*=

*N*. When Dirichlet boundary conditions fix some of the unknowns, the linear system can be correspondingly reduced. This is easily done by removing rows and columns when

_{u}*u*values are given, but here we must treat the case when some linear combinations of the components of

*u*are given,

**hu**=

**r**. These are collected into

*HU*=

*R*where

*H*is an

*M*-by-

*N*matrix and

_{u}*R*is an

*M*-vector.

With the reaction force term the system becomes

*KU* +*H*´ *µ* =
*F*

*HU* = *R*.

The constraints can be solved for *M* of the
*U*-variables, the remaining called *V*, an
*N _{u}* –

*M*vector. The null space of

*H*is spanned by the columns of

*B*, and

*U*=

*BV*+

*u*makes

_{d}*U*satisfy the Dirichlet conditions. A permutation to block-diagonal form exploits the sparsity of

*H*to speed up the following computation to find

*B*in a numerically stable way.

*µ*can be eliminated by pre-multiplying by

*B*´ since, by the construction,

*HB*= 0 or

*B*´

*H*´ = 0. The reduced system becomes

*B*´ *KBV* = *B*´
*F* –
*B*´*Ku _{d}*

which is symmetric and positive definite if *K* is.

## Version History

**Introduced before R2006a**

### R2016a: Not recommended

`hyperbolic`

is not recommended. Use `solvepde`

instead. There are no plans to remove
`hyperbolic`

.

### R2012b: Coefficients of hyperbolic PDEs as functions of the solution and its gradient

You can now solve hyperbolic equations whose coefficients depend on the solution
*u* or on the gradient of *u*.

## See Also

## MATLAB Command

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
