This example shows how to train, validate, and test a deep neural network (DNN) that imitates the behavior of a nonlinear model predictive controller for a flying robot. It then compares the behavior of the deep neural network with that of the original controller. To train the deep neural network, this example uses the data aggregation (DAgger) approach as in [1].

Nonlinear model predictive control (NLMPC) solves a constrained nonlinear optimization problem in real time based on the current state of the plant. Since NLMPC solves its optimization problem in an open-loop fashion, there is the potential to replace the controller with a trained DNN. Doing so is an appealing option, since evaluating a DNN can be more computationally efficient than solving a nonlinear optimization problem in real-time.

If the training of the DNN creates a reasonable approximation of the controller behavior, you can then deploy the network for your control application. You can also use the network as a warm starting point for training the actor network of a reinforcement learning agent. For an example that does so with a DNN trained for an MPC application, see Train DDPG Agent with Pretrained Actor Network.

Design a nonlinear MPC controller for a flying robot. The dynamics for the flying robot are the same as in Trajectory Optimization and Control of Flying Robot Using Nonlinear MPC (Model Predictive Control Toolbox) example. First, define the limit for the control variables, which are the robot thrust levels.

umax = 3;

Create the nonlinear MPC controller object `nlobj`

. To reduce command-window output, disable the MPC update messages.

```
mpcverbosity off;
nlobj = createMPCobjImFlyingRobot(umax);
```

Load the input data from `DAggerInputDataFileImFlyingRobot.mat`

. The columns of the data set contain:

$\mathit{x}$ is the position of the robot along the x-axis.

$\mathit{y}$ is the position of the robot along the y-axis.

$\theta $ is the orientation of the robot.

$\dot{\mathit{x}}$ is the velocity of the robot along the x-axis.

$\dot{\mathit{y}}$ is the velocity of the robot along the y-axis.

$$\underset{}{\overset{\dot{}}{\theta}}$$ is the angular velocity of the robot.

${\mathit{u}}_{\mathit{l}}$ is the thrust on the left side of the flying robot

${\mathit{u}}_{\mathit{r}}$ is the thrust on the right side of the flying robot

${\mathit{u}}_{\mathit{l}}^{*}$ is the thrust on the left side computed by NLMPC

${\mathit{u}}_{\mathit{r}}^{*}$ is the thrust on the right side computed by NLMPC

The data in `DAggerInputDataFileImFlyingRobot.mat`

is created by computing the NLMPC control action for randomly generated states ($\mathit{x}$, $\mathit{y}$, $\theta $, $\dot{\mathit{x}}$, $\dot{\mathit{y}}$, $$\underset{}{\overset{\dot{}}{\theta}}$$), and previous control actions (${\mathit{u}}_{\mathit{l}}$, ${\mathit{u}}_{\mathit{r}}$). To generate your own training data, use the `collectDataImFlyingRobot`

function.

Load the input data.

```
fileName = 'DAggerInputDataFileImFlyingRobot.mat';
DAggerData = load(fileName);
data = DAggerData.data;
existingData = data;
numCol = size(data,2);
```

The deep neural network architecture uses the following types of layers.

`imageInputLayer`

is the input layer of the neural network.`fullyConnectedLayer`

multiplies the input by a weight matrix and then adds a bias vector.`reluLayer`

is the activation function of the neural network.`tanhLayer`

constrains the value to the range to [-1,1].`scalingLayer`

scales the value to the range to [-3,3].`regressionLayer`

defines the loss function of the neural network.

Create the deep neural network that will imitate the NLMPC controller after training.

numObservations = numCol-2; numActions = 2; hiddenLayerSize = 256; imitateMPCNetwork = [ featureInputLayer(numObservations,'Normalization','none','Name','observation') fullyConnectedLayer(hiddenLayerSize,'Name','fc1') reluLayer('Name','relu1') fullyConnectedLayer(hiddenLayerSize,'Name','fc2') reluLayer('Name','relu2') fullyConnectedLayer(hiddenLayerSize,'Name','fc3') reluLayer('Name','relu3') fullyConnectedLayer(hiddenLayerSize,'Name','fc4') reluLayer('Name','relu4') fullyConnectedLayer(hiddenLayerSize,'Name','fc5') reluLayer('Name','relu5') fullyConnectedLayer(hiddenLayerSize,'Name','fc6') reluLayer('Name','relu6') fullyConnectedLayer(numActions,'Name','fcLast') tanhLayer('Name','tanhLast') scalingLayer('Name','ActorScaling','Scale',umax) regressionLayer('Name','routput')];

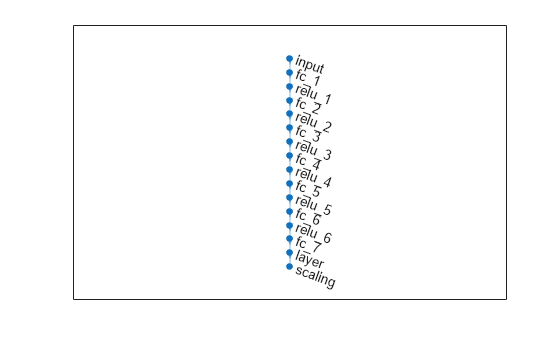

Plot the network.

plot(layerGraph(imitateMPCNetwork))

One approach to learning an expert policy using supervised learning is the behavior cloning method. This method divides the expert demonstrations (NLMPC control actions in response to observations) into state-action pairs and applies supervised learning to train the network.

Specify training options.

% intialize validation cell array validationCellArray = {0,0}; options = trainingOptions('adam', ... 'Verbose', false, ... 'Plots', 'training-progress', ... 'Shuffle', 'every-epoch', ... 'MiniBatchSize', 512, ... 'ValidationData', validationCellArray, ... 'InitialLearnRate', 1e-3, ... 'ExecutionEnvironment', 'cpu', ... 'GradientThreshold', 10, ... 'MaxEpochs', 40 ... );

You can train the behavior cloning neural network by following below steps

Collect data using the

`collectDataImFlyingRobot`

function.Train the behavior cloning network using the

`behaviorCloningTrainNetwork`

function.

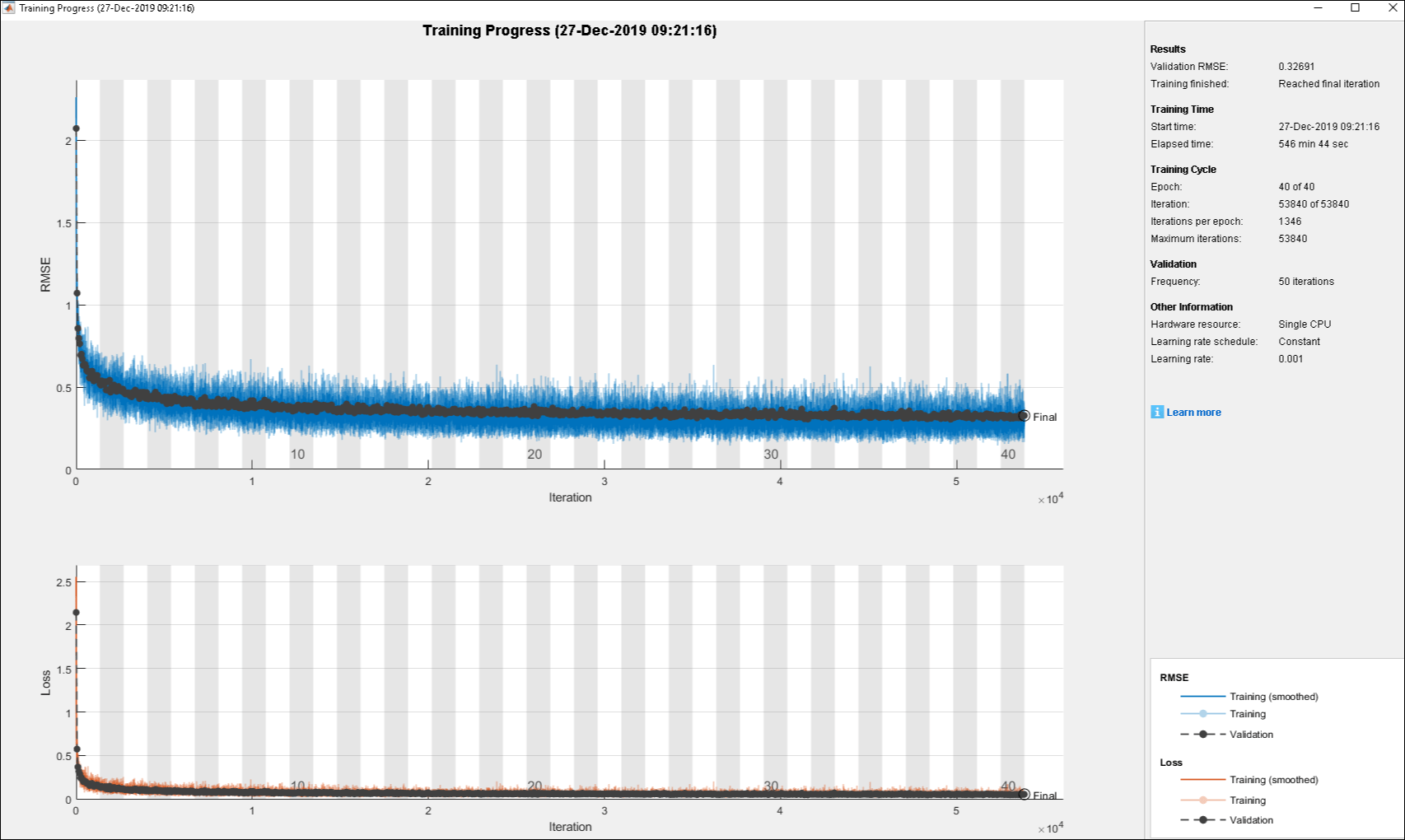

Training a DNN is a computationally intensive process. To save time, load a pretrained neural network object.

```
load('behaviorCloningMPCImDNNObject.mat');
imitateMPCNetBehaviorCloningObj = behaviorCloningNNObj.imitateMPCNetObj;
```

The training of the DNN using behavior cloning reduces the gap between the DNN and NLMPC performance. However, the behavior cloning neural network fails to imitate the behavior of the NLMPC controller correctly on some randomly generated data.

To improve the performance of the DNN, you can learn the policy using an interactive demonstrator method. DAgger is an iterative method where the DNN is run in the closed-loop environment. The expert, in this case the NLMPC controller, outputs actions based on the states visited by the DNN. In this manner, more training data is aggregated and the DNN is retrained for improved performance. For more information, see [1].

Train the deep neural network using the `DAggerTrainNetwork`

function. It creates `DAggerImFlyingRobotDNNObj.mat `

file that contains the following information.

`DatasetPath:`

path where the dataset corresponding to each iteration is stored`policyObjs:`

policies that were trained in each iteration`finalData:`

total training data collected till final iteration`finalPolicy:`

best policy among all the collected policies

First, create and initialize the parameters for training. Use the network trained using behavior cloning (`imitateMPCNetBehaviorCloningObj`

) as the starting point for the DAgger training.

```
[dataStruct,nlmpcStruct,tuningParamsStruct,neuralNetStruct] = loadDAggerParameters(existingData, ...
numCol,nlobj,umax,options,imitateMPCNetBehaviorCloningObj);
```

To save time, load a pretrained neural network by setting `doTraining`

to `false`

. To train the DAgger yourself, set `doTraining`

to `true`

.

doTraining = false; if doTraining DAgger = DAggerTrainNetwork(nlmpcStruct,dataStruct,neuralNetStruct,tuningParamsStruct); else load('DAggerImFlyingRobotDNNObj.mat'); end DNN = DAgger.finalPolicy;

As an alternative, you can train the neural network with a modified policy update rule using the `DAggerModifiedTrainNetwork`

function. In this function, after every 20 training iterations, the DNN is set to the most optimal configuration from the previous 20 iterations. To run this example with a neural network object with the modified DAgger approach, use the `DAggerModifiedImFlyingRobotDNNObj.mat`

file`.`

To compare the performance of the NLMPC controller and the trained DNN, run closed-loop simulations with the flying robot model.

Set initial condition for the states of the flying robot ($\mathit{x}$, $\mathit{y}$, $\theta $, $\dot{\mathit{x}}$, $\dot{\mathit{y}}$, $$\underset{}{\overset{\dot{}}{\theta}}$$) and the control variables of flying robot (${\mathit{u}}_{\mathit{l}}$, ${\mathit{u}}_{\mathit{r}}$).

x0 = [-1.8200 0.5300 -2.3500 1.1700 -1.0400 0.3100]'; u0 = [-2.1800 -2.6200]';

Run a closed-loop simulation of the NLMPC controller.

% Duration Tf = 15; % Sample time Ts = nlobj.Ts; % Simulation steps Tsteps = Tf/Ts+1; % Run NLMPC in closed loop. tic [xHistoryMPC,uHistoryMPC] = simModelMPCImFlyingRobot(x0,u0,nlobj,Tf); toc

Elapsed time is 22.401363 seconds.

Run a closed-loop simulation of the trained DAgger network.

tic [xHistoryDNN,uHistoryDNN] = simModelDAggerImFlyingRobot(x0,u0,DNN,Ts,Tf); toc

Elapsed time is 1.231235 seconds.

Plot the results, and compare the NLMPC and trained DNN trajectories.

plotSimResultsImFlyingRobot(nlobj,xHistoryMPC,uHistoryMPC,xHistoryDNN,uHistoryDNN,umax,Tf)

The DAgger neural network successfully imitates the behavior of the NLMPC controller. The flying robot states and control action trajectories for the controller and the DAgger deep neural network closely align. The closed-loop simulation time for the DNN is significantly less than that of the NLMPC controller.

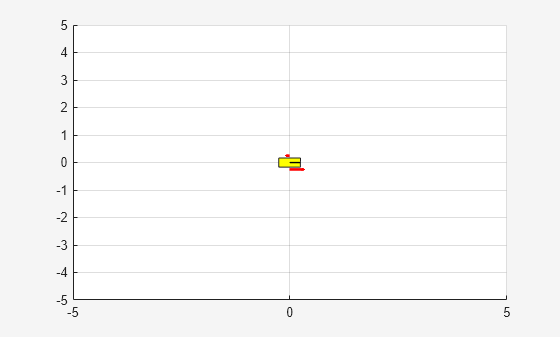

To validate the performance of the trained DNN, animate the flying robot with data from the DNN closed-loop simulation. The flying robot lands at the origin successfully.

Lx = 5; Ly = 5; for ct = 1:Tsteps x = xHistoryDNN(ct,1); y = xHistoryDNN(ct,2); theta = xHistoryDNN(ct,3); tL = uHistoryDNN(ct,1); tR = uHistoryDNN(ct,2); rl.env.viz.plotFlyingRobot(x,y,theta,tL,tR,Lx,Ly); pause(0.05); end

% Turn on MPC messages mpcverbosity on;

[1] Osa, Takayuki, Joni Pajarinen, Gerhard Neumann, J. Andrew Bagnell, Pieter Abbeel, and Jan Peters. ‘An Algorithmic Perspective on Imitation Learning’. *Foundations and Trends in Robotics* 7, no. 1–2 (2018): 1–179. https://doi.org/10.1561/2300000053.
