getantipads
Description
Examples
getantipads of Single Ended Via
This example shows how to use the getantipads function to generate an antipads stack
via = viaSingleEnded
via = viaSingleEnded with properties: Conducting Layers SignalLayer: [1 7] GroundLayer: [3 5 9] Conductor: [1x1 metal] Dielectric Layers Substrate: [1x1 dielectric] Signal Vias SignalViaLocations: [0 0 1 9] SignalViaDiameter: 2.5000e-04 SignalViaFinishedDiameter: 2.0000e-04 SignalViaPad: [1x1 shape.Circle] RemoveUnusedPads: 1 SignalViaAntipad: [1x1 shape.Circle] Ground Return Vias GroundReturnViaLocations: [1.0000e-03 1.0000e-03 1 9] GroundReturnViaDiameter: 2.5000e-04 GroundReturnViaFinishedDiameter: 2.0000e-04 Ports SignalTable: {2x4 cell}
propVal = getantipads(via)
propVal=1×3 cell array
{1x1 shape.Circle} {1x1 shape.Circle} {1x1 shape.Circle}

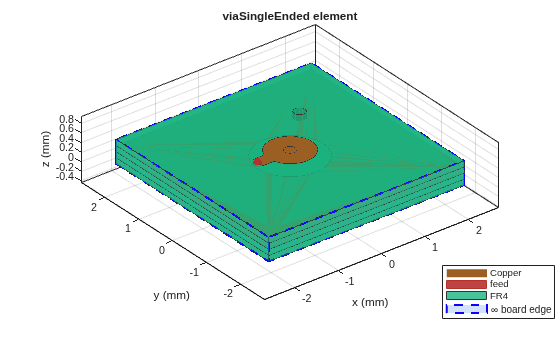

show(via)
Input Arguments
pcbobject
— Single ended via
single ended via object (default)
Example: via=viaSingleEnded; propVal =
getantipads(via)
Data Types: sigle ended via
Output Arguments
propVal
— antipads stack
antipads stack
getantipads
returns an antipad stack of size
SignalViaLocations
-by- GroundLayer
in the
via. The first non-empty shape from obj.SignalViaAntipad
is used for
scalar expansion to build the antipad stack.
Version History
Introduced in R2024a
