Improve Performance of ROS Using Message Structures

This example demonstrates the use of ROS message structures, and their benefits and differences from message objects.

Message structures have better performance over objects when performing initial creation, reading them from rosbag files, accessing nested properties, and performing communication operations over the ROS network. Also, message structures are the only supported message format when generating code through MATLAB Coder™.

Message Structure Basics

ROS message objects are instances of classes defined specifically for each message type.

msgObj = rosmessage("nav_msgs/Path");
class(msgObj)
ans =
'ros.msggen.nav_msgs.Path'

The object properties contain the data of the message, and each object type has functions defined that are specific to the ROS message.

showdetails(msgObj)
  Header
    Stamp
      Sec  :  0
      Nsec :  0
    Seq     :  0
    FrameId :
  Poses

ROS message structures have been introduced to improve the performance of using ROS messages. Each message is a MATLAB® structure data type with the same fields as the properties of the ROS message objects.

msgStruct = rosmessage("nav_msgs/Path","DataFormat","struct")
msgStruct = struct with fields:
    MessageType: 'nav_msgs/Path'
         Header: [1x1 struct]
          Poses: [0x1 struct]

class(msgStruct)
ans =
'struct'

Update Existing Code to Use Structures

To update existing code that uses objects, two common workflows are provided with the steps required to update them.

Communication Workflow

This example code shows how to send and receive messages over the ROS network.

% Setup ROS network
rosinit
Launching ROS Core...
Done in 0.87623 seconds.
Initializing ROS master on http://192.168.0.10:60500.
Initializing global node /matlab_global_node_86688 with NodeURI http://dcc327509glnxa64:33783/
stringPub = rospublisher("/chatter","std_msgs/String");
stringSub = rossubscriber("/chatter","std_msgs/String");

% Set message field and send message
stringMsg = rosmessage("std_msgs/String");
stringMsg.Data = 'Hello World!';
send(stringPub,stringMsg)

% Wait for message to be received and then check the value
pause(2)
showdetails(stringSub.LatestMessage)
  Data :  Hello World!

How to Update

Set the data format name-value argument of the publisher and subscriber.

stringPub = rospublisher("/chatter","std_msgs/String","DataFormat","struct");
stringSub = rossubscriber("/chatter","std_msgs/String","DataFormat","struct");

Update the data format for the rosmessage function as well.

stringMsg = rosmessage("std_msgs/String","DataFormat","struct");
stringMsg.Data = 'Hello World!';
send(stringPub,stringMsg)

Alternatively, the rosmessage object function for the publisher can be used. This syntax produces a message that follows the format set in the publisher, and is the most efficient way to ensure compatibility between the message and the publisher.

stringMsg = rosmessage(stringPub);
stringMsg.Data = 'Hello World!';
send(stringPub,stringMsg)

Because structures do not have object functions, new functions are provided to handle common ROS message tasks. To show details a structure message, use the rosShowDetails function. To see all the new functions provided, go to Message Handling Functions.

% Wait for message to be received and then check the value
pause(2)
rosShowDetails(stringSub.LatestMessage)
ans =
    '
       MessageType :  std_msgs/String
       Data        :  Hello World!'

Read rosbag Workflow

For an example that reads messages from a rosbag, specifiy the DataFormat name-value argument for the readMessages function and any publishers you use to send those messages.

% Extract message from rosbag
msgType = "nav_msgs/Odometry";
bag = rosbag("ex_multiple_topics.bag");
bagSelect = select(bag,"MessageType",msgType);
odomMsgs = readMessages(bagSelect,"DataFormat","struct");
odomMsg = odomMsgs{1}
odomMsg = struct with fields:
     MessageType: 'nav_msgs/Odometry'
          Header: [1x1 struct]
    ChildFrameId: 'base_footprint'
            Pose: [1x1 struct]
           Twist: [1x1 struct]

% Create publisher and send first message
odomPub = rospublisher("/odom",msgType,"DataFormat","struct");
send(odomPub,odomMsg)

Message Handling Functions

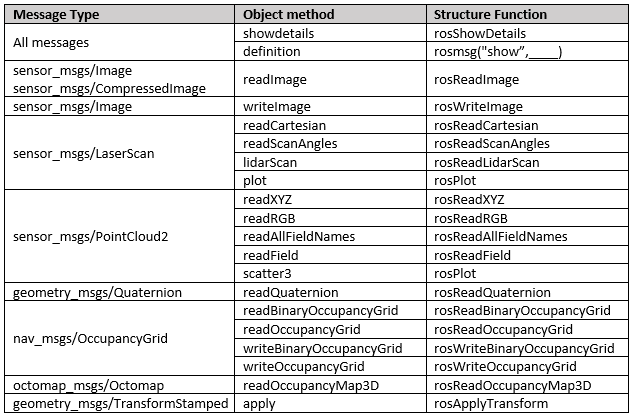

Because functions on the ROS message objects are not usable with message structures, new functions have been introduced for handling messages. This list includes functions for reading data from or writing data to specialized messages.

Behavior Changes

Handle Class vs. Structure Behavior

An important consideration when converting code is that ROS message objects are handles, which means that message objects are passed by reference when provided as inputs to functions. If a message is modified within a function, the modification applies to the message in the MATLAB® workspace as well.

msgObj = rosmessage("geometry_msgs/Pose2D");
pose = [1 2 3];
exampleHelperWritePoseToMsgObj(msgObj,pose)
disp(msgObj)
  ROS Pose2D message with properties:

    MessageType: 'geometry_msgs/Pose2D'
              X: 1
              Y: 2
          Theta: 3

  Use showdetails to show the contents of the message
function exampleHelperWritePoseToMsgObj(pointMsg,pose)
pointMsg.X = pose(1);
pointMsg.Y = pose(2);
pointMsg.Theta = pose(3);
end

Message structures only pass their value when input into functions. If a message structure is modified within a function, that modification will only apply to the structure within the scope of that function. To make the modification available outside of the function, the message structure must be returned.

msgStruct = rosmessage("geometry_msgs/Pose2D","DataFormat","struct");
pose = [1 2 3];

% With no return, the message structure will not change
exampleHelperWritePoseToMsgObj(msgStruct, pose)
disp(msgStruct)
    MessageType: 'geometry_msgs/Pose2D'
              X: 0
              Y: 0
          Theta: 0
% When returned from the function, the message can be overwritten.
msgStruct = exampleHelperWritePoseToMsgStruct(msgStruct, pose);
disp(msgStruct)
    MessageType: 'geometry_msgs/Pose2D'
              X: 1
              Y: 2
          Theta: 3
function pointMsg = exampleHelperWritePoseToMsgStruct(pointMsg,pose)
pointMsg.X = pose(1);
pointMsg.Y = pose(2);
pointMsg.Theta = pose(3);
end

This applies to the specialized message handling functions as well. The write functions that update message values now have output arguments to supply the updated message structure.

image = imread('imageMap.png');

% Message object
msg = rosmessage("sensor_msgs/Image");
msg.Encoding = 'rgb8';
writeImage(msg,image)
imshow(readImage(msg))

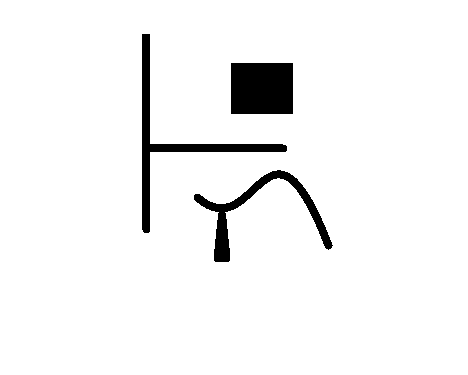

Figure contains an axes object. The axes object contains an object of type image.

% Message structure
msg = rosmessage("sensor_msgs/Image","DataFormat","struct");
msg.Encoding = 'rgb8';
msg = rosWriteImage(msg,image);
imshow(rosReadImage(msg))
close

Time and Duration Arithmatic

ROS time and duration message structures are unable to support operator overloading in the same way that the time and duration objects do. Arithmetic and comparison operations should be done by converting the time or duration structures to a numerical seconds value, performing the operation, and then recreating the time or duration structure if necessary.

% Periodically update message timestamp with objects
msg = rosmessage("std_msgs/Header");
runFor = rosduration(2);
tNow = rostime("now");
tEnd = tNow + runFor;
while tNow < tEnd
    msg.Stamp = tNow;
    % Message may be sent here
    pause(1)
    tNow = rostime("now");
end
% Periodically update message timestamp with structures
msg = rosmessage("std_msgs/Header","DataFormat","struct");
runFor = 2;
tNow = rostime("now","DataFormat","struct");
tNowSec = tNow.Sec + tNow.Nsec*1e-9;
tEndSec = tNowSec + runFor;
while tNowSec < tEndSec
    msg.Stamp = tNow;
    % Message may be sent here
    pause(1)
    tNow = rostime("now","DataFormat","struct");
    tNowSec = tNow.Sec + tNow.Nsec*1e-9;
end

Data Field Coercion

With ROS message objects, data fields have specific types. When a data field value is set, the input is converted to the correct type if possible. Otherwise, if conversion is not possible, an error is returned.

msg = rosmessage("std_msgs/Int8");
msg.Data = 20;
class(msg.Data)
ans =
'int8'

ROS message structures inherently accept any data type or field name without error.

msg = rosmessage("std_msgs/Int8","DataFormat","struct");
msg.Data = 'Test'
msg = struct with fields:
    MessageType: 'std_msgs/Int8'
           Data: 'Test'

msg.Data = 20;
class(msg.Data)
ans =
'double'

Instead, invalid data types error when attempting to send the message over the ROS network.

pub = rospublisher("/int_topic","std_msgs/Int8","DataFormat","struct");
send(pub,msg)
Error using ros.Publisher/send (line 290)
Error publishing a message with type std_msgs/Int8 on topic name /int_topic.

Caused by:
    Error using ros.internal.Node/publish
    Field 'Data' is wrong type; expected a int8.

To prevent errors, ensure that messages are are using the correct data type from the message definition.

rosmsg show std_msgs/Int8
int8 Data

Other Performance Tips

Using message structures is a good first step to speed up the sending and retrieving of ROS messages. Structures also improves the performance for setting and accessing data in nested mesages.The following code demonstrates sending multiple messages with nested fields.

% Set up network (reuse publisher for all examples)
pub = rospublisher("/goal_path","nav_msgs/Path","DataFormat","struct");

% Send robot new paths to follow
nPtsOnPath = 100;
for iPaths = 1:15
    pathMsg = rosmessage(pub);
    for iPts = 1:nPtsOnPath
        pathMsg.Poses(iPts) = rosmessage("geometry_msgs/PoseStamped","DataFormat","struct");
        pathMsg.Poses(iPts).Pose.Position.X = iPaths+iPts;
        pathMsg.Poses(iPts).Pose.Position.Y = iPaths-iPts;
        pathMsg.Poses(iPts).Pose.Position.Z = (iPaths+iPts)/10;
    end
    send(pub,pathMsg)
end

Reuse Messages

If messages are being created and modified in a loop, and the same data fields are being set each iteration, it is faster to create the message only once. Move the creation of the messages outside the loop, and reuse the same messages inside the loop for each iteration.

% Set up messages for use
pathMsg = rosmessage(pub);
poseMsg = rosmessage("geometry_msgs/PoseStamped","DataFormat","struct");

% Send robot new paths to follow
nPtsOnPath = 100;
for iPaths = 1:15
    for iPts = 1:nPtsOnPath
        pathMsg.Poses(iPts) = poseMsg;
        pathMsg.Poses(iPts).Pose.Position.X = iPaths+iPts;
        pathMsg.Poses(iPts).Pose.Position.Y = iPaths-iPts;
        pathMsg.Poses(iPts).Pose.Position.Z = (iPaths+iPts)/10;
    end
    send(pub,pathMsg)
end

Extract Nested Messages for Manipulation

When reading or setting multiple fields in a nested message, extract the nested message before reading or setting the fields.

% Set up messages for use
pathMsg = rosmessage(pub);
poseMsg = rosmessage("geometry_msgs/PoseStamped","DataFormat","struct");
ptMsg = poseMsg.Pose.Position;  % Extract nested message

% Send robot new paths to follow
nPtsOnPath = 100;
for iPaths = 1:15
    for iPts = 1:nPtsOnPath
        % Set fields before setting nested message
        ptMsg.X = iPaths+iPts;
        ptMsg.Y = iPaths-iPts;
        ptMsg.Z = (iPaths+iPts)/10;
        poseMsg.Pose.Position = ptMsg;
        pathMsg.Poses(iPts) = poseMsg;
    end
    send(pub,pathMsg)
end

Preallocate Message Struct Arrays

For relatively large arrays of messages, preallocating a structure array can improve performance when setting values in a loop. Use this method when the the array is a fixed length every iteration.

% Set up messages for use
pathMsg = rosmessage(pub);
poseMsg = rosmessage("geometry_msgs/PoseStamped","DataFormat","struct");
ptMsg = poseMsg.Pose.Position;  % Extract nested message

% Preallocate path array
nPtsOnPath = 100;
pathMsg.Poses(nPtsOnPath) = poseMsg;

% Send robot new paths to follow
for iPaths = 1:15
    for iPts = 1:nPtsOnPath
        % Set fields before setting nested message
        ptMsg.X = iPaths+iPts;
        ptMsg.Y = iPaths-iPts;
        ptMsg.Z = (iPaths+iPts)/10;
        poseMsg.Pose.Position = ptMsg;
        pathMsg.Poses(iPts) = poseMsg;
    end
    send(pub,pathMsg)
end

The ROS network can now be shut down.

rosshutdown
Shutting down global node /matlab_global_node_86688 with NodeURI http://dcc327509glnxa64:33783/
Shutting down ROS master on http://192.168.0.10:60500.
