Discrete cosine transform

## Syntax

``y = dct(x)``
``y = dct(x,n)``
``y = dct(x,n,dim)``
``y = dct(___,Type=dcttype)``

## Description

````y = dct(x)` returns the unitary discrete cosine transform of input array `x`. The output `y` has the same size as `x`. If `x` has more than one dimension, `dct` operates along the first array dimension with size greater than 1.```

example

````y = dct(x,n)` zero-pads or truncates the relevant dimension of `x` to length `n` before transforming.```
````y = dct(x,n,dim)` computes the transform along dimension `dim`. To input a dimension and use the default value of `n`, specify the second argument as empty, `[]`.```

example

````y = dct(___,Type=dcttype)` specifies the type of discrete cosine transform to compute. See Discrete Cosine Transform for details. This option can be combined with any of the previous syntaxes.```

example

## Examples

collapse all

Find how many DCT coefficients represent 99% of the energy in a sequence.

```x = (1:100) + 50*cos((1:100)*2*pi/40).^3; X = dct(x); [XX,ind] = sort(abs(X),"descend"); i = 1; while (norm(X(ind(1:i)))/norm(X))^2 < 0.99 i = i + 1; end needed = i;```

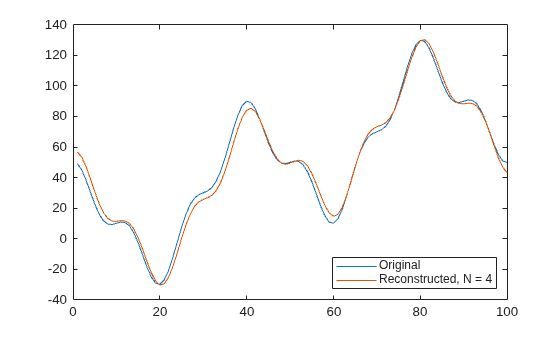

Reconstruct the signal and compare it to the original signal.

```X(ind(needed+1:end)) = 0; xx = idct(X); plot([x;xx]') legend("Original","Reconstructed, N = " + needed, ... Location='SouthEast')```

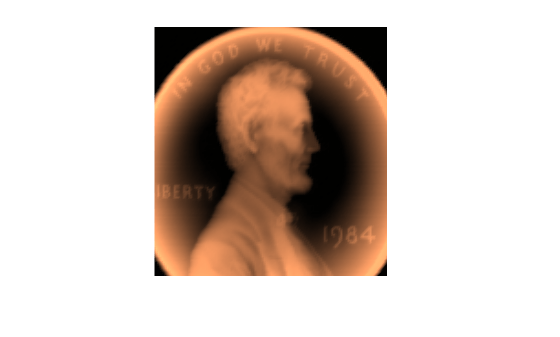

Load a file that contains depth measurements of a mold used to mint a United States penny. The data, taken at the National Institute of Standards and Technology, are sampled on a 128-by-128 grid. Display the data.

```load penny surf(P) view(2) colormap copper shading interp axis ij square off```

Compute the discrete cosine transform of the image data. Operate first along the rows and then along the columns.

```Q = dct(P,[],1); R = dct(Q,[],2);```

Find what fraction of DCT coefficients contain 99.98% of the energy in the image.

```X = R(:); [~,ind] = sort(abs(X),"descend"); coeffs = 1; while (norm(X(ind(1:coeffs)))/norm(X))^2 < 0.9998 coeffs = coeffs + 1; end disp(coeffs + " of " + numel(R) + " coefficients are sufficient")```
```5215 of 16384 coefficients are sufficient ```

Reconstruct the image using only the necessary coefficients.

```R(abs(R) < abs(X(ind(coeffs)))) = 0; S = idct(R,[],2); T = idct(S,[],1);```

Display the reconstructed image.

```surf(T) view(2) shading interp axis ij square off```

Load a file that contains depth measurements of a mold used to mint a United States penny. The data, taken at the National Institute of Standards and Technology, are sampled on a 128-by-128 grid. Display the data.

```load penny surf(P) colormap copper shading interp view(2) axis ij square off```

Compute the discrete cosine transform of the image data using the DCT-1 variant. Operate first along the rows and then along the columns.

```Q = dct(P,[],1,Type=1); R = dct(Q,[],2,Type=1);```

Invert the transform. Truncate the inverse so that each dimension of the reconstructed image is one-half the length of the original.

```S = idct(R,size(P,2)/2,2,Type=1); T = idct(S,size(P,1)/2,1,Type=1);```

Invert the transform again. Zero-pad the inverse so that each dimension of the reconstructed image is twice the length of the original.

```U = idct(R,size(P,2)*2,2,Type=1); V = idct(U,size(P,1)*2,1,Type=1);```

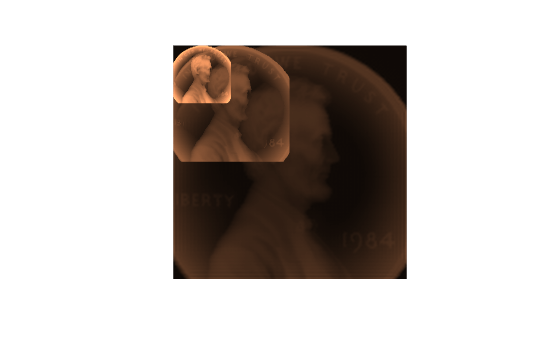

Display the original and reconstructed images.

```surf(V) hold on surf(P) surf(T) hold off shading interp view(2) axis ij equal off```

## Input Arguments

collapse all

Input array, specified as a real-valued or complex-valued vector, matrix, or N-D array.

Example: `sin(2*pi*(0:255)/4)` specifies a sinusoid as a row vector.

Example: `sin(2*pi*[0.1;0.3]*(0:39))'` specifies a two-channel sinusoid.

Data Types: `single` | `double`
Complex Number Support: Yes

Transform length, specified as a positive integer scalar.

Data Types: `single` | `double`

Dimension to operate along, specified as a positive integer scalar.

Data Types: `single` | `double`

Discrete cosine transform type, specified as a positive integer scalar from 1 to 4. See Discrete Cosine Transform for the definitions of the different types of DCT.

Data Types: `single` | `double`

## Output Arguments

collapse all

Discrete cosine transform, returned as a real-valued or complex-valued vector, matrix, or N-D array.

## More About

collapse all

### Discrete Cosine Transform

The discrete cosine transform (DCT) is closely related to the discrete Fourier transform. You can often reconstruct a sequence very accurately from only a few DCT coefficients. This property is useful for applications requiring data reduction.

The DCT has four standard variants. For a signal x of length N, and with δkℓ the Kronecker delta, the transforms are defined by:

• DCT-1:

`$y\left(k\right)=\sqrt{\frac{2}{N-1}}\sum _{n=1}^{N}x\left(n\right)\frac{1}{\sqrt{1+{\delta }_{n1}+{\delta }_{nN}}}\frac{1}{\sqrt{1+{\delta }_{k1}+{\delta }_{kN}}}\mathrm{cos}\left(\frac{\pi }{N-1}\left(n-1\right)\left(k-1\right)\right)$`

• DCT-2:

`$y\left(k\right)=\sqrt{\frac{2}{N}}\sum _{n=1}^{N}x\left(n\right)\frac{1}{\sqrt{1+{\delta }_{k1}}}\mathrm{cos}\left(\frac{\pi }{2N}\left(2n-1\right)\left(k-1\right)\right)$`

• DCT-3:

`$y\left(k\right)=\sqrt{\frac{2}{N}}\sum _{n=1}^{N}x\left(n\right)\frac{1}{\sqrt{1+{\delta }_{n1}}}\mathrm{cos}\left(\frac{\pi }{2N}\left(n-1\right)\left(2k-1\right)\right)$`

• DCT-4:

`$y\left(k\right)=\sqrt{\frac{2}{N}}\sum _{n=1}^{N}x\left(n\right)\mathrm{cos}\left(\frac{\pi }{4N}\left(2n-1\right)\left(2k-1\right)\right)$`

The series are indexed from n = 1 and k = 1 instead of the usual n = 0 and k = 0, because MATLAB® vectors run from 1 to N instead of from 0 to N – 1.

All variants of the DCT are unitary (or, equivalently, orthogonal): To find their inverses, switch k and n in each definition. DCT-1 and DCT-4 are their own inverses. DCT-2 and DCT-3 are inverses of each other.

## References

[1] Jain, A. K. Fundamentals of Digital Image Processing. Englewood Cliffs, NJ: Prentice-Hall, 1989.

[2] Oppenheim, Alan V., Ronald W. Schafer, and John R. Buck. Discrete-Time Signal Processing. 2nd Ed. Upper Saddle River, NJ: Prentice Hall, 1999.

[3] Pennebaker, W. B., and J. L. Mitchell. JPEG Still Image Data Compression Standard. New York: Van Nostrand Reinhold, 1993.

## Version History

Introduced before R2006a
