dspdata.msspectrum
Meansquare (power) spectrum
Syntax
Hmss = dspdata.msspectrum(Data)
Hmss = dspdata.msspectrum(Data,Frequencies)
Hmss = dspdata.msspectrum(...,'Fs',Fs)
Hmss = dspdata.msspectrum(...,'SpectrumType',SpectrumType)
Hmss = dspdata.msspectrum(...,'CenterDC',flag)
Description
Note
The use of dspdata.msspectrum
is not recommended.
Use periodogram
or pwelch
instead.
The meansquared spectrum (MSS) is intended for discrete spectra. Unlike the power spectral density (PSD), the peaks in the MSS reflect the power in the signal at a given frequency. The MSS of a signal is the Fourier transform of that signal's autocorrelation.
Hmss = dspdata.msspectrum(Data)
uses
the meansquare (power) spectrum data contained in Data
,
which can be in the form of a vector or a matrix, where each column
is a separate set of data. Default values for other properties of
the object are as follows:
Property  Default Value  Description

Name
 Readonly character vector

type  Vector of frequencies at which the spectrum is evaluated.
The range of this vector depends on the The length of the If
you do not specify If

 Sampling frequency, which is

 Nyquist interval over which the spectral density is calculated.
Valid values are The interval for

 Whether the frequency is normalized (
Hmss = dspdata.msspectrum(Data,Frequencies)
uses
the mean–square spectrum data contained in Data
and Frequencies
vectors.
Hmss = dspdata.msspectrum(...,'Fs',Fs)
uses
the sampling frequency Fs
. Specifying Fs
uses
a default set of linear frequencies (in Hz
) based
on Fs
and sets NormalizedFrequency
to false
.
Hmss = dspdata.msspectrum(...,'SpectrumType',SpectrumType)
uses SpectrumType
to
specify the interval over which the meansquare spectrum was calculated.
For data that ranges from [0 π)
or [0 π], set the SpectrumType
to onesided
;
for data that ranges from [0 2π),
set the SpectrumType
to twosided
.
Hmss = dspdata.msspectrum(...,'CenterDC',flag)
uses
the value of flag
to indicate whether the zerofrequency
(DC) component is centered. If flag
is true
,
it indicates that the DC component is in the center of the twosided
spectrum. Set the flag
to false
if
the DC component is on the left edge of the spectrum.
Methods
Methods provide ways of performing functions directly on your dspdata
object
without having to specify the parameters again. You can apply a method
directly on the variable you assigned to your dspdata.msspectrum
object.
You can use the following methods with a dspdata.msspectrum
object.
centerdc
normalizefreq
onesided
plot
sfdr
twosided
For example, to normalize the frequency and set the NormalizedFrequency
parameter
to true, use
Hmss = normalizefreq(Hs)
For detailed information on using the methods and plotting the
spectrum, see the dspdata
reference
page.

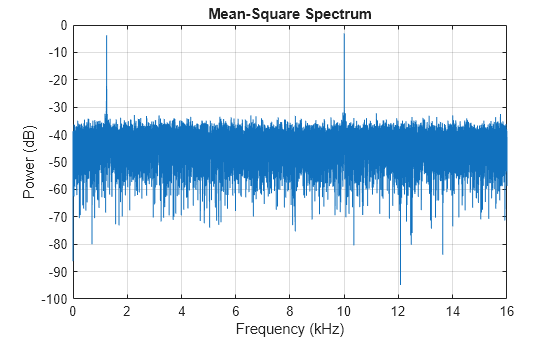

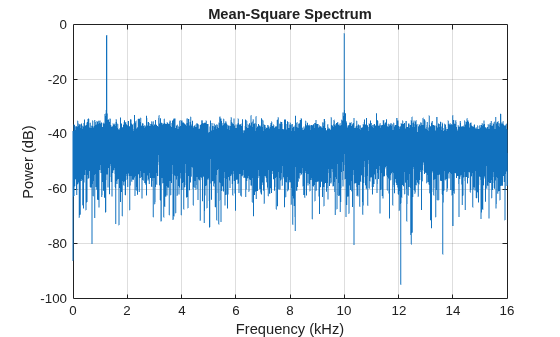

Examples
Version History
Introduced before R2006a
