Power spectral density
Hpsd = dspdata.psd(Data)
Hpsd = dspdata.psd(Data,Frequencies)
Hpsd = dspdata.psd(...,'Fs',Fs)
Hpsd = dspdata.psd(...,'SpectrumType',SpectrumType)
Hpsd = dspdata.psd(...,'CenterDC',flag)
The power spectral density (PSD) is intended for continuous
spectra. The integral of the PSD over a given frequency band computes
the average power in the signal over that frequency band. In contrast
to the mean-squared spectrum, the peaks in this spectra do not reflect
the power at a given frequency. See the
dspdata for more information.
A one-sided PSD contains the total power of the signal in the frequency interval from DC to half of the Nyquist rate. A two-sided PSD contains the total power in the frequency interval from DC to the Nyquist rate.
Hpsd = dspdata.psd(Data) uses
the power spectral density data contained in
which can be in the form of a vector or a matrix, where each column
is a separate set of data. Default values for other properties of
the object are shown below:
Read-only character vector
Vector of frequencies at which the power spectral density
is evaluated. The range of this vector depends on the
you do not specify
length of the
Sampling frequency, which is
Nyquist interval over which the power spectral density
is calculated. Valid values are
The range for half the Nyquist interval is [0 pi) or [0 pi] depending on the number of FFT points. For the whole Nyquist interval, the range is [0 2pi).
Whether the frequency is normalized (
Hpsd = dspdata.psd(Data,Frequencies) uses
the power spectral density estimation data contained in
Hpsd = dspdata.psd(...,'Fs',Fs) uses
the sampling frequency
a default set of linear frequencies (in
Fs and sets
Hpsd = dspdata.psd(...,'SpectrumType',SpectrumType) specifies
the interval over which the power spectral density is calculated.
For data that ranges from [0 π)
or [0 π], set the
for data that ranges from [0 2π),
Hpsd = dspdata.psd(...,'CenterDC',flag) uses
the value of
flag to indicate whether the zero-frequency
(DC) component is centered. If
it indicates that the DC component is in the center of the two-sided
spectrum. Set the
the DC component is on the left edge of the spectrum.
Methods provide ways of performing functions directly on your
You can apply a method directly on the variable you assigned to your
You can use the following methods with a
For example, to normalize the frequency and set the
to true, use
Hpsd = normalizefreq(Hpsd)
For detailed information on using the methods and plotting the
spectrum, see the
Resolve Signal Components
Estimate the one-sided power spectral density of a noisy sinusoidal signal with two frequency components.
Fs = 32e3; t = 0:1/Fs:2.96; x = cos(2*pi*t*1.24e3)+ cos(2*pi*t*10e3)+ randn(size(t)); nfft = 2^nextpow2(length(x)); Pxx = abs(fft(x,nfft)).^2/length(x)/Fs;
Store the spectrum in a PSD data object and plot the result.

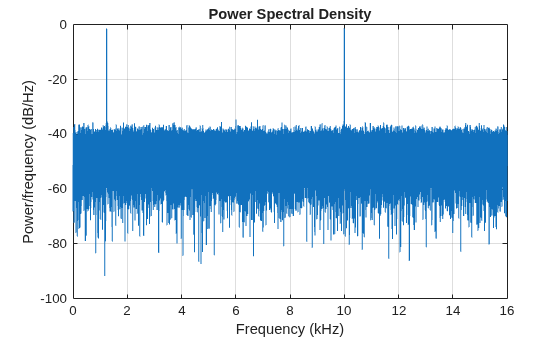

Hpsd = dspdata.psd(Pxx(1:length(Pxx)/2),'Fs',Fs); plot(Hpsd)
Create a two-sided spectrum and plot it.

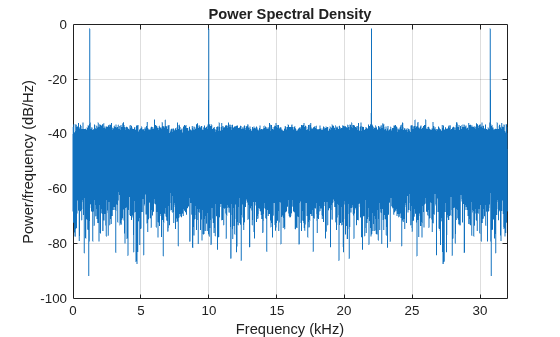

Hpsd = dspdata.psd(Pxx,'Fs',Fs,'SpectrumType','twosided'); plot(Hpsd)
Introduced before R2006a
