# Power Spectral Density Estimates Using FFT

This example shows how to obtain equivalent nonparametric power spectral density (PSD) estimates using the `periodogram`

and `fft`

functions. The different cases show you how to properly scale the output of `fft`

for even-length inputs, for normalized frequencies and frequencies in hertz, and for one- and two-sided PSD estimates. All cases use a rectangular window.

This example focuses on stationary signals whose frequency content is constant in time. For nonstationary signals with time-dependent frequency content, the short-time Fourier transform is a better analysis tool. For more information, see Spectrogram Computation with Signal Processing Toolbox.

### Even-Length Input with Sample Rate

Obtain the periodogram for an even-length signal sampled at 1 kHz using both `fft`

and `periodogram`

. Compare the results.

Create a signal consisting of a 100 Hz sine wave in *N*(0,1) additive noise. The sampling frequency is 1 kHz. The signal length is 1000 samples.

fs = 1000; t = 0:1/fs:1-1/fs; x = cos(2*pi*100*t) + randn(size(t));

Obtain the periodogram using `fft`

. The signal is real-valued and has even length. Because the signal is real-valued, you only need power estimates for the positive or negative frequencies. In order to conserve the total power, multiply all frequencies that occur in both sets — the positive and negative frequencies — by a factor of 2. Zero frequency (DC) and the Nyquist frequency do not occur twice. Plot the result.

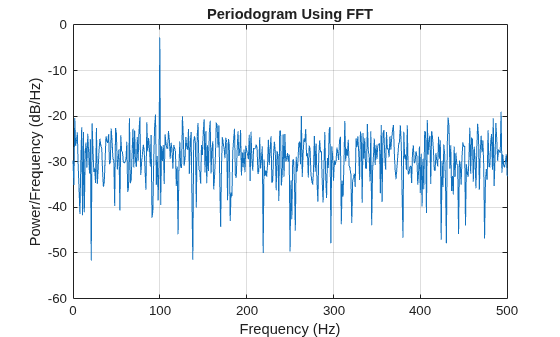

N = length(x); xdft = fft(x); xdft = xdft(1:N/2+1); psdx = (1/(fs*N)) * abs(xdft).^2; psdx(2:end-1) = 2*psdx(2:end-1); freq = 0:fs/length(x):fs/2; plot(freq,pow2db(psdx)) grid on title("Periodogram Using FFT") xlabel("Frequency (Hz)") ylabel("Power/Frequency (dB/Hz)")

Compute and plot the periodogram using `periodogram`

. Show that the two results are identical.

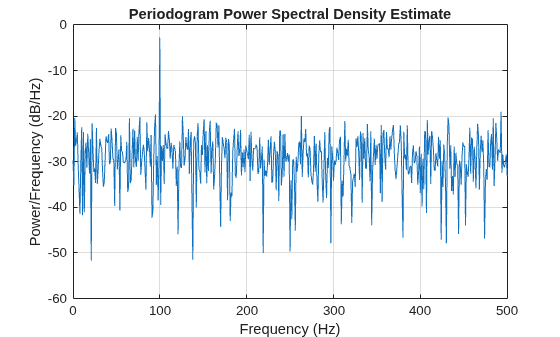

periodogram(x,rectwin(N),N,fs)

mxerr = max(psdx'-periodogram(x,rectwin(N),N,fs))

mxerr = 3.4694e-18

### Input with Normalized Frequency

Use `fft`

to produce a periodogram for an input using normalized frequency. Create a signal consisting of a sine wave in *N*(0,1) additive noise. The sine wave has an angular frequency of $$\pi /4$$ rad/sample.

N = 1000; n = 0:N-1; x = cos(pi/4*n) + randn(size(n));

Obtain the periodogram using `fft`

. The signal is real-valued and has even length. Because the signal is real-valued, you only need power estimates for the positive or negative frequencies. In order to conserve the total power, multiply all frequencies that occur in both sets — the positive and negative frequencies — by a factor of 2. Zero frequency (DC) and the Nyquist frequency do not occur twice. Plot the result.

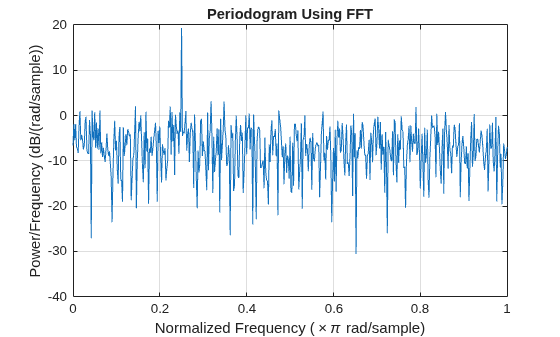

xdft = fft(x); xdft = xdft(1:N/2+1); psdx = (1/(2*pi*N)) * abs(xdft).^2; psdx(2:end-1) = 2*psdx(2:end-1); freq = 0:2*pi/N:pi; plot(freq/pi,pow2db(psdx)) grid on title("Periodogram Using FFT") xlabel("Normalized Frequency (\times\pi rad/sample)") ylabel("Power/Frequency (dB/(rad/sample))")

Compute and plot the periodogram using `periodogram`

. Show that the two results are identical.

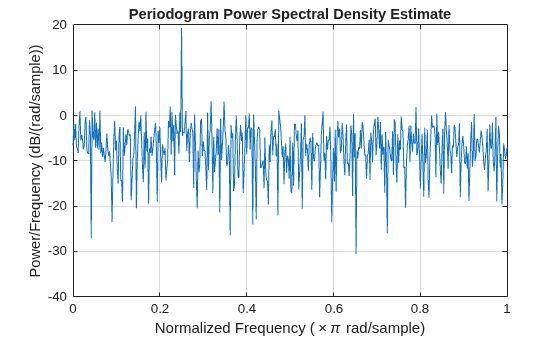

periodogram(x,rectwin(N),N)

mxerr = max(psdx'-periodogram(x,rectwin(N),N))

mxerr = 4.4409e-16

### Complex-Valued Input with Normalized Frequency

Use `fft`

to produce a periodogram for a complex-valued input with normalized frequency. The signal is a complex exponential with an angular frequency of $$\pi /4$$ rad/sample in complex-valued *N*(0,1) noise.

N = 1000; n = 0:N-1; x = exp(1j*pi/4*n) + [1 1j]*randn(2,N)/sqrt(2);

Use `fft`

to obtain the periodogram. Because the input is complex-valued, obtain the periodogram from $$[0,2\pi )$$ rad/sample. Plot the result.

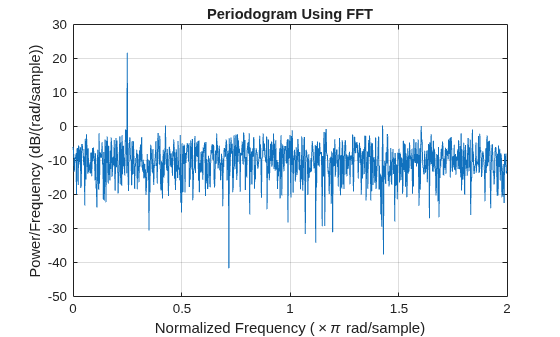

xdft = fft(x); psdx = (1/(2*pi*N)) * abs(xdft).^2; freq = 0:2*pi/N:2*pi-2*pi/N; plot(freq/pi,pow2db(psdx)) grid on title("Periodogram Using FFT") xlabel("Normalized Frequency (\times\pi rad/sample)") ylabel("Power/Frequency (dB/(rad/sample))")

Use `periodogram`

to obtain and plot the periodogram. Compare the PSD estimates.

`periodogram(x,rectwin(N),N,"twosided")`

`mxerr = max(psdx'-periodogram(x,rectwin(N),N,"twosided"))`

mxerr = 2.2204e-16
