Edge Cooling

Cooling plate with edge cooling

Since R2022b

expand all in page

Libraries:
Simscape / Battery / Thermal

Description

The Edge Cooling block models a battery cooling plate with edge cooling. Use the buildBattery function to create a Simscape model of a battery and connect it to the either end of the cooling plate. You can cool any of the four edges of the cooling plate. To learn how to connect a cooling plate block to a battery, see Connect Battery Block to Cooling Plate Block Automatically.

Typically, a cooling plate comprises two stamped flat plates joined together. The stamped portion of the plate forms a channel in which the fluid can flow. The Edge Cooling block models the flat material of the plate by using one or more Thermal Mass blocks and the fluid-flow through the cooling channels by using Pipe (TL) blocks. The number of Pipe (TL) blocks and their connection to the plate depend on the discretization. For more information on the implementation of the Pipe (TL) block and its equations, see the Pipe (TL) documentation page.

The thermal masses of the cooling plate exchange heat with each other through heat conduction by using this equation:

Q=K A dTdx,

where T is the temperature, K is the plate thermal conductivity, and A and x depend on the plate thickness and on the number of partitions and directions, x or y.

The fluid carries the heat away, or heats the battery pack, through these thermal masses. A thermal mass that is not connected to a pipe can only add or remove heat from a battery based on the heat conduction parameters that you specify.

Cooling Plate Discretization

The Number of partitions in X direction and Number of partitions in Y direction parameters control the discretization of the cooling plate.

If you set the Number of partitions in X direction and Number of partitions in Y direction parameters to 1, the cooling plate is a lumped mass with a single thermal mass value. The software calculates this thermal mass from the value of the parameters in the Plate Material section. In this example, the Select edge to be cooled parameter is set to Edge cooling along Y axis at X = Xmax. The software then places one Pipe (TL) block along the Y-axis at the maximum X-axis value and connects them to the cooling plate. During the simulation, the cooling plate has one temperature value at each time step. Consequently, each cell of the battery pack connected to this cooling plate measures the same plate temperature value.

To increase the model fidelity, change the value of the Number of partitions in X direction to 2. The software now divides the cooling plate along the X dimension in two regions. Each region comprises a separate thermal mass. With this configuration, the Pipe (TL) block connects to both regions of the plate. During the simulation, the cooling plate has two different temperature values, one for each region of the plate.

To increase the model fidelity even further, change the value of the Number of partitions in Y direction to 3. The software discretizes the cooling plate along the Y dimension in three regions. The total number of regions in the cooling plate is now six. Since the Y direction is also the direction of the coolant flow, the software discretizes the cooling pipe as well. Instead of one Pipe (TL) block for each couple of partitions in the X direction, this configuration comprises one Pipe (TL) block for each couple of partitions in the X direction. During the simulation, this cooling plate has six different temperature values at each time step. Consequently, the cells of the battery pack connected to this plate measure a temperature value that depends on the position of the cells.

For more information about cooling plates and their connection to battery blocks, see Connect Cooling Plate to Battery Blocks.

Examples

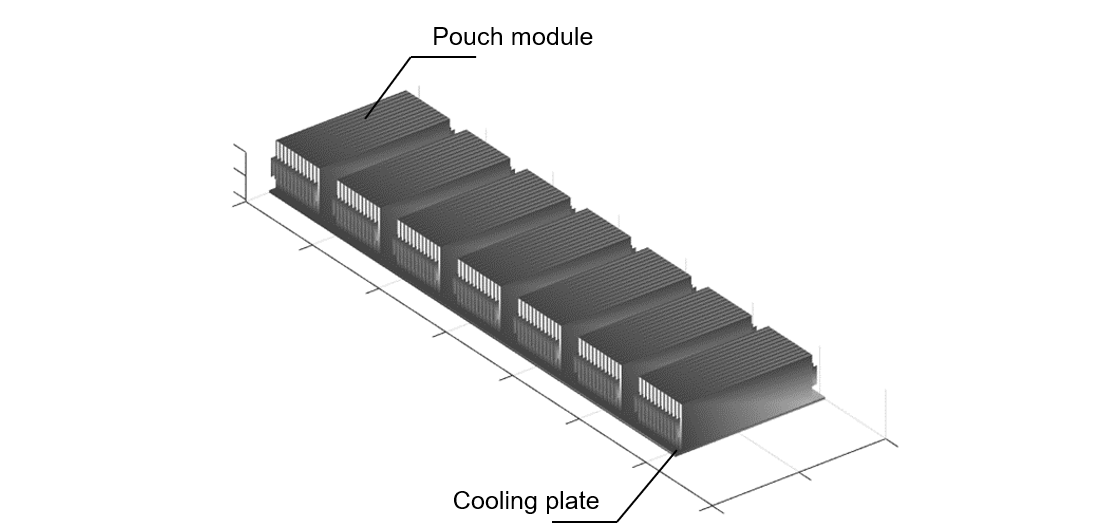

Build Model of Battery Module Assembly with Multi-Module Cooling Plate

Build Model of Battery Module Assembly with Multi-Module Cooling Plate

Create and build a Simscape™ system model of a module assembly with a multi-module cooling plate by using Simscape™ Battery™. Large cooling plates that span across several battery modules are quite common in the design of battery systems, including in the automotive and consumer electronics sector. The workflow in this example automates the process of thermally coupling several modules together to a single battery cooling plate. To create the system model of a battery ModuleAssembly, you must first create the Cell, ParallelAssembly, and Module objects that comprise the battery module assembly, and then use the buildBattery function. The buildBattery function generates Simscape models for these Simscape Battery objects:

Build Model of Battery Pack with Multi-Module Cooling Plate

Build Model of Battery Pack with Multi-Module Cooling Plate

Create and build a Simscape™ system model of a pack with a multi-module cooling plate by using Simscape™ Battery™ software. Large cooling plates that span across several battery modules are common in the design of battery systems in the automotive and consumer electronics sector. In this example, you thermally couple several modules to a single battery cooling plate. To create the system model of a battery Pack, you must first create the Cell, ParallelAssembly, Module, and ModuleAssembly objects that comprise the battery pack, and then use the buildBattery function. This function creates a library in your working folder that contains a system model block of a battery pack. Use this model as reference in your simulations. You can modify the run-time parameters for this model block, such as the battery cell resistance or the battery open-circuit voltage, after you create the model. To define the run-time parameters, specify them in the block mask of the generated Simscape models or use the MaskParameters argument of the buildBattery function.

Ports

Output

expand all

Temperature of the cooling plate, in Kelvin.

Temperature change of the fluid, in Kelvin.

Pressure drop of the fluid, in Pascal.

Conserving

expand all

Thermal fluid conserving port associated with the fluid that comes in the cooling plate.

Thermal fluid conserving port associated with the fluid that comes out of the cooling plate.

Thermal conserving port associated with the surface 1 of the cooling plate. This port connects the array of thermal nodes between the cooling plate and battery pack or module.

Thermal conserving port associated with the surface 2 of the cooling plate. This port connects the array of thermal nodes between the cooling plate and battery pack or module.

Parameters

expand all

Interface

Option to choose the connectivity of the battery.

Number of battery thermal nodes on surface 1 of the cooling plate.

When manually connecting this cooling plate to a battery, you can obtain this information by querying the ThermalNodes property of the battery object associated with the battery block you are connecting this block to. The ThermalNodes property includes information such as the number of nodes, the 2-D location of nodes, and the dimensions of nodes.

Dimension of the battery thermal nodes on surface 1 of the cooling plate.

When manually connecting this cooling plate to a battery, you can obtain this information by querying the ThermalNodes property of the battery object associated with the battery block you are connecting this block to. The ThermalNodes property includes information such as the number of nodes, the 2-D location of nodes, and the dimensions of nodes.

Coordinates of the battery thermal nodes on surface 1 of the cooling plate.

When manually connecting this cooling plate to a battery, you can obtain this information by querying the ThermalNodes property of the battery object associated with the battery block you are connecting this block to. The ThermalNodes property includes information such as the number of nodes, the 2-D location of nodes, and the dimensions of nodes.

Number of battery thermal nodes on surface 2 of the cooling plate.

When manually connecting this cooling plate to a battery, you can obtain this information by querying the ThermalNodes property of the battery object associated with the battery block you are connecting this block to. The ThermalNodes property includes information such as the number of nodes, the 2-D location of nodes, and the dimensions of nodes.

Dependencies

To enable this parameter, set Battery Connectivity to Double sided.

Dimension of the battery thermal nodes on surface 2 of the cooling plate.

When manually connecting this cooling plate to a battery, you can obtain this information by querying the ThermalNodes property of the battery object associated with the battery block you are connecting this block to. The ThermalNodes property includes information such as the number of nodes, the 2-D location of nodes, and the dimensions of nodes.

Dependencies

To enable this parameter, set Battery Connectivity to Double sided.

Coordinates of the battery thermal nodes on surface 2 of the cooling plate.

When manually connecting this cooling plate to a battery, you can obtain this information by querying the ThermalNodes property of the battery object associated with the battery block you are connecting this block to. The ThermalNodes property includes information such as the number of nodes, the 2-D location of nodes, and the dimensions of nodes.

Dependencies

To enable this parameter, set Battery Connectivity to Double sided.

Number of partitions in the X dimension for the cooling plate. This parameter affects the level of fidelity of the cooling plate.

Number of partitions in the Y dimension for cooling plate. This parameter affects the level of fidelity of the cooling plate.

Plate Material

Thickness of the material of the cooling plate.

Thermal conductivity of the material of the cooling plate.

Density of the material of the cooling plate.

Specific heat of the material of the cooling plate.

Temperature of the cooling plate and of the coolant fluid at the start of simulation.

Fluid Properties

Reynolds number above which flow begins to transition from laminar to turbulent. This number equals the maximum Reynolds number corresponding to fully developed laminar flow.

Reynolds number below which flow begins to transition from turbulent to laminar. This number equals to the minimum Reynolds number corresponding to fully developed turbulent flow.

The value of this parameter must be greater than the value of the Reynolds number upper limit for laminar flow parameter.

Ratio of convective to conductive heat transfer in the laminar flow regime. Its value depends on the pipe cross-sectional geometry and pipe wall thermal boundary conditions, such as constant temperature or constant heat flux. Typical value is 3.66, for a circular cross section with constant wall temperature.

Combined length of all local resistances present in the pipe. Local resistances include bends, fittings, armatures, and pipe inlets and outlets. The effect of the local resistances is to increase the effective length of the pipe segment. This length is added to the geometrical pipe length only for friction calculations. The liquid volume inside the pipe depends only on the pipe geometrical length.

Dimensionless factor that encodes the effect of pipe cross-sectional geometry on the viscous friction losses in the laminar flow regime. Typical values are 64 for a circular cross section, 57 for a square cross section, 62 for a rectangular cross section with an aspect ratio of 2, and 96 for a thin annular cross section.

Design

Option to choose which edge of the cooling plate you want to cool.

Hydraulic diameter of the cooling channel.

Internal area of the cooling channel normal to the direction of the flow.

Roughness of the coolant channel.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced in R2022b
