Data Type Propagation
Set data type and scaling of propagated signal based on information from reference
signals
Description
The Data Type Propagation block allows you to control the data type and
scaling of signals in your model. You can use this block along with fixedpoint blocks
that have their Output data type parameter configured to
Inherit: Inherit via back propagation
.

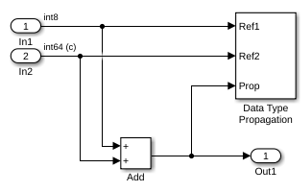

The block has three inputs: Ref1 and Ref2 are the
reference inputs, while the Prop input backpropagates the data
type and scaling information gathered from the reference inputs. This information is
then passed on to other fixedpoint blocks.
The block provides many choices for propagating data type and scaling information. For
example, you can use:
The number of bits from the Ref1 reference signal or the
number of bits from widest reference signal
The range from the Ref2 reference signal or the range of
the reference signal with the greatest range
A bias of zero, regardless of the biases used by the reference signals
The precision of the reference signal with the least precision
You specify how data type information is propagated using the Propagated data
type parameter:
If you select Specify via dialog
, then you manually specify
the data type via the Propagated data type edit field.
If you select Inherit via propagation rule
, then you must
use the parameters described in Parameters.
You specify how scaling information is propagated using the Propagated
scaling parameter:
If you select Specify via dialog
, then you manually specify
the scaling via the Propagated scaling edit field.
If you select Inherit via propagation rule
, then you must
use the parameters described in Parameters.
After you use the information from the reference signals, you can apply a second level of
adjustments to the data type and scaling. To do so, use individual multiplicative and
additive adjustments. This flexibility has various uses. For example, if you are
targeting a DSP, then you can configure the block so that the number of bits associated
with a multiply and accumulate (MAC) operation is twice as wide as the input signal, and
has a specific number of guard bits added to it.
The Data Type Propagation block also provides a mechanism to force the
computed number of bits to a useful value. For example, if you are targeting a 16bit
micro, then the target C compiler is likely to support sizes of only 8 bits, 16 bits,
and 32 bits. The block forces these three choices to be used. For example, suppose that
the block computes a data type size of 24 bits. Since 24 bits is not directly usable by
the target chip, the signal is forced up to 32 bits, which is natively supported.
There is also a method for dealing with floatingpoint reference signals. This method makes
it easier to create designs that are easily retargeted between fixedpoint chips and
floatingpoint chips.
The Data Type Propagation block allows you to set up libraries of useful
subsystems that are properly configured based on the connected signals. Without this
data type propagation process, subsystems from a library are unlikely to work as desired
with most integer or fixedpoint signals. Manual intervention would be required to
configure the data type and scaling. In many situations, this block can eliminate the
manual intervention.
Precedence Rules
The precedence of the dialog box parameters decreases from top to bottom. Also:
Doubleprecision reference inputs have precedence over all other data types.
Singleprecision reference inputs have precedence over integer and fixedpoint data types.
Multiplicative adjustments are carried out before additive adjustments.
The number of bits is determined before the precision or positive range is inherited from the reference inputs.
PosRange
is one bit higher than the exact maximum
positive range of the signal.
The computed numberofbits are promoted to the smallest allowable value
that is greater than or equal to the computation. If none exists, then the
block returns an error.
Ports
Input
expand all
Ref1
— First reference signal
scalar  vector  matrix  ND array
First reference signal, from which to gather data type and scaling
information.
Data Types: single
 double
 int8
 int16
 int32
 uint8
 uint16
 uint32
 Boolean
 fixed point
Ref2
— Second reference signal
scalar  vector  matrix  ND array
Second reference signal from which to gather data type and scaling
information.
Data Types: single
 double
 int8
 int16
 int32
 uint8
 uint16
 uint32
 Boolean
 fixed point
Prop
— Propagated data type and scaling
data type and scaling
Data type and scaling information, backpropagated to the model. After the block gathers
data type and scaling information from the reference signals, you can
apply a second level of adjustments to the data type and scaling. To do
so, specify individual multiplicative and additive adjustments in the
block dialog box.
Data Types: single
 double
 int8
 int16
 int32
 uint8
 uint16
 uint32
 Boolean
 fixed point
Parameters
expand all
Propagated Type
1. Propagated data type
— Mode of specifying propagated data type
Inherit via propagation
rule
(default)  Specify via dialog
Specify whether to propagate the data type via the dialog box, or inherit the data type
from the reference signals.
Dependencies
Setting this parameter to Specify via
dialog
enables the 1.1. Propagated data
type (e.g. fixdt(1,16), fixdt('single')).
Programmatic Use
Block Parameter:
PropDataTypeMode
Type: character
vector
Values:
'Specify via dialog'  'Inherit via propagation
rule'
Default:
'Inherit via propagation rule'
1.1. Propagated data type (e.g. fixdt(1,16), fixdt('single'))
— Propagated data type
fixdt(1,16)
(default)  data type string
Specify the data type to propagate.
Dependencies
To enable this parameter, set 1. Propagated data
type to Specify via
dialog
.
Programmatic Use
Block Parameter:
PropDataTypeMode
Type: character
vector
Values:
'Specify via dialog'  'Inherit via propagation
rule'
Default:
'Inherit via propagation rule'
1.1 If any reference input is double, output is
— Output data type when a reference input is double
double
(default)  single
Specify the output data type as single
or
double
. This parameter makes it easier to create
designs that are easily retargeted between fixedpoint chips and
floatingpoint chips.
Dependencies
To enable this parameter, set Propagated data
type to Inherit via propagation
rule
.
Programmatic Use
Block Parameter:
IfRefDouble
Type: character
vector
Values:
'double'  'single'
Default:
'double'
1.2 If any reference input is single, output is
— Output data type when a reference input is single
single
(default)  double
Specify the output data type as single
or
double
. This parameter makes it easier to create
designs that are easily retargeted between fixedpoint chips and
floatingpoint chips.
Dependencies
To enable this parameter, set Propagated data
type to Inherit via propagation
rule
.
Programmatic Use
Block Parameter:
IfRefSingle
Type: character
vector
Values:
'double'  'single'
Default:
'single'
1.3 IsSigned
— Signedness of propagated data type
IsSigned1 or IsSigned2
(default)  IsSigned1
 IsSigned2
 TRUE
 FALSE
Specify the sign of Prop as one of the following
values.
Parameter Value  Description

IsSigned1
 Prop is a signed data type
if Ref1 is a signed data
type.
IsSigned2
 Prop is a signed data type
if Ref2 is a signed data
type.
IsSigned1 or
IsSigned2
 Prop is a signed data type
if either Ref1 or
Ref2 are signed data
types.
TRUE
 Ref1 and
Ref2 are ignored, and Prop is
always a signed data type.
FALSE
 Ref1 and
Ref2 are ignored, and Prop is
always an unsigned data type.
For example, if the Ref1 signal is
ufix(16)
, the Ref2 signal is
sfix(16)
, and the IsSigned
parameter is IsSigned1 or IsSigned2
, then
Prop is forced to be a signed data type.
Dependencies
To enable this parameter, set Propagated data
type to Inherit via propagation
rule
.
Programmatic Use
Block Parameter:
IsSigned
Type: character
vector
Values:
'IsSigned1'  'IsSigned2'  'IsSigned1 or IsSigned2'
'TRUE'  'FALSE'
Default:
'IsSigned1 or IsSigned2'

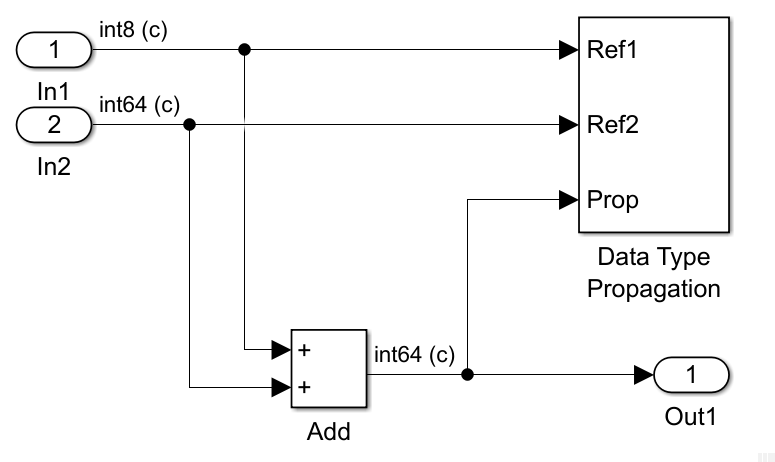

1.4.1 Numberofbits: Base
— Number of bits for the base of the propagated data type
max([NumBits1 NumBits2])
(default)  NumBits1
 NumBits2
 min([NumBits1 NumBits2])
 NumBits1+NumBits2
Specify the number of bits used by Prop for the
base data type as one of the following values.
Parameter Value  Description

NumBits1
 The number of bits for
Prop is given by the number
of bits for
Ref1.
NumBits2
 The number of bits for
Prop is given by the number
of bits for
Ref2.
max([NumBits1
NumBits2])
 The number of bits for
Prop is given by the
reference signal with largest number of
bits.
min([NumBits1
NumBits2])
 The number of bits for
Prop is given by the
reference signal with smallest number of
bits.

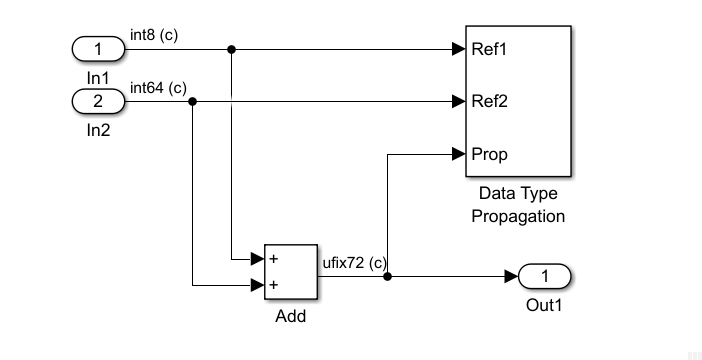

NumBits1+NumBits2
 The number of bits for
Prop is given by the sum of
the reference signal bits.
For more information about the base data type, refer to Targeting an Embedded
Processor (FixedPoint Designer).
Dependencies
To enable this parameter, set Propagated data
type to Inherit via propagation
rule
.
Programmatic Use
Block Parameter:
NumBitsBase
Type: character
vector
Values:
'NumBits1'  'NumBits2'  'max([NumBits1 NumBits2])'
'min([NumBits1 NumBits2])'
'NumBits1+NumBits2'
Default:
'max([NumBits1 NumBits2])'
1.4.2 Numberofbits: Multiplicative adjustment
— Number of bits for multiplicative adjustment of propagated data type
1
(default)  positive integer
Specify the number of bits used by Prop by
including a multiplicative adjustment that uses a data type of
double
. For example, suppose that you want to
guarantee that the number of bits associated with a multiply and
accumulate (MAC) operation is twice as wide as the input signal. To do
this, set this parameter to 2
.
Dependencies
To enable this parameter, set Propagated data
type to Inherit via propagation
rule
.
Programmatic Use
Block Parameter:
NumBitsMult
Type: character
vector
Values: positive
integer
Default:
'1'
1.4.3 Numberofbits: Additive adjustment
— Number of bits for additive adjustment of propagated data type
0
(default)  positive integer
Specify the number of bits used by Prop by
including an additive adjustment that uses a data type of
double
. For example, if you are performing
multiple additions during a MAC operation, the result could overflow. To
prevent overflow, you can associate guard bits with the propagated data
type. To associate four guard bits, you specify the value
4
.
Dependencies
To enable this parameter, set Propagated data
type to Inherit via propagation
rule
.
Programmatic Use
Block Parameter:
NumBitsAdd
Type: character
vector
Values: scalar
Default:
'0'
1.4.4 Numberofbits: Allowable final values
— Allowable number of bits in propagated data type
'1:128'
(default)  scalar or vector of positive integers
Force the computed number of bits used by Prop to
a useful value. For example, if you are targeting a processor that
supports only 8 bits, 16 bits, and 32 bits, then you configure this
parameter to [8,16,32]
. The block always propagates
the smallest specified value that fits. If you want to allow all
fixedpoint data types, you would specify the value
1:128
.
Dependencies
To enable this parameter, set Propagated data
type to Inherit via propagation
rule
.
Programmatic Use
Block Parameter:
NumBitsAllowFinal
Type: character
vector
Values: scalar or vector of
positive integers
Default:
'1:128'
Propagated Scaling
2. Propagated scaling
— Propagated scaling mode
Inherit via propagation
rule
(default)  Specify via dialog
 Obtain via best precision
Choose to propagate the scaling via the dialog box, inherit the
scaling from the reference signals, or calculate the scaling to obtain
best precision.
Programmatic Use
Block Parameter:
PropScalingMode
Type: character
vector
Values:
Inherit via propagation rule
Specify via dialog
Obtain via best
precision
Default:
Inherit via propagation rule
2.1. Propagated scaling (Slope or [Slope Bias])
— Slope or slope and bias
2^10
 Slope
 [Slope Bias]
Specify the scaling as either a slope or a slope and bias.
Dependencies
To enable this parameter, set Propagated
scaling to Specify via
dialog
.
Programmatic Use
Block Parameter:
PropScaling
Type: character
vector
Values:
Slope  [Slope
Bias]
Default:
'2^10'
2.1. Values used to determine best precision scaling
— Values to constrain precision
[5 7]
(default)
Specify any values to be used to constrain the precision, such as the
upper and lower limits on the propagated input. Based on the data type,
the block selects a scaling such that these values can be represented
with no overflow error and minimum quantization error.
Dependencies
To enable this parameter, set Propagated
scaling to Obtain via best
precision
.
Programmatic Use
Block Parameter:
ValuesUsedBestPrec
Type: character
vector
Values: vector of
values
Default:
'[5 7]'
2.1.1. Slope: Base
— Slope for base of the propagated data type
min([Slope1
Slope2])
(default)  Slope1
 Slope2
 min([Slope1 Slope2])
 max([Bias1 Bias2])
 Slope1*Slope2
 Slope1/Slope2
 PosRange1
 PosRange2
 max([PosRange1 PosRange2])
 min([PosRange1 PosRange2])
 PosRange1*PosRange2
 PosRange1/PosRange2
Specify the slope used by Prop for the base data
type as one of the following values.
Parameter Value  Description

Slope1
 The slope of Prop is given
by the slope of
Ref1.
Slope2
 The slope of Prop is given
by the slope of
Ref2.
max([Slope1
Slope2])
 The slope of Prop is given
by the maximum slope of the reference
signals.
min([Slope1
Slope2])
 The slope of Prop is given
by the minimum slope of the reference
signals.
Slope1*Slope2
 The slope of Prop is given
by the product of the reference signal
slopes.
Slope1/Slope2
 The slope of Prop is given
by the ratio of the Ref1 slope
to the Ref2
slope.
PosRange1
 The range of Prop is given
by the range of
Ref1.
PosRange2
 The range of Prop is given
by the range of
Ref2.
max([PosRange1
PosRange2])
 The range of Prop is given
by the maximum range of the reference
signals.
min([PosRange1
PosRange2])
 The range of Prop is given
by the minimum range of the reference
signals.
PosRange1*PosRange2
 The range of Prop is given
by the product of the reference signal
ranges.
PosRange1/PosRange2
 The range of Prop is given
by the ratio of the Ref1 range
to the Ref2
range.
You control the precision of Prop with
Slope1
and Slope2
, and you
control the range of Prop with
PosRange1
and PosRange2
. Also,
PosRange1
and PosRange2
are
one bit higher than the maximum positive range of the associated
reference signal.
Dependencies
To enable this parameter, set Propagated
scaling to Inherit via propagation
rule
.
Programmatic Use
Block Parameter:
SlopeBase
Type: character
vector
Values:
'Slope1'  'Slope2'  'max([Slope1 Slope2])'
'min([Slope1 Slope2])'  'Slope1*Slope2'  'Slope1/Slope2'
'PosRange1'  'PosRange2'  'max([PosRange1 PosRange2])'
'min([PosRange1 PosRange2])'  'PosRange1*PosRange2'
'PosRange1/PosRange2'
Default:
'min([Slope1 Slope2])'
2.1.2. Slope: Multiplicative adjustment
— Slope of multiplicative adjustment of propagated data type
1
(default)  scalar
Specify the slope used by Prop by including a
multiplicative adjustment that uses a data type of
double
. For example, if you want 3 bits of
additional precision (with a corresponding decrease in range), the
multiplicative adjustment is 2^3
.
Dependencies
To enable this parameter, set Propagated
scaling to Inherit via propagation
rule
.
Programmatic Use
Block Parameter:
SlopeMult
Type: character
vector
Values: scalar
Default:
'1'
2.1.3. Slope: Additive adjustment
— Slope of additive adjustment of propagated data type
0
(default)  scalar
Specify the slope used by Prop by including an
additive adjustment that uses a data type of double
.
An additive slope adjustment is often not needed. The most likely use is
to set the multiplicative adjustment to 0
, and set
the additive adjustment to force the final slope to a specified
value.
Dependencies
To enable this parameter, set Propagated
scaling to Inherit via propagation
rule
.
Programmatic Use
Block Parameter:
SlopeAdd
Type: character
vector
Values: scalar
Default:
'0'
2.2.1. Bias: Base
— Base bias for Prop
Bias1
(default)  Bias2
 max([Bias1 Bias2])
 min([Bias1 Bias2])
 Bias1*Bias2
 Bias1/Bias2
 Bias1+Bias2
 Bias1Bias2
Specify the bias used by Prop for the base data
type. The parameter values are described as follows:
Parameter Value  Description

Bias1
 The bias of Prop is given
by the bias of
Ref1.
Bias2
 The bias of Prop is given
by the bias of
Ref2.
max([Bias1
Bias2])
 The bias of Prop is given
by the maximum bias of the reference
signals.
min([Bias1
Bias2])
 The bias of Prop is given
by the minimum bias of the reference
signals.
Bias1*Bias2
 The bias of Prop is given
by the product of the reference signal
biases.
Bias1/Bias2
 The bias of Prop is given
by the ratio of the Ref1 bias
to the Ref2
bias.
Bias1+Bias2
 The bias of Prop is given
by the sum of the reference biases.
Bias1Bias2
 The bias of Prop is given
by the difference of the reference
biases.
Dependencies
To enable this parameter, set Propagated
scaling to Inherit via propagation
rule
.
Programmatic Use
Block Parameter:
BiasBase
Type: character
vector
Values:
'Bias1'  'Bias2'  'max([Bias1 Bias2])'  'min([Bias1
Bias2])'  'Bias1*Bias2'  'Bias1/Bias2'  'Bias1+Bias2'
'Bias1Bias2'
Default:
'Bias1'
2.2.2. Bias: Multiplicative adjustment
— Multiplicative bias for propagated data type
1
(default)  scalar
Specify the bias used by Prop by including a multiplicative adjustment
that uses a data type of double
.
This parameter is visible only when you set Propagated
scaling to Inherit via propagation
rule
.
Programmatic Use
Block Parameter:
BiasMult
Type: character
vector
Values: scalar
Default:
'0'
2.3.2. Bias: Additive adjustment
— Additive bias for propagated data type
0
(default)  scalar
Specify the bias used by Prop by including an
additive adjustment that uses a data type of
double
.
If you want to guarantee that the bias associated with
Prop is zero, configure both the multiplicative
adjustment and the additive adjustment to 0
.
Dependencies
To enable this parameter, set Propagated
scaling to Inherit via propagation
rule
.
Programmatic Use
Block Parameter:
BiasAdd
Type: character
vector
Values: scalar
Default:
'0'
Block Characteristics
Data Types  Boolean  double  fixed point  integer  single

Direct Feedthrough  no

Multidimensional Signals  yes

VariableSize Signals  yes

ZeroCrossing Detection  no

Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
FixedPoint Conversion
Convert floatingpoint algorithms to fixed point using FixedPoint Designer™.
Introduced before R2006a
