Developing Vision Algorithms for Zynq-Based Hardware

Setup Prerequisites

You can use this support package to develop algorithms that target a Zynq-based board. This example shows a complete workflow, from a frame-based simulation model to the deployed pixel streaming algorithm running on a ZedBoard®. To demonstrate the workflow an edge detection and image overlay algorithm is used throughout this example. This algorithm corresponds to the Vision HDL Toolbox example, Edge Detection and Image Overlay (Vision HDL Toolbox). With the Support Package for Zynq-Based Hardware, you get a hardware reference design that allows for easy integration of your targeted algorithm in the context of a vision system.

You can also apply this workflow to the Corner Detection and Image Overlay with Zynq-Based Hardware, Gamma Correction with Zynq-Based Hardware , and Image Sharpening with Zynq-Based Hardware examples.

If you have not yet done so, run through the guided setup wizard portion of the Zynq support package installation. You might have already completed this step when you installed this support package.

On the MATLAB Home tab, in the Environment section of the Toolstrip, click Add-Ons > Manage Add-Ons. Locate SoC Blockset Support Package for AMD FPGA and SoC Devices, and click Setup.

The guided setup wizard performs a number of initial setup steps, and confirms that the target can boot and that the host and target can communicate.

For more information, see Set Up Xilinx Devices.

If you plan to generate embedded ARM code to control AXI-Lite registers attached to the FPGA control logic, you must perform additional setup steps to configure the AMD® cross-compiling tools. These steps are detailed in Setup for ARM Targeting with IP Core Generation Workflow.

Frame-Based Model with Video File Input

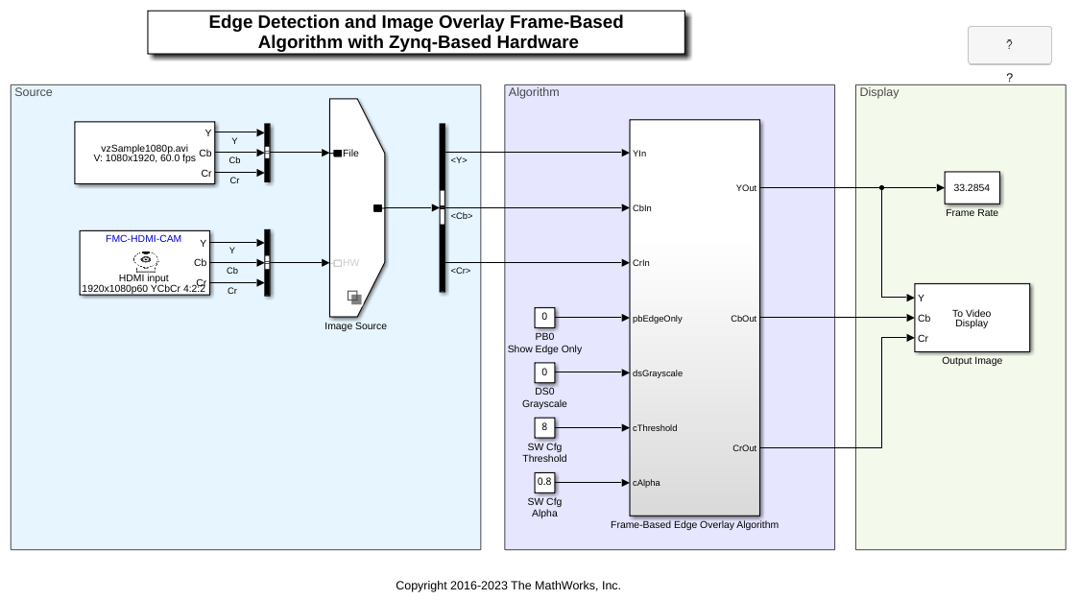

Start with a frame-based model of the Edge Detection and Image Overlay algorithm.

open_system('vzEdge_01_FrameBased')

You can run this simulation without hardware as the video source for this example comes from the From Multimedia File block, that reads video data from a multimedia file. This step allows you to verify the frame-based algorithm against known fixed video data.

Frame-Based Model with Live Camera Acquisition

Algorithms are often sensitive to the specific video input. In this step, you can verify the algorithm against real-world data coming from the camera attached to the HDMI input. To do this, right-click on the variant selection icon in the lower-left corner of the Image Source block, choose Label mode active choice, and select HW.

When using real-world data, choose a frame size that matches your camera settings. If your camera allows different sizes, you can choose smaller sizes for faster throughput. The minimum size the HDMI input supports is 480p.

All of the settings on Video Capture HDMI block are sent to the target during simulation to properly configure it for capturing the camera video stream.

Pixel-Stream Model with Video File Input

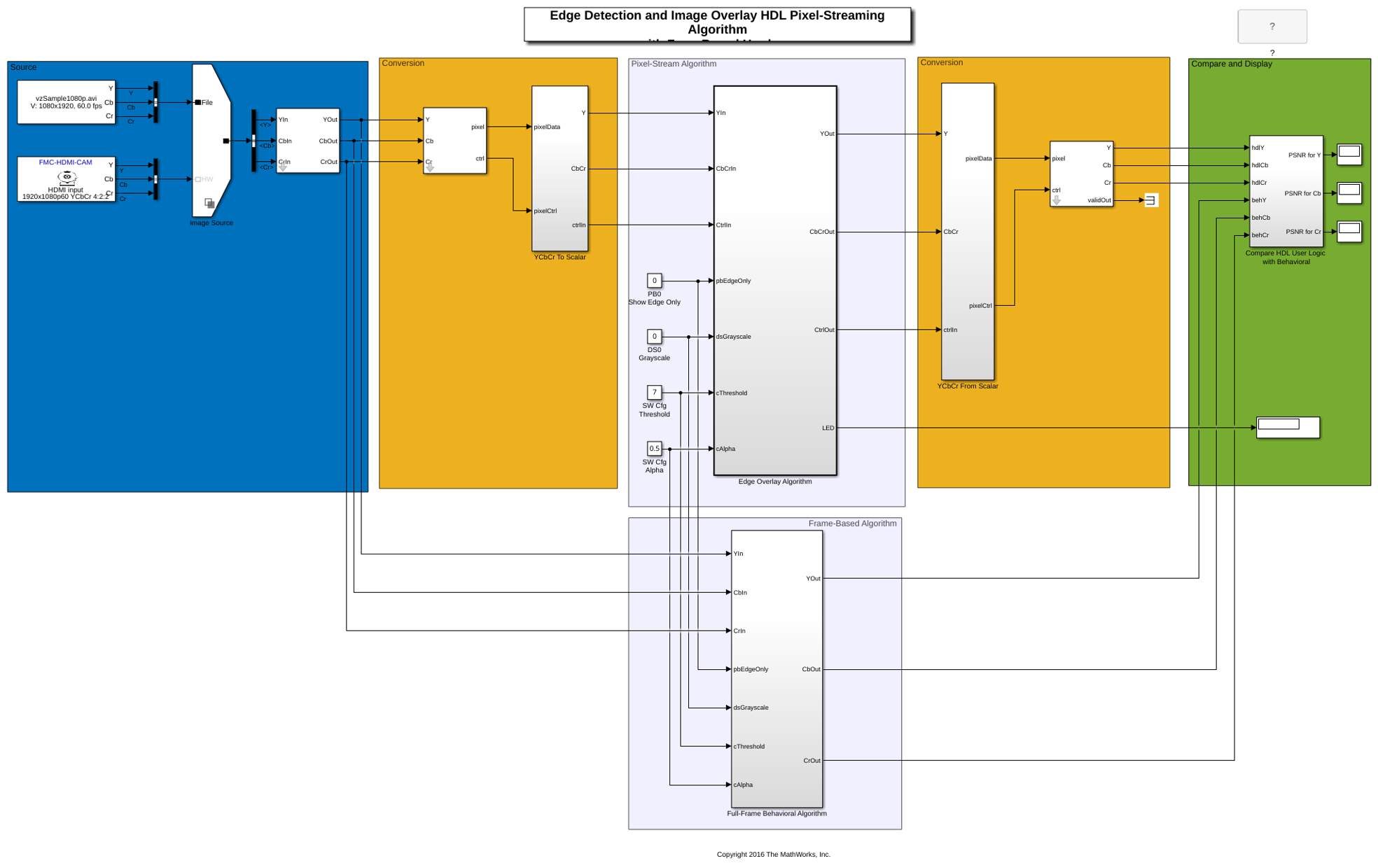

Now, refine the algorithm for implementation in hardware. Instead of working on full frame images, this HDL-ready algorithm works on a pixel-streaming interface. The model includes comparison logic between the frame-based version of the algorithm and the pixel-based. It uses a YCbCr Resize block to resize the source video frame for better simulation performance.

open_system('vzEdge_02_PixelStream')

You can run this simulation without hardware to determine whether the pixel-stream and frame-based versions of the algorithm are the same. If they are, you should see 'Inf' in the PSNR output.

There are two things to note about the simulation outputs:

Pixel-Stream Model with Live Camera Acquisition

You can run the pixel stream model with live camera data by configuring the Image Source block accordingly. As before, right-click on the variant selection icon in the lower-left corner of the Image Source block, choose Label mode active choice, and select either HW.

Although the capture can support large frames, the pixel stream algorithm runs very slowly. It is best to run with the smallest possible frame size. You can choose to resize the captured frame to 240p using the YCbCr Resize block. If you change the frame size, change it in the reference design block, the Frame To Pixels for YCbCr 4:2:2 block, and the Pixels To Frame for YCbCr 4:2:2 block.

Target the Algorithm

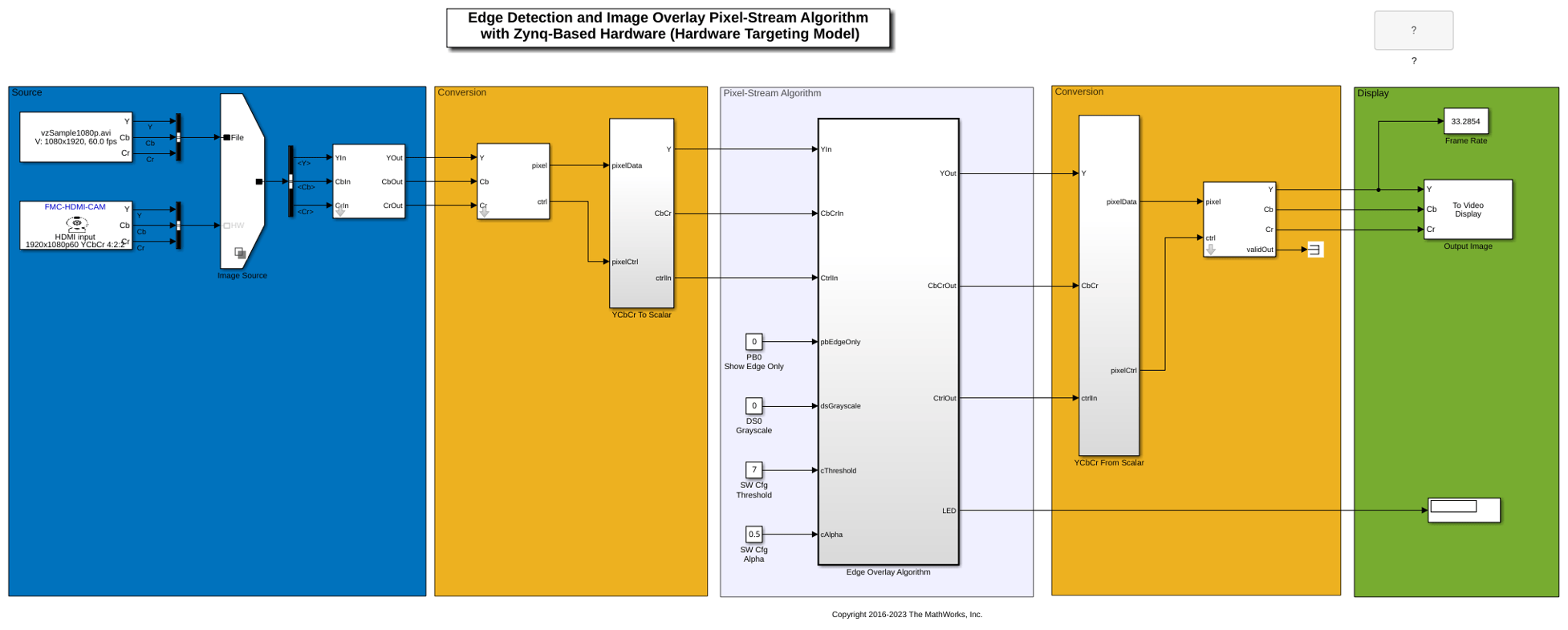

After you are satisfied that the pixel streaming and frame-based algorithm match, you can target the pixel algorithm to the FPGA on the Zynq board. The previous model is transformed to remove the frame-based algorithm and verification logic in order to create a model that serves as input to generating the hardware user logic.

open_system('vzEdge_03_TargetSource')

In preparation for targeting, set up the AMD tool chain by invoking hdlsetuptoolpath. For example:

>> hdlsetuptoolpath('ToolName','Xilinx Vivado','ToolPath','C:\Xilinx\Vivado\2022.1\bin\vivado.bat');

Execute hdlsetuptoolpath (HDL Coder) for more information.

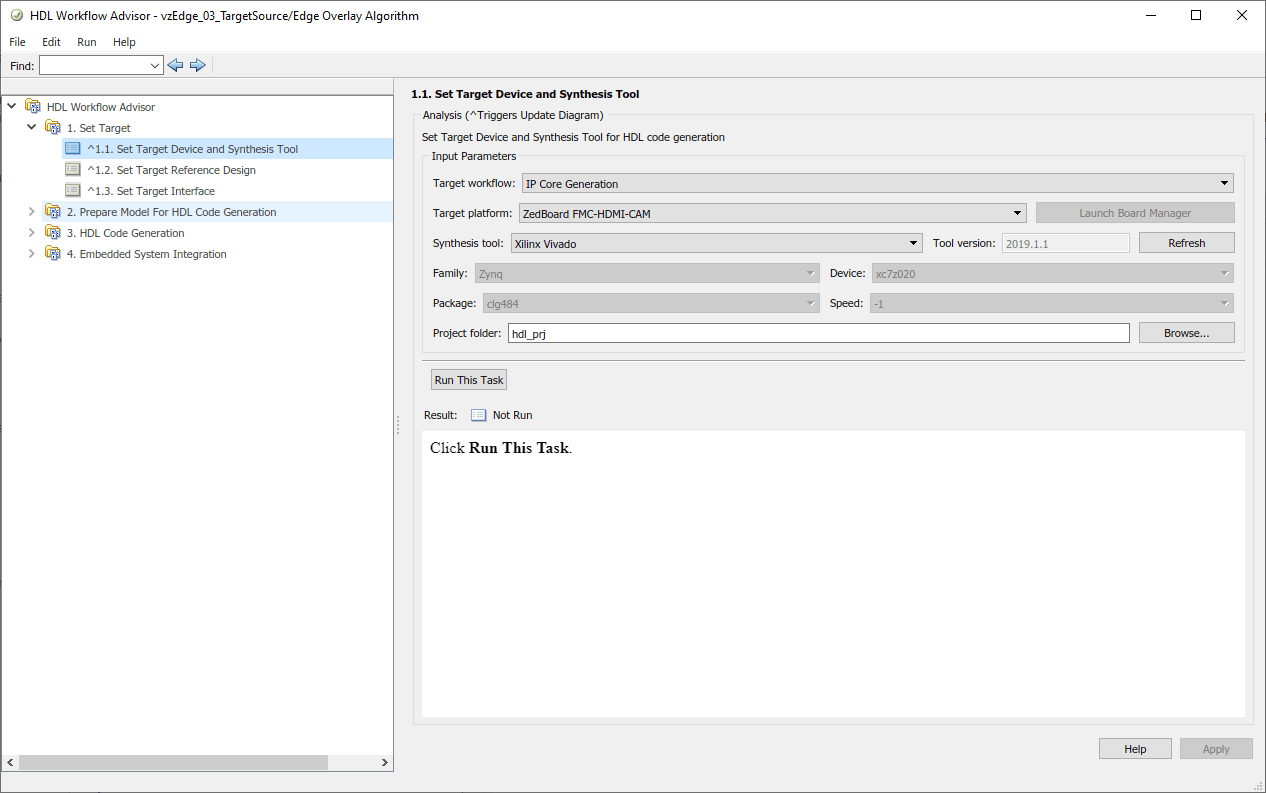

Start the targeting workflow by right clicking the Edge Overlay Algorithm subsystem and selecting HDL Code > HDL Workflow Advisor.

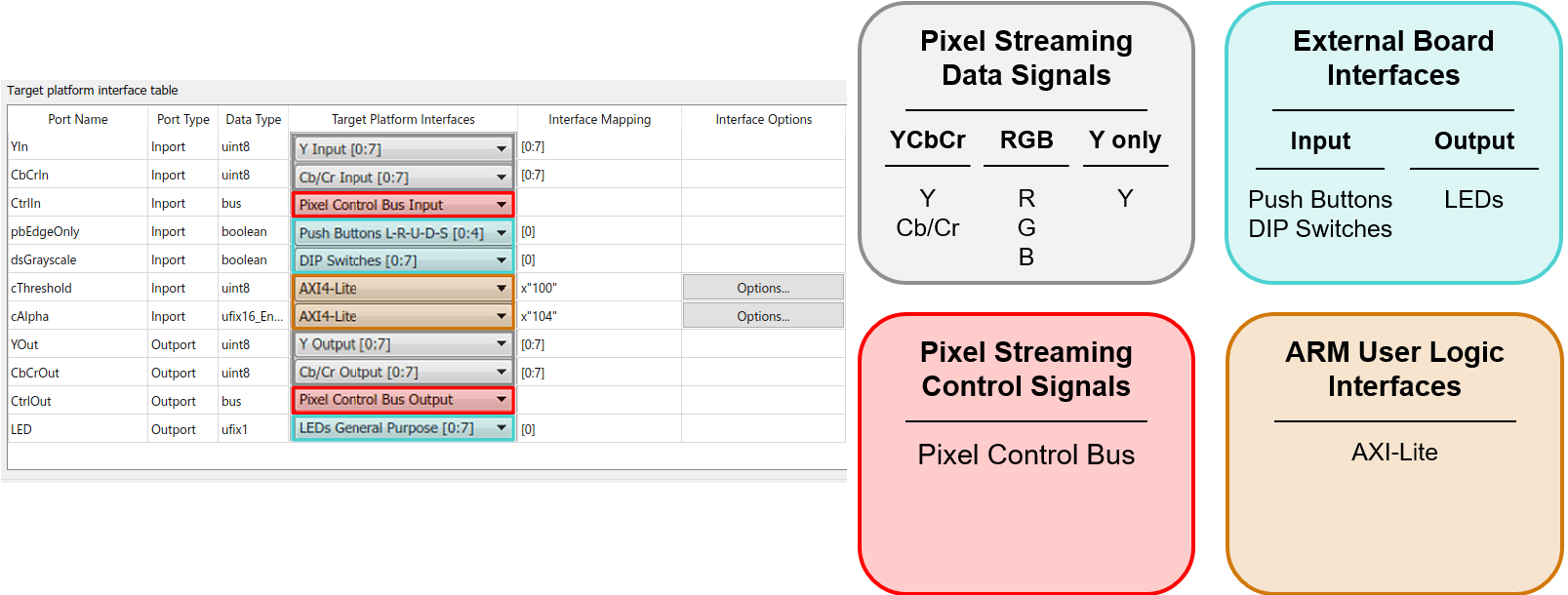

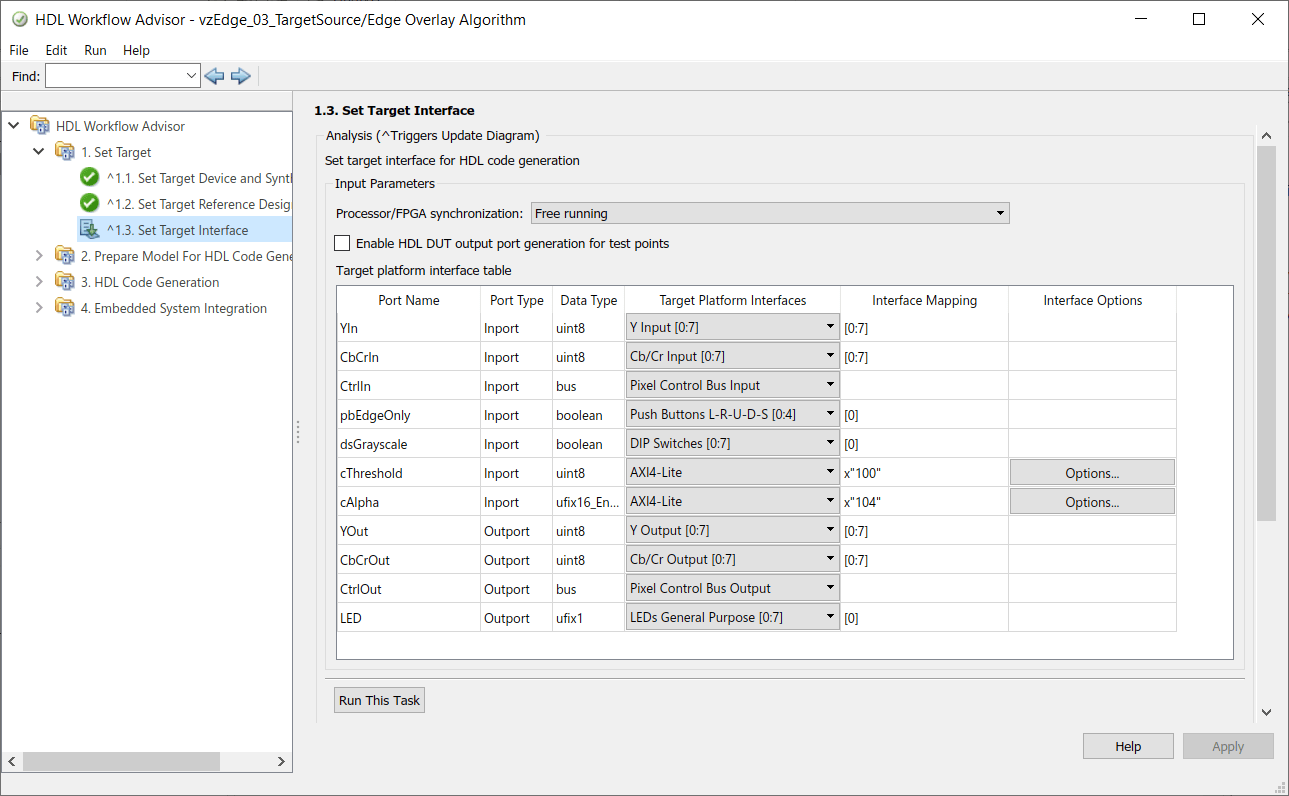

In the example model, the ports have been labeled so that they closely resemble the correct entry in the Target Platform Interface drop-down list. These names show in the Port Names column. The Target Platform Interfaces include four types of signal:

Pixel Streaming Data Signals: These signal interfaces depend on the pixel format of the design. This example uses YCbCr pixel format, so only the options Y and CbCr appear in the list. If you select the RGB reference design, then three options, R, G, and B, are available. If you select Y Only, the only data interface option is Y. These signal interfaces apply to both the input and output interfaces.

Pixel Streaming Control Buses These bus interfaces appear for all pixel formats. See Pixel Control Bus (Vision HDL Toolbox), for more information.

External Board Interfaces These signal interfaces correspond to physical GPIO interfaces on your target hardware platform. There are two categories: input and output. In this example, the input port pbEdgeOnly is mapped to a Push Button interface; the input port dsGrayscale is mapped to DIP Switch interface; and the output port LED is mapped to an LED interface.

ARM User Logic Interfaces The only interface option in this category is AXI-Lite. Choosing this interface directs HDL Coder to generate a memory-mapped register in the FPGA fabric. You can access this register from software running on the ARM processor. This interface enables you to tune parameters in real-time when running a Targeted Hardware Simulation or a Software Interface model.

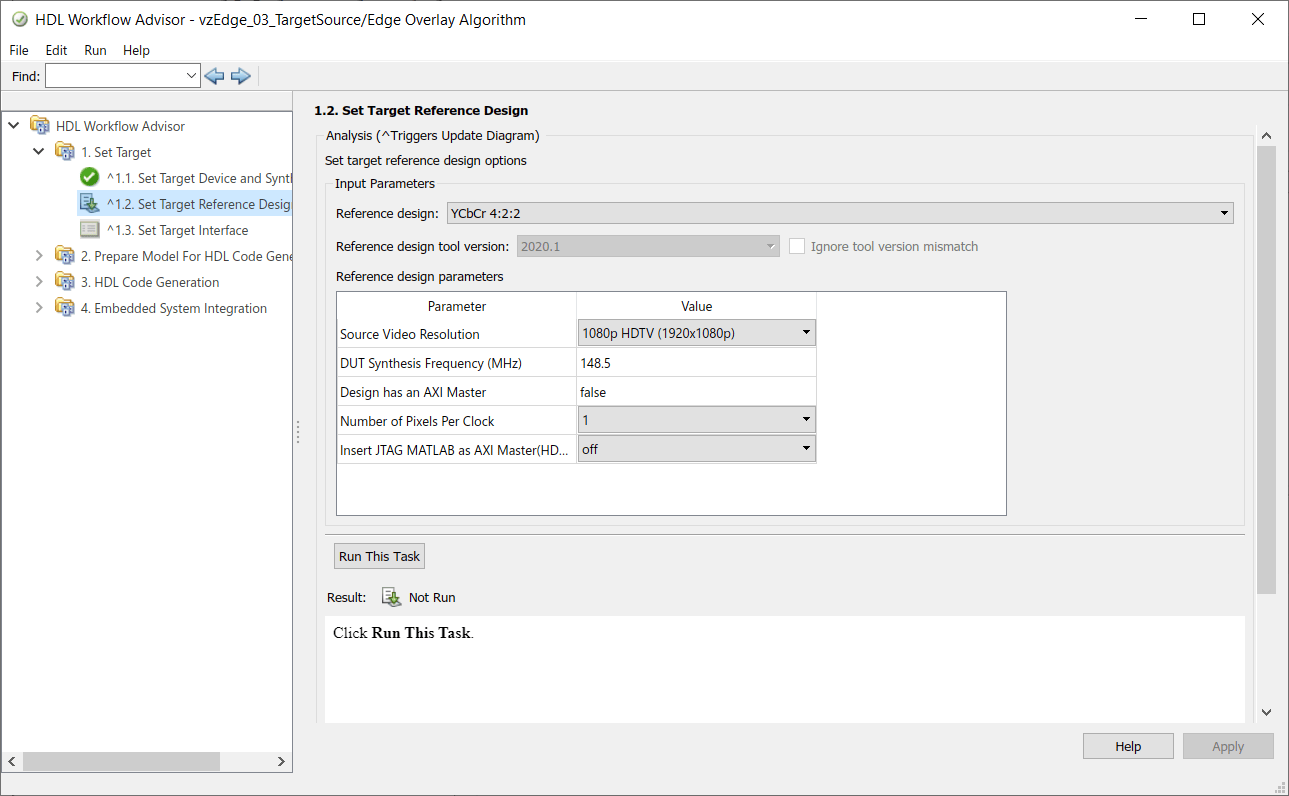

For this example, select the YCbCr 4:2:2 reference design to match the pixel format of the Pixel-Stream Edge Overlay Algorithm subsystem. With reference to the Interface Table diagram, map the YIn port to the Y Input [0:7] interface. Similarly, map the CbCrIn port to the Cb/Cr Input [0:7] interface. Map the pixel streaming control input and output ports to the corresponding control signal interfaces. To utilize the external interfaces on the target hardware platform, map the pbEdgeOnly port to push button 0; dsGrayScale port to dip switch 0; and LED port to LED 0. Likewise, map cAlpha and cThreshold to AXI4-Lite software control.

Execute each step in sequence to experience the full workflow, or, if you are already familiar with preparation and HDL code generation phases, right-click Step 4.1 in the table of contents on the left hand side and select Run to selected task.

Steps 4.3 and 4.4

The rest of the workflow generates a bitstream for the FPGA, downloads it to the target, and reboots the board.

Because this process can take 20-40 minutes, you can choose to bypass this step by using a pre-generated bitstream for this example that ships with product and was placed on the SDCard during setup.

Note: This bitstream was generated with the HDMI pixel clock constrained to 148.5 MHz for a maximum resolution of 1080p HDTV at 60 frames-per-second. To run this example on Zynq hardware with a higher resolution, select the Source Video Resolution value from the drop-down list in Step 1.2.

To use this pre-generated bitstream execute the following:

>> vz = visionzynq();
>> changeFPGAImage(vz, 'visionzynq-zedboard-hdmicam-edge_overlay.bit');

Replace 'zedboard' with 'zc706', 'zc702', 'picozed', 'zcu102' or 'zcu106' if appropriate.

Alternatively, you can continue with Steps 4.3 and 4.4.

Once generation of the bistream is complete, the bitstream file will be located at the following location:

PROJECT_FOLDER\vivado_ip_prj\vivado_prj.runs\impl_1\design_1_wrapper.bit

where PROJECT_FOLDER is the Project folder that was specified in Step 1.1. By default, this is hdl_prj.

The renamed bitsteam is located at the following location:

PROJECT_FOLDER\vivado_ip_prj\sdcard\visionzynq-zedboard-hdmicam-edge_overlay.bit

where PROJECT_FOLDER is the Project folder that was specified in Step 1.1. By default, this is hdl_prj.

To configure the Zynq device with this bitstream file at a later stage, execute the following:

>> vz = visionzynq();
>> downloadImage(vz, 'FPGAImage', ...
    'PROJECT_FOLDER\vivado_ip_prj\sdcard\visionzynq-zedboard-hdmicam-edge_overlay.bit');

To use a bitstream for another platform, replace 'zedboard' with the platform name.

Generated Models from the HDL Workflow Advisor

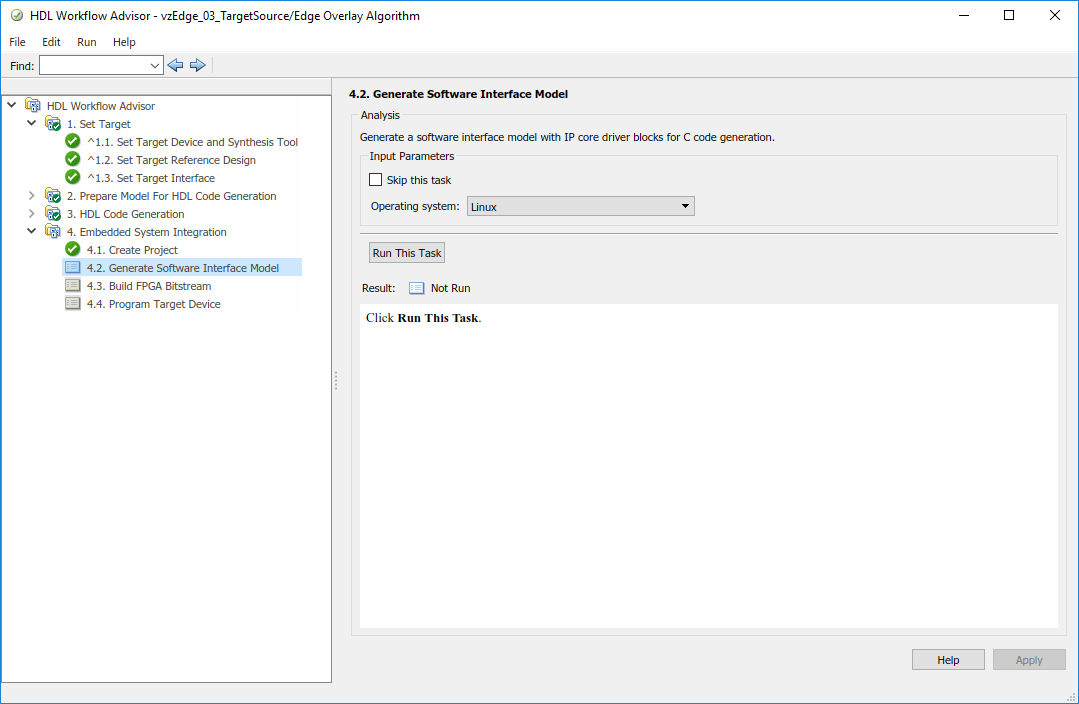

Step 4.2 generated two, or four, models depending on whether Embedded Coder is installed: A 'targeted hardware interface' model and associated library model, and a 'software interface' model and associated library model. The 'targeted hardware interface' model can be used to control the reference design from the Simulink model without Embedded Coder. The 'software interface' model supports full software targeting to the Zynq when Embedded Coder and the Embedded Coder Support Package for AMD SoC Devices are installed, enabling External mode simulation, Processor-in-the-loop, and full deployment.

The library models are created so that any changes to the hardware generation model are propagated to any custom targeted hardware simulation or software interface models that exist.

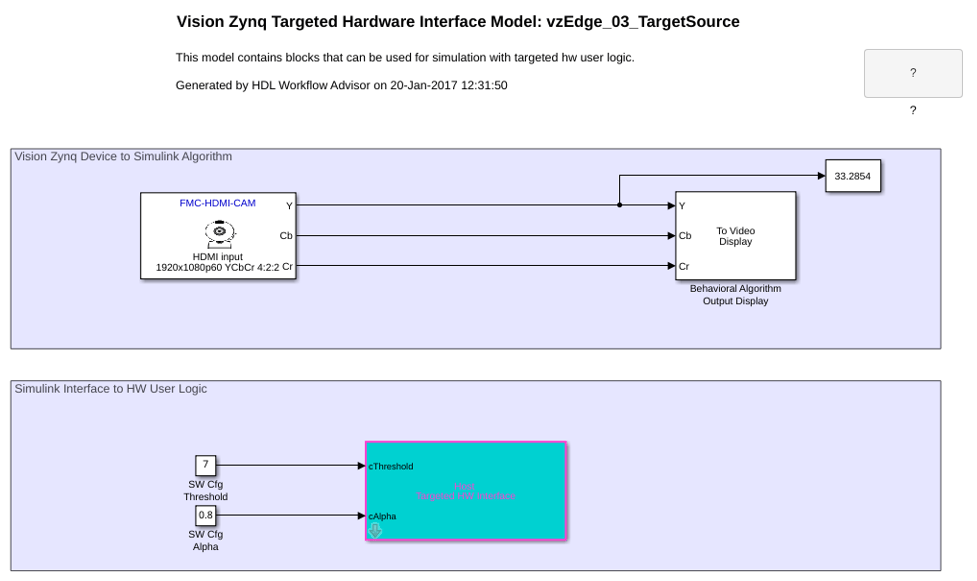

Using the Generated Targeted Hardware Interface Model

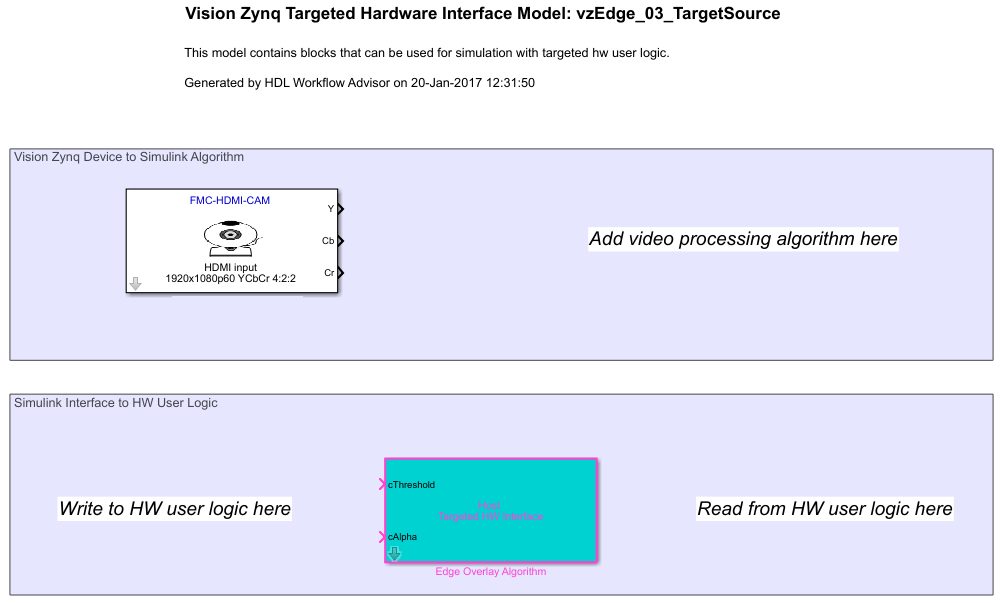

In this model, you can adjust the configuration of the reference design and read or drive control ports of the hardware user logic. These configuration changes affect the design while it is running on the target. You can also display captured video from the target device.

The generated model contains the blocks that enable the targeted algorithm to be configured and controlled from Simulink. Areas of the model are labelled to highlight where further video processing algorithms, and algorithms to control the targeted hardware user logic, should be placed.

An example of how you can use the targeted hardware simulation model is provided in a saved model.

open_system('vzEdge_03_TargetSource_tgthw_interface_saved')

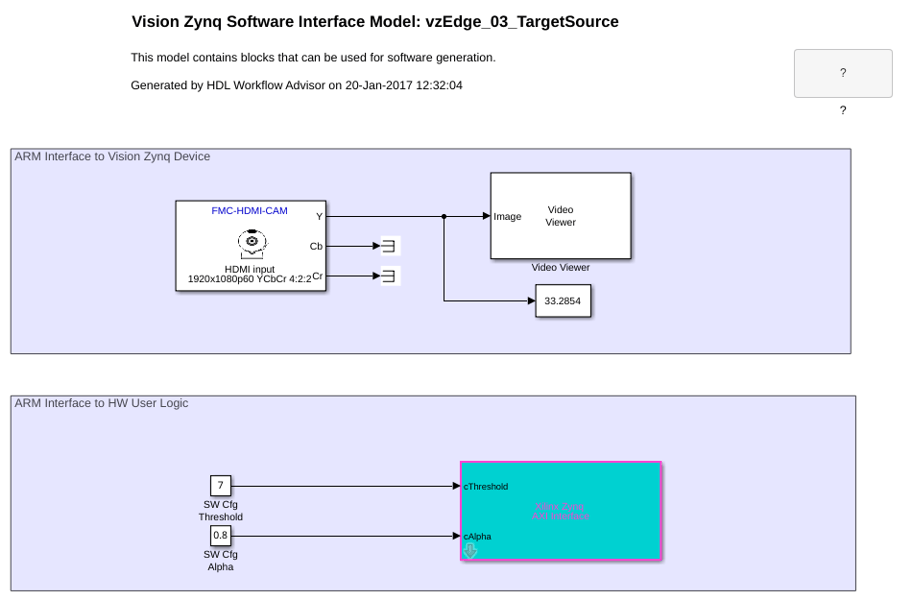

Using the Generated Software Interface Model

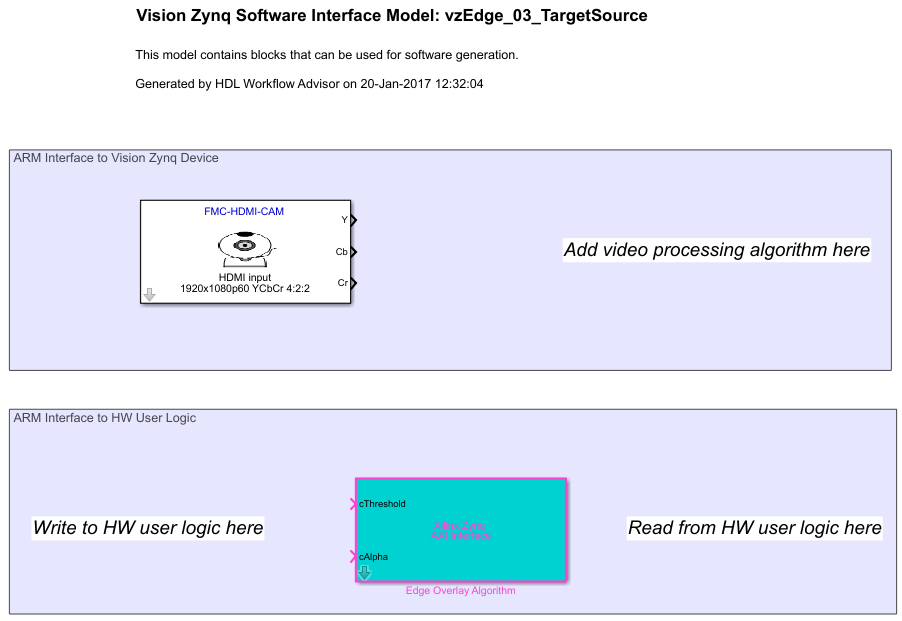

In this model, you can run in External mode to control the configuration of the reference design, and read or drive any control ports of the hardware user logic that you connected to AXI-Lite registers. These configuration changes affect the design while it is running on the target. You can use this model to fully deploy a software design. (This model is generated only if Embedded Coder and the Embedded Coder Zynq support package are installed.)

The generated model contains the blocks that enable the targeted algorithm to be configured and controlled from software. An area of the model is labelled to highlight where the software algorithm to control the targeted hardware user logic should be placed.

An example of how to use the software interface model to generate software is provided in a saved model.

open_system('vzEdge_03_TargetSource_interface_saved')

Before running this model, you must perform additional setup steps to configure the AMD cross-compiling tools. For more information, see Setup for ARM Targeting with IP Core Generation Workflow

This model can be run in External mode. This mode allows you to control the configuration from the Simulink model. Adjust the constant values for cThreshold and cAlpha. You can also bypass the hardware User Logic in the data path on the Zynq device by checking the Bypass hardware user logic option in the Software Interface block properties, and clicking Apply.

You can also fully deploy the design. In the Simulink toolbar, click Deploy to Hardware.

Things to Try

Algorithm Configuration Options

In addition to processing the image for edge detection, this algorithm offers some configurable control parameters.

Note that the pbEdgeOnly and dsGrayScale control ports are pure hardware connections in the targeted design. These ports can run at any desired rate including at the pixel clock rate.

However, cThreshold and cAlpha values are controlled by the embedded processor (or the host in External Mode or Target Hardware mode). Because neither the host nor the embedded CPU can update these controls at the pixel clock rate, a rate on the order of the frame rate is desired.

Similar Examples

This example demonstrated the workflow for developing algorithms to work with Zynq devices. You can apply this workflow to:

In addition, you can also adapt other Vision HDL Toolbox examples to work with Zynq devices.

Templates

The example models are based on the YCbCr 4:2:2 Frame-Based Algorithms with Zynq Simulink template and YCbCr 4:2:2 HDL Pixel-Streaming Algorithms with Zynq Simulink template, which are available from the Simulink start page.
