Linear regression models describe a linear relationship between a response and one or more predictive terms. Many times, however, a nonlinear relationship exists. Nonlinear Regression describes general nonlinear models. A special class of nonlinear models, called generalized linear models, uses linear methods.
Recall that linear models have these characteristics:
At each set of values for the predictors, the response has a normal distribution with mean μ.
A coefficient vector b defines a linear combination Xb of the predictors X.
The model is μ = Xb.
In generalized linear models, these characteristics are generalized as follows:
At each set of values for the predictors, the response has a distribution that can be normal, binomial, Poisson, gamma, or inverse Gaussian, with parameters including a mean μ.
A coefficient vector b defines a linear combination Xb of the predictors X.
To begin fitting a regression, put your data into a form that
fitting functions expect. All regression techniques begin with input
data in an array X
and response data in a separate
vector y
, or input data in a table or dataset array tbl
and
response data as a column in tbl
. Each row of the
input data represents one observation. Each column represents one
predictor (variable).
For a table or dataset array tbl
, indicate
the response variable with the 'ResponseVar'
namevalue
pair:
mdl = fitglm(tbl,'ResponseVar','BloodPressure');
The response variable is the last column by default.
You can use numeric categorical predictors. A categorical predictor is one that takes values from a fixed set of possibilities.
For a numeric array X
, indicate
the categorical predictors using the 'Categorical'
namevalue
pair. For example, to indicate that predictors 2
and 3
out
of six are categorical:
mdl = fitglm(X,y,'Categorical',[2,3]); % or equivalently mdl = fitglm(X,y,'Categorical',logical([0 1 1 0 0 0]));
For a table or dataset array tbl
,
fitting functions assume that these data types are categorical:
Logical vector
Categorical vector
Character array
String array
If you want to indicate that a numeric predictor is categorical,
use the 'Categorical'
namevalue pair.
Represent missing numeric data as NaN
. To
represent missing data for other data types, see Missing Group Values.
For a 'binomial'
model with data
matrix X
, the response y
can
be:
Binary column vector — Each entry represents
success (1
) or failure (0
).
Twocolumn matrix of integers — The first column is the number of successes in each observation, the second column is the number of trials in that observation.
For a 'binomial'
model with table
or dataset tbl
:
Use the ResponseVar
namevalue
pair to specify the column of tbl
that gives the
number of successes in each observation.
Use the BinomialSize
namevalue
pair to specify the column of tbl
that gives the
number of trials in each observation.
For example, to create a dataset array from an Excel^{®} spreadsheet:
ds = dataset('XLSFile','hospital.xls',... 'ReadObsNames',true);
To create a dataset array from workspace variables:
load carsmall
ds = dataset(MPG,Weight);
ds.Year = ordinal(Model_Year);
To create a table from workspace variables:
load carsmall
tbl = table(MPG,Weight);
tbl.Year = ordinal(Model_Year);
For example, to create numeric arrays from workspace variables:
load carsmall
X = [Weight Horsepower Cylinders Model_Year];
y = MPG;
To create numeric arrays from an Excel spreadsheet:
[X, Xnames] = xlsread('hospital.xls'); y = X(:,4); % response y is systolic pressure X(:,4) = []; % remove y from the X matrix
Notice that the nonnumeric entries, such as sex
,
do not appear in X
.
Often, your data suggests the distribution type of the generalized linear model.
Response Data Type  Suggested Model Distribution Type

Any real number  'normal'
Any positive number  'gamma' or 'inverse gaussian'
Any nonnegative integer  'poisson'
Integer from 0 to n , where n is
a fixed positive value  'binomial'
Set the model distribution type with the Distribution
namevalue
pair. After selecting your model type, choose a link function to map
between the mean µ and the linear predictor Xb.
Value  Description

'comploglog'  log(–log((1 – µ))) = Xb
 µ = Xb
 log(µ) = Xb
 log(µ/(1 – µ)) = Xb
 log(–log(µ)) = Xb
'probit'  Φ^{–1}(µ) = Xb, where Φ is the normal (Gaussian) cumulative distribution function
'reciprocal' , default for the distribution 'gamma'  µ^{–1} = Xb
 µ^{p} = Xb
A cell array of the form  Userspecified link function (see Custom Link Function)
The nondefault link functions are mainly useful for binomial
models. These nondefault link functions are 'comploglog'
, 'loglog'
,
and 'probit'
.
The link function defines the relationship f(µ)
= Xb between the mean response µ and
the linear combination Xb = X*b of
the predictors. You can choose one of the builtin link functions
or define your own by specifying the link function FL
,
its derivative FD
, and its inverse FI
:
The link function FL
calculates f(µ).
The derivative of the link function FD
calculates df(µ)/dµ.
The inverse function FI
calculates g(Xb)
= µ.
You can specify a custom link function in either of two equivalent ways. Each way contains function handles that accept a single array of values representing µ or Xb, and returns an array the same size. The function handles are either in a cell array or a structure:
Cell array of the form {FL FD FI}
, containing three function handles, created
using @
, that define the link (FL
),
the derivative of the link (FD
), and the inverse
link (FI
).
Structure
with
three fields, each containing a function handle created using s
@
:
—
Link functions
.Link
—
Derivative of the link functions
.Derivative
—
Inverse of the link functions
.Inverse
For example, to fit a model using the 'probit'
link
function:
x = [2100 2300 2500 2700 2900 ... 3100 3300 3500 3700 3900 4100 4300]'; n = [48 42 31 34 31 21 23 23 21 16 17 21]'; y = [1 2 0 3 8 8 14 17 19 15 17 21]'; g = fitglm(x,[y n],... 'linear','distr','binomial','link','probit')
g = Generalized Linear regression model: probit(y) ~ 1 + x1 Distribution = Binomial Estimated Coefficients: Estimate SE tStat pValue (Intercept) 7.3628 0.66815 11.02 3.0701e28 x1 0.0023039 0.00021352 10.79 3.8274e27 12 observations, 10 error degrees of freedom Dispersion: 1 Chi^2statistic vs. constant model: 241, pvalue = 2.25e54
You can perform the same fit using a custom link function that
performs identically to the 'probit'
link function:
s = {@norminv,@(x)1./normpdf(norminv(x)),@normcdf}; g = fitglm(x,[y n],... 'linear','distr','binomial','link',s)
g = Generalized Linear regression model: link(y) ~ 1 + x1 Distribution = Binomial Estimated Coefficients: Estimate SE tStat pValue (Intercept) 7.3628 0.66815 11.02 3.0701e28 x1 0.0023039 0.00021352 10.79 3.8274e27 12 observations, 10 error degrees of freedom Dispersion: 1 Chi^2statistic vs. constant model: 241, pvalue = 2.25e54
The two models are the same.
Equivalently, you can write s
as a structure
instead of a cell array of function handles:
s.Link = @norminv; s.Derivative = @(x) 1./normpdf(norminv(x)); s.Inverse = @normcdf; g = fitglm(x,[y n],... 'linear','distr','binomial','link',s)
g = Generalized Linear regression model: link(y) ~ 1 + x1 Distribution = Binomial Estimated Coefficients: Estimate SE tStat pValue (Intercept) 7.3628 0.66815 11.02 3.0701e28 x1 0.0023039 0.00021352 10.79 3.8274e27 12 observations, 10 error degrees of freedom Dispersion: 1 Chi^2statistic vs. constant model: 241, pvalue = 2.25e54
There are two ways to create a fitted model.
Use fitglm
when
you have a good idea of your generalized linear model, or when you
want to adjust your model later to include or exclude certain terms.
Use stepwiseglm
when
you want to fit your model using stepwise regression. stepwiseglm
starts
from one model, such as a constant, and adds or subtracts terms one
at a time, choosing an optimal term each time in a greedy fashion,
until it cannot improve further. Use stepwise fitting to find a good
model, one that has only relevant terms.
The result depends on the starting model. Usually, starting with a constant model leads to a small model. Starting with more terms can lead to a more complex model, but one that has lower mean squared error.
In either case, provide a model to the fitting function (which
is the starting model for stepwiseglm
).
Specify a model using one of these methods.
Name  Model Type

'constant'  Model contains only a constant (intercept) term.
'linear'  Model contains an intercept and linear terms for each predictor.
'interactions'  Model contains an intercept, linear terms, and all products of pairs of distinct predictors (no squared terms).
'purequadratic'  Model contains an intercept, linear terms, and squared terms.
'quadratic'  Model contains an intercept, linear terms, interactions, and squared terms.
'poly  Model is a polynomial with all terms up to degree i in
the first predictor, degree j in the second
predictor, etc. Use numerals 0 through 9 .
For example, 'poly2111' has a constant plus all
linear and product terms, and also contains terms with predictor 1
squared.
A terms matrix T
is a
tby(p + 1) matrix specifying terms in a model,
where t is the number of terms, p is the number of
predictor variables, and +1 accounts for the response variable. The value of
T(i,j)
is the exponent of variable j
in term
i
.
For example, suppose that an input includes three predictor variables A
,
B
, and C
and the response variable
Y
in the order A
, B
,
C
, and Y
. Each row of T
represents one term:
[0 0 0 0]
— Constant term or intercept
[0 1 0 0]
— B
; equivalently,
A^0 * B^1 * C^0
[1 0 1 0]
— A*C
[2 0 0 0]
— A^2
[0 1 2 0]
— B*(C^2)
The 0
at the end of each term represents the response variable. In
general, a column vector of zeros in a terms matrix represents the position of the response
variable. If you have the predictor and response variables in a matrix and column vector,
then you must include 0
for the response variable in the last column of
each row.
A formula for a model specification is a character vector or string scalar of the form
'
,Y
~ terms
'
Y
is the response name.
terms
contains
Variable names
+
to include the next variable

to exclude the next variable
:
to define an interaction, a product
of terms
*
to define an interaction and
all lowerorder terms
^
to raise the predictor to a power,
exactly as in *
repeated, so ^
includes
lower order terms as well
()
to group terms
Formulas include a constant (intercept) term by default. To
exclude a constant term from the model, include 1
in
the formula.
Examples:
'Y ~ A + B + C'
is a threevariable
linear model with intercept.
'Y ~ A + B +
C  1'
is a threevariable linear model without intercept.
'Y ~ A + B + C + B^2'
is a threevariable
model with intercept and a B^2
term.
'Y
~ A + B^2 + C'
is the same as the previous example, since B^2
includes
a B
term.
'Y ~ A + B +
C + A:B'
includes an A*B
term.
'Y
~ A*B + C'
is the same as the previous example, since A*B
= A + B + A:B
.
'Y ~ A*B*C  A:B:C'
has
all interactions among A
, B
,
and C
, except the threeway interaction.
'Y
~ A*(B + C + D)'
has all linear terms, plus products of A
with
each of the other variables.
Create a fitted model using fitglm
or stepwiseglm
. Choose between them as in Choose Fitting Method and Model. For generalized
linear models other than those with a normal distribution, give a Distribution
namevalue
pair as in Choose Generalized Linear Model and Link Function. For
example,
mdl = fitglm(X,y,'linear','Distribution','poisson') % or mdl = fitglm(X,y,'quadratic',... 'Distribution','binomial')
After fitting a model, examine the result.
A linear regression model shows several diagnostics when you enter its name or enter
disp(mdl)
. This display gives some of the basic
information to check whether the fitted model represents the data
adequately.
For example, fit a Poisson model to data constructed with two out of five predictors not affecting the response, and with no intercept term:
rng('default') % for reproducibility X = randn(100,5); mu = exp(X(:,[1 4 5])*[.4;.2;.3]); y = poissrnd(mu); mdl = fitglm(X,y,... 'linear','Distribution','poisson')
mdl = Generalized Linear regression model: log(y) ~ 1 + x1 + x2 + x3 + x4 + x5 Distribution = Poisson Estimated Coefficients: Estimate SE tStat pValue (Intercept) 0.039829 0.10793 0.36901 0.71212 x1 0.38551 0.076116 5.0647 4.0895e07 x2 0.034905 0.086685 0.40266 0.6872 x3 0.17826 0.093552 1.9054 0.056722 x4 0.21929 0.09357 2.3436 0.019097 x5 0.28918 0.1094 2.6432 0.0082126 100 observations, 94 error degrees of freedom Dispersion: 1 Chi^2statistic vs. constant model: 44.9, pvalue = 1.55e08
Notice that:
The display contains the estimated values of each
coefficient in the Estimate
column. These values
are reasonably near the true values [0;.4;0;0;.2;.3]
,
except possibly the coefficient of x3
is not terribly
near 0
.
There is a standard error column for the coefficient estimates.
The reported pValue
(which are
derived from the t statistics under the assumption
of normal errors) for predictors 1, 4, and 5 are small. These are
the three predictors that were used to create the response data y
.
The pValue
for (Intercept)
, x2
and x3
are
larger than 0.01. These three predictors were not used to create the
response data y
. The pValue
for x3
is
just over .05
, so might be regarded as possibly
significant.
The display contains the Chisquare statistic.
Diagnostic plots help you identify outliers, and see other problems in your model or fit. To illustrate these plots, consider binomial regression with a logistic link function.
The logistic model is useful for proportion data. It defines the relationship between the proportion p and the weight w by:
log[p/(1 – p)] = b_{1} + b_{2}w

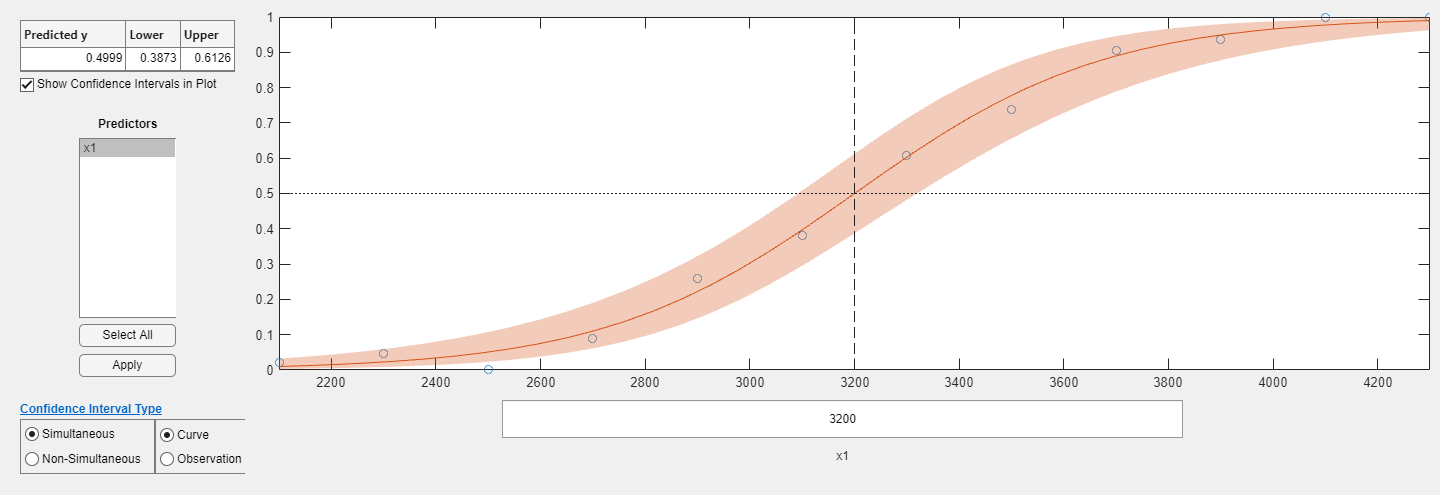

This example fits a binomial model to data. The data are derived
from carbig.mat
, which contains measurements of
large cars of various weights. Each weight in w
has
a corresponding number of cars in total
and a corresponding
number of poormileage cars in poor
.
It is reasonable to assume that the values of poor
follow binomial distributions,
with the number of trials given by total
and the
percentage of successes depending on w
. This distribution
can be accounted for in the context of a logistic model by using a
generalized linear model with link function log(µ/(1
– µ)) = Xb.
This link function is called 'logit'
.
w = [2100 2300 2500 2700 2900 3100 ... 3300 3500 3700 3900 4100 4300]'; total = [48 42 31 34 31 21 23 23 21 16 17 21]'; poor = [1 2 0 3 8 8 14 17 19 15 17 21]'; mdl = fitglm(w,[poor total],... 'linear','Distribution','binomial','link','logit')
mdl = Generalized Linear regression model: logit(y) ~ 1 + x1 Distribution = Binomial Estimated Coefficients: Estimate SE tStat pValue (Intercept) 13.38 1.394 9.5986 8.1019e22 x1 0.0041812 0.00044258 9.4474 3.4739e21 12 observations, 10 error degrees of freedom Dispersion: 1 Chi^2statistic vs. constant model: 242, pvalue = 1.3e54
See how well the model fits the data.
plotSlice(mdl)
The fit looks reasonably good, with fairly wide confidence bounds.
To examine further details, create a leverage plot.
plotDiagnostics(mdl)
This is typical of a regression with points ordered by the predictor variable. The leverage of each point on the fit is higher for points with relatively extreme predictor values (in either direction) and low for points with average predictor values. In examples with multiple predictors and with points not ordered by predictor value, this plot can help you identify which observations have high leverage because they are outliers as measured by their predictor values.
There are several residual plots to help you discover errors, outliers, or correlations in the model or data. The simplest residual plots are the default histogram plot, which shows the range of the residuals and their frequencies, and the probability plot, which shows how the distribution of the residuals compares to a normal distribution with matched variance.
This example shows residual plots for a fitted Poisson model. The data construction has two out of five predictors not affecting the response, and no intercept term:
rng('default') % for reproducibility X = randn(100,5); mu = exp(X(:,[1 4 5])*[2;1;.5]); y = poissrnd(mu); mdl = fitglm(X,y,... 'linear','Distribution','poisson');
Examine the residuals:
plotResiduals(mdl)
While most residuals cluster near 0, there are several near ±18. So examine a different residuals plot.
plotResiduals(mdl,'fitted')
The large residuals don’t seem to have much to do with the sizes of the fitted values.
Perhaps a probability plot is more informative.
plotResiduals(mdl,'probability')
Now it is clear. The residuals do not follow a normal distribution. Instead, they have fatter tails, much as an underlying Poisson distribution.
This example shows how to understand the effect each predictor has on a regression model, and how to modify the model to remove unnecessary terms.
Create a model from some predictors in artificial
data. The data do not use the second and third columns in X
.
So you expect the model not to show much dependence on those predictors.
rng('default') % for reproducibility X = randn(100,5); mu = exp(X(:,[1 4 5])*[2;1;.5]); y = poissrnd(mu); mdl = fitglm(X,y,... 'linear','Distribution','poisson');

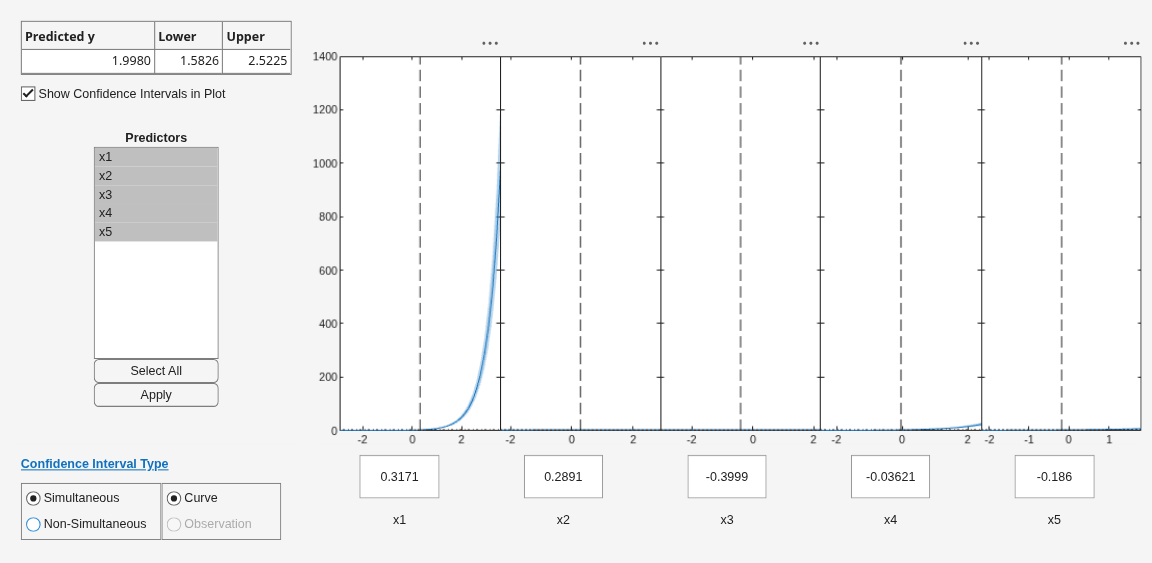

Examine a slice plot of the responses. This displays the effect of each predictor separately.
plotSlice(mdl)

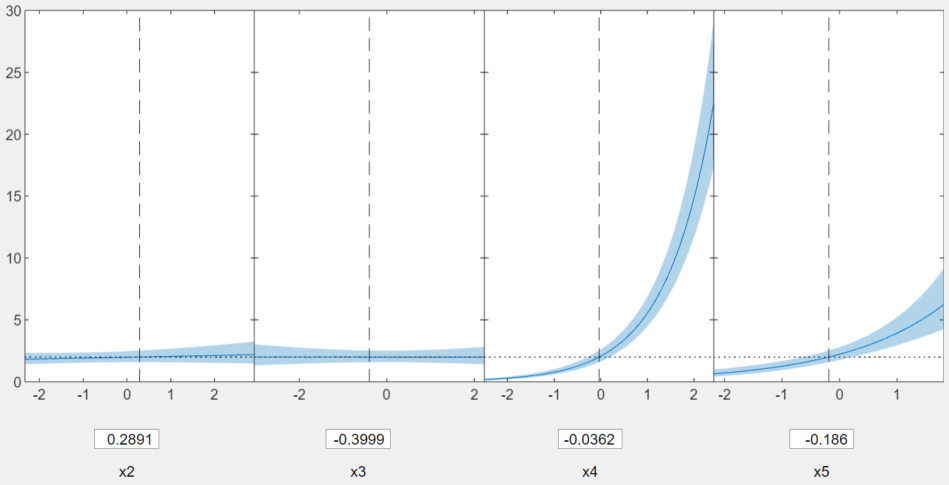

The scale of the first predictor is overwhelming the plot. Disable it using the Predictors menu.
Now it is clear that predictors 2 and 3 have little to no effect.
You can drag the individual predictor values, which are represented by dashed blue vertical lines. You can also choose between simultaneous and nonsimultaneous confidence bounds, which are represented by dashed red curves. Dragging the predictor lines confirms that predictors 2 and 3 have little to no effect.
Remove the unnecessary predictors using either removeTerms
or step
.
Using step
can be safer, in case there is an unexpected
importance to a term that becomes apparent after removing another
term. However, sometimes removeTerms
can be effective
when step
does not proceed. In this case, the two
give identical results.
mdl1 = removeTerms(mdl,'x2 + x3')
mdl1 = Generalized Linear regression model: log(y) ~ 1 + x1 + x4 + x5 Distribution = Poisson Estimated Coefficients: Estimate SE tStat pValue (Intercept) 0.17604 0.062215 2.8295 0.004662 x1 1.9122 0.024638 77.614 0 x4 0.98521 0.026393 37.328 5.6696e305 x5 0.61321 0.038435 15.955 2.6473e57 100 observations, 96 error degrees of freedom Dispersion: 1 Chi^2statistic vs. constant model: 4.97e+04, pvalue = 0
mdl1 = step(mdl,'NSteps',5,'Upper','linear')
1. Removing x3, Deviance = 93.856, Chi2Stat = 0.00075551, PValue = 0.97807 2. Removing x2, Deviance = 96.333, Chi2Stat = 2.4769, PValue = 0.11553 mdl1 = Generalized Linear regression model: log(y) ~ 1 + x1 + x4 + x5 Distribution = Poisson Estimated Coefficients: Estimate SE tStat pValue (Intercept) 0.17604 0.062215 2.8295 0.004662 x1 1.9122 0.024638 77.614 0 x4 0.98521 0.026393 37.328 5.6696e305 x5 0.61321 0.038435 15.955 2.6473e57 100 observations, 96 error degrees of freedom Dispersion: 1 Chi^2statistic vs. constant model: 4.97e+04, pvalue = 0
There are three ways to use a linear model to predict the response to new data:
predict
The predict
method gives a prediction of
the mean responses and, if requested, confidence bounds.
This example shows how to predict and obtain confidence intervals on the
predictions using the predict
method.
Create a model from some predictors in artificial data. The data do
not use the second and third columns in X
. So you
expect the model not to show much dependence on these predictors.
Construct the model stepwise to include the relevant predictors
automatically.
rng('default') % for reproducibility X = randn(100,5); mu = exp(X(:,[1 4 5])*[2;1;.5]); y = poissrnd(mu); mdl = stepwiseglm(X,y,... 'constant','upper','linear','Distribution','poisson');
1. Adding x1, Deviance = 2515.02869, Chi2Stat = 47242.9622, PValue = 0 2. Adding x4, Deviance = 328.39679, Chi2Stat = 2186.6319, PValue = 0 3. Adding x5, Deviance = 96.3326, Chi2Stat = 232.0642, PValue = 2.114384e52
Generate some new data, and evaluate the predictions from the data.
Xnew = randn(3,5) + repmat([1 2 3 4 5],[3,1]); % new data
[ynew,ynewci] = predict(mdl,Xnew)
ynew = 1.0e+04 * 0.1130 1.7375 3.7471 ynewci = 1.0e+04 * 0.0821 0.1555 1.2167 2.4811 2.8419 4.9407
feval
When you construct a model from a table or dataset array, feval
is often more convenient for
predicting mean responses than predict
. However,
feval
does not provide confidence bounds.
This example shows how to predict mean responses using the feval
method.
Create a model from some predictors in artificial data. The data do
not use the second and third columns in X
. So you
expect the model not to show much dependence on these predictors.
Construct the model stepwise to include the relevant predictors
automatically.
rng('default') % for reproducibility X = randn(100,5); mu = exp(X(:,[1 4 5])*[2;1;.5]); y = poissrnd(mu); X = array2table(X); % create data table y = array2table(y); tbl = [X y]; mdl = stepwiseglm(tbl,... 'constant','upper','linear','Distribution','poisson');
1. Adding x1, Deviance = 2515.02869, Chi2Stat = 47242.9622, PValue = 0 2. Adding x4, Deviance = 328.39679, Chi2Stat = 2186.6319, PValue = 0 3. Adding x5, Deviance = 96.3326, Chi2Stat = 232.0642, PValue = 2.114384e52
Generate some new data, and evaluate the predictions from the data.
Xnew = randn(3,5) + repmat([1 2 3 4 5],[3,1]); % new data ynew = feval(mdl,Xnew(:,1),Xnew(:,4),Xnew(:,5)) % only need predictors 1,4,5
ynew = 1.0e+04 * 0.1130 1.7375 3.7471
Equivalently,
ynew = feval(mdl,Xnew(:,[1 4 5])) % only need predictors 1,4,5
ynew = 1.0e+04 * 0.1130 1.7375 3.7471
random
The random
method generates new random
response values for specified predictor values. The distribution of the response
values is the distribution used in the model. random
calculates the mean of the distribution from the predictors, estimated
coefficients, and link function. For distributions such as normal, the model
also provides an estimate of the variance of the response. For the binomial and
Poisson distributions, the variance of the response is determined by the mean;
random
does not use a separate “dispersion”
estimate.
This example shows how to simulate responses using the random
method.
Create a model from some predictors in artificial data. The data do
not use the second and third columns in X
. So you
expect the model not to show much dependence on these predictors.
Construct the model stepwise to include the relevant predictors
automatically.
rng('default') % for reproducibility X = randn(100,5); mu = exp(X(:,[1 4 5])*[2;1;.5]); y = poissrnd(mu); mdl = stepwiseglm(X,y,... 'constant','upper','linear','Distribution','poisson');
1. Adding x1, Deviance = 2515.02869, Chi2Stat = 47242.9622, PValue = 0 2. Adding x4, Deviance = 328.39679, Chi2Stat = 2186.6319, PValue = 0 3. Adding x5, Deviance = 96.3326, Chi2Stat = 232.0642, PValue = 2.114384e52
Generate some new data, and evaluate the predictions from the data.
Xnew = randn(3,5) + repmat([1 2 3 4 5],[3,1]); % new data
ysim = random(mdl,Xnew)
ysim = 1111 17121 37457
The predictions from random
are Poisson samples, so
are integers.
Evaluate the random
method again, the result
changes.
ysim = random(mdl,Xnew)
ysim = 1175 17320 37126
The model display contains enough information to enable someone else to recreate the model in a theoretical sense. For example,
rng('default') % for reproducibility X = randn(100,5); mu = exp(X(:,[1 4 5])*[2;1;.5]); y = poissrnd(mu); mdl = stepwiseglm(X,y,... 'constant','upper','linear','Distribution','poisson')
1. Adding x1, Deviance = 2515.02869, Chi2Stat = 47242.9622, PValue = 0 2. Adding x4, Deviance = 328.39679, Chi2Stat = 2186.6319, PValue = 0 3. Adding x5, Deviance = 96.3326, Chi2Stat = 232.0642, PValue = 2.114384e52 mdl = Generalized Linear regression model: log(y) ~ 1 + x1 + x4 + x5 Distribution = Poisson Estimated Coefficients: Estimate SE tStat pValue (Intercept) 0.17604 0.062215 2.8295 0.004662 x1 1.9122 0.024638 77.614 0 x4 0.98521 0.026393 37.328 5.6696e305 x5 0.61321 0.038435 15.955 2.6473e57 100 observations, 96 error degrees of freedom Dispersion: 1 Chi^2statistic vs. constant model: 4.97e+04, pvalue = 0
You can access the model description programmatically, too. For example,
mdl.Coefficients.Estimate
ans = 0.1760 1.9122 0.9852 0.6132
mdl.Formula
ans = log(y) ~ 1 + x1 + x4 + x5
[1] Collett, D. Modeling Binary Data. New York: Chapman & Hall, 2002.
[2] Dobson, A. J. An Introduction to Generalized Linear Models. New York: Chapman & Hall, 1990.
[3] McCullagh, P., and J. A. Nelder. Generalized Linear Models. New York: Chapman & Hall, 1990.
[4] Neter, J., M. H. Kutner, C. J. Nachtsheim, and W. Wasserman. Applied Linear Statistical Models, Fourth Edition. Irwin, Chicago, 1996.
