plot
Description
plot(
plots a probability density function
(pdf) of the probability distribution object pd
)pd
. If
pd
is created by fitting a probability distribution to the data, the
pdf is superimposed over a histogram of the data.
plot(___,
specifies
options using one or more name-value arguments in addition to any of the input argument
combinations in the previous syntaxes. For example, you can indicate whether to plot a
cumulative distribution function (cdf) or a probability plot instead of a pdf.Name=Value
)
returns handles to
the plotted graphics objects.H
= plot(___)
Examples
Plot Normal Distribution
Generate random data points from a normal distribution with mean 0 and standard deviation 1.
rng("default") % Set the seed for reproducibility.
Fit a normal distribution to the data.
normaldata = normrnd(0,1,100,1);
normalpd = fitdist(normaldata,"Normal")
normalpd = NormalDistribution Normal distribution mu = 0.123085 [-0.10756, 0.353731] sigma = 1.1624 [1.02059, 1.35033]
normalpd
is a NormalDistribution

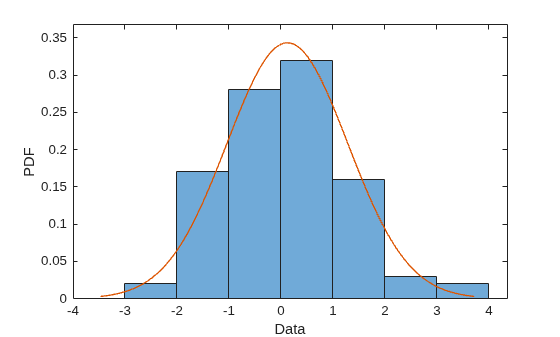

object that contains the parameter values for the normal distribution fit to the data, and the data. Plot a pdf for the normal distribution with a histogram of the data.
plot(normalpd)

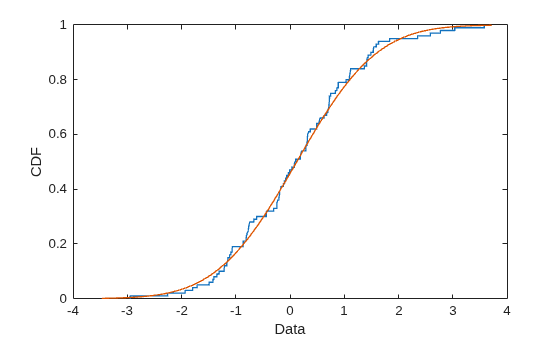

Plot a cdf of the normal distribution fit to the data and a stairs plot of a cdf for the data.
plot(normalpd,PlotType="cdf")

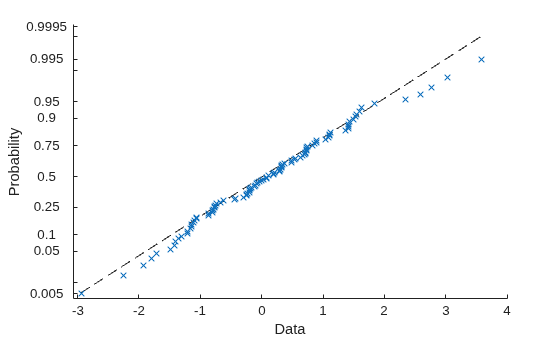

Display a probability plot for the normal distribution fit to the data.
plot(normalpd,PlotType="probability")
The vertical axis is scaled so that the cdf for the fitted probability distribution is represented by a straight line.
Multinomial Distribution Plots
Create a multinomial distribution that has five outcomes with probabilities of 0.1, 0.2, 0.4, 0.2, and 0.1.
multinomialpd = makedist("Multinomial",probabilities=[0.1 0.2 0.4 0.2 0.1])
multinomialpd = MultinomialDistribution Probabilities: 0.1000 0.2000 0.4000 0.2000 0.1000
Plot a pdf for the multinomial distribution.
plot(multinomialpd)

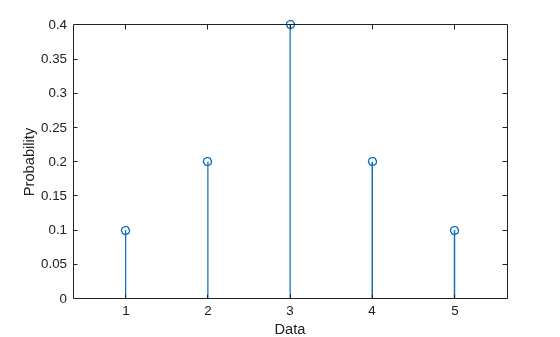

The plot contains a Stem
object that represents the probabilities for the data.

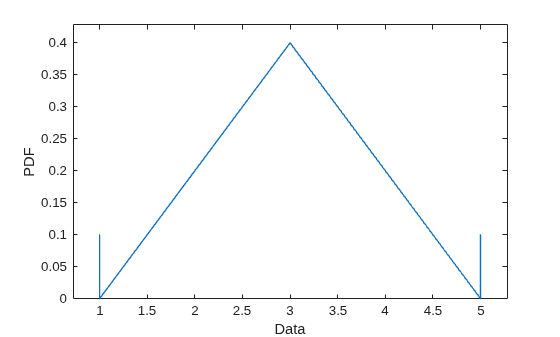

Plot the pdf as a continuous distribution.
plot(multinomialpd,Discrete=0)

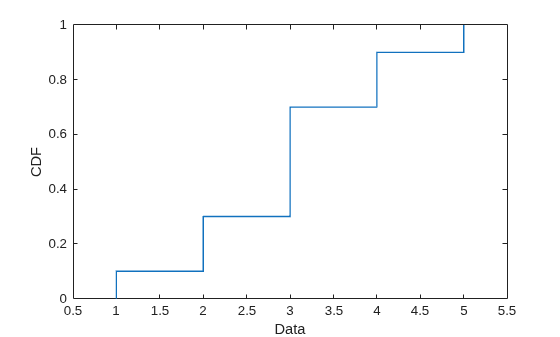

Plot the cdf of the fitted multinomial distribution as a stairs plot.
plot(multinomialpd,PlotType="cdf")

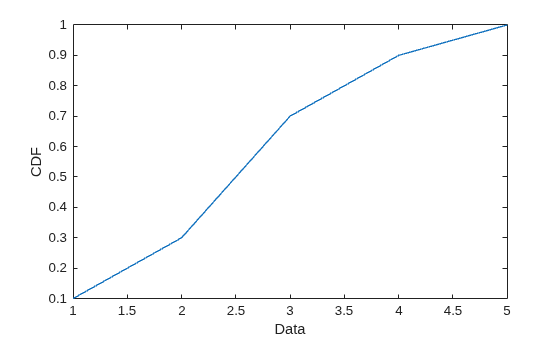

Plot the cdf as a continuous distribution.
plot(multinomialpd,PlotType="cdf",Discrete=0)
Input Arguments
pd
— Probability distribution
probability distribution object
Probability distribution, specified as one of the probability distribution objects in the following table.
Distribution Object | Function or App Used to Create Probability Distribution Object |
---|---|
BetaDistribution | makedist , fitdist , Distribution Fitter |
BinomialDistribution | makedist , fitdist ,
Distribution Fitter |
BirnbaumSaundersDistribution | makedist , fitdist ,
Distribution Fitter |
BurrDistribution | makedist , fitdist ,
Distribution Fitter |
ExponentialDistribution | makedist , fitdist ,
Distribution Fitter |
ExtremeValueDistribution | makedist , fitdist ,
Distribution Fitter |
GammaDistribution | makedist , fitdist ,
Distribution Fitter |
GeneralizedExtremeValueDistribution | makedist , fitdist ,
Distribution Fitter |
GeneralizedParetoDistribution | makedist , fitdist ,
Distribution Fitter |
HalfNormalDistribution | makedist , fitdist ,
Distribution Fitter |
InverseGaussianDistribution | makedist , fitdist ,
Distribution Fitter |
KernelDistribution | fitdist , Distribution Fitter |
LogisticDistribution | makedist , fitdist ,
Distribution Fitter |
LoglogisticDistribution | makedist , fitdist ,
Distribution Fitter |
LognormalDistribution | makedist , fitdist ,
Distribution Fitter |
LoguniformDistribution | makedist |
MultinomialDistribution | makedist |
NakagamiDistribution | makedist , fitdist ,
Distribution Fitter |
NegativeBinomialDistribution | makedist , fitdist ,
Distribution Fitter |
NormalDistribution | makedist , fitdist ,
Distribution Fitter |
PiecewiseLinearDistribution | makedist |
PoissonDistribution | makedist , fitdist ,
Distribution Fitter |
RayleighDistribution | makedist , fitdist ,
Distribution Fitter |
RicianDistribution | makedist , fitdist ,
Distribution Fitter |
StableDistribution | makedist , fitdist ,
Distribution Fitter |
tLocationScaleDistribution | makedist , fitdist ,
Distribution Fitter |
TriangularDistribution | makedist |
UniformDistribution | makedist |
WeibullDistribution | makedist , fitdist ,
Distribution Fitter |
ax
— Axes for plot
Axes
graphics object
Axes for plot, specified as an Axes
graphics object. If you do not
specify the axes by using the ax
input argument or the
Parent
name-value argument, the plot
function plots into the current axes or creates an Axes
object if one
does not exist. For more information on creating an Axes
graphics
object, see axes
and Axes Properties.
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Example: Discrete=1,PlotType="cdf"
plots a cumulative distribution
function (cdf) of the probability distribution as a stairs plot.
PlotType
— Plot type
"pdf"
(default) | "cdf"
| "probability"
Plot type for the probability distribution, specified as one of the following.
"pdf" | Plot the probability density function (pdf). When
pd is fit to data, the pdf is superimposed on a
histogram of the data. |
"cdf" | Plot the cumulative distribution function (cdf). When
pd is fit to data, the cdf is superimposed over an
empirical cdf. |
"probability" | Display a probability plot using a cdf of the data and a cdf of the
fitted probability distribution. This option is available only when
pd is parametric and fit to data. |
Example: PlotType="probability"
Data Types: char
| string
Discrete
— Indicator to plot as discrete function
1 (true)
| 0 (false)
Indicator to plot as a discrete function, specified as 1 (true)
or 0 (false)
. Specify Discrete=0
to display the
pdf or cdf as a line plot. Specify Discrete=1
to display the pdf
as a stem plot or to display the cdf as a stairs plot.
The default value for Discrete
is 1 when
pd
is a discrete probability distribution object and 0 when
pd
is a continuous probability distribution object. If
pd
is continuous, plot
ignores the
user-specified input for Discrete
and plots continuous
functions.
Example: Discrete=0
Data Types: logical
Parent
— Axes for plot
Axes
graphics object
Axes for plot, specified as an Axes
graphics object. If you do
not specify the axes by using the ax
input argument or the
Parent
name-value argument, the
plot
function plots into the current axes or creates an
Axes
object if one does not exist. For more information on creating
an Axes
graphics object, see axes
and Axes Properties.
Output Arguments
H
— Handles to plotted graphics objects
Line
object | Stem
object | Stairs
object | graphics array
Handles to the plotted graphics objects, returned as a Line
object,
Stem
object, Stairs
object, or graphics array.
When
PlotType
is set to"pdf"
or"cdf"
, andpd
is not fit to data,H
is a single handle corresponding to the pdf or cdf for the distribution.When
PlotType
is set to"pdf"
or"cdf"
, andpd
is fit to data,H
is a 1-by-2 graphics array. The first entry of the graphics array corresponds to the pdf or cdf for the distribution, and the second entry corresponds to the data.When
PlotType
is set to"probability"
,H
is a 2-by-1 graphics array with entries corresponding to the data and the distribution.
The table below shows how the returned graphics object depends on whether the
distribution is discrete, whether pd
is fit to data, and the
specified values for the name-value arguments Discrete
and
PlotType
.
Distribution Type | Fit to Data | Discrete value | PlotType value | Returned Graphics Object |
---|---|---|---|---|
Discrete | No | 1 | "pdf" | Stem |
"cdf" | Stairs | |||
0 | "pdf" | Line | ||
"cdf" | Line | |||
Yes | 1 | "pdf" | [ | |
"cdf" | [ | |||
"probability" | [ | |||
0 | "pdf" | [ | ||
"cdf" | [ | |||
"probability" | [ | |||
Continuous | No | 0 | "pdf" | Line |
"cdf" | Line | |||
Yes | 0 | "pdf" | [ | |
"cdf" | [ | |||
"probability" | [ |
Version History
Introduced in R2022b
