test

Test indices for time series cross-validation

    Description

    example

    idx = test(c) returns the test indices idx for a tspartition object c of type 'holdout'. That is, the logical vector idx specifies the observations in the test set.

    example

    idx = test(c,i) returns the test indices for window i of a tspartition object c of type 'expanding-window' or 'sliding-window'. That is, the logical vector idx specifies the observations in test set i.

    • If c.Type is 'expanding-window', then the training set size expands with each window while the test set size remains fixed.

    • If c.Type is 'sliding-window', then both the training set size and the test set size are fixed.

    Examples

    collapse all

    Identify the observations in the test set of a tspartition object for holdout validation.

    Use 30% of 20 time-dependent observations to create a test set. The corresponding training set contains the remaining observations.

    c = tspartition(20,"Holdout",0.30);

    Find the test set indices. A value of 1 (true) indicates that the corresponding observation is in the test set. A value of 0 (false) indicates that the corresponding observation is in the training set.

    testIndices = test(c);

    Visualize the observations in the test set by using a heat map.

    h = heatmap(double(testIndices),ColorbarVisible="off");
    h.XDisplayLabels = "";
    ylabel("Observation")
    title("Test Set Observations")

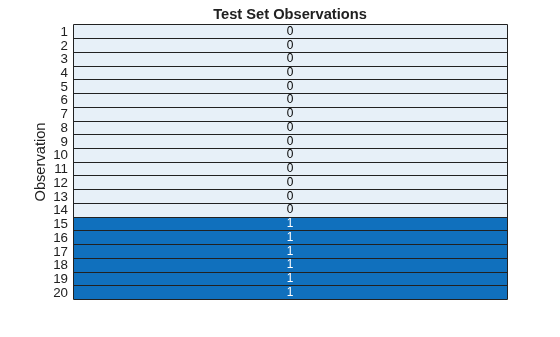

    Figure contains an object of type heatmap. The chart of type heatmap has title Test Set Observations.

    The observations in light blue (with a value of 0) are in the training set, and the observations in dark blue (with a value of 1) are in the test set. When you use holdout validation for time series data, the latest observations (in this case, observations 15 through 20) are in the test set.

    Identify the observations in the training sets and test sets of a tspartition object for sliding window cross-validation.

    Use 20 time-dependent observations to create five training sets and five test sets.

    c = tspartition(20,"SlidingWindow",5);

    Find the training set indices for the five windows. A value of 1 (true) indicates that the corresponding observation is in the training set for that window.

    trainWindows = zeros(c.NumObservations,c.NumTestSets);
    for i = 1:c.NumTestSets
        trainWindows(:,i) = training(c,i);
    end

    Find the test set indices for the five windows. A value of 1 (true) indicates that the corresponding observation is in the test set for that window.

    testWindows = zeros(c.NumObservations,c.NumTestSets);
    for i = 1:c.NumTestSets
        testWindows(:,i) = test(c,i);
    end

    Combine the training and test set indices into one matrix where a value of 1 indicates a training observation and a value of 2 indicates a test observation.

    data = trainWindows + 2*testWindows;

    Visualize the different sets by using a heat map.

    colormap = lines(3);
    heatmap(double(data),ColorbarVisible="off", ...
        Colormap=colormap);
    xlabel("Window")
    ylabel("Observation")
    title("Sliding Window Cross-Validation Scheme")

    Figure contains an object of type heatmap. The chart of type heatmap has title Sliding Window Cross-Validation Scheme.

    For each window, the observations in red (with a value of 1) are in the training set, the observations in yellow (with a value of 2) are in the test set, and the observations in blue (with a value of 0) are ignored. For example, observations 9 through 11 are test observations in window two and training observations in window three. Because of the default values for the training set size, test set size, step size, and direction for creating sliding windows, tspartition does not use some of the oldest observations (1 and 2) in any window.

    Input Arguments

    collapse all

    Time series validation partition, specified as a tspartition object. The validation partition type (Type) is 'expanding-window', 'holdout', or 'sliding-window'.

    Test set or window index, specified as a positive integer scalar. When you specify i, the test function finds the observations in test set i.

    Data Types: single | double

    Output Arguments

    collapse all

    Indices for test set observations, returned as a logical vector. A value of 1 (true) indicates that the corresponding observation is in the test set. A value of 0 (false) indicates that the corresponding observation is in a different set, such as the training set.

    Version History

    Introduced in R2022b
