Compose Architectures Visually

You can create and edit visual diagrams to represent architectures in System Composer™. Use architectural elements including components, ports, and connections in the system composition. Model hierarchy in architecture by decomposing components. Navigate through the hierarchy.

With MATLAB^® code and the functions importModel and exportModel, you can import external architecture descriptions into System Composer. For more information, see Import and Export Architecture Models.

Alternatively, you can use MATLAB programming to create and customize the various architectural elements. For details, see Build Architecture Models Programmatically.

Note

When you load existing data dictionaries, Simulink^® automatically migrates them to the Architectural Data section of the Simulink data dictionary. In addition to the Interface Editor, you can also use the Architectural Data Editor and Simulink.dictionary.ArchitecturalData programmatic interfaces to manage and modify interfaces and value types. For more information on managing architectural data, see Store Shared Data in Architectural Data Section and Store Data in Architectural Data Section Programmatically.

Tip

To learn more about how System Composer concepts apply to systems engineering design, see System Composer Concepts.

Create Architecture Model

A System Composer architecture represents a system of components and how they interface with each other structurally and behaviorally. Different types of architectures describe different aspects of systems. You can use views to visualize a subset of components in an architecture. You can define parameters on the architecture level using the Parameter Editor.

A System Composer model is the file that contains architectural information, such as components, ports, connectors, interfaces, and behaviors. An architecture model includes a top-level architecture that holds the composition of the system. This top-level architecture also allows you to define interfaces of this system with other systems.

To model the physical and logical architecture of a system, start with a blank architecture model. Use one of these three methods to create an architecture model:

• At the MATLAB Command Window, enter this command.

  systemcomposer

  Select Architecture Model.



  System Composer provides template architecture models that address different domains in systems engineering and software architecture modeling: Architecture Model and Software Architecture Model. All architecture models provide the same structural capabilities with some domain and platform specific constraints. For more information on architecture templates, see Choose Architecture Template for System Design.

• From a Simulink model or a System Composer architecture model, on the Simulation tab, select New , and then select Architecture .



• At the MATLAB Command Window, enter this command.

  archModel = systemcomposer.createModel("modelName");
  systemcomposer.openModel("modelName");

  The argument modelName is the name of the new model.

Save the architecture model. On the Simulation tab, select Save . The architecture model is saved as an SLX file.

The architecture model includes a top-level architecture that holds the composition of the system. This top-level architecture also allows definition of interfaces of this system with other systems. The composition represents a structured parts list — a hierarchy of components with their interfaces and interconnections. Edit the composition in the Composition Editor.

This example shows a motion control architecture, where a sensor obtains information from a motor, feeds that information to a controller, which in turn processes this information to send a control signal to the motor so that it moves in a certain way. You can start with this rough description and add component properties, interface definitions, and requirements as the design progresses.

Components

A component is a replaceable part of a system that fulfills a clear function in the context of an architecture. A component defines an architectural element, such as a function, another system, hardware, software, or other conceptual entity. A component can also be a subsystem or subfunction. The Component element in System Composer can represent a component at any level of the system hierarchy, whether it is a major system component that encompasses many subsystems, such as a controller with its hardware and software, or a component at the lowest level of hierarchy, such as a software module for messaging. Represented as a block, a component is a part of an architecture model that can be separated into reusable artifacts. Transfer information between components with port interfaces using the Interface Editor, and parameters using the Parameter Editor.

Use one of these methods to add components to the architecture:

• Draw a component — In the canvas, left-click and drag to create a rectangle. Release the mouse button to see the component outline. Select the Component block option to commit.

• Create a component from the palette — Left-click and drag a component from the palette and release the mouse button to commit.



• Create multiple components — Right-click and drag from one component to create a second component. Release the mouse button to commit.



Each component must have a name that is unique within the same architecture level. The name of the component is highlighted upon creation so you can directly type the name. To change the name of a component, click the component and then click its name.

Move a component simply by clicking and dragging it. Blue guidelines may appear to help align the component with other components.

Resize a component by dragging corners.

1. Pause the pointer over a corner to see the double arrow.



2. Click the corner and drag while holding the mouse button down. If you want to resize the component proportionally, hold the Shift button as well.



3. Release the mouse button when the component reaches the size you want.

Click a component and press Delete to delete it. To delete multiple components, select them while holding the Shift key down, then press Delete.

Add Mask Icon on Component

You can use mask icons to mask System Composer components with an image that covers the component body and header. Mask icons allow for more visually expressive architecture diagrams.

1. Select a Component, Reference Component, or Variant Component block.

2. To open the Add mask icon image dialog box, from the toolstrip, select Format > Add Image to Block.

3. To select an image from your file, click Browse. The directory must be on the MATLAB path.

4. To remove the mask image, from the toolstrip, select Format > Edit Image > Remove Image.

To inspect component names or port names after applying a mask icon, use the Property Inspector. To configure additional options such as mask transparency, use the setMaskImage function.

For an example of using mask icons on Component and Variant Component blocks, see Calculate Endurance Using Quadcopter Architectural Design.

Change Default Fonts

You can change the default font in your component headers, linked model or subsystem names, port names, and subsystem component line labels. To modify your font choices, open the Font Styles dialog box. From the System Composer toolstrip, select Format > Fonts for Model from the down arrow next to the Font button .

Ports

A port is a node on a component or architecture that represents a point of interaction with its environment. A port permits the flow of information to and from other components or systems. Component ports are interaction points on the component to other components. Architecture ports are ports on the boundary of the system, whether the boundary is within a component or the overall architecture model. The root architecture has a boundary defined by its ports.

For example, a sensor might have data ports to communicate with a motor and a controller. The sensor input port takes data from the motor, and the output port delivers data to the controller. You can specify data values by defining an interface as described in Define Port Interfaces Between Components.

Note

Newly created ports by default have an <inherit> interface specification to support unknown interfaces in the early stages of architectural design. If an interface is specified on another port, as you build your architecture, the <inherit> specification propagates that interface to other connected ports. Interface specifications do not automatically propagate through model and subsystem references.

Add Component Port

Represent the relationship between components by defining directional interface ports. You can organize the diagram by positioning ports on any edge of the component, in any position.

1. Pause over the side of a component. A + sign and a port outline appear.



2. Click the port outline. A set of options appear for an Input, Output, or Physical port.



3. Select Output to commit the port. You can also name the port at this point.



An output port is shown with the icon, an input port is shown with the icon, and a physical port is shown with the icon.

Note

Physical ports are nondirectional and used with Simscape™ physical modeling that implements a physical network approach. For more information about component behavior using Simscape, see Implement Component Behavior Using Simscape.

You can move any port to any component edge after creation using the arrow keys.

Add Architecture Port

You can also create a port for the architecture that contains components. These system ports on the boundary carry the interface of the system to other systems. A root is at the top of an architecture hierarchy. A root architecture has a boundary defined by its architecture ports that surround the system of interest. The root architecture has a system boundary surrounding your architecture model. You can add architecture ports that define interfaces across the boundary.

Pause on any edge of the system box and click when the + sign appears. Click the left side to create input ports and click the right side to create output ports.

Name, Move and Delete Ports

Every port is created with a name. To change the name, click it and edit.

Ports of a component must have unique names.

You can move a port to any side of a component. Select the port and use arrow keys. The spacing of the ports on one side is automatic. There can be a combination of input and output ports on the same edge.

Delete a port by selecting it and pressing the Delete button.

Change Port Type

To change a port type, right-click a port and select Change port action, then select either Input, Output, or Physical. You can also change port types in the Property Inspector. In the Interface section, from the Action list, select the appropriate port action.

Use the systemcomposer.arch.PortDirection enumeration to change port action. In this example, compPort represents a systemcomposer.arch.ComponentPort object, and archPort represents a systemcomposer.arch.ArchitecturePort object. Each object uses a Direction property to identify port action.

compPort.Direction = systemcomposer.arch.PortDirection.Input
compPort.Direction = systemcomposer.arch.PortDirection.Physical

archPort.Direction = systemcomposer.arch.PortDirection.Output
archPort.Direction = systemcomposer.arch.PortDirection.Physical

For an Input port or an Output port, you can change a port type to its conjugate after right-clicking a port and selecting Conjugate port from the context menu. An Input port is converted into an Output port, and an Output port is converted into an Input port.

Connections

Connectors are lines that provide connections between ports. Connectors describe how information flows between components or architectures. A connector allows two components to interact without defining the nature of the interaction. Set an interface on a port to define how the components interact. Connections are visual representations of data flow from an output port to an input port. For example, a connection from a motor to a sensor carries positional information.

Connect Existing Ports

Connect two ports by dragging a line:

1. Click one of the ports.

2. Keep the mouse button down while dragging a line to the other port.

3. Release the mouse button at the destination port. A black line indicates the connection is complete. A red-dotted line appears if the connection is incomplete.

You can take these steps in both directions — input port to output port, or output port to input port. You cannot connect ports that have the same direction.

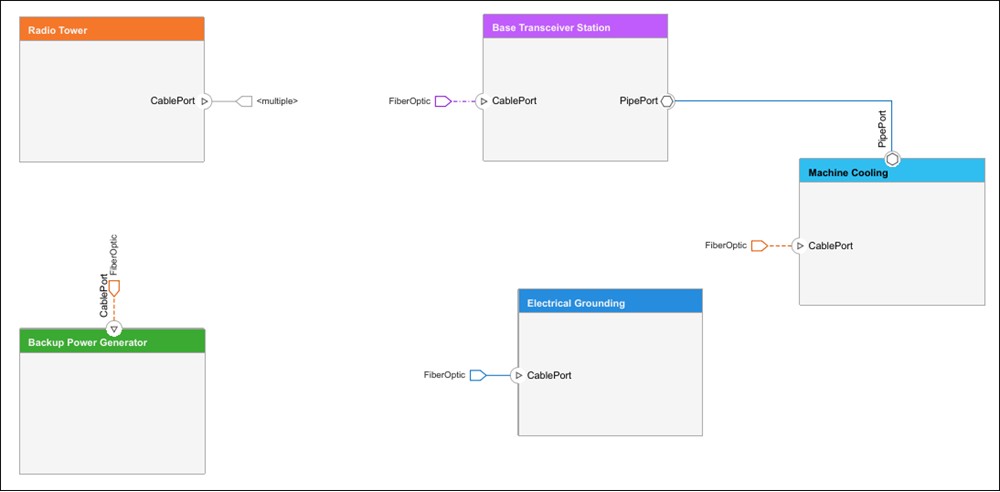

A connection between an architecture port and a component port is shown with tags instead of lines.

Connect Components Without Ports

To quickly create ports and connections at the same time, drag a line from one component edge to another. The direction of this connection depends on which edges of the components are used - left and top edges are considered inputs, right and bottom edges are considered outputs. You can also perform this operation from an existing port to a component edge.

You can create a connection between an edge that is assumed to be an input only with an edge that is assumed to be an output. For example, you cannot connect a top edge, which is assumed to be an input, with another top edge, unless one of them already has an output port.

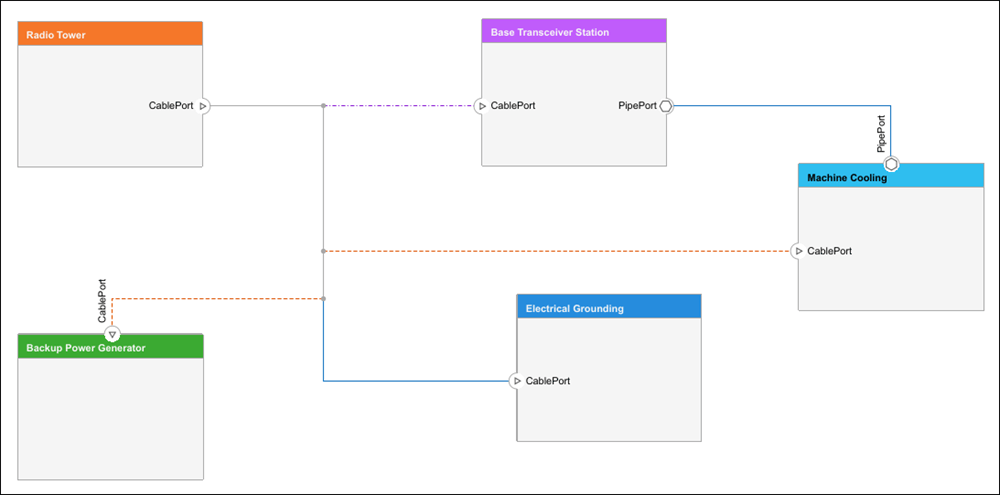

Branch Connections

Connect an output port to multiple input ports by branching a connection. To branch, right-click an existing connection and drag to an input port while holding the mouse button down. Release the button to commit the new connection.

Create New Components Through Connections

If you start a connection from an output port and release the mouse button without a destination port, a new component tentatively appears. Commit the new component by clicking it.

Auto-Connect Ports With Same Name

You can automatically connect ports with the same name between components on the model canvas using the Smart Connect toolstrip menu button. To learn about smart connect and its various options, see Smart Connect Ports by Custom Policy and the smartConnect function.

You can also connect ports with the same name using the following steps:

• Highlight a component with the ports to connect from.

• Press Ctrl and right-click another component whose ports to which you would like to connect using the same name rule.

For more information, see Connect Blocks.

To connect same name ports using programmatic interfaces, use the connect function and specify "name" for the Rule name-value argument. To identify your ports and components, use the lookup function with the getQualifiedName function.

Change Line Crossing Style for Overlapping Connections

In complex architectural diagrams, connectors can overlap. You can improve the readability of your diagram by choosing another line crossing style. Navigate to Modeling > Environment > Simulink Preferences. In Simulink Preferences, select Editor, then select a Line crossing style. The default line crossing style, Tunnel, is shown below.

Another option, Line Hop, is shown below.

For more information on line crossing style parameters, see Line crossing style.
