Author Sequence Diagrams to Co-Create Architecture Models

You can author sequence diagrams to describe expected system behavior as a sequence of interactions between components of a System Composer™ architecture model. Lifelines correspond to components in an architecture model, and messages correspond to the connectors between the components. You can create multiple sequence diagrams to represent different operational scenarios of the system. Sequence diagrams are integrated into the Architecture Views Gallery in System Composer.

For a roadmap of the sequence diagram topics, see Describe System Behavior Using Sequence Diagrams.

This traffic light example will show you how to:

• Create a sequence diagram.

• Add child lifelines in a sequence diagram.

• Interact with root architecture ports in a sequence diagram using gates.

• Co-create components and keep the architecture model and the sequence diagram in sync.

• Create messages in a sequence diagram.

• Use the model browser to add components.

• Link elements of a sequence diagram to requirements.

Note

This example uses Stateflow^® blocks. If you do not have a Stateflow license, you can open and simulate the model but can only make basic changes, such as modifying block parameters.

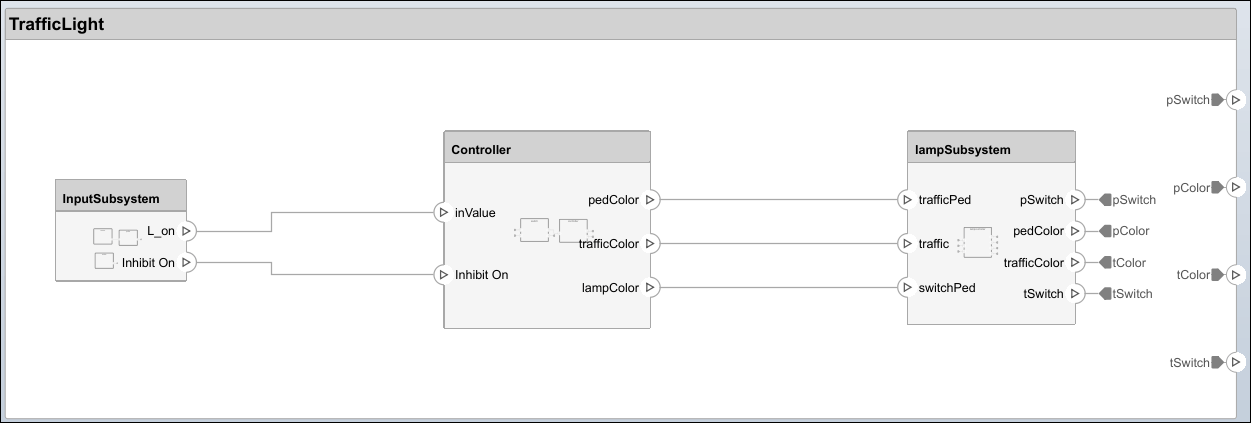

Traffic Light Example with Hierarchy for Sequence Diagrams

This traffic light example contains sequence diagrams to describe pedestrians crossing an intersection. The model describes these steps:

1. The traffic signal cycles from green to yellow to red.

2. When the pedestrian crossing button is pressed, if the traffic signal is green, the traffic signal transitions from yellow to red for a limited time.

3. The pedestrians cross while the walk signal is active.

Open the System Composer model that contains the sequence diagrams.

model = systemcomposer.openModel("TrafficLight");

To view the sequence diagrams, open the Architecture Views Gallery.

openViews(model)

The sequence diagram in this example represents an operative scenario in the architecture model.

In the InputPollNested sequence diagram, the poller lifeline recognizes a signal event as inValue rises to 1, the pedestrian crossing button is pressed. Next, the switch lifeline recognizes a signal event to lampcontroller as switchPed rises to 1, which activates the pedestrian crossing signal.

Create Sequence Diagram

Create an architecture model in System Composer to represent how a traffic light system operates.

1. To open sequence diagrams in the Architecture Views Gallery, navigate to Modeling > Sequence Diagram.

2. To create a new sequence diagram, click New > Sequence Diagram.

3. In Sequence Diagram Properties on the right, enter the name PedLoop.

4. From the menu, select Component > Add Lifeline. A box with a vertical dotted line appears on the canvas. This box is the new lifeline.

5. To view available options, click the down arrow on the lifeline. Select the component named lampSubsystem to be represented by the lifeline.

Add Child Lifelines to Sequence Diagram

You can add child lifelines to a sequence diagram to represent model hierarchy and describe the interactions between lifelines.

1. From the menu, select Component > Add Lifeline. From the list that appears, select the Controller component.



2. Child components called lampcontroller and controller are located inside the lampSubsystem and Controller components, respectively.



3. Select the lampSubsystem lifeline. Navigate to Component > Add Lifeline > Add Child Lifeline. Select lampcontroller. The lampcontroller child lifeline is now situated below lampSubsystem in the hierarchy.

4. Repeat these steps for the Controller lifeline to add the controller child lifeline.



Create Sequence Diagram Gates

A gate represents the root architecture of the corresponding architecture model.

Connect messages to gates to represent architecture ports.

1. Select the lampcontroller lifeline, then click and drag it to the gutter region. Start typing tSwitch into the To box and select tSwitch from the list. See that a gate called tSwitch has been created with a message from the lampcontroller lifeline at the port tSwitch.



2. Return to the architecture diagram. Observe that tSwitch is a root architecture port connected to the lampcontroller component in the hierarchy through the lampSubsystem component.



Co-Create Components

The co-creation workflow between the sequence diagram and the architecture model keeps the model synchronized as you make changes to the sequence diagram. Adding both lifelines and messages in a sequence diagram results in updates to the architecture model. This example shows component co-creation.

1. From the toolstrip menu, select Component > Add Lifeline. Another box with a vertical dotted line appears on the canvas to represent a lifeline. In the box, enter the name of a new component named Machine.



2. Observe that the Machine component is co-created in the architecture diagram.



Synchronize Sequence Diagram and Model

1. Remove the Machine component from the architecture diagram.

2. Return to the sequence diagram and select Synchronize > Check Consistency. See that the Machine lifeline is highlighted, as it does not correspond to a component.



3. To restore consistency, either remove the Machine lifeline or click Undo in the architecture model to restore the Machine component.

4. Click Check Consistency again.

For advanced sequence diagram synchronization techniques, see Synchronize Sequence Diagrams and Architecture Models.

Create Messages in Sequence Diagram

You can create a message from an existing connection.

1. Draw a line from the controller lifeline to the lampcontroller lifeline. Start to type traffic in the To box, which fills in automatically as you type. Once the text fills in, select traffic.



2. Since the trafficColor port and traffic port are connected in the model, a message is created from the traffic port to the trafficColor port in the sequence diagram.



3. You can modify the source and destination of a message after the message has been created. Click the trafficColor message end to select it.



4. Click and drag the trafficColor message end to the Controller parent lifeline, then select the trafficColor port.



5. Once the trafficColor port is selected, the message end moves from the controller child lifeline to the Controller parent lifeline.



   You can also rename message ends and the associated ports by double-clicking the name of a message end.

Modify Sequence Diagram Using Model Browser

1. The Architecture Views Gallery model browser located on the bottom left of the canvas is called Model Components. Click and drag the switch child component into the sequence diagram.



2. The sequence diagram is updated with a new lifeline.



3. Click and drag to reorder the lampSubsystem and the Controller lifelines.



Use Annotations to Describe Elements of Sequence Diagram

An annotation describes the elements of a sequence diagram.

Use annotations to provide detailed explanations of elements or workflows captured by sequence diagrams.

You can add plain-text annotations to a sequence diagram to describe elements, such as lifelines, messages, and fragments.

To create an annotation, double-click the canvas at the desired location. Then, enter the annotation text in the text box that appears on the canvas.

Press Esc or click anywhere outside the text box to apply the changes.

Create Sequence Diagram from View

1. In the MATLAB^® Command Window, enter scKeylessEntrySystem. The architecture model opens in the Simulink Editor.

2. To open the Architecture Views Gallery for the model, navigate to Modeling > Views > Architecture Views.

3. Right-click the Sound System Supplier Breakdown view and select New Sequence Diagram.



4. A new sequence diagram of lifelines is created with all the components from the view.



Link Elements of Sequence Diagram to Requirements

You can link a sequence diagram as a whole or individual elements of a sequence diagram to requirements in the Architecture Views Gallery. A Requirements Toolbox™ license is required.

1. On the Views tab, in the Requirement section, click Open Requirements Editor to open the Requirements Editor (Requirements Toolbox). From here, you can author requirements, create requirement sets, and organize requirements into hierarchies.

2. With the Requirements Editor open, select the sequence diagram element that you want to link to a requirement. To select a lifeline, gate, fragment, or message, click the element on the sequence diagram canvas. To select the sequence diagram as a whole, click the name of the sequence diagram in the View Browser pane.

3. In the Requirements Editor, click the requirement that you want to link the selected sequence diagram element to.

4. You can link from the selected sequence diagram element to the requirement in three ways.

   • In the Architecture Views Gallery, on the Views tab, in the Requirement section, click Link to selected requirement.

   • In the Requirements Editor, right-click the selected requirement and click Link from for the specific sequence diagram element.

   • In the Requirements Editor, click Add Link and select Link from for the specific sequence diagram element.

   Note

   In a sequence diagram, links from lifelines and gates to requirements connect to the respective elements in the underlying architecture diagram. This type of link is called an implemented link. If you delete an architecture diagram element corresponding to a lifeline or gate, then the option to link a requirement from this element is disabled. If you delete an element after linking to a requirement, then the link is invalid.

   On the other hand, requirement links from sequence diagrams, messages, and fragments link locally to the respective element in the sequence diagram. This type of link is a verified link.

To view the requirements linked from sequence diagram elements, select a particular element on the sequence diagram canvas and click Requirements Manager in the Requirement section of the Views tab. The requirements linked from the selected element are listed in the Requirement Links pane that appears at the bottom of the window.

If the Requirements Manager button is selected, gray badges appear over sequence diagram elements that are linked to requirements. To display the corresponding requirement ID and the requirement Summary text, point to the badge.

To view these requirements in the Requirements Editor, point to the requirements in the Requirement Links pane and click the Show in Links View button. You can delete requirement links from sequence diagram elements by pausing your cursor on the requirement name, and clicking the Delete Link button.
