split

Split single tireData object into array of tireData objects

Since R2024a

Syntax

td=split(obj,criteria)

Description

This function requires Extended Tire Features for Vehicle Dynamics Blockset.

td=split(obj,criteria) splits a single tireData object specified by obj into an array of tireData objects using criteria specified by criteria.

Examples

Split Imported Tire Data

Use the split function to split a tireData object by each Fz test condition into multiple tireData objects using these input criteria options:

• Data channel

• Logical vector

• Numeric vector

Import and View Tire Measurement Data

Import tire measurement data into a tireData object, td.

td = tireData("example_data.tdx");

Multiple Fz conditions are included in this data file. Use the plot function to view the normal force versus the elapsed time.

plot(td,DataVariableNames=["et","Fz"]);

Split tireData Object Using Data Channels

Specify the normal force Fz as the split criteria. The tireData object is split into four tireData objects at the locations where the nominal normal force value changes.

tdSplit = split(td,"Fz");

Plot the resulting tireData objects in tdSplit.

plot(tdSplit,DataVariableNames=["et","Fz"],ColorBy="Fz");

plot(tdSplit,DataVariableNames=["alpha","Fy"],ColorBy="Fz");

Split tireData Object Using a Logical Vector

Specify a logical vector indicating true values where changes in the normal force Fz are greater than 500 N as the split criteria. The tireData object is split into four tireData objects at the positions where the value in the logical vector is true.

tf = [0;diff(td.Fz) > 500];
tdSplit = split(td,tf);

Plot the resulting tireData objects in tdSplit.

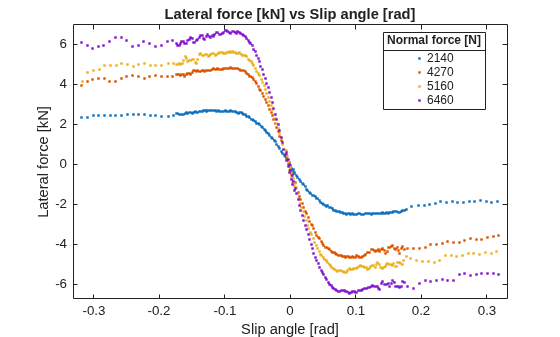

plot(tdSplit,DataVariableNames=["alpha","Fy"],ColorBy="Fz");

Split tireData Object Using Numeric Vector

Specify an integer array with the index values of the split location. The tireData object is split into four tireData objects.

idx = find(tf);
tdSplit = split(td,idx);

Plot the resulting tireData objects in tdSplit.

plot(tdSplit,DataVariableNames=["alpha","Fy"],ColorBy="Fz");

Input Arguments

obj — Tire data to split

tireData object

The tire data to split, specified as a tireData object.

criteria — Criteria used to split tireData object

logical vector | integer vector | string vector

Criteria used to split the tireData object, specified as one of these values:

• Logical vector — true values indicate at which indices to split the tire data object.

• Integer vector — Integer values indicate at which indices to split the tire data object.

• String vector — Changes in the segment, data channel, or time indicate where to split the tireData object using one or more of the string values listed in the table.

  Value	Description
  "segment"	Splits the tireData object where the segment array has significant changes in values.
  "et"	Splits the tireData object where the sampling frequency changes.
  "Fz"	Splits the tireData object where the Fz data channel array has significant changes in values.
  "IP"	Splits the tireData object where the IP data channel array has significant changes in values.
  "alpha"	Splits the tireData object where the alpha data channel array has significant changes in values.
  "gamma"	Splits the tireData object where the gamma data channel array has significant changes in values.
  "kappa"	Splits the tireData object where the kappa data channel array has significant changes in values.
  "Vx"	Splits the tireData object where the Vx data channel array has significant changes in values.

Note

By default, if criteria are not specified, the split function splits tire data in order of priority:

1. segment

2. Data channels (Fz,IP,alpha,gamma,kappa,Vx)

3. Time (et)

Data Types: int8 | int16 | int32 | int64 | logical | string

Output Arguments

td — Split tire data

array of tireData objects

Split tire data, returned as an array of tireData objects.

Note

The split function assigns all the non-data channel values to all the output tireData objects.

Version History

Introduced in R2024a
