# estimateGeometricTransform

(Not recommended) Estimate geometric transform from matching point pairs

`estimateGeometricTransform` is not recommended. Use the `estgeotform2d` or `estgeotform3d` function instead. For more information, see Compatibility Considerations.

## Syntax

``tform = estimateGeometricTransform(matchedPoints1,matchedPoints2,transformType)``
``````[tform,inlierpoints1,inlierpoints2] = estimateGeometricTransform(matchedPoints1,matchedPoints2,transformType)``````
``[___,status] = estimateGeometricTransform(matchedPoints1,matchedPoints2,transformType)``
``[___] = estimateGeometricTransform(matchedPoints1,matchedPoints2,transformType, Name,Value)``

## Description

example

````tform = estimateGeometricTransform(matchedPoints1,matchedPoints2,transformType)` returns a 2-D geometric transform object, `tform`. The `tform` object maps the inliers in `matchedPoints1` to the inliers in `matchedPoints2`.The function excludes outliers using the M-estimator SAmple Consensus (MSAC) algorithm. The MSAC algorithm is a variant of the Random Sample Consensus (RANSAC) algorithm. Results may not be identical between runs because of the randomized nature of the MSAC algorithm.```

example

``````[tform,inlierpoints1,inlierpoints2] = estimateGeometricTransform(matchedPoints1,matchedPoints2,transformType)``` returns the corresponding inlier points in `inlierpoints1` and `inlierpoints2`.```

example

````[___,status] = estimateGeometricTransform(matchedPoints1,matchedPoints2,transformType)` returns a status code of `0`, `1`, or `2`. If you do not request the `status` code output, the function returns an error for conditions that cannot produce results.```
````[___] = estimateGeometricTransform(matchedPoints1,matchedPoints2,transformType, Name,Value)` uses additional options specified by one or more name-value arguments.```

## Examples

collapse all

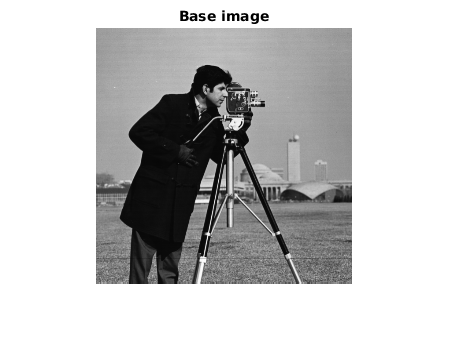

Read an image and display it.

```original = imread('cameraman.tif'); imshow(original) title('Base Image')```

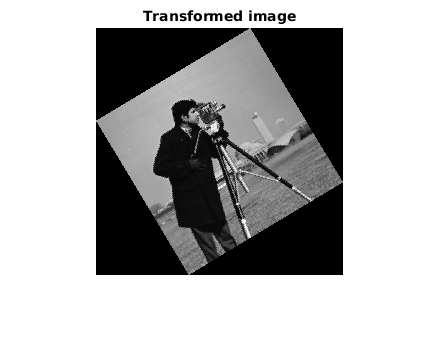

Distort and display the transformed image.

```distorted = imresize(original,0.7); distorted = imrotate(distorted,31); figure imshow(distorted) title('Transformed Image')```

Detect and extract features from the original and the transformed images.

```ptsOriginal = detectSURFFeatures(original); ptsDistorted = detectSURFFeatures(distorted); [featuresOriginal,validPtsOriginal] = extractFeatures(original,ptsOriginal); [featuresDistorted,validPtsDistorted] = extractFeatures(distorted,ptsDistorted);```

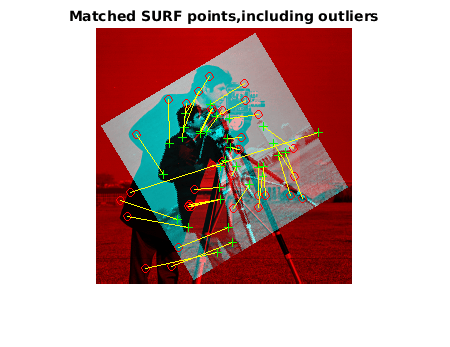

Match and display features between the images.

```index_pairs = matchFeatures(featuresOriginal,featuresDistorted); matchedPtsOriginal = validPtsOriginal(index_pairs(:,1)); matchedPtsDistorted = validPtsDistorted(index_pairs(:,2)); figure showMatchedFeatures(original,distorted,matchedPtsOriginal,matchedPtsDistorted) title('Matched SURF Points With Outliers');```

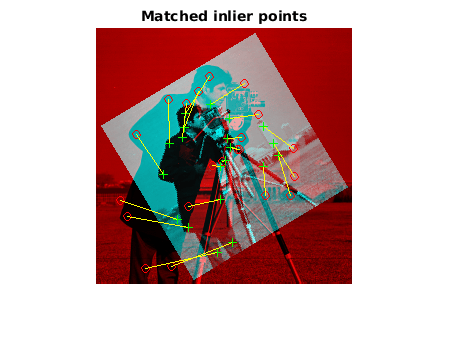

Exclude the outliers, estimate the transformation matrix, and display the results.

```[tform,inlierIdx] = estimateGeometricTransform2D(matchedPtsDistorted,matchedPtsOriginal,'similarity'); inlierPtsDistorted = matchedPtsDistorted(inlierIdx,:); inlierPtsOriginal = matchedPtsOriginal(inlierIdx,:); figure showMatchedFeatures(original,distorted,inlierPtsOriginal,inlierPtsDistorted) title('Matched Inlier Points')```

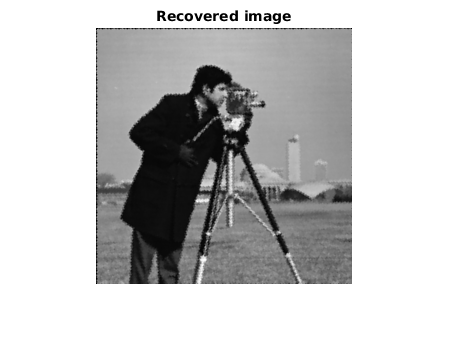

Use the estimated transformation to recover and display the original image from the distorted image.

```outputView = imref2d(size(original)); Ir = imwarp(distorted,tform,'OutputView',outputView); figure imshow(Ir); title('Recovered Image');```

## Input Arguments

collapse all

Matched points from image 1, specified as either a `KAZEPoints`, `cornerPoints` object, `SIFTPoints`, `SURFPoints` object, `MSERRegions` object, `ORBPoints` object, `BRISKPoints`or an M-by-2 matrix of [x,y] coordinates. The function excludes outliers using the M-estimator SAmple Consensus (MSAC) algorithm. The MSAC algorithm is a variant of the Random Sample Consensus (RANSAC) algorithm.

Matched points from image 2, specified as either a `KAZEPoints`, `cornerPoints` object, `SIFTPoints`, `SURFPoints` object, `MSERRegions` object, `ORBPoints` object, `BRISKPoints`or an M-by-2 matrix of [x,y] coordinates. The function excludes outliers using the M-estimator SAmple Consensus (MSAC) algorithm. The MSAC algorithm is a variant of the Random Sample Consensus (RANSAC) algorithm.

Transform type, specified as `"similarity"`, `"affine"`, or `"projective"`. The greater the number of matched pairs of points, the greater the accuracy of the estimated transformation. The minimum number of matched pairs of points for each transform type:

Transform TypeMinimum Number of Matched Pairs of Points
`"similarity"`2
`"affine"`3
`"projective"`4

Data Types: `string` | `char`

### Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose `Name` in quotes.

Example: `"Confidence",99` sets the confidence value to `99`.

Maximum number of random trials for finding the inliers, specified as a positive integer scalar. Increasing this value improves the robustness of the results at the expense of additional computations.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64`

Confidence of finding the maximum number of inliers, specified as a percentage numeric scalar in the range (0 100). Increasing this value improves the robustness of the results at the expense of additional computations.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64`

Maximum distance in pixels, from a point to the projection of its corresponding point, specified as a positive numeric scalar. The corresponding projection is based on the estimated transform.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64`

## Output Arguments

collapse all

Geometric transformation, returned as either an `affine2d` object or a `projective2d` object.

The returned geometric transformation matrix maps the inliers in `matchedPoints1` to the inliers in `matchedPoints2`. When you set the `transformType` input to either `"similarity"` or `"affine"`, the function returns an `affine2d` object. Otherwise, it returns a `projective2d` object.

Inlier points in image 1, returned as the same type as the input matching points.

Inlier points in image 2, returned as the same type as the input matching points.

Status code, returned as the value `0`, `1`, or `2`.

`status`Description
`0`No error.
`1``matchedPoints1` and `matchedPoints2` inputs do not contain enough points.
`2`Not enough inliers found.

If you do not request the `status` code output, the function will throw an error for the two conditions that cannot produce results.

Data Types: `double`

## References

[1] Hartley, Richard, and Andrew Zisserman. Multiple View Geometry in Computer Vision. 2nd ed. Cambridge, UK ; New York: Cambridge University Press, 2003.

[2] Torr, P.H.S., and A. Zisserman. "MLESAC: A New Robust Estimator with Application to Estimating Image Geometry." Computer Vision and Image Understanding. 78, no. 1 (April 2000): 138–56. https://doi.org/10.1006/cviu.1999.0832.

## Version History

Introduced in R2013a

collapse all

### R2022b: Not recommended

Starting in R2022b, many Computer Vision Toolbox™ functions create and perform geometric transformations using the premultiply convention. However, the `estimateGeometricTransform` function estimates geometric transformations using the postmultiply convention. Although there are no plans to remove `estimateGeometricTransform` at this time, you can streamline your geometric transformation workflows by switching to the `estgeotform2d` and `estgeotform3d` functions, which support the premultiply convention. For more information, see Migrate Geometric Transformations to Premultiply Convention.
