Image Complement

Compute the complement of pixel values in binary or intensity images

Libraries:
Computer Vision Toolbox / Conversions

Description

The Image Complement block computes the complement of a binary or intensity image.

For binary images, the block replaces pixel values equal to 0 with 1 and pixel values equal to 1 with 0. In the output image, black and white are reversed. For intensity images, the block subtracts each pixel value from the maximum value that can be represented by the input data type and outputs the difference. In the output image, dark areas become lighter and light areas become darker.

For example, suppose the input pixel values are given by x(i) and the output pixel values are given by y(i). If the data type of the input is boolean, double or single, the block outputs y(i) = 1.0-x(i). If the input is an 8-bit unsigned integer, the block outputs y(i) = 255-x(i).

Examples

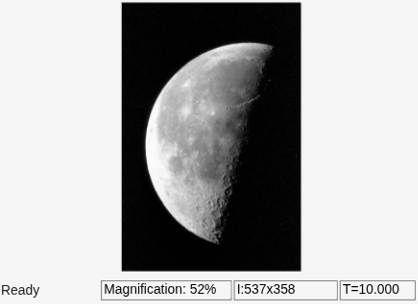

Find Complement of Intensity Image

Obtain the complement of an intensity image.

Open Script

Ports

Input

expand all

Port_1 — Input image
matrix

Specify an input image as a matrix of intensity values.

Output

expand all

Port_1 — Output image
matrix

The complement of the binary or intensity input image is returned as a matrix of intensity values. The size and data type of the output image are the same as those of the input image.

Block Characteristics

Data Types	`Boolean` \| `double` \| `integer` \| `single`
Multidimensional Signals	`no`
Variable-Size Signals	`yes`

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Version History

Introduced before R2006a
