Median based Image Thresholding
This example shows how to perfom image thresholding with the median value of the image as a global threshold.

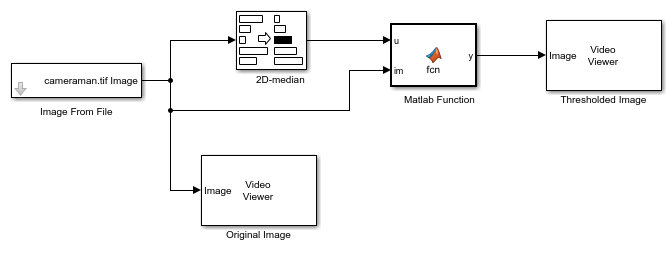

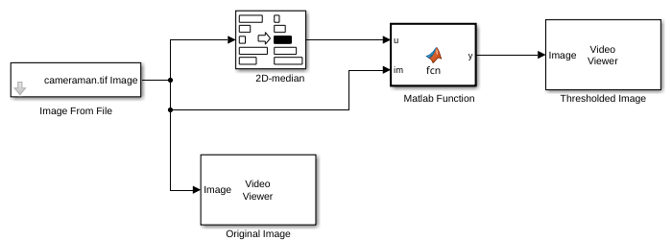

Open the simulink model.
The model computes the median value of an input image by setting the
Find the median value over parameter to
Median block. The output of the
Median block is a scalar. The
Function block performs image thresholding by taking the output median as a global threshold. If the intensity value in the input image is greater than the median value, it is set to '1'. Otherwise, the intensity value is set to '0'. The output of the model is the thresholded image.

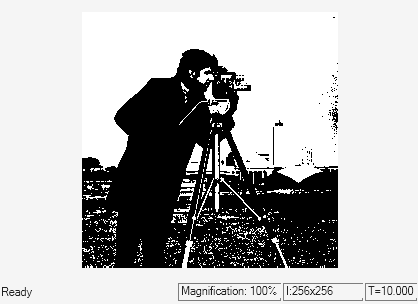

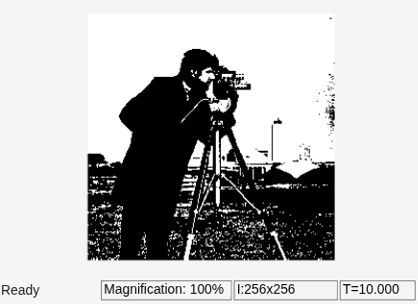

Simulate and Display Results
Run the model and display the results using
