Tunable Q-factor multiresolution analysis
tqwtmra(___) with no output arguments plots the tunable
Q-factor wavelet MRA in a new figure. For complex-valued data, the real part is plotted in
the first color in the MATLAB® color order matrix and the imaginary part is plotted in the second color. This
syntax does not support multidimensional MRAs.
Perform Tunable Q-factor Multiresolution Analysis
Load an ECG signal. Obtain the TQWT of the signal down to level 6 with a quality factor of 2.
load wecg wt = tqwt(wecg,QualityFactor=2,Level=6);
Obtain the tunable Q-factor MRA of the signal.
mra = tqwtmra(wt,length(wecg),QualityFactor=2);

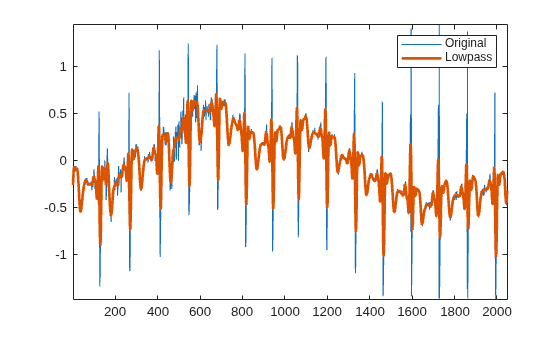

Plot the original signal and the lowpass subband.
plot(wecg) hold on plot(mra(end,:),linewidth=2) hold off axis tight legend(["Original","Lowpass"])
Confirm the sum along the rows of the MRA equals the original signal.
mraSum = sum(mra,1); max(abs(mraSum(:)-wecg(:)))
ans = 9.4369e-16
Identify Tunable Q-factor MRA Subbands by Energy
Load the Kobe earthquake data. Obtain the tunable Q-factor wavelet transform of the data using a quality factor of 3.
load kobe qf = 3; wt = tqwt(kobe,QualityFactor=qf);

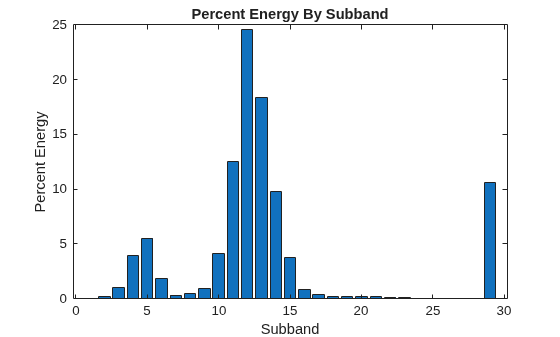

Identify the subbands that contain at least 15% of the total energy. Note that the last element of
wt contains the lowpass subband coefficients.
EnergyBySubband = cellfun(@(x)norm(x,2)^2,wt)./norm(kobe,2)^2*100; idx15 = EnergyBySubband >= 15; bar(EnergyBySubband) title("Percent Energy By Subband") xlabel("Subband") ylabel("Percent Energy")

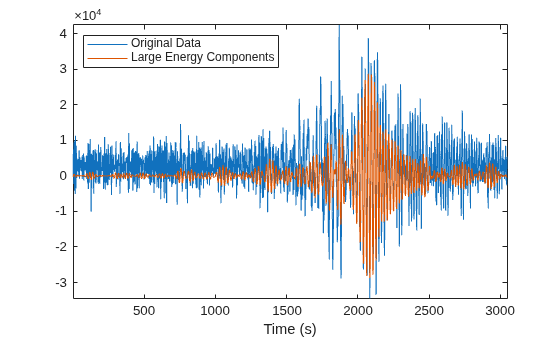

Obtain a multiresolution analysis and sum those MRA components corresponding to previously identified subbands.
mra = tqwtmra(wt,numel(kobe),QualityFactor=qf); ts = sum(mra(idx15,:)); plot([kobe ts']) axis tight legend("Original Data","Large Energy Components",... Location="NorthWest") xlabel("Time (s)")
wt — Tunable Q-factor wavelet transform
Tunable Q-factor wavelet transform, specified as a cell array. The elements of
wt contain the wavelet subband and lowpass coefficients.
wt is expected to be the output of
Complex Number Support: Yes
n — Original signal length
Original signal length in samples, specified as a positive integer. If the original
n is odd,
n is extended to
n+1 to obtain the MRA and the final sample is removed before
returning the MRA.
qf — Quality factor
1 (default) | positive scalar
Quality factor, specified as a real-valued scalar greater than or equal to 1. If unspecified, the quality factor defaults to 1.
wt = tqwtmra(qt,2024,QualityFactor=1.5) specifies a
quality factor of 1.5.
mra — Multiresolution analysis
Multiresolution analysis, returned as an array.
mra is an
array where Ns denotes number of subbands in the tunable Q-factor
wavelet transform ordered by decreasing center frequency, N is the
number of signal samples in time, C is the number of channels, and
B is the batch size.
 Selesnick, Ivan W. “Wavelet Transform With Tunable Q-Factor.” IEEE Transactions on Signal Processing 59, no. 8 (August 2011): 3560–75. https://doi.org/10.1109/TSP.2011.2143711.
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Usage notes and limitations:
Plotting is not supported.
Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.
The TQWT array
wtis the only supported input argument.
