Delta Sigma Toolbox

High-level design and simulation of delta-sigma modulators

85.2K Downloads

Updated Sun, 23 Feb 2020 18:57:54 +0000

View License

Editor's Note: This file was selected as MATLAB Central Pick of the Week

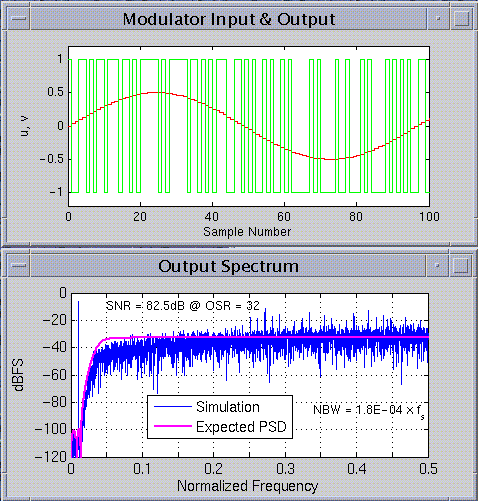

The Delta-Sigma Toolbox includes nearly 100 functions which support NTF synthesis, modulator simulation (from an NTF or a structure), realization, dynamic range scaling, SNR estimation and more. The toolbox is well-documented via the accompanying DSToolbox.pdf manual.
For further information regarding the Toolbox and Delta-Sigma modulators in general consider purchasing "Understanding Delta-Sigma Data Converters, Second Edition" by Pavan, Schreier and Temes (ISBN 978-1-119-25827-8).

Cite As

Richard Schreier (2023). Delta Sigma Toolbox (https://www.mathworks.com/matlabcentral/fileexchange/19-delta-sigma-toolbox), MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R2019b
Compatible with any release
Platform Compatibility
Windows macOS Linux
Tags Add Tags

Community Treasure Hunt

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!
Version Published Release Notes
2020.1

Corrected the "Required MathWorks Products" field in web listing

2020.0

Now includes functions to support the design of Polynomial-Based Filters: designPBF.m, frespPBF.m, impulsePBF.m, shiftPBF.m. Also updated ratapprox.m.

2016.1

Added demoLPandBP.m. Updated dsexample1.m and dsexample2.m

2016.0.0.0

Added designPBF.m (for designing polynomial-based filters using Hunter's method). Added dsexample*.m. Replaced simulateESL with simulateMS for simulating mismatch-shaping. Expanded dsdemo5.m (demonstration of mismatch shaping).
Actually uploaded the delsig.zip file this time.

1.3.0.0

Incorporated Jeffrey Gealow's improvements which remove restrictions on the tdac argument in realizeNTF_ct and mapCtoD. Values such as [1 3] or [2 3] are now OK.

1.2.0.0

Added functions for realizing an NTF with a continuous-time loop filter and for handling quadrature modulators.
