Hatched Lines and Contours
version 1.8.0 (1.05 MB) by
Rob McDonald

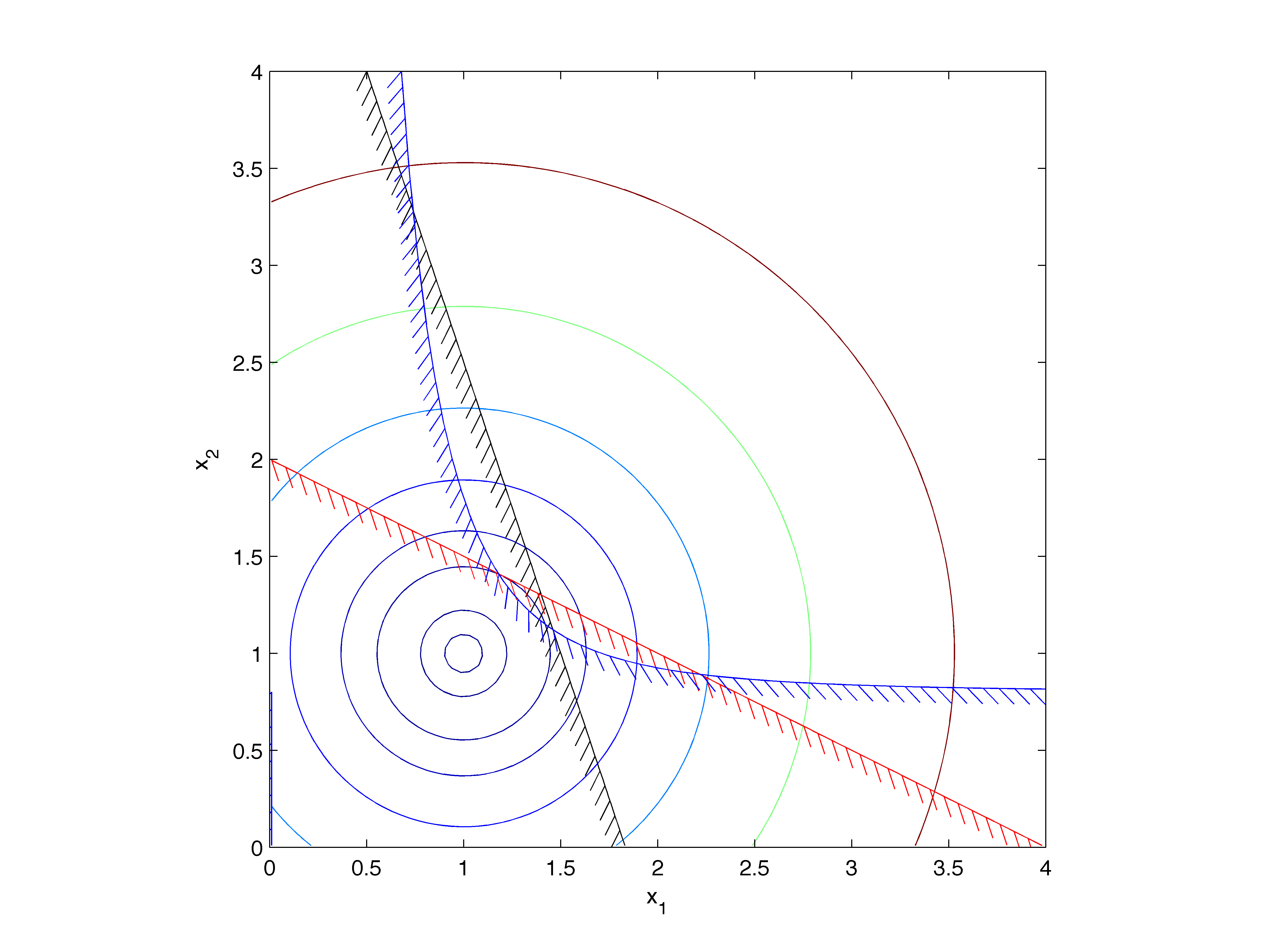

Draw lines and contours with hatches on one side of the line.
These routines allow easy plotting of lines or contours with hatches on one side. This line style is often used to represent a constraint, where one side of the line represents a no-go area.
Cite As
Rob McDonald (2022). Hatched Lines and Contours (https://github.com/ramcdona/HatchedContours/releases/tag/1.8.0), GitHub. Retrieved .
MATLAB Release Compatibility
Created with
R2020b
Compatible with any release
Platform Compatibility
Windows macOS LinuxCategories
- MATLAB > Graphics > 2-D and 3-D Plots > Contour Plots >
Tags
Acknowledgements
Inspired: stipple, Carpet Plot Toolkit, The carpetplot class
