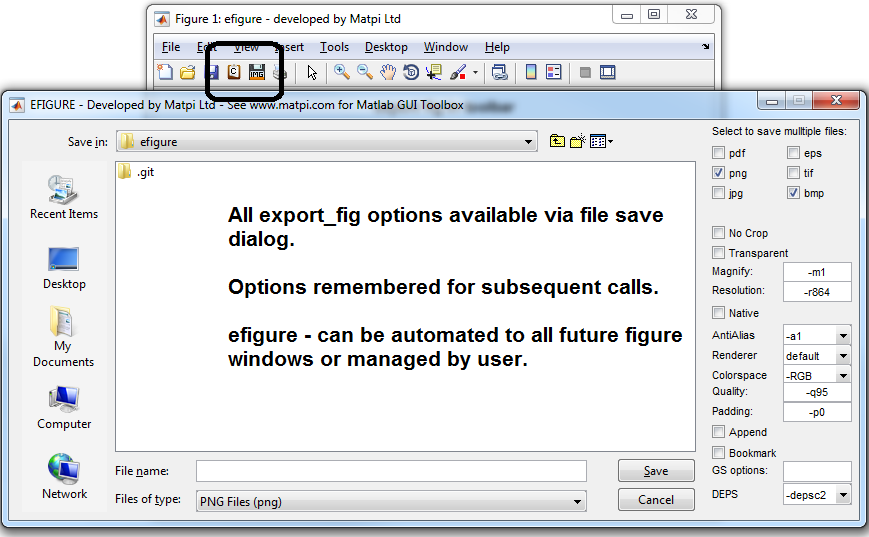

Wrapper for export_fig - to add toolbar icons to all figure windows.
efigure - figure with export-fig toolbar icons built in
Add toolbar icons which for saving images
to clipboard (PC only) or to file using export_fig.
Can be used in 2 ways:
1. Automatically add the toolbar items for EVERY future figure.
2. Call it manually every time you want to add the toolbar items to:
Your own/choice of toolbar
1. To set up for ALL future figures being created
Put this in startup.m. Then every figure contains the toolbar items.
efigure ( '*setup*' );
When used automatically a few methods to manage usage:
Disable this feature (valid for each matlab session)
efigure ( '*disable*' );
Re-enable it by:
efigure ( '*enable*' );
Reset the default export_fig options in the filechooser dialog:
efigure ( '*reset*' );
Diable capability to add toolbar to all future figures
efigure ( '*resetAll*' );
When creating a new figure -> it will automatically rearrange the
toolbar items to insert the clipboard(pc only) and file save next
to the traditional save icon. You can manage this using:
To stop rearrangement (valid for each matlab session):
efigure ( '*norearrange* );
To reengage the rearrangement:
efigure ( '*rearrange* );
2. Using it manually
Use in EXACTLY the same was as you would figure:
This will insert it next to the save button in a standard toolbar
hFig = efigure;
hFig = efigure (gcf);
hFig = efigure (hFig);
hFig = efigure ( 'Name', 'My Figure', arg, val .... );
Add it to a specific toolbar
hFig = figure ( 'Toolbar', 'none' )
hToolbar = uitoolbar ( 'parent', hFig );
Any bug reports/feature requests please report via github
Note: This makes use of a lot of undocumented features - please
use with the appropriate caution and knowledge that it may
work differently on different platforms/java etc...
Developed on windows - but should work on other platforms.
Developed in R2015b - but should work in older versions (inc pre 2014b)
Author : Robert Cumming
Copyright: Matpi Ltd
Developers of Matlab GUI Toolbox
- free demo from www.matpi.com or
- email: contact @ matpi.com
Robert Cumming (2023). efigure (https://github.com/robertjcumming/efigure), GitHub. Retrieved .
