Boost Converter using Input current control method

It steps up the dc voltage.
1.1K Downloads
Updated Thu, 30 Mar 2017 03:24:40 +0000

View License

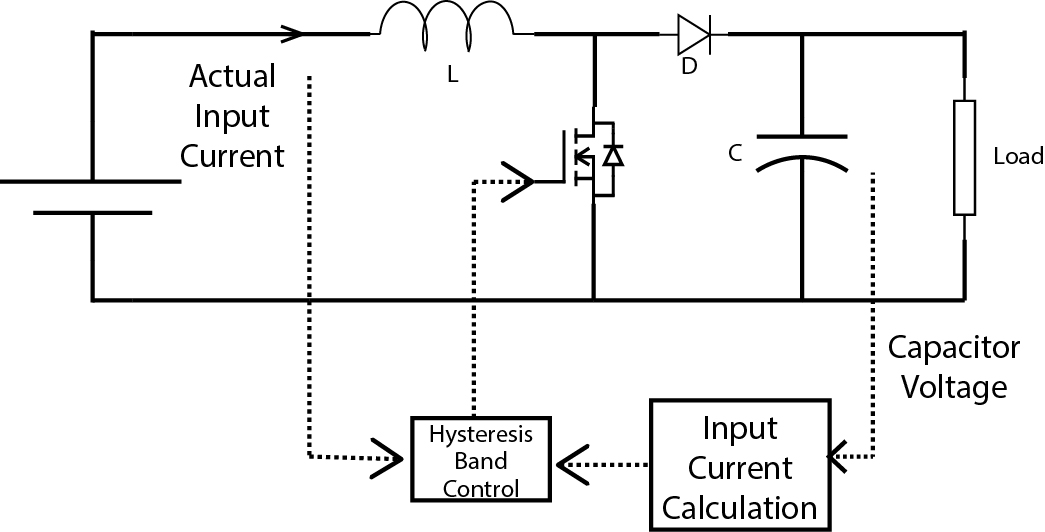

It steps up 20V dc to 70V dc.It measures the output voltage and subtracts with reference voltage. Their difference is passed to PI controller which calculates the dc current to be drawn from input side. This reference current is compared to actual input current and their difference is passed to hysteresis band current controller which generates gate signal for switch S. By switching the MOSFET S, voltage is boosted up and output voltage is maintained constant at 70 V.

Cite As

Niranjan Bhujel (2024). Boost Converter using Input current control method (https://www.mathworks.com/matlabcentral/fileexchange/62132-boost-converter-using-input-current-control-method), MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R2016b
Compatible with any release
Platform Compatibility
Windows macOS Linux
