MPSK Demodulator Baseband
Demodulate PSKmodulated data
 Library:
Communications Toolbox / Modulation / Digital Baseband Modulation / PM
Communications Toolbox HDL Support / Modulation / PM
Description
The MPSK Demodulator Baseband block demodulates a baseband representation of a PSKmodulated signal. The modulation order, M, is equivalent to the number of points in the signal constellation and is determined by the Mary number parameter. The block accepts scalar or column vector input signals.
Ports
Input
Port_1
— Input signal
scalar  vector
Input port accepting a baseband representation of a PSKmodulated signal.
Data Types: single
 double
 int8
 int16
 int32
 uint8
 uint16
 uint32
 Boolean
Output
Port_1
— Output signal
scalar  vector
Output signal, returned as a scalar or vector. The output is a demodulated version of the PSKmodulated signal.
Data Types: single
 double
 fixed point
Parameters
Mary number
— Modulation order of the PSK constellation
8
(default)  scalar
Specify the modulation order as a positive integer power of two.
Example: 2
 16
Output type
— Output signal data type
Integer
(default)  Bit
Specify the elements of the input signal as integers or bits. If
Output type is Bit
, the
number of samples per frame is an integer multiple of the number of bits per
symbol, log_{2}(M).
Decision type
— Demodulator output
Hard decision
(default)  Loglikelihood ratio
 Approximate loglikelihood ratio
Specify the demodulator output to be hard decision, loglikelihood ratio
(LLR), or approximate LLR. The LLR and approximate LLR outputs are used with
error decoders that support softdecision inputs such as a Viterbi Decoder, to achieve
superior performance. This parameter is available when Output
type is Bit
.
See Phase Modulation for algorithm
details. The output values for Loglikelihood
ratio
and Approximate loglikelihood
ratio
decision types are of the same data type as the
input values
Noise variance source
— Source of noise variance
Dialog
(default)  Port
Specify the source of the noise variance estimate. This parameter is
available when Decision type is
Loglikelihood ratio
or
Approximate loglikelihood ratio
.
To specify the noise variance from the dialog box, select
Dialog
.To input the noise variance from an input port, select
Port
.
Noise variance
— Estimate of noise variance
1
(default)  positive scalar
Specify the estimate of the noise variance as a positive scalar. This
parameter is available when Noise variance source is
Dialog
.
This parameter is tunable in all simulation modes. If you use the Simulink^{®} Coder™ rapid simulation (RSIM) target to build an RSIM executable, then you can tune the parameter without recompiling the model. Avoiding recompilation is useful for Monte Carlo simulations in which you run the simulation multiple times (perhaps on multiple computers) with different amounts of noise.
Note
The exact LLR algorithm computes exponentials using finite precision arithmetic. Computation of exponentials with very large positive or negative magnitudes might yield:
Inf
orInf
if the noise variance is a very large valueNaN
if both the noise variance and signal power are very small values
When the output returns any of these values, try using the approximate LLR algorithm because it does not compute exponentials.
Constellation ordering
— Symbol mapping
Gray
(default)  Binary
 Userdefined
Specify how the integer or group of log_{2}(M) bits is mapped to the corresponding symbol.
When Constellation ordering is set to
Gray
, the output symbol is mapped to the input signal using a Grayencoded signal constellation.When Constellation ordering is set to
Binary
, the modulated symbol is exp(jϕ+j2πm/M), where ϕ is the phase offset in radians, m is the integer output such that 0 ≤ m ≤ M – 1, and M is the modulation order.When Constellation ordering is
Userdefined
, specify a vector of size M, which has unique integer values in the range [0, M–1]. The first element of this vector corresponds to the constellation point having a value of e^{jϕ} with subsequent elements running counterclockwise.
Example: [0 3 2 1]
Constellation mapping
— Userdefined symbol mapping
[0:7]
(default)  vector
Specify the order in which input integers are mapped to output integers.
The parameter is available when Constellation ordering
is Userdefined
, and must be a row or column
vector of size M having unique integer values in the
range [0, M – 1].
The first element of this vector corresponds to the constellation point at 0 + Phase offset angle, with subsequent elements running counterclockwise. The last element corresponds to the 2π/M + Phase offset constellation point.
Phase offset (rad)
— Phase offset in radians
pi/8
(default)  scalar
Specify, in radians, the phase offset of the initial constellation as a real scalar.
Example: pi/4
Output data type
— Output data type
Inherit via internal
rule
(default)  Smallest unsigned integer
 double
 single
 int8
 uint8
 int16
 uint16
 int32
 uint32
Specify the data type of the demodulated output signal.

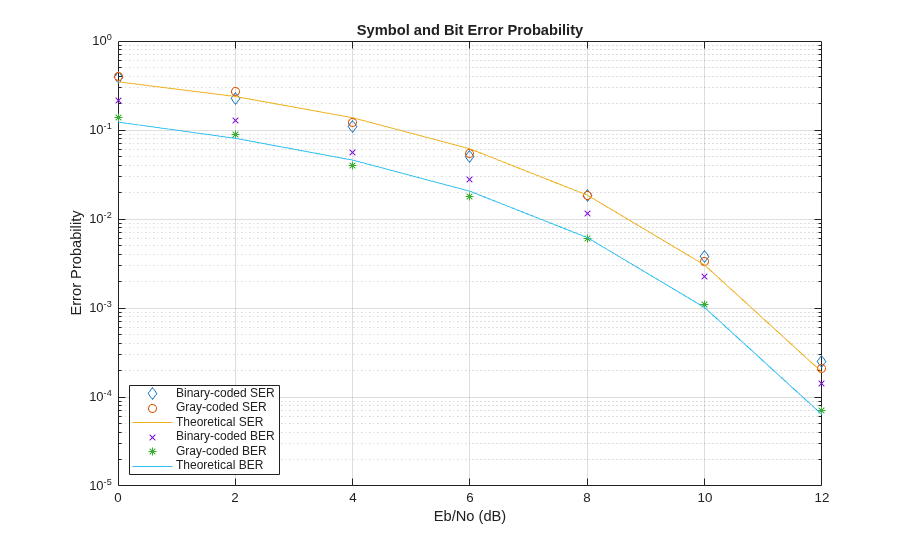

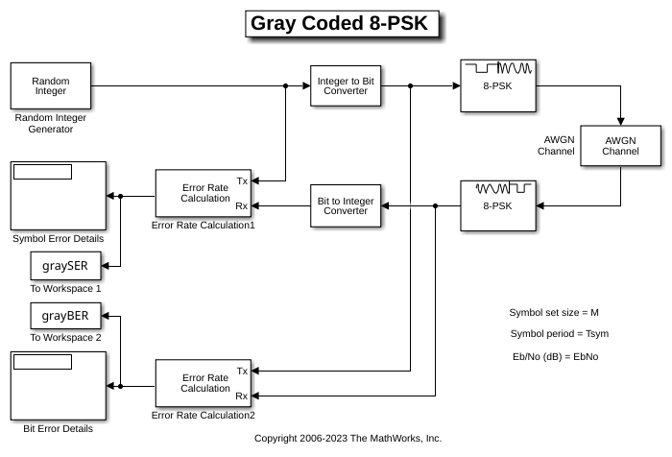

Model Examples
Block Characteristics
Data Types

Multidimensional Signals

VariableSize Signals

^{a} M = 2, 4, 8 only. ^{b} Fixedpoint inputs must be signed. ^{c} When ASIC/FPGA is selected in the Hardware Implementation Pane, output is ufix(1) for bit outputs, and ufix(ceil(log2(M))) for integer outputs.
Algorithms
HardDecision BPSK Demodulation
The signal preprocessing required for BPSK demodulation depends on the configuration.
This figure shows the harddecision BPSK demodulation signal diagram for the trivial phase offset (multiple of π/2) configuration.
This figure shows the harddecision BPSK demodulation floatingpoint signal diagram for the nontrivial phase offset configuration.
This figure shows the harddecision BPSK demodulation fixedpoint signal diagram for the nontrivial phase offset configuration.
HardDecision QPSK Demodulation
The signal preprocessing required for QPSK demodulation depends on the configuration.
This figure shows the harddecision QPSK demodulation signal diagram for the trivial phase offset (odd multiple of π/4) configuration.
This figure shows the harddecision QPSK demodulation floatingpoint signal diagram for the nontrivial phase offset configuration.
This figure shows the harddecision QPSK demodulation fixedpoint signal diagram for the nontrivial phase offset configuration.
HardDecision HigherOrder PSK
The signal preprocessing required for higher order PSK demodulation depends on the configuration.
This figure shows the harddecision 8PSK demodulation signal diagram for the trivial phase offset (odd multiple of π/8) configuration.
This figure shows the harddecision 8PSK demodulation fixedpoint signal diagram for trivial phase offset (odd multiple of π/8) configuration.
This figure shows the harddecision MPSK demodulation floatingpoint signal diagram for the nontrivial phase offset configuration.
For M > 8, to improve speed and implementation costs, no derotation arithmetic is performed for trivial case (specifically, when phase offset is 0, π/2, π, or 3π/2).
Also, for M > 8, only double
and
single
input types are supported.
LogLikelihood Ratio and Approximate LogLikelihood Ratio
The exact LLR and approximate LLR algorithms (softdecision) are described in Phase Modulation.
References
[1] Proakis, John G. Digital Communications. 4th ed. New York: McGraw Hill, 2001.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
HDL Code Generation
Generate Verilog and VHDL code for FPGA and ASIC designs using HDL Coder™.
HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.
This block has one default HDL architecture.
ConstrainedOutputPipeline  Number of registers to place at
the outputs by moving existing delays within your design. Distributed
pipelining does not redistribute these registers. The default is

InputPipeline  Number of input pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is

OutputPipeline  Number of output pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is

Version History
Introduced before R2006a
