ofdmCFOEstimate
R2026bSyntax
Description
The function computes the estimated carrier frequency offset (CFO) for an OFDM-modulated input signal. It optionally outputs the timing offset and the CFO-compensated version of the received signal. For more information, see Algorithms.
fEst = ofdmCFOEstimate(rxSignal,nfft,cplen,Name=Value)
[
also returns the compensated signal, fEst,tOffset,compensatedSignal] = ofdmCFOEstimate(___)compensatedSignal, using input
arguments in any of the previous syntaxes.
Examples
Estimate the carrier frequency offset (CFO) for an OFDM signal. Demodulate the received signal and the CFO-compensated received signal, and then check if each matches the input signal.
M = 16; nfft = 64; cplen = 16; nSym = 200; dataSym = randi([0 M-1],nfft,nSym); qamSig = qammod(dataSym,M,UnitAveragePower=true); y = ofdmmod(qamSig,nfft,cplen);
Set a frequency offset that is 1% of the sample rate. Apply a frequency offset of 1 kHz at a sample rate of 1 MHz using the frequencyOffset function, and then add white Gaussian noise.
offset = 1e3; samplerate = 1e6
samplerate = 1000000
modSigOffset = frequencyOffset(y,samplerate,offset); rxSig = awgn(modSigOffset,50);
Estimate the CFO of the input signal.
[fEst,tOffset,compensatedSignal] = ofdmCFOEstimate(rxSig,nfft,cplen);
Confirm that the demodulated received signal (with no CFO compensation) does not match the transmitted signal.
x1 = ofdmdemod(rxSig,nfft,cplen); rxData1 = qamdemod(x1,M,UnitAveragePower=true); isequal(rxData1,dataSym)
ans = logical
0
Confirm that the demodulated CFO compensated signal matches the transmitted signal.
x2 = ofdmdemod(compensatedSignal,nfft,cplen); rxData2 = qamdemod(x2,M,UnitAveragePower=true); isequal(rxData2,dataSym)
ans = logical
1

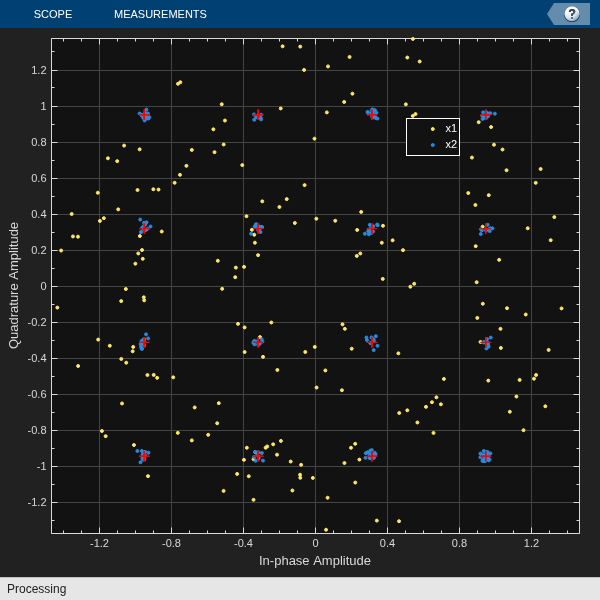

Plot constellation diagram of received signal, x1, and CFO compensated signal, x2.
refc = qammod(0:M-1,M,UnitAveragePower=true); cd = comm.ConstellationDiagram(2, ... ReferenceConstellation=refc, ... ChannelNames={'x1','x2'}); cd(x1(1,1:end)',x2(1,1:end)')
Compute carrier frequency offset (CFO) and channel estimation for an OFDM signal filtered through a MIMO channel.
Initialize OFDM system and simulation parameters.
nFFT = 1024; cpLen = 72; numGuardSc = 200; Fs = 15.36e6; numTx = 2; numRx = 4; numOFDMSymbolsPerSlot = 16; rng(11122025); SNRdB = 20; maximumDopplerShift = 30; totalNumSlots = 101; silentPeriodLength = 18.327; % In number of OFDM symbols actualCFO = 2.3456; % Between -5 and 5 subcarrier spacings cfoDelta = 0.001; % Change in CFO per slot mimochan = comm.MIMOChannel( ... SampleRate=Fs, ... PathDelays=[0 1.0495e-08 1.1095e-08 1.1645e-08 1.088e-08 ... 3.183e-08 3.224e-08 3.28e-08 3.292e-08 3.9675e-08 4.1065e-08 ... 4.668e-08 6.1425e-08 6.5415e-08 1.0852e-07 1.35525e-07 2.12945e-07 ... 2.30015e-07 2.7451e-07 2.80385e-07 3.15325e-07 3.3187e-07 ... 3.52135e-07 4.32615e-07], ... AveragePathGains=[-4.4 -1.2 -3.5 -5.2 -2.5 0 -2.2 -3.9 -7.4 -7.1 ... -10.7 -11.1 -5.1 -6.8 -8.7 -13.2 -13.9 -13.9 -15.8 -17.1 -16 ... -15.7 -21.6 -22.8], ... NormalizePathGains=false, ... FadingDistribution="Rayleigh", ... MaximumDopplerShift=maximumDopplerShift, ... SpatialCorrelationSpecification="None", ... NumTransmitAntennas=numTx, ... NumReceiveAntennas=numRx, ... NormalizeChannelOutputs=false, ... FadingTechnique="Sum of sinusoids", ... NumSinusoids=48, ... InitialTimeSource="Property", ... InitialTime=0, ... RandomStream="mt19937ar with seed", ... Seed=456); symLen = nFFT + cpLen; scs = Fs/nFFT; fprintf("SNR = %.2f dB\n", SNRdB);
SNR = 20.00 dB
fprintf("Subcarrier spacing = %.2f Hz\n", scs);Subcarrier spacing = 15000.00 Hz
actualCFOHz = actualCFO*scs; % In Hz
phaseOffset = rand(1)*2*pi;
Generate reference signals by using a ofdmPilotConfig configuration object. Use random QPSK-modulated pilot symbols to make this reference signal suitable for the ofdmChannelEstimate and ofdmCFOEstimate functions.
pilotcfg = ofdmPilotConfig(FFTLength=nFFT, ... NumGuardBandCarriers=[numGuardSc numGuardSc], ... NumSymbols=numOFDMSymbolsPerSlot, ... NumTransmitStreams=numTx, ... StreamGroups={1:numTx}, ... PilotLocations={ofdmPilotGrid(1:numTx,1, ... (numGuardSc+1):numTx:(nFFT-numGuardSc), ... [1 numOFDMSymbolsPerSlot])}, ... PilotSymbols={reshape(pskmod(randi([0 3], ... (nFFT-2*numGuardSc)*2,1),4,pi/4),numTx,1,[]) ... .* hadamard(numTx)}); pilotcfg.validate [sym,ind] = pilotSignal(pilotcfg); txGrid = zeros(pilotcfg.FFTLength - ... sum(pilotcfg.NumGuardBandCarriers), ... pilotcfg.NumSymbols, ... pilotcfg.NumTransmitStreams); txGrid(ind) = sym; refSignalforCFOEst = ofdmmod(txGrid(:,1,:), ... nFFT,cpLen,[1:numGuardSc nFFT-numGuardSc+1:nFFT]'); refSignalTail = ofdmmod(txGrid(:,end,:), ... nFFT,cpLen,[1:numGuardSc nFFT-numGuardSc+1:nFFT]');
Define parameters for an OFDM data signal (64 QAM for each data subcarrier) and pilot subcarriers (QPSK) for common phase error correction.
numDataSymbols = pilotcfg.NumSymbols - 2; cpePilotIdx = [325 450 575 700]'; cpePilots = pskmod([0 1 2 3]',4,pi/4); pfo = comm.PhaseFrequencyOffset(SampleRate=Fs, ... FrequencyOffsetSource="Input port", ... PhaseOffset=phaseOffset); constDiag = comm.ConstellationDiagram( ... Title="Equalized signal with CPE compensation", ... ReferenceConstellation=qammod(0:63,64,UnitAveragePower=true), ... EnableMeasurements=true, ... Position=[100 100 720 600], ... AxesLimits=[-1.5 1.5]); txBitsBuffer = []; txQamOutputBuffer = []; totalNumBitErrors = 0; totalNumBits = 0; txSlotIndex = 1; rxSlotIndex = 0; isRxSigFound = false; while txSlotIndex <= totalNumSlots txBits = randi([0 1], ... 6*(nFFT-2*numGuardSc-length(cpePilotIdx)), ... numDataSymbols, ... numTx); qamOutput = qammod(txBits,64, ... UnitAveragePower=true,InputType="bit"); dataSignal = ofdmmod(qamOutput,nFFT,cpLen, ... [1:numGuardSc nFFT-numGuardSc+1:nFFT]', ... cpePilotIdx, ... repmat(cpePilots, ... [1 numDataSymbols pilotcfg.NumTransmitStreams])); txSignal = [refSignalforCFOEst; dataSignal; refSignalTail]; txBitsBuffer = [txBitsBuffer; txBits]; txQamOutputBuffer = [txQamOutputBuffer; qamOutput];
Filter signal through the MIMO channel.
chanOut = mimochan(txSignal);
if txSlotIndex == 1
% Initial silent period (unknown to the receiver)
silentPeriod = round(silentPeriodLength*symLen);
chanOut = [zeros(silentPeriod,size(chanOut,2)); chanOut];
% Set noise variance for the whole simulation
noiseVar = var(txSignal(:))*10^(-SNRdB/10);
endImpair signal with CFO and phase offset.
signalWithCFO = pfo(chanOut,actualCFOHz);
Add noise to the signal.
rxSignal = signalWithCFO + randn(size(signalWithCFO),like=1j)*sqrt(noiseVar);
Receiver processing. Detect the first symbol in the frame.
if ~isRxSigFound signalPower = var(dataSignal(:)); index = 0; while isRxSigFound == false currentSym = rxSignal(index+(1:symLen),:); if var(currentSym(:)) >= 0.5*signalPower % Simple power detector isRxSigFound = true; else index = index + symLen; end end
Remove the silent period that has power less than 0.5*signalPower.
truncatedSignal = rxSignal(index+1:end,:);
Use the next four symbols to estimate carrier frequency offset. These symbols are expected to include the reference signal.
[estimatedCFO, tOffset] = ofdmCFOEstimate( ... truncatedSignal(1:4*symLen,:), ... nFFT, ... cpLen, ... ReferenceSignal=refSignalforCFOEst, ... Output="total", ... SearchRange=[-5 5], ... SubcarrierSpacing=scs); truncatedSignal = truncatedSignal(tOffset+1:end,:); fprintf("Actual carrier frequency offset = %.2f Hz\n", ... actualCFOHz); fprintf("Estimated carrier frequency offset = %.2f Hz\n", ... estimatedCFO); residualCFO = actualCFOHz - estimatedCFO; fprintf("Residual carrier frequency offset (compared with actual CFO) = %.4f Hz\n", ... residualCFO); cfoCompensator = comm.PhaseFrequencyOffset(SampleRate=Fs, ... FrequencyOffsetSource="Input port"); rxInputBuffer = truncatedSignal; else rxInputBuffer = [rxInputBuffer; rxSignal]; end
Process the receiver input buffer variable when it contains a complete slot of data. Compensate for the CFO in every slot but update the CFO estimate only once every ten slots.
if size(rxInputBuffer,1) >= symLen*pilotcfg.NumSymbols rxSlotIndex = rxSlotIndex + 1; % Call ofdmCFOEstimate once every 10 slots if mod(rxSlotIndex,10) == 0 estimatedCFO = ofdmCFOEstimate(rxInputBuffer(1:4*symLen,:), ... nFFT, ... cpLen, ... ReferenceSignal=refSignalforCFOEst, ... Output="total", ... SearchRange=round(estimatedCFO/scs) + [-2 2], ... SubcarrierSpacing=scs); end % Compensate for CFO rxDataSignal = cfoCompensator( ... rxInputBuffer(1:symLen*pilotcfg.NumSymbols,:), ... -estimatedCFO); % Flush the receiver buffer to prepare for the next slot of data rxInputBuffer(1:symLen*pilotcfg.NumSymbols,:) = [];
OFDM demodulation, channel estimation, and equalization. The symbol offset equals cpLen/2. By default the ofdmChannelEstimate function denoises the channel estimate.
demodOutput = ofdmdemod(rxDataSignal, ... nFFT, ... cpLen, ... cpLen/2, ... [1:numGuardSc nFFT-numGuardSc+1:nFFT]'); [hEst, noiseVarEst] = ofdmChannelEstimate( ... demodOutput,pilotcfg,cpLen); equalizedSignal = ofdmEqualize( ... demodOutput, ... reshape(hEst,[],size(hEst,3),size(hEst,4)), ... noiseVarEst);
Discard pilot signals, keeping the data signals only.
equalizedSignal = equalizedSignal(:,2:end-1,:);
Compensate for common phase error by averaging over all transmit streams and the four subcarriers: [325 450 575 700]
cpeCorrection = mean(cpePilots./equalizedSignal(cpePilotIdx-numGuardSc,:,:),[1 3]);
rxQAMSignal = equalizedSignal .* cpeCorrection;
cpeAngle = -unwrap(angle(cpeCorrection))';
coeff = [(1:length(cpeAngle))' ones(size(cpeAngle))]\cpeAngle; % Fit a straight line
residualCFO_cpe = (coeff(1)/symLen)/(2*pi)*Fs; % Calculate the residual CFO from the slopeCalculate MER and BER.
rxQAMSignalNoPilots = rxQAMSignal(setdiff(1:(nFFT-2*numGuardSc),cpePilotIdx-numGuardSc),:,:);
numBitErrors = nnz(qamdemod(rxQAMSignalNoPilots,64, ...
UnitAveragePower=true,OutputType="bit") - ...
txBitsBuffer(1:size(txBits,1),:,:));
% Flush the transmit buffer to prepare for the next slot of data
txBitsBuffer(1:size(txBits,1),:,:) = [];
measuredMER = 10*log10(var(reshape( ...
txQamOutputBuffer(1:size(qamOutput,1),:,:),[],1)) / ...
var(reshape(rxQAMSignalNoPilots - ...
txQamOutputBuffer(1:size(qamOutput,1),:,:), ...
[],1)));
% Flush the QAM output buffer to prepare for the next slot of data
txQamOutputBuffer(1:size(qamOutput,1),:,:) = [];
totalNumBitErrors = totalNumBitErrors + numBitErrors;

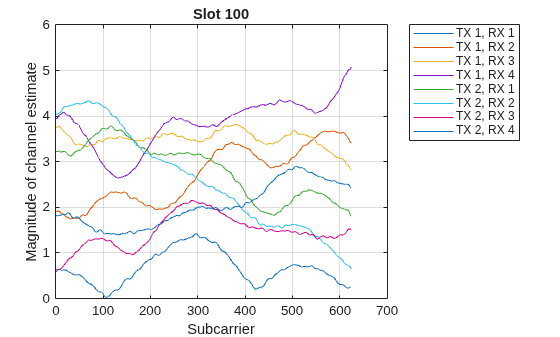

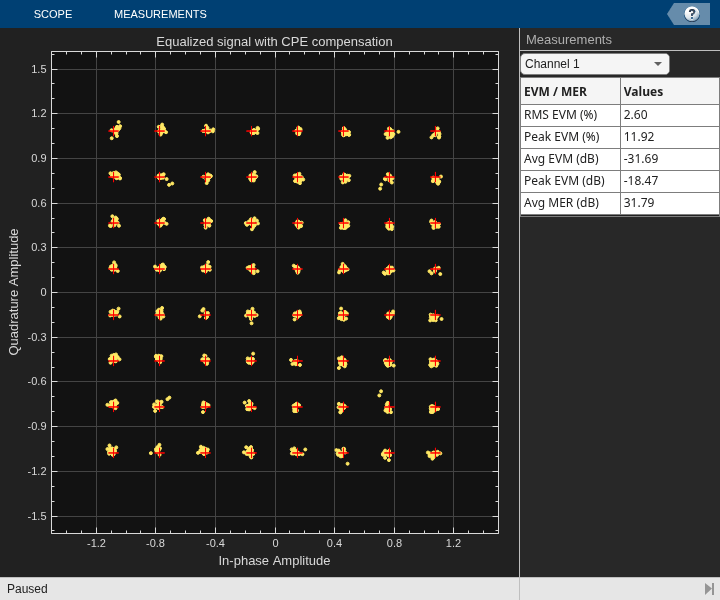

totalNumBits = totalNumBits + numel(txBits);Plot the constellation diagram and the channel estimates for the first symbol in this slot.
for n = 1:pilotcfg.NumSymbols-2 constDiag(reshape(rxQAMSignal(:,n,:),[],1)) end for nTx = 1:numTx for nRx = 1:numRx plot(abs(hEst(:,1,nTx,nRx))) if nTx == 1 && nRx == 1 axis([0 700 0 6]) legendStr = {"TX " + nTx + ", RX " + nRx}; hold on else legendStr{end+1} = "TX " + nTx + ", RX " + nRx; end end end hold off title("Slot " + rxSlotIndex) xlabel("Subcarrier") ylabel("Magnitude of channel estimate") legend(legendStr,Location="northeastoutside") grid on drawnow % Update the estimated CFO for the next slot estimatedCFO = estimatedCFO + residualCFO_cpe;
Save values for plotting.
actCFOHz(txSlotIndex) = actualCFOHz;
estCFO(txSlotIndex) = estimatedCFO;
nBitErr(txSlotIndex) = numBitErrors;
ttlBitErr(txSlotIndex) = totalNumBitErrors;
ttlBits(txSlotIndex) = totalNumBits;
BER(txSlotIndex) = totalNumBitErrors/totalNumBits;
endAdd a small CFO change for each slot, bound the CFO drift, and increment the transmit slot index.
actualCFOHz = actualCFOHz + cfoDelta*scs;
if mod(txSlotIndex,500) == 0
cfoDelta = -cfoDelta; % Keep the CFO drift bounded
end
txSlotIndex = txSlotIndex + 1;
endActual carrier frequency offset = 35184.00 Hz
Estimated carrier frequency offset = 35194.44 Hz
Residual carrier frequency offset (compared with actual CFO) = -10.4394 Hz
slotIdx = 1:totalNumSlots; semilogy(slotIdx,actCFOHz,1:totalNumSlots,estCFO) legend("Actual CFO","Estimated CFO",Location="southeast") ylabel("CFO (Hz)") xlabel("Slot")
Present total bit errors (left) and BER (right) per slot on a dual y-axis plot.
figure yyaxis left h1 = plot(slotIdx,ttlBitErr,"-o","LineWidth",1.2); ylabel("Total Bit Errors") yyaxis right h2 = plot(slotIdx,BER,"-x","LineWidth",1.2); ylabel("BER") xlabel("Slot") title("Total Bit Errors and BER per Slot") grid on legend([h1 h2],{"Total Bit Errors","BER"},Location="southeast")
Input Arguments
Name-Value Arguments
Output Arguments
Tips
The input must contain at least one OFDM symbol and a CP.
The CFO is common across all receive antennas.
If you provide a reference signal,
ReferenceSignal, it must occur somewhere inrxSignal. Otherwise, the CFO estimate might be unpredictable.
Algorithms
This function estimates the CFO for OFDM waveforms using a two-stage approach. Depending
on the Output setting, ofdmCFOEstimate computes a coarse
CFO on a half-subcarrier grid using reference-signal correlation, a fractional CFO using
cyclic-prefix (CP) correlation, or the sum of both. The final output is scaled by
SubcarrierSpacing.
Stage 1: Half Subcarrier Estimate
If Output is "half-subcarrier-spacing" or
"total", the first stage estimates a coarse CFO by searching on a
half-subcarrier grid.
The algorithm searches candidate CFO values spaced by 1/2 subcarrier shifts over the specified subcarrier search range,
SearchRange. For each 1/2 subcarrier shift, the candidate shift is applied to the reference signal and the cross-correlation is computed between the received waveform and the shifted reference signal. The candidate frequency shift for the biggest correlation peak determines the CFO estimate in this stage.
Stage 2: Fractional Subcarrier Estimate
If Output is "fractional" or
"total", the second stage estimates fractional CFOs by using CP
correlation.
When you set
Outputto"total", the CFO estimate found in stage 1 is first used to remove part of the CFO from the received signal, before CP correlation is performed to obtain the fractional CFO.The fractional CFO is estimated from CP correlation by multiplying the signal by a delayed, conjugated version offset by
nfftsamples, and applying a moving sum overcplensamples.Averaging across symbols, the CP correlation metric is summed across
MaxNumSymbolsForAveragingOFDM symbols separated by (nfft+cplen) samples.The fractional CFO estimate is obtained from the phase of the peak correlation value.
MIMO Considerations
For MIMO configurations, these considerations apply:
When you input a MIMO signal, the metric sums the correlation magnitude-squared across all NRx × NTx pairs to produce a single metric.
To reduce run time, consider limiting number of frequency shifts by adjusting the subcarrier search range,
SearchRange. For stage 1, the algorithm compares peaks in numFreqShifts correlations. Each correlation combines all correlations across NRx × NTx pairs.The number of frequency shifts, numFreqShifts, = (k2 – k1 +1) × 2.
SearchRangespecifies k1 and k2.NRx is the number of receive antennas.
NTx in the number of transmit streams.
