Get Started with DSP System Toolbox
DSP System Toolbox™ provides algorithms, apps, and scopes for designing, simulating, and analyzing signal processing systems in MATLAB® and Simulink®. You can model real-time DSP systems for communications, radar, audio, medical devices, IoT, and other applications.
With DSP System Toolbox you can design and analyze FIR, IIR, multirate, multistage, and adaptive filters. You can stream signals from variables, data files, and network devices for system development and verification. The Time Scope, Spectrum Analyzer, and Logic Analyzer let you dynamically visualize and measure streaming signals. For desktop prototyping and deployment to embedded processors, including ARM® Cortex® architectures, the toolbox supports C/C++ code generation. It also supports bit-accurate fixed-point modeling and HDL code generation from filters, FFT, IFFT, and other algorithms.
Algorithms are available as MATLAB functions, System objects, and Simulink blocks.
- Introduction to Streaming Signal Processing in MATLAB
Use System objects to process streaming signals in MATLAB®.
- Tunable Lowpass Filtering of Noisy Input in Simulink
This example shows how to filter a noisy chirp signal with a lowpass filter that has a tunable passband frequency.
- Lowpass Filter Design in MATLAB
This example shows how to design lowpass filters.
- Multirate Filtering in MATLAB and Simulink
Perform multirate filtering using rate conversion objects and blocks.
- Signal Visualization and Measurements in MATLAB

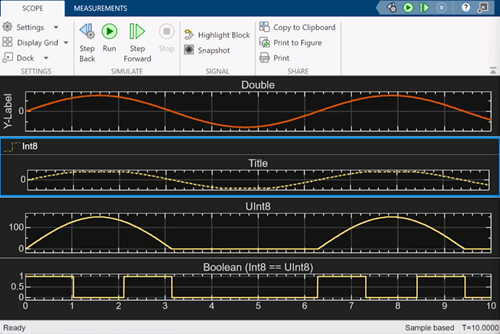

Visualize and measure signals in the time and frequency domain in MATLAB® using a time scope and spectrum analyzer.
- Estimate the Power Spectrum in Simulink
Compute the power spectrum using the Spectrum Analyzer and the Spectrum Estimator blocks.
- What Are Moving Statistics?
Learn how moving statistics are calculated.
- Data Transmission Using UDP in Simulink
Transmit and receive a sine wave signal over UDP network.
- Understanding C Code Generation in DSP System Toolbox
Generate C code from DSP System Toolbox signal processing algorithms using MATLAB Coder™ and Simulink Coder.
- Generate Standalone Executable and Interact with It Using UDP
This example shows how to generate a standalone executable for streaming statistics using MATLAB® Coder™ and tune the generated executable using a user interface (UI) that is running in MATLAB®.
Filters and Streaming Signal Processing
Visualize and Measure Signals
Measurements and Statistics
Devices and Network
About DSP System Modeling
- Sample- and Frame-Based Concepts
Explore basic signal concepts in the context of a Simulink model. Learn more about sample-based processing and frame-based processing.
- Configure Simulink Environment for Signal Processing Models
Shows how to configure the Simulink environment for use in signal processing models.
- Tune and Experiment with Block Parameter Values (Simulink)
As you construct a model you can experiment with block parameters, such as the coefficients of a Transfer Fcn block, to help you decide which blocks to use.

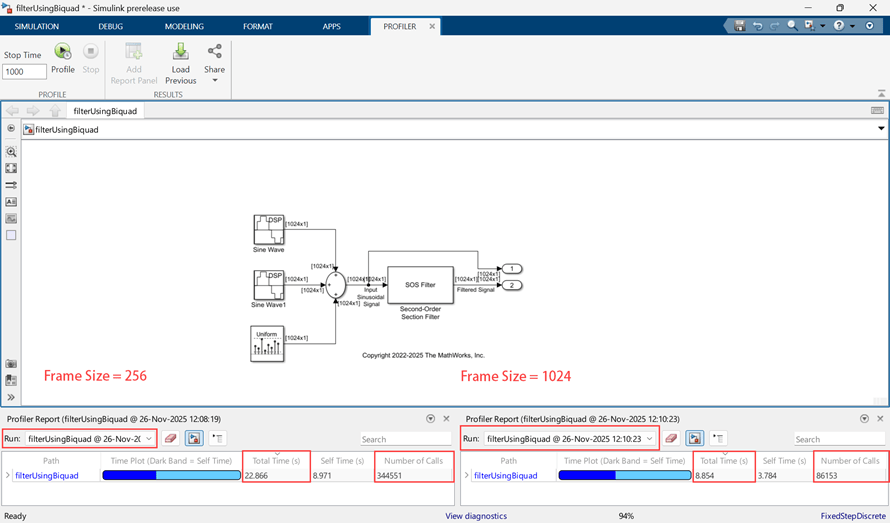

Frame-Based Processing in Simulink
How to process signals as frames in Simulink.
How to Filter Signals in Simulink
How to filter signals in Simulink using tunable and nontunable filters in DSP System Toolbox.
Model Multirate Systems in Simulink with DSP System Toolbox
Model multirate systems in Simulink using multirate blocks in DSP System Toolbox.
