dsp.CICCompensationInterpolator

Compensate for CIC interpolation filter using FIR interpolator

Description

You can compensate for the shortcomings of a CIC interpolator, namely its passband droop and wide transition region, by preceding it with a compensation interpolator. This System object™ lets you design and use such a filter.

To compensate for the shortcomings of a CIC filter using an FIR interpolator:

  1. Create the dsp.CICCompensationInterpolator object and set its properties.

  2. Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects?

Creation

Description

ciccompint = dsp.CICCompensationInterpolator returns a System object, ciccompint, that applies an FIR interpolator to each channel of an input signal. Using the properties of the object, the interpolation filter can be designed to compensate for a subsequent CIC filter.

ciccompint = dsp.CICCompensationInterpolator(interp) returns a CIC compensation interpolator System object, ciccompint, with the InterpolationFactor property set to interp.

ciccompint = dsp.CICCompensationInterpolator(cic) returns a CIC compensation interpolator System object, ciccompint, with the CICRateChangeFactor, CICNumSections, and CICDifferentialDelay properties specified in the dsp.CICInterpolator System object cic.

ciccompint = dsp.CICCompensationInterpolator(cic,interp) returns a CIC compensation interpolator System object, ciccompint, with the CICRateChangeFactor, CICNumSections, and CICDifferentialDelay properties specified in the dsp.CICInterpolator System object cic, and the InterpolationFactor property set to interp.

example

ciccompint = dsp.CICCompensationInterpolator(___,Name,Value) returns a CIC compensation interpolator object with each specified property set to the specified value. Enclose each property name in quotes. You can use this syntax with any previous input argument combinations.

Properties

expand all

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

For more information on changing property values, see System Design in MATLAB Using System Objects.

Specify the differential delay of the CIC filter being compensated as a positive integer scalar.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Specify the number of sections of the CIC filter being compensated as a positive integer scalar.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Specify the rate-change factor of the CIC filter being compensated as a positive integer scalar. The default is 2.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Specify whether to design a filter of minimum order or a filter of specified order as a logical scalar. The default is true, which corresponds to a filter of minimum order.

Specify the order of the interpolation compensator filter as a positive integer scalar.

Dependencies

This property applies only when you set the DesignForMinimumOrder property to false.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Specify the interpolation factor of the compensator System object as a positive integer scalar.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Specify the passband edge frequency as a positive real scalar expressed in hertz. PassbandFrequency must be less than Fs/2, where Fs is the output sample rate.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Specify the filter passband ripple as a positive real scalar expressed in decibels.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Specify the input sample rate as a positive real scalar expressed in hertz.

Data Types: single | double

Specify the filter stopband attenuation as a positive real scalar expressed in decibels.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Specify the stopband edge frequency as a positive real scalar expressed in hertz. StopbandFrequency must be less than Fs/2, where Fs is the output sample rate.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Fixed-Point Properties

Word and fraction lengths of coefficients, specified as a signed or unsigned numerictype object. The default, numerictype(1,16) corresponds to a signed numeric type object with 16-bit coefficients and a fraction length determined based on the coefficient values, to give the best possible precision.

This property is not tunable.

Word length of the output is same as the word length of the input. Fraction length of the output is computed such that the entire dynamic range of the output can be represented without overflow. For details on how the fraction length of the output is computed, see Fixed-Point Precision Rules for Avoiding Overflow in FIR Filters.

Rounding method for output fixed-point operations, specified as a character vector. For more information on the rounding modes, see Precision and Range.

Usage

Description

example

y = ciccompint(x) outputs the upsampled and filtered values, y, of the input signal, x.

Input Arguments

expand all

Data input, specified as a vector or a matrix. The System object treats a Ki × N input matrix as N independent channels, interpolating each channel over the first dimension.

This object does not support complex unsigned fixed-point data.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | fi
Complex Number Support: Yes

Output Arguments

expand all

Upsampled and filtered signal, returned as a vector or matrix. For a Ki × N input matrix, the result is a Ko × N output matrix, where Ko = Ki × L and L is the interpolation factor.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | fi
Complex Number Support: Yes

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named obj, use this syntax:

release(obj)

expand all

freqzFrequency response of discrete-time filter System object
fvtoolVisualize frequency response of DSP filters
infoInformation about filter System object
costEstimate cost of implementing filter System object
coeffsReturns the filter System object coefficients in a structure
polyphasePolyphase decomposition of multirate filter
outputDelayDetermine output delay of single-rate or multirate filter
generatehdlGenerate HDL code for quantized DSP filter (requires Filter Design HDL Coder)
stepRun System object algorithm
releaseRelease resources and allow changes to System object property values and input characteristics
resetReset internal states of System object

Examples

collapse all

Design an CIC compensation interpolator. Specify the interpolation factor to be 2, passband frequency to be 200 Hz, stopband frequency to be 500 Hz, and the input sample rate to be 600 Hz.

fs = 600;
fPass = 200;
fStop = 500;

CICCompInterp = dsp.CICCompensationInterpolator(...
    'InterpolationFactor',2,...
    'PassbandFrequency',fPass, ...
    'StopbandFrequency',fStop,...
    'SampleRate',fs);

Plot the impulse response. The zeroth order coefficient is delayed 6 samples, which is equal to the group delay of the filter.

fvtool(CICCompInterp,'Analysis','impulse')

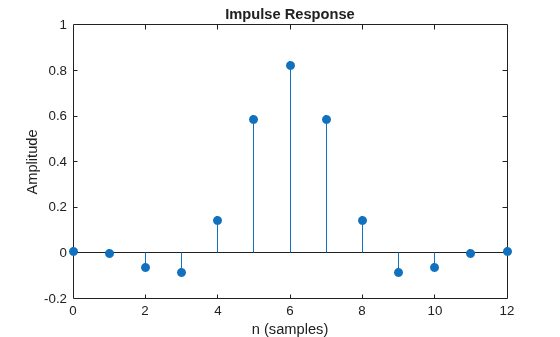

Figure Figure 1: Impulse Response contains an axes object. The axes object with title Impulse Response, xlabel Time (ms), ylabel Amplitude contains an object of type stem.

Plot the magnitude and Phase response.

fvtool(CICCompInterp,'Analysis','freq')

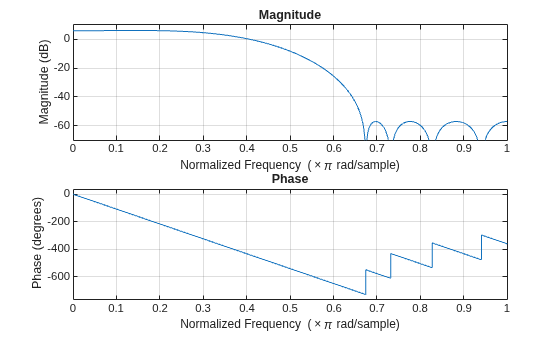

Figure Figure 2: Magnitude Response (dB) and Phase Response contains an axes object. The axes object with title Magnitude Response (dB) and Phase Response, xlabel Frequency (Hz), ylabel Magnitude (dB) contains an object of type line.

Design a compensation interpolator for an existing CIC interpolator having six sections and an interpolation factor of 16.

CICInterp = dsp.CICInterpolator('InterpolationFactor',16, ...
    'NumSections',6);

Construct the compensation interpolator. Specify an interpolation factor of 2, an input sample rate of 600 Hz, a passband frequency of 100 Hz, and a stopband frequency of 250 Hz. Set the minimum attenuation of alias components in the stopband to be at least 80 dB.

fs = 600;
fPass = 100;
fStop = 250;
ast = 80;

CICCompInterp = dsp.CICCompensationInterpolator(CICInterp, ...
    'InterpolationFactor',2,'PassbandFrequency',fPass, ...
    'StopbandFrequency',fStop,'StopbandAttenuation',ast, ...
    'SampleRate',fs);

Visualize the frequency response of the cascade. Normalize all magnitude responses to 0 dB.

FC = dsp.FilterCascade(CICCompInterp, CICInterp);

f = fvtool(CICCompInterp,CICInterp,FC, ...
    'Fs', [fs*2 fs*16*2 fs*16*2]);

f.NormalizeMagnitudeto1 = 'on';
legend(f,'CIC Compensation Interpolator','CIC Interpolator', ...
    'Overall Response');

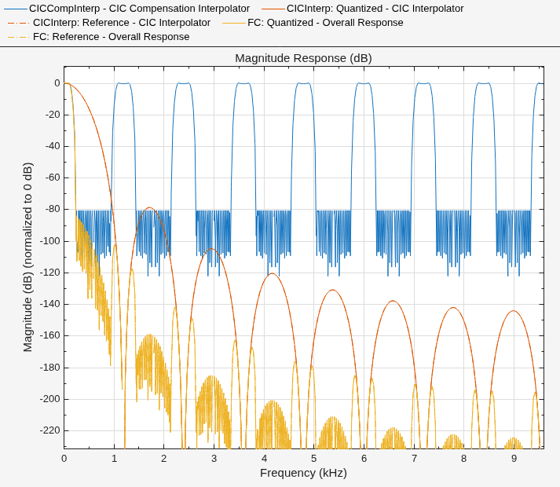

Figure Figure 1: Magnitude Response (dB) contains an axes object. The axes object with title Magnitude Response (dB), xlabel Frequency (kHz), ylabel Magnitude (dB) (normalized to 0 dB) contains 5 objects of type line. These objects represent CIC Compensation Interpolator, CIC Interpolator: Quantized, CIC Interpolator: Reference, Overall Response: Quantized, Overall Response: Reference.

Apply the design to a 1000-sample random input signal.

x = dsp.SignalSource(fi(rand(1000,1),1,16,15),'SamplesPerFrame',100);

y = fi(zeros(32000,1),1,32,20);
for ind = 1:10
    x2 = CICCompInterp(x());
    y(((ind-1)*3200)+1:ind*3200) = CICInterp(x2);
end

Algorithms

The response of a CIC filter is given by:

Hcic(ω)=[sin(RDω2)sin(ω2)]N

R, D, and N are the rate change factor, the differential delay, and the number of sections in the CIC filter, respectively.

After decimation, the CIC response has the form:

Hcic(ω)=[sin(Dω2)sin(ω2R)]N

The normalized version of this last response is the one that the CIC compensator needs to compensate. Hence, the passband response of the CIC compensator should take the following form:

Hciccomp(ω)=[RDsin(ω2R)sin(Dω2)]Nforωωp<π

where ωp is the passband frequency of the CIC compensation filter.

Notice that when ω/2R ≪ π, the previous equation for Hciccomp(ω) can be simplified using the fact that sin(x) ≅ x:

Hciccomp(ω)[(Dω2)sin(Dω2)]N = [sinc(Dω2)]Nforωωp<π

This previous equation is the inverse sinc approximation to the true inverse passband response of the CIC filter.
