Fixed-Point Code Generation in Simulink
You can generate C code with Fixed-Point Designer™ by using Simulink® Coder™ or Embedded Coder®. The code generated from fixed-point models uses only integer types and automatically includes all operations, such as shifts, needed to account for differences in fixed-point locations. You can use the generated code on embedded fixed-point processors or on rapid prototyping systems even if they contain a floating-point processor.
When used with HDL Coder™, Fixed-Point Designer lets you generate bit-true synthesizable Verilog® and VHDL® code from Simulink models, Stateflow® charts, and MATLAB Function blocks.
Model for High Performance Code
Incorporate MATLAB Code
- Control Data Types and Generate Code with MATLAB Function Block
Use data type override and
fimathobjects with the MATLAB Function block.
- Generate Fixed-Point FIR Code Using MATLAB Function Block
Create and generate code for a fixed-point, low-pass, direct form FIR filter.
Use the Model Advisor
Customize Generated Code
- Control the Generation of Fixed-Point Utility Functions

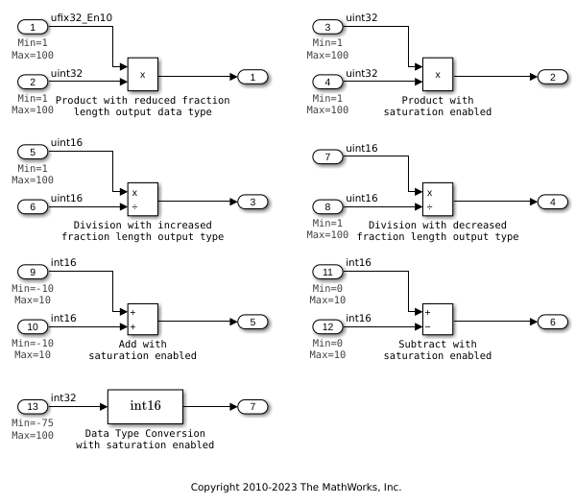

Control the generation of fixed-point utility functions using specified minimum and maximum values.
Maintain Standard Compliance
- Use of Shifts by C Code Generation Products
Understand the use of shifts by MathWorks® coder products including how to control the shifts using optimization settings in the configuration parameters as well as modeling techniques.
Data types supported for simulation and code generation.
