# intrinsicToWorld

Convert from intrinsic to world coordinates

## Syntax

## Description

`[`

maps points from the 2-D intrinsic system
(`xWorld`

, `yWorld`

] = intrinsicToWorld(`R`

,`xIntrinsic`

,`yIntrinsic`

)`xIntrinsic`

,`yIntrinsic`

) to the 2-D
world system (`xWorld`

,`yWorld`

) based on
the relationship defined by 2-D spatial referencing object
`R`

.

If the *k*th input coordinates
(`xIntrinsic`

(*k*),`yIntrinsic`

(*k*))
fall outside the image bounds in the intrinsic coordinate system,
`intrinsicToWorld`

extrapolates
`xWorld`

(*k*) and
`yWorld`

(*k*) outside the image bounds
in the world coordinate system.

`[`

maps points from the intrinsic coordinate system to the world coordinate system
using 3-D spatial referencing object `xWorld`

, `yWorld`

, `zWorld`

] = intrinsicToWorld(`R`

,`xIntrinsic`

,`yIntrinsic`

,`zIntrinsic`

)`R`

.

## Examples

### Convert 2-D Intrinsic Coordinates to World Coordinates

Read a 2-D grayscale image into the workspace.

```
m = dicominfo('knee1.dcm');
A = dicomread(m);
```

Create an `imref2d`

object, specifying the size and the resolution of the pixels. The DICOM file contains a metadata field `PixelSpacing`

that specifies the image resolution in each dimension in millimeters per pixel.

RA = imref2d(size(A),m.PixelSpacing(2),m.PixelSpacing(1))

RA = imref2d with properties: XWorldLimits: [0.1562 160.1562] YWorldLimits: [0.1562 160.1562] ImageSize: [512 512] PixelExtentInWorldX: 0.3125 PixelExtentInWorldY: 0.3125 ImageExtentInWorldX: 160 ImageExtentInWorldY: 160 XIntrinsicLimits: [0.5000 512.5000] YIntrinsicLimits: [0.5000 512.5000]

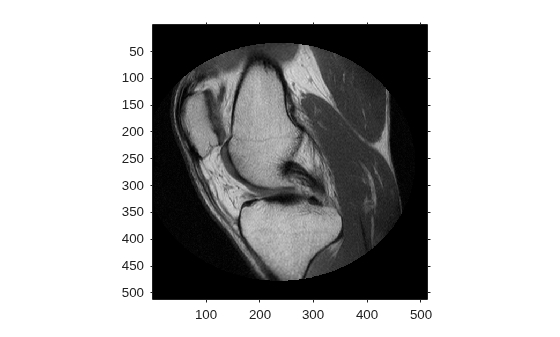

Display the image, omitting the spatial referencing object. The axes coordinates reflect the intrinsic coordinates. Notice that the coordinate (0,0) is in the upper left corner.

figure imshow(A,'DisplayRange',[0 512]) axis on

Suppose you want to calculate the approximate position and width of the knee in millimeters. Select the endpoints of a line segment that runs horizontally across the knee at the level of the kneecap. For example, use the (*x*,*y*) points (34,172) and (442,172).

xIntrinsic = [34 442]; yIntrinsic = [172 172];

Convert these points from intrinsic coordinates to world coordinates.

[xWorld,yWorld] = intrinsicToWorld(RA,xIntrinsic,yIntrinsic)

`xWorld = `*1×2*
10.6250 138.1250

`yWorld = `*1×2*
53.7500 53.7500

The world coordinates of the two points are (10.625,53.75) and (138.125,53.75), in units of millimeters. The approximate width of the knee in millimeters is:

width = xWorld(2) - xWorld(1)

width = 127.5000

### Convert 3-D Intrinsic Coordinates to World Coordinates

Read a 3-D volume into the workspace. This image consists of 27 frames of 128-by-128 pixel images.

```
load mri;
D = squeeze(D);
D = ind2gray(D,map);
```

Create an `imref3d`

spatial referencing object associated with the volume. For illustrative purposes, provide a pixel resolution in each dimension. The resolution is in millimeters per pixel.

R = imref3d(size(D),2,2,4)

R = imref3d with properties: XWorldLimits: [1 257] YWorldLimits: [1 257] ZWorldLimits: [2 110] ImageSize: [128 128 27] PixelExtentInWorldX: 2 PixelExtentInWorldY: 2 PixelExtentInWorldZ: 4 ImageExtentInWorldX: 256 ImageExtentInWorldY: 256 ImageExtentInWorldZ: 108 XIntrinsicLimits: [0.5000 128.5000] YIntrinsicLimits: [0.5000 128.5000] ZIntrinsicLimits: [0.5000 27.5000]

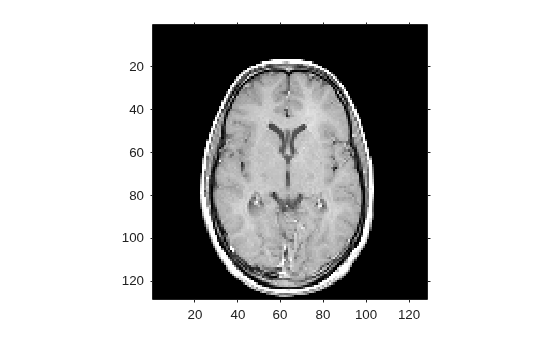

Display the middle slice of the volume, omitting the spatial referencing object. The axes coordinates reflect the intrinsic coordinates. Notice that the coordinate (0,0) is in the upper left corner of this plane. *z*=0 is right below the first slice, and the *z*-axis is positive in the upward direction, towards the crown of the head.

```
figure
imshow(D(:,:,13))
axis on
```

Suppose you want to determine the position, in millimeters, of features within this slice. Select four sample points, and store their intrinsic coordinates in vectors. For example, the first point has intrinsic coordinates (54,46,13). The intrinsic *z*-coordinate is the same for all points within this slice.

xI = [54 71 57 70]; yI = [46 48 79 80]; zI = [13 13 13 13];

Convert the intrinsic coordinates to world coordinates using `intrinsicToWorld`

.

[xW,yW,zW] = intrinsicToWorld(R,xI,yI,zI)

`xW = `*1×4*
108 142 114 140

`yW = `*1×4*
92 96 158 160

`zW = `*1×4*
52 52 52 52

The resulting vectors are the world *x*-, *y*-, and *z*-coordinates, in millimeters, of the selected points. The first point, for example, is offset from the origin by 108mm in the *x*-direction, 92 mm in the *y*-direction, and 52 mm in the z-direction.

## Input Arguments

`xIntrinsic`

— Coordinates along the *x*-dimension in the intrinsic coordinate system

numeric scalar or vector

Coordinates along the *x*-dimension in the intrinsic
coordinate system, specified as a numeric scalar or vector.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

`yIntrinsic`

— Coordinates along the *y*-dimension in the intrinsic coordinate system

numeric scalar or vector

Coordinates along the *y*-dimension in the intrinsic
coordinate system, specified as a numeric scalar or vector.
`yIntrinsic`

is the same length as
`xIntrinsic`

.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

`zIntrinsic`

— Coordinates along the *z*-dimension in the intrinsic coordinate system

numeric scalar or vector

Coordinates along the *z*-dimension in the intrinsic
coordinate system, specified as a numeric scalar or vector.
`zIntrinsic`

is the same length as
`xIntrinsic`

.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

## Output Arguments

`xWorld`

— Coordinates along the *x*-dimension in the world coordinate system

numeric scalar or vector

Coordinates along the *x*-dimension in the world
coordinate system, returned as a numeric scalar or vector.
`xWorld`

is the same length as
`xIntrinsic`

.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

`yWorld`

— Coordinates along the *y*-dimension in the world coordinate system

numeric scalar or vector

Coordinates along the *y*-dimension in the world
coordinate system, returned as a numeric scalar or vector.
`yWorld`

is the same length as
`xIntrinsic`

.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

`zWorld`

— Coordinates along the *z*-dimension in the world coordinate system

numeric scalar or vector

Coordinates along the *z*-dimension in the world
coordinate system, returned as a numeric scalar or vector.
`zWorld`

is the same length as
`xIntrinsic`

.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `int64`

| `uint8`

| `uint16`

| `uint32`

| `uint64`

## Version History

**Introduced in R2013a**
