# strel

Morphological structuring element

## Description

A `strel` object represents a flat morphological structuring element, which is an essential part of morphological dilation and erosion operations.

A flat structuring element is a binary valued neighborhood, either 2-D or multidimensional, in which the `true` pixels are included in the morphological computation, and the `false` pixels are not. The center pixel of the structuring element, called the origin, identifies the pixel in the image being processed. Use the `strel` function (described below) to create a flat structuring element. You can use flat structuring elements with both binary and grayscale images. The following figure illustrates a flat structuring element.

To create a nonflat structuring element, use `offsetstrel`.

## Creation

### Syntax

``SE = strel(nhood)``
``SE = strel("diamond",r)``
``SE = strel("disk",r)``
``SE = strel("disk",r,n)``
``SE = strel("octagon",r)``
``SE = strel("line",len,deg)``
``SE = strel("rectangle",[m n])``
``SE = strel("square",w)``
``SE = strel("cube",w)``
``SE = strel("cuboid",[m n p])``
``SE = strel("sphere",r)``

### Description

#### Arbitrary Neighborhood Shape

````SE = strel(nhood)` creates a flat structuring element with specified neighborhood `nhood`.```

#### 2-D Geometric Neighborhood Shapes

````SE = strel("diamond",r)` creates a diamond-shaped structuring element, where `r` specifies the distance from the structuring element origin to the points of the diamond.```
````SE = strel("disk",r)` creates a disk-shaped structuring element, where `r` specifies the radius.```

example

````SE = strel("disk",r,n)` creates a disk-shaped structuring element, where `r` specifies the radius and `n` specifies the number of line structuring elements used to approximate the disk shape. Morphological operations run much faster when the structuring element uses approximations.```
````SE = strel("octagon",r)` creates an octagonal structuring element, where `r` specifies the distance from the structuring element origin to the sides of the octagon, as measured along the horizontal and vertical axes. `r` must be a nonnegative multiple of 3.```
````SE = strel("line",len,deg)` creates a linear structuring element that is symmetric with respect to the neighborhood center, with approximate length `len` and angle `deg`.```

example

````SE = strel("rectangle",[m n])` creates a rectangular structuring element of size m-by-n.```
````SE = strel("square",w)` creates a square structuring element whose width is `w` pixels.```

example

#### 3-D Geometric Neighborhood Shapes

````SE = strel("cube",w)` creates a 3-D cubic structuring element whose width is `w` pixels.```
````SE = strel("cuboid",[m n p])` creates a 3-D cuboidal structuring element of size m-by-n-by-p pixels. ```
````SE = strel("sphere",r)` creates a 3-D spherical structuring element whose radius is `r` pixels.```

example

Compatibility

The following syntaxes still work, but `offsetstrel` is the preferred way to create these nonflat structuring element shapes:

• `SE = strel("arbitrary",nhood,h)`, where `h` is a matrix of the same size as `nhood` containing the height values associated with each nonzero element of `nhood`.

• `SE = strel("ball",r,h,n)`

### Input Arguments

expand all

Neighborhood, specified as numeric array of any dimension. All nonzero pixels of `nhood` belong to the neighborhood for the morphological operation. The center (or origin) of `nhood` is its center element, given by `floor((size(nhood) + 1)/2)`.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64` | `logical`

Radius of the structuring element, specified as a positive integer.

• For the disk shape, `r` is the distance from the origin to the edge of the disk.

• For the diamond shape, `r` is the distance from the structuring element origin to the points of the diamond.

• For the octagon shape, `r` is the distance from the structuring element origin to the sides of the octagon, as measured along the horizontal and vertical axes. `r` must be a multiple of 3.

• For the sphere shape, `r` is the distance from the origin to the edge of the sphere.

Data Types: `double`

Number of periodic line structuring elements used to approximate shape, specified as `0`, `4`, `6`, or `8`. Morphological operations using disk approximations run much faster when the structuring element uses approximations (`n` > 0).

Value of nBehavior
`n` > 0`strel` uses a sequence of `n` periodic line-shaped structuring elements to approximate the shape. Sometimes `strel` must use two extra line structuring elements in the approximation, in which case the actual number of decomposed structuring elements is `n+2`.
`n` = 0`strel` does not use any approximation. The structuring element members comprise all pixels whose centers are no greater than `r` away from the origin.

Data Types: `double`

Length of linear structuring element, specified as a positive number. `len` is approximately the distance between the centers of the structuring element members at opposite ends of the line.

Data Types: `double`

Angle of linear structuring element, in degrees, specified as numeric scalar. The angle is measured in a counterclockwise direction from the horizontal axis.

Data Types: `double`

Size of rectangular structuring element, specified as a 2-element vector of positive integers. The structuring element has m rows and n columns.

Data Types: `double`

Width of square or cubic structuring element, specified as a positive integer.

Data Types: `double`

Size of cuboidal structuring element, specified as a 3-element vector of positive integers. The structuring element has m rows, n columns, and p planes.

Data Types: `double`

## Properties

expand all

Structuring element neighborhood, specified as a logical array.

Data Types: `logical`

Dimensions of structuring element, specified as a nonnegative scalar.

Data Types: `double`

## Object Functions

 `imdilate` Dilate image `imerode` Erode image `imclose` Morphologically close image `imopen` Morphologically open image `imbothat` Bottom-hat filtering `imtophat` Top-hat filtering `bwhitmiss` Binary hit-miss operation
 `decompose` Return sequence of decomposed structuring elements `reflect` Reflect structuring element `translate` Translate structuring element

## Examples

collapse all

Create an 11-by-11 square structuring element.

`SE = strel('square', 11)`
```SE = strel is a square shaped structuring element with properties: Neighborhood: [11x11 logical] Dimensionality: 2 ```

Create a line-shaped structuring element with a length of 10 at an angle of 45 degrees.

`SE = strel('line', 10, 45)`
```SE = strel is a line shaped structuring element with properties: Neighborhood: [7x7 logical] Dimensionality: 2 ```

View the structuring element.

`SE.Neighborhood`
```ans = 7x7 logical array 0 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 0 1 0 0 0 0 0 0 ```

Create a disk-shaped structuring element with a radius of 15.

`SE3 = strel('disk', 15)`

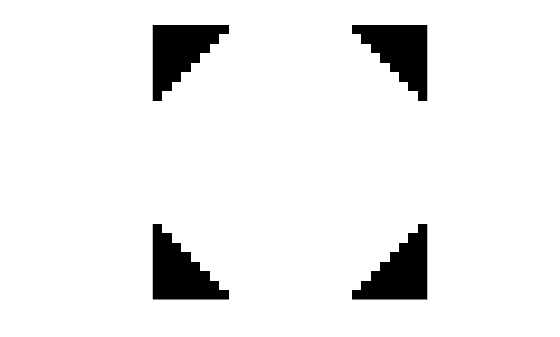

```SE3 = strel is a disk shaped structuring element with properties: Neighborhood: [29x29 logical] Dimensionality: 2 ```

Display the disk-shaped structuring element.

```figure imshow(SE3.Neighborhood)```

Create a 3-D sphere-shaped structuring element with a radius of 15.

`SE = strel('sphere', 15)`
```SE = strel is a sphere shaped structuring element with properties: Neighborhood: [31x31x31 logical] Dimensionality: 3 ```

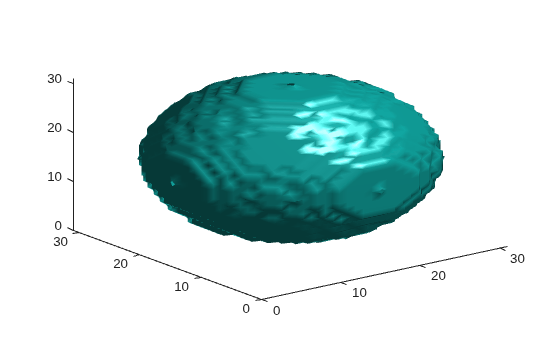

Display the structuring element.

```figure isosurface(SE.Neighborhood)```

## Tips

• Structuring elements that do not use approximations (`n` = 0) are not suitable for computing granulometries.

## Algorithms

For all of the geometrical shapes, structuring elements are constructed using a family of techniques known collectively as structuring element decomposition. The principle is that dilation by some large structuring elements can be computed faster by dilation with a sequence of smaller structuring elements. For example, dilation by an 11-by-11 square structuring element can be accomplished by dilating first with a 1-by-11 structuring element and then with an 11-by-1 structuring element. This results in a theoretical performance improvement of a factor of 5.5, although in practice the actual performance improvement is somewhat less. Structuring element decompositions used for the `"disk"` shape is an approximations—all other decompositions are exact.

## References

[1] van den Boomgard, R, and R. van Balen, "Methods for Fast Morphological Image Transforms Using Bitmapped Images," Computer Vision, Graphics, and Image Processing: Graphical Models and Image Processing, Vol. 54, Number 3, pp. 252–254, May 1992.

[2] Adams, R., "Radial Decomposition of Discs and Spheres," Computer Vision, Graphics, and Image Processing: Graphical Models and Image Processing, Vol. 55, Number 5, pp. 325–332, September 1993.

[3] Jones, R., and P. Soille, "Periodic lines: Definition, cascades, and application to granulometrie," Pattern Recognition Letters, Vol. 17, pp. 1057–1063, 1996.
