projectLidarPointsOnImage

Project lidar point cloud data onto image coordinate frame

Description

example

imPts = projectLidarPointsOnImage(ptCloudIn,intrinsics,tform) projects lidar point cloud data onto an image coordinate frame using a rigid transformation between the lidar sensor and camera, tform, and a set of camera intrinsic parameters, intrinsics. The output imPts contains the 2-D coordinates of the projected points in the image frame.

imPts = projectLidarPointsOnImage(worldPoints,intrinsics,tform) projects lidar points, specified as 3-D coordinates in the world frame, onto image coordinate frame.

[imPts,indices] = projectLidarPointsOnImage(___) returns the linear indices of the projected points in the point cloud using any combination of input arguments in previous syntaxes.

[___] = projectLidarPointsOnImage(___,Name,Value) specifies options using one or more name-value pair arguments in addition to any combination of arguments in previous syntaxes. For example, 'ImageSize',[250 400] sets the size of the image on which to project the points to 250-by-400 pixels.

Examples

collapse all

Load ground truth data from a MAT-file into the workspace. Extract the image and point cloud data from the ground truth data.

dataPath = fullfile(toolboxdir('lidar'),'lidardata','lcc','sampleColoredPtCloud.mat');
gt  = load(dataPath);
img = gt.im;
pc = gt.ptCloud;

Extract the camera intrinsic parameters from the ground truth data.

intrinsics = gt.camParams;

Extract the camera to lidar transformation matrix from the ground truth data, and invert to find the lidar to camera transformation matrix.

tform = invert(gt.tform);

Downsample the point cloud data.

p1 = pcdownsample(pc,'gridAverage',0.5);

Project the point cloud onto the image frame.

imPts = projectLidarPointsOnImage(p1,intrinsics,tform);

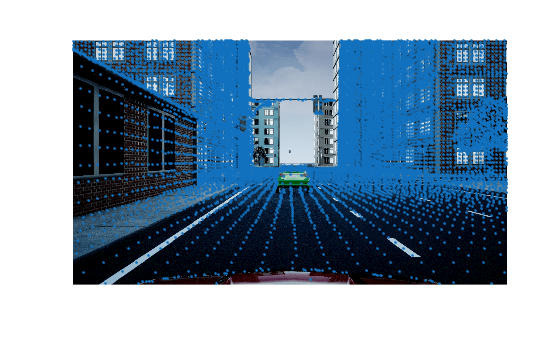

Overlay the projected points on the image.

figure
imshow(img)
hold on
plot(imPts(:,1),imPts(:,2),'.','Color','r')
hold off

Input Arguments

collapse all

Point cloud, specified as a pointCloud object.

Points in the world coordinate frame, specified as an M-by-3 matrix or M-by-N-by-3 array. If you specify an M-by-3 matrix, each row contains 3-D world coordinates of a point in an unorganized point cloud that contains M points in total. If you specify an M-by-N-by-3 array, M and N represent the number of rows and columns, respectively, in an organized point cloud. Each channel of the array contains the 3-D world coordinates of that point.

Data Types: single | double

Camera intrinsic parameters, specified as a cameraIntrinsics object.

Lidar to camera rigid transformation, specified as a rigid3d object.

Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: 'ImageSize',[250 400] sets the size of the image on which to project the points to 250-by-400 pixels.

Indices selected for projection onto image coordinate frame, specified as the comma-separated pair consisting of 'Indices' and a vector of positive integers.

Data Types: single | double

Size of the image on which the points are projected, specified as the comma-separated pair consisting of 'ImageSize' and a two-element row vector of the form [width height] in pixels. The function uses the specified dimensions to filter out the projected points that are not in the field of view of the camera.

If you do no specify the'ImageSize' argument, then the function uses the optical center coordinates from the camera intrinsic parameters intrinsics to estimate the field of view of the camera. The optical center coordinates are of the form [Cx Cy] where Cx and Cy represent the x- and y-axis coordinates of the optical center, respectively, in pixels.

Note

If you specify an 'ImageSize' argument greater than the default argument, then the function uses the default argument.

Data Types: single | double

Output Arguments

collapse all

Points projected on image, returned as an M-by-2 matrix. Each row contains the 2-D coordinates, in the form [x y], a point in the image frame.

Data Types: single | double

Linear indices of the projected points of the point cloud, returned as a vector of positive integers.

Data Types: single | double
