# rotate

Rotate surface mesh

Since R2022b

## Syntax

``rotate(mesh,"rotmat",rotMatrix)``
``rotate(mesh,"euler",E,rotSequence)``
``rotate(mesh,"quaternion",quat)``
``rotate(___,pivot)``

## Description

````rotate(mesh,"rotmat",rotMatrix)` rotates the surface mesh `mesh` around its origin by the values specified in the rotation matrix `rotMatrix`.```

example

````rotate(mesh,"euler",E,rotSequence)` rotates the surface mesh `mesh` around its origin using the Euler angles specified by the Euler vector `E` in the sequence of rotation `rotSequence`.```

example

````rotate(mesh,"quaternion",quat)` rotates the surface mesh `mesh` around its origin using the values specified by the quaternion array `quat`.```

example

````rotate(___,pivot)` specifies a pivot point around which to rotate the surface mesh, in addition to any combination of input arguments from the previous syntaxes.```

## Examples

collapse all

Define mesh vertices for a surface mesh.

```vertices = [1 -1 1; 1 1 1; -1 1 1; -1 -1 1; ... 1 -1 -1; 1 1 -1; -1 1 -1; -1 -1 -1];```

Define the mesh faces using the vertices.

```faces = [6 2 1; 1 5 6; 8 4 3; 3 7 8; 6 7 3; 3 2 6; ... 5 1 4; 4 8 5; 4 1 2; 2 3 4; 7 6 5; 5 8 7];```

Create and display the surface mesh.

```mesh = surfaceMesh(vertices,faces); surfaceMeshShow(mesh,Title="Original Mesh")```

Define the Euler angles and rotation sequence for rotating the surface mesh about the z-axis by 30 degrees.

```eulerAngles = [30 0 0]; rotSequence = "ZYX";```

Rotate the surface mesh and display the output.

```rotate(mesh,"euler",eulerAngles,rotSequence) surfaceMeshShow(mesh,Title="Rotated Mesh")```

Define mesh vertices for a surface mesh.

```vertices = [1 -1 1; 1 1 1; -1 1 1; -1 -1 1; ... 1 -1 -1; 1 1 -1; -1 1 -1; -1 -1 -1];```

Define the mesh faces using the vertices.

```faces = [6 2 1; 1 5 6; 8 4 3; 3 7 8; 6 7 3; 3 2 6; ... 5 1 4; 4 8 5; 4 1 2; 2 3 4; 7 6 5; 5 8 7];```

Create and display the surface mesh.

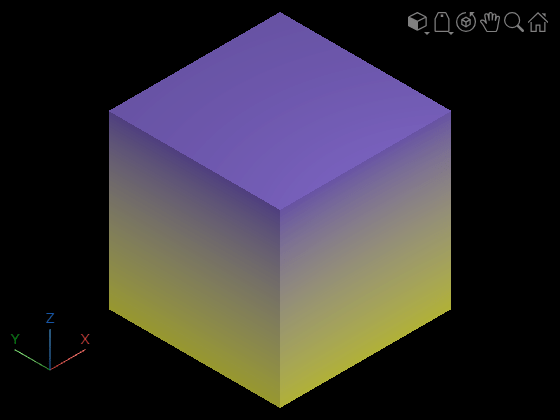

```mesh = surfaceMesh(vertices,faces); surfaceMeshShow(mesh,Title="Original Mesh")```

Define the quaternion array for rotatating the surface mesh about the y-axis by 60 degrees,

```eulerAngles = [60 0 0]; quat = quaternion(eulerAngles,'eulerd','YZX','point');```

Rotate surface mesh and display the output.

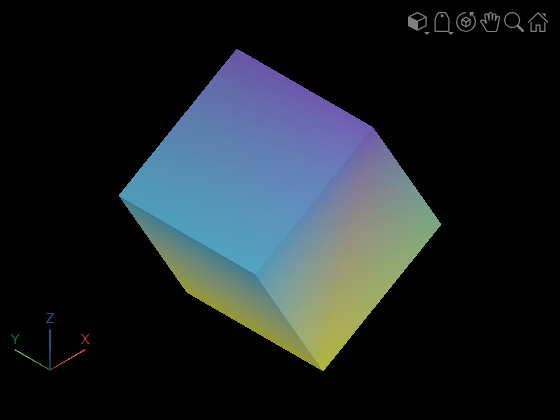

```rotate(mesh,"quaternion",quat); surfaceMeshShow(mesh,Title="Rotated Mesh")```

Define mesh vertices for a surface mesh.

```vertices = [1 -1 1; 1 1 1; -1 1 1; -1 -1 1; ... 1 -1 -1; 1 1 -1; -1 1 -1; -1 -1 -1];```

Define the mesh faces using the vertices.

```faces = [6 2 1; 1 5 6; 8 4 3; 3 7 8; 6 7 3; 3 2 6; ... 5 1 4; 4 8 5; 4 1 2; 2 3 4; 7 6 5; 5 8 7];```

Create and display the surface mesh.

```mesh = surfaceMesh(vertices,faces); surfaceMeshShow(mesh,Title="Original Mesh")```

Define the pivot point for rotation.

`pivot = [-1 -1 0];`

Define a rotation matrix for rotating the surface mesh by 45 degrees about the z-axis.

```rotMatrix = [cosd(45) -sind(45) 0; sind(45) cosd(45) 0; 0 0 1];```

Rotate the surface mesh about the pivot point and display the rotated mesh.

```rotate(mesh,"rotmat",rotMatrix,pivot); surfaceMeshShow(mesh,Title="Rotated Mesh");```

## Input Arguments

collapse all

Surface mesh, specified as a `surfaceMesh` object.

Rotation matrix, specified as a 3-by-3 matrix.

Euler angles, specified as a three-element vector. The values of the vector are in degrees.

Data Types: `single` | `double` | `int8` | `int16` | `int32` | `int64` | `uint8` | `uint16` | `uint32` | `uint64`

Sequence of rotation, specified as a character vector or string scalar. You can specify one of these options.

• `"YZY"`

• `"YXY"`

• `"ZYZ"`

• `"ZXZ"`

• `"XYX"`

• `"XZX"`

• `"XYZ"`

• `"YZX"`

• `"ZXY"`

• `"XZY"`

• `"ZYX"`

• `"YXZ"`

For example, when you specify the sequence as `"YZX"`, the function first rotates the mesh about the y-axis, then the about new z-axis, followed by the new x-axis. `E` defines the angles of rotation.

Data Types: `char` | `string`

Quaternion array for 3-D axes rotation, specified as a `quaternion` (Sensor Fusion and Tracking Toolbox) object.

Pivot point about which to rotate the mesh, specified as a three-element vector. The values of the vector specify the x-, y-, and z-coordinates of the pivot point. The function first shifts the origin to the pivot point, then rotates the mesh, and lastly shifts the origin back to the original position.

## Version History

Introduced in R2022b
