# egm96geoid

Geoid height from Earth Gravitational Model 1996 (EGM96)

**Syntaxes of the egm96geoid function that return referencing vectors
have been removed. Use a syntax that returns a reference object instead. For more information,
see Compatibility Considerations.**

## Description

returns the height in meters of the geoid at the specified latitude and longitude from the
Earth Gravitational Model of 1996 (EGM96). Specify latitude and
longitude in degrees.`N`

= egm96geoid(`lat`

,`lon`

)

`[`

returns geoid heights for the entire globe as a 721-by-1441 matrix spaced at 15-minute
intervals with latitude limits `N`

,`globalR`

] = egm96geoid`[-90 90]`

and longitude limits
`[0 360]`

. The function also returns a geographic postings reference
object that contains spatial referencing information for the geoid heights.

## Examples

### Geoid Height from Latitude and Longitude

Find geoid heights from EGM96 by specifying latitude and longitude values in degrees. The result is returned in meters.

lat = 27.988056; lon = 86.925278; N = egm96geoid(lat,lon)

N = -28.7444

### Geoid Heights within Limits

View geoid heights from EGM96 for an area including Europe.

First, create a `GeographicPostingsReference`

object. Specify the latitude and longitude limits of the area in degrees. Specify the raster size as the number of rows and columns for the grid of geoid heights. Then, return the grid of geoid heights for the area by calling `egm96geoid`

on the reference object.

latlim = [35 72]; lonlim = [-12 51]; rasterSize = [100 100]; R = georefpostings(latlim,lonlim,rasterSize); N = egm96geoid(R);

Note that the size of `N`

matches the raster size of `R`

.

size(N)

`ans = `*1×2*
100 100

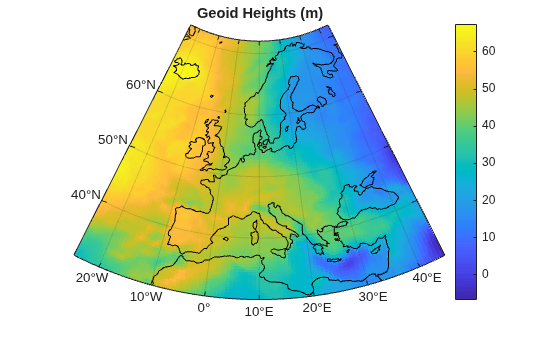

Load coastline latitude and longitude data into the workspace. Then, plot the geoid height and coastline data on a map.

load coastlines worldmap(latlim,lonlim) geoshow(N,R,'DisplayType','surface') geoshow(coastlat,coastlon,'Color','k')

### Geoid Heights for Entire Globe

View geoid heights from EGM96 for the entire globe.

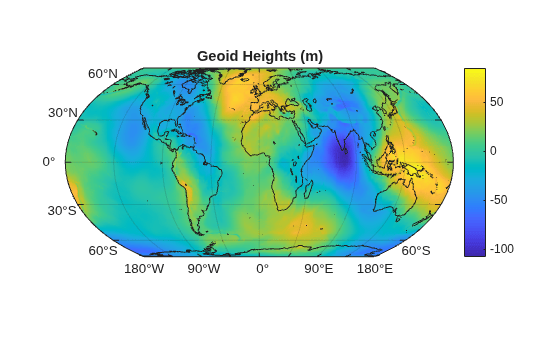

First, return the geoid heights and a referencing object for the globe. The geoid heights are spaced at 15-minute intervals. Load coastline latitude and longitude data into the workspace. Then, plot the geoid heights and coastline data on a world map.

[N,R] = egm96geoid; load coastlines worldmap('World') geoshow(N,R,'DisplayType','surface') geoshow(coastlat,coastlon,'Color','k')

## Input Arguments

`lat`

— Latitude

scalar | vector | matrix

Latitude in degrees, specified as a scalar, vector, or matrix. The dimension of
`lat`

depends on the dimension of the geoid heights you want to find.

To find a single geoid height, specify

`lat`

and`lon`

as scalars.To find several geoid heights, specify

`lat`

and`lon`

as vectors of the same length.To find a

*p*-by-*q*grid of geoid heights, specify`lat`

and`lon`

as*p*-by-*q*matrices.

**Data Types: **`single`

| `double`

`lon`

— Longitude

scalar | vector | matrix

Longitude in degrees, specified as a scalar, vector, or matrix. The dimension of
`lon`

depends on the dimension of the geoid heights you want to find.

To find a single geoid height, specify

`lat`

and`lon`

as scalars.To find several geoid heights, specify

`lat`

and`lon`

as vectors of the same length.To find a

*p*-by-*q*grid of geoid heights, specify`lat`

and`lon`

as*p*-by-*q*matrices.

**Data Types: **`single`

| `double`

`R`

— Geographic reference

`GeographicPostingsReference`

object | `GeographicCellsReference`

object

Geographic reference, specified as a `GeographicPostingsReference`

object or a `GeographicCellsReference`

object that contains geospatial
referencing information for `N`

. The `RasterSize`

property of the geographic reference object determines the size of the data grid,
`size(N)`

.

## Output Arguments

`globalR`

— Geographic reference

`GeographicPostingsReference`

object

Geographic reference, returned as a `GeographicPostingsReference`

object of size 721-by-1441 with latitude limits `[-90 90]`

and
longitude limits `[0 360]`

.

## More About

### Earth Gravitational Model of 1996 (EGM96)

The *geoid* is an equipotential surface of the
Earth's gravity field that approximates global mean sea level. You can visualize the geoid
as the surface of the ocean without effects such as weather, waves, and land. The Earth
Gravitational Model of 1996 (EGM96) is based on the ellipsoid specified by the World
Geodetic System of 1984 (WGS84), so the `egm96geoid`

function returns
heights above or below the surface of the WGS84 ellipsoid.

## Version History

**Introduced before R2006a**

### R2023b: Syntaxes that return referencing vectors have been removed

Syntaxes of the `egm96geoid`

function that return referencing vectors
have been removed. Use a syntax that returns a geographic raster reference object instead.
Reference objects have several advantages over referencing vectors.

Unlike referencing vectors, reference objects have properties that document the size of the associated raster, its geographic limits, and the direction of its rows and columns. For more information about reference object properties, see the

`GeographicCellsReference`

and`GeographicPostingsReference`

objects.You can manipulate the limits of rasters associated with reference objects using the

`geocrop`

function.You can manipulate the size and resolution of rasters associated with reference objects using the

`georesize`

function.Most functions that accept referencing vectors as inputs also accept reference objects.

This table shows the syntaxes of the `egm96geoid`

function that
return referencing vectors and how to update your code to use syntaxes that return reference
objects instead.

Removed | Recommended |
---|---|

[N,refvec] = egm96geoid(samplefactor); |
[~,globalR] = egm96geoid; latlim = globalR.LatitudeLimits; lonlim = globalR.LongitudeLimits; globalSize = globalR.RasterSize; rasterSize = 1 + ceil((globalSize-1)/samplefactor); R = georefpostings(latlim,lonlim,rasterSize); N = egm96geoid(R); |

[N,refvec] = egm96geoid(samplefactor,latlim,lonlim); |
```
[~, globalR] = egm96geoid;
spacing = samplefactor ...
* globalR.SampleSpacingInLatitude;
R = georefpostings(latlim,lonlim,spacing,spacing);
N = egm96geoid(R);
``` |

### R2022a: Syntaxes that return referencing vectors warn

Syntaxes of the `egm96geoid`

function that return referencing vectors
issue a warning that they will be removed in a future release.

### R2020b: Syntaxes that return referencing vectors will be removed

Syntaxes of the `egm96geoid`

function that return referencing vectors
will be removed in a future release.

### R2020a: Return geoid heights referenced to geographic reference object

Return geoid heights from EGM96 that are referenced to a geographic raster reference
object. You can specify `GeographicCellsReference`

or
`GeographicPostingsReference`

objects, or return geoid heights and a
reference object for the entire globe spaced at 15-minute intervals.

### R2019b: Return geoid heights at specified latitudes and longitudes

Return geoid heights from EGM96 by specifying latitude and longitude in degrees. For example, find the geoid height at a latitude of 42.3601 degrees and a longitude of -71.589 degrees:

N = egm96geoid(42.3601,-71.589);

### R2019b: Improved performance

In previous releases, `egm96geoid`

accessed geoid heights using
`WW15MGH.GRD`

, a file that you downloaded from the Internet. Starting in
R2019b, a grid of geoid heights from EGM96 is included with Mapping Toolbox™, and `egm96geoid`

no longer reads data from
`WW15MGH.GRD`

.

As a result, the `egm96geoid`

function shows improved performance.
For example, this code shows about a 15x speed-up when you return the entire grid of geoid
heights:

function timingTest N = egm96geoid(1); end

The approximate execution times are:

**R2019a:**0.1838 s**R2019b:**0.0121 s

This code was timed on a Windows^{®} 10 test system with a 3.6-GHz Intel^{®}
Xeon^{®} W-2133 CPU using the `timeit`

function:

timeit(@timingTest)

## MATLAB Command

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
